MODEL NO.
851000109
851000110
851000319
851000320
851000321
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
IMPULSE JUICE DISPENSER
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
Rev A
1
IMPULSE JUICE POST–MIX
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
COIL AND CARBONATOR
COMPONENTS
(SEE FIGURE 3)
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
IMPULSE JUICE POST–MIX
FIGURE 1. IMPULSE GENERAL ASSEMBLY
Rev A
2
HOOD AND PANEL
COMPONENTS
(SEE FIGURE 2)
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
10
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
10
17
4
1
15
22
13
9
5
19 20
16
21
11
18
FIGURE 2. HOOD AND PANEL COMPONENTS
Item
No. Part No. Name
1 3320 Switch Key Lock
3321 Key Lock
2 850000261 Panel Side, Right
3 850000262 Panel Side, Left
4 850000323 Wrap Center
5 850000317 Panel Top Fnt
6 850000284 Screw SM 8 FLPH 16
7 850000259 Strip Blockoff
8 850000157 Housing
9 850000165 Cover Access
10 319941000 Screw TR 8-32 HXWS 12
11 188117000 Screw SM 8 TRPH 12
12 113500000 Tube Vinyl .500 I.D. (Sold by the
Foot)
2
6
8
6
7
12
1416
Item
No. Part No. Name
13 850000212 Merchndsr Housing 6-Flavor
850000339 Baffle Air Merch (Not Shown)
14 140135000 Clamp Hose
15 850000233 Panel Back
850000186 Decal Panel Back (Not Shown)
16 1971 Fitg L 1/2-Barb x 1/4-MPT
17 850000285 Clip
18 850000239 Drip Tray
19 850000444 Cup Rest
20 850000226 Panel Splash
21 650094 Tubg Vinyl .500 I.D. By 13-In. Long
22 859000133 Chassis Rfg Asy 120V 60HZ
(See Figure 5)
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
Rev A
3
IMPULSE JUICE POST–MIX
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
3
1
9
10
12
11
13
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
6
2
5
FIGURE 3. COIL AND CARBONATOR COMPONENTS
Item
No. Part No. Name
1 317015000 O-Ring .239 I.D.
2 850000368 Syrup Inlet Fitting
3 620407750 Manifold Wtr 6-Flavor
4 850000514 Water Coil 1 Val
5 850000155 Rack Coil
6 620717787 S Tube
7 620408246 Coil Main Water
8 850000535 Coil Plain Water 2 Val
7
8
4
Item
No. Part No. Name
9 850000134 Panel Val 6-Flavor
10 200468012 Sheet Metal Screw, Phil Truss Hd,
No. 8 by 3/4” long
11 560003072 Sheet Metal Screw, Phil Pan Hd,
No. 10 by 1” long
12 1919 Display Valve Mounting Block Assy
(See Manual No. 315222003)
13 561000124 Dispensing Valve Assy (See Manual
No. 315222003)
14 850000289 Wire Harness Valve
IMPULSE JUICE POST–MIX
Rev A
4
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
Item
No. Part No. Name
1 850000128 Platform Pump and Motor Ass’y
2 850000176 Insulation Platform
3 449999999 Transfrmr 120V 60HZ-24V
560002114 Transfrmr 220V 50HZ-24V
4 850000252 Insulation Platform
5 200468012 Screw SM 8 TRPH 24
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
3
2
4
5
1
FIGURE 4. PUMP AND MOTOR ASSEMBLY
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
Rev A
5
IMPULSE JUICE POST–MIX
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
AGITATOR MOTOR
COMPONENTS
(SEE FIGURE 8)
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
CONDENSER
COMPONENTS
(SEE FIGURE 7)
PLATFORM, COMPRESSOR
AND EVAPORATOR
COMPONENTS
(SEE FIGURE 6)
IMPULSE JUICE POST–MIX
FIGURE 5. CARBONATOR ASSEMBLY
Rev A
6
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
7
6
5
12
10
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
8
14
1
9
11

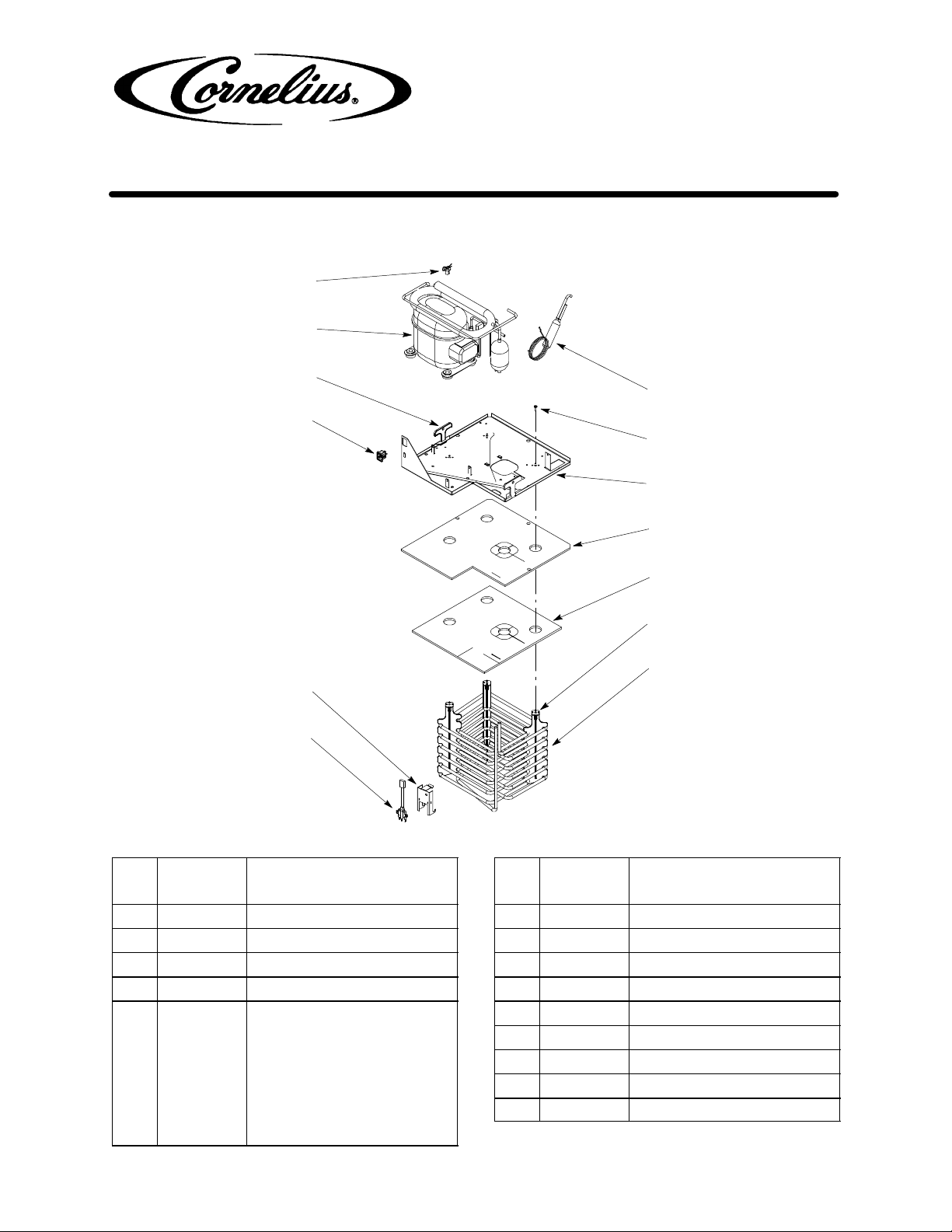

FIGURE 6. PLATFORM, COMPRESSOR AND EVAPORATOR COMPONENTS
Item
No. Part No. Name
1 850000498 Platform Rfg
2 850000347 Insulation Platform
3 850000101 Evap Coil
4 850000473 Spacer Coil Evap
5 569030017 Kit Comp 1/3 H.P. 120V 60HZ
569030018 Kit Comp 1/3 H.P. 220V 50HZ
560004354 Overld Comp 120V 60HZ
560004356 Overld Comp 230V 50HZ
560004355 Relay Start Comp 120V 60HZ
560004357 Relay Start Comp 230V 50HZ
2
13
4
3
Item
No. Part No. Name
6 317781000 Bushing Split Compressor Mounting
7 398034400 Pin Hitch
8 850000361 Dryer
9 850000163 Holder Probe
10 4345 Receptacle
11 560003860 Probe Ice Bank Control
12 4556 Handle
13 850000347 Insulation Platform
14 0010 Screw TT 10-14 PAPH 20
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
Rev A
7
IMPULSE JUICE POST–MIX
ILLUSTRATED PARTS LIST
IMPULSE DISPENSER
Item
No. Part No. Name
1 319941000 Screw TR 8-32 HXWS 12
2 309645000 Swt Rocker On-Off
3 449999972 Control Ice Bank 120V, 60HZ
449999973 Control Ice Bank 230V 50HZ
4 2782 Motor Fan 9W 120V 60HZ (Morril)
560003439 Motor Fan 9W 120V 60HZ (EBM)
2783 Motor Fan 9W 230V 50HZ (Morril)
560003440 Motor Fan 9W 230V 50HZ (EBM)
5 850000103 Cond Coil
6 850000138 Shroud Cond
7 850000229 Fan 5-Blade
8 850000241 Brkt Mtr Fan (Morril)
850000274 Brkt Mtr Cond (EBM)
9 850000281 Brkt Elec Board Mnt
10 850000280 Cover Elec Box
11 560001586 Support P.C. Board
12 850000283 Screw MA PAPH 8 (EBM)
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
2
1
11
6
1
9
11
3
10
5
7
4
8

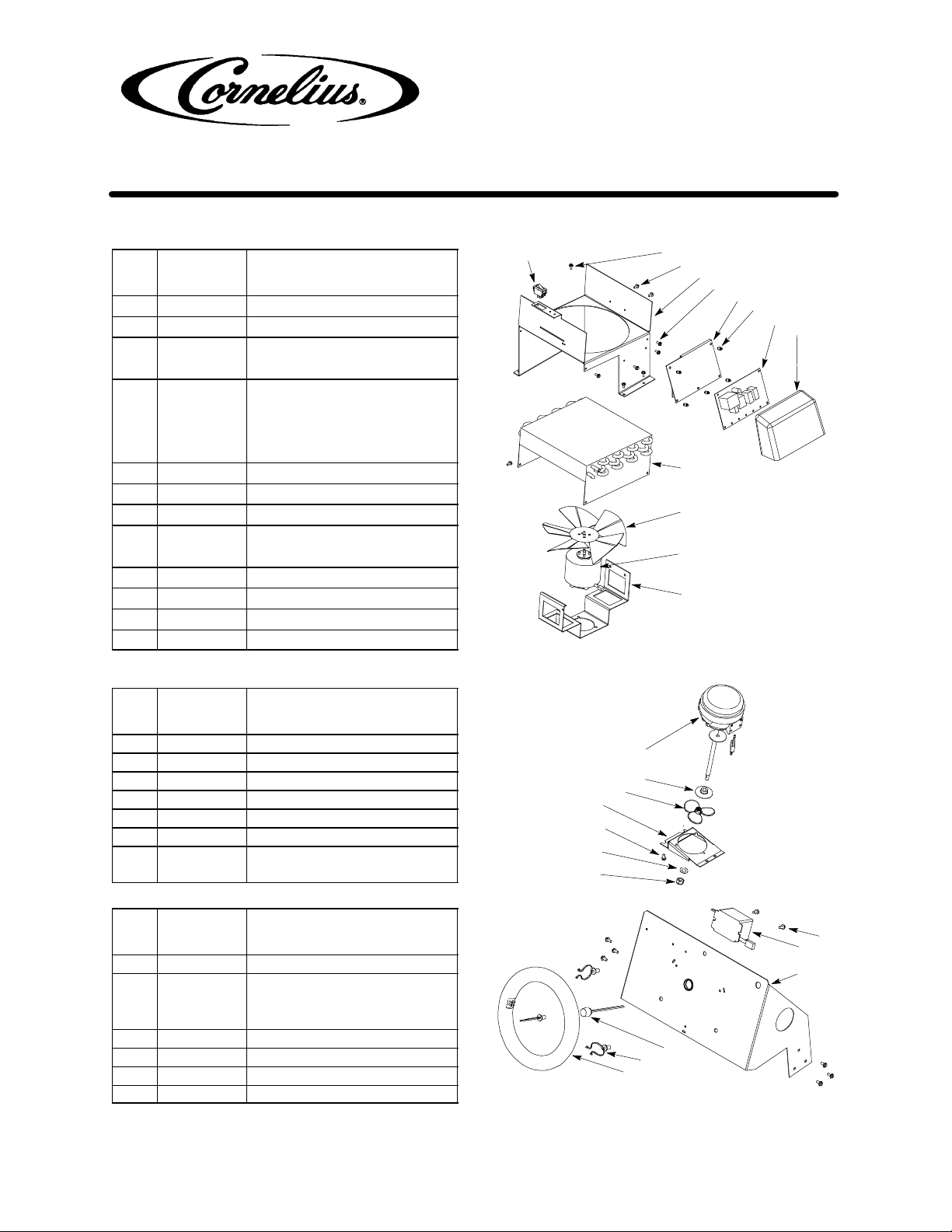

FIGURE 7. CONDENSER COMPONENTS
Item
No. Part No. Name
1 186116000 Nut Hex 1/4-20
2 186154000 Screw SE 8-36 PAPH 12
3 186216000 Blade Agit
4 186294000 Washer Lk .262 I.D.
5 186599000 Slinger Water
6 850000238 Brkt Mtr Agit
7 3454 Motor Agit 120V 60HZ
560002354 Motor Agit 230V 50HZ
FIGURE 8. AGITATOR MOTOR COMPONENTS
Item
No. Part No. Name
1 850000305 Brkt Light
2 300836000 Ballast Circlin 120V 60HZ
850000419 Ballast Circlin 230V 60HZ
850000357 Ballast Circlin 230V 50HZ
3 319941000 Screw TR 8-32 HXWS 12
4 3738 Swt Rotary On/Off
5 850000356 Tie Cable
6 2107 Bulb
7
5
3
6
2
4
1
3
2
1
4
5
6
IMPULSE JUICE POST–MIX
FIGURE 9. OPTIONAL LIGHT KIT
Rev A
8
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
ILLUSTRATED PARTS LIST
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303–6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
Manual Part No. 859000158IPL
12–15–03
EIMI Cornelius, Inc. 2003
Rev A
9
