PART NO.
561600127
561600128
561600129
561600130
561600142
561600143
561600144
561600145
561600146
561600147
561600148
561600149
561600150
561600151
561600152
561600153
561600154
561600155
561600156
561600157
561600158
561600159
561600160
561600161
561600162
561600163
561600164
561600165
561600166
561600167
IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
Vantage (Post–Mix)
1
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
11
8
1
IMI CORNELIUS INC.
www.cornelius.com
10
Item
No.
Part No. Name
1 560005043
560005370
560007522
2 4504 Panel Accs
3 560007334 Tank Asy
4 4537 Drip Tray
5 4547 Cup Rest
Chassis Rfg 120V 60Hz
Chassis Rfg 230V 60Hz
Chassis Rfg 230V 50Hz
(See Figure 3)
3
2
5
7
4
FIGURE 1. OUTSIDE COMPONENTS
Item
No.
Part No. Name
6 560007335 Wrap Rear S. Vantage
7 188117000 Screw SM 8 TRPH 12
8 200468012 Screw SM 8 TRPH 24
9* 560005375 Harn Wire 5-Flavor
10 4652 Tube Vinyl .375 I.D. (Sold by Foot)
11 186150000 Screw MA 8-32 PAPH 12
12* 560006131 Platform 2”
6
3
Manual Part No. 312031003IPL
January 30, 2006; Rev B
EIMI Cornelius Inc., 2004–2006
*= not shown
2
Vantage (Post–Mix)
ILLUSTRATED PARTS LIST
1
560007514
Panel Val 4 Flavor
620407755
Manifold Wtr 5-Flavor
620407756
Manifold Wtr 5-Fl
21
720302102
Coil Wtr Asy Integral and Remote
VANTAGE POST-MIX DISPENSER
316
IMI CORNELIUS INC.
www.cornelius.com
619
14
15
9
11
21
4
5
20
18
1
FIGURE 2. INTERNAL COMPONENTS
17
622
710
Item
No.
Vantage (Post–Mix)
Part No. Name
1 560007514 Panel Val 4-Flavor
560007327
2 720601327 Wate Tube In S Vantage Remote
3 560007307 Retainer Coil Integral and Remote
4 560007418 Coil Wtr #2 Vantage
5 560007325 Coil Wtr #1 Vantage
6 311304000 Gasket 3/8 Male Flare
7 560007332 Line St Coils to Check Valve
8 560007505 Tube Water In Vantage Remote
9 1919 Block Mtg Assy UF-1 (See Manual
10 178025200 Gasket 5/16 Male Flare Integral
11 188117000 Screw SM 8 TRPH 12
12 200468012 Screw SM 8 TRPH 24
Panel Val 5-Flavor
No. 315222003)
Item
No.
3
Part No. Name
13 317015000 O-Ring .239 I.D.
14 Dispensing Valve Assy UF-1
15 560003072 Screw TR 10-32 PAPH 32
16 560007337 Coil Water Outlet S Vantage
17 850000549 Carb Assy Integral (See Figure 9)
18 4629 Coil Syr Asy
19 720601328 Tube Water In S Vangate
20 620407754 Manifold Wtr 4-Flavor
620407755 Manifold Wtr 5-Flavor
-
22 77068200 Fitting T–SWV 5/8–18F
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
avor Juice
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
CONDENSER MOTOR COMPONENTS
SEE FIG 6
IMI CORNELIUS INC.
www.cornelius.com
AGITATOR MOTOR COMPONENTS
SEE FIG 5
PLATFORM COMPONENTS
SEE FIG 4
WATER PUMP AND
MOTOR COMPONENTS
SEE FIG 7
COMPRESSOR COMPONENTS
SEE FIG 8
WATER PUMP AND
MOTOR COMPONENTS
SEE FIG 7
CONDENSER MOTOR COMPONENTS
SEE FIG 6
FIGURE 3. VANTAGE POST-MIX REFRIGERATION ASSEMBLY
Manual Part No. 312031003IPL
January 30, 2006; Rev B
EIMI Cornelius Inc., 2004–2006
4
Vantage (Post–Mix)
ILLUSTRATED PARTS LIST
2
560002024
Insulation Platform Rfg Integral
9
449999999
Transfrmr 120-24V 50HZ 80VA
449999996
Transfrmr 208/240 24V 60HZ 80VA
11
4614
Board Circ Ice Bank 115V 60HZ
4615
Board Circ Ice Bank 230V 60HZ
VANTAGE POST-MIX DISPENSER
10
11
IMI CORNELIUS INC.
www.cornelius.com
3
6
6
9
1
9
12
3
7
6
2
13
8
4
5
Item
No.
23* 560005541 Cover Control
Vantage (Post–Mix)
Part No. Name
1 560004683 Platform Rfg
2 560002024 Insulation Platform Rfg Integral
560002074
3 4556 Handle
4 560001470 Holder Ice Bank Probe
5 4624 Bushing Snap
6 319941000 Screw TR 8-32 HXWS 12
7 0010 Screw TT 10-14 PAPH 20
FIGURE 4. VANTAGE PLATFORM COMPONENTS
Item
No.
Insulation Platform Rfg Remote
*= not shown
5
Part No. Name
8 2598 Probe Assy
449999996
560002114
10 4626 Board Circ Integral
4615
560002119
12 4608 Support P.C. Board
13 560001893 Evap Asy
Transfrmr 208/240-24V 60HZ 80VA
-
Transfrmr 230-24V 50HZ 80VA
Board Circ Ice Bank 230V 60HZ
Board Circ Ice Bank 230V 50HZ
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
IMI CORNELIUS INC.
www.cornelius.com
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
4
6
8
7
5
3
7
1
2
FIGURE 5. VANTAGE AGITATOR MOTOR COMPONENTS
Item
No.
Manual Part No. 312031003IPL
January 30, 2006; Rev B
EIMI Cornelius Inc., 2004–2006
Part No. Name
1 560004683 Platform Rfg
2 186154000 Screw SE 8-36 PAPH 12
3 186294000 Washer Lk .262 I.D.
4 314072000
314150000
Motor Agit 115V 60HZ
Motor Agit 230V 50/60HZ
Item
No.
6
Part No. Name
5 186216000 Blade Agit
6 186599000 Slinger Water
7 186116000 Nut Hex 1/4-20
8 319856004 Plate Heat Transfer
Vantage (Post–Mix)
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
2
7
IMI CORNELIUS INC.
www.cornelius.com
8
FIGURE 6. CONDENSER MOTOR COMPONENTS
Item
No.
Part No. Name
1 560004683 Platform Rfg
2 560004377 Cond Coil
3 560001885 Fan 5-Blade
4 560003439 Motor Fan 9W 120V 60HZ
560003440 Motor Fan 9W 230V 50/60HZ
1
3
4
6
5
6
Item
No.
Part No. Name
5 560004677 Bracket Motor Fan
6 319941000 Screw TR 8-32 HXWS 12
7 2737 Nut Speed No. 8-32
8 2601 Dryer
Vantage (Post–Mix)
7
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
10
5
IMI CORNELIUS INC.
www.cornelius.com
2
8
9
12
13
411
FIGURE 7. WATER PUMP AND MOTOR COMPONENTS
Item
No.
Part No. Name
1 2792 Capacitor Run 30 MFD
2 2170 Motor Pump 120V 60Hz Integral
3149 Motor Pump 1/4 230V 50/60Hz
1425 RPM
3 560005044 Line Flex Pump to Check Valve
4 560007501 Tube Conn. 375 Flex 18”
5 560004732 Bracket Capacitor
6 2477 Holder Capacitor
1
3
11
Item
No.
7* 319941000 Screw TR 8–32 HXWS
8 187483000 Clamp Pump and Motor Integral
9 312996000 Pump Water 100GPH Integral
10 560004711 Bracket Motor Pump
11 311304000 Gasket 3/8 Male Flare Integral
12 187502000 Fitg L 3/8-MPT x 7/16-20 Integral
13 361003200 Fitg L 3/8-MPT x 5/8-18 Integral
* = not shown
6
Part No. Name
Manual Part No. 312031003IPL
January 30, 2006; Rev B
EIMI Cornelius Inc., 2004–2006
8
Vantage (Post–Mix)
ILLUSTRATED PARTS LIST
14
2793
Capac Run 230V 50HZ Integral
VANTAGE POST-MIX DISPENSER
2348
57
610
IMI CORNELIUS INC.
www.cornelius.com
Item
No.
1 560007640 Platform Compr
2 3648 Kit Comp 1/3H.P. 120V 60HZ
3 3128 Relay Start 120V 60HZ
4 3127 Overld 120V 60HZ
5 189723000 Grommet Compr
6 187638000 Cover Term
7 317781000 Bushing Split
8 187637000 Spring Overload
9 398034400 Pin Hitch
10 187636000 Strap Bale
Vantage (Post–Mix)
9

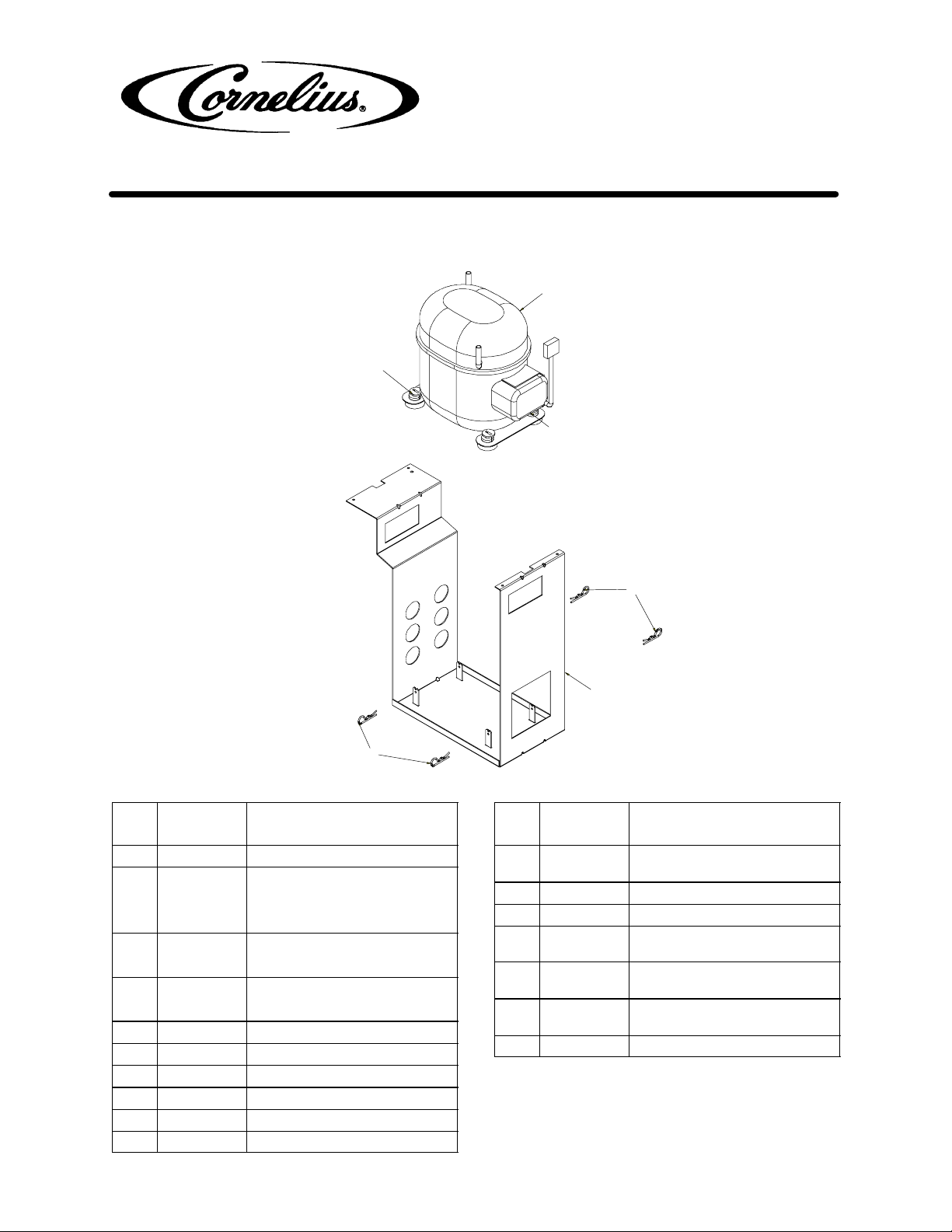

FIGURE 8. COMPRESSOR COMPONENTS
Part No. Name
3706 Kit Comp 1/3H.P. 220/240V 50HZ
3707 Kit Comp 1/3H.P. 230V 60HZ
3143 Relay Start 230V 50HZ
3142 Overld 220/240V 50HZ
9
1
Item
No.
Part No. Name
11* 2654
4344
12* 319941000 Screw TR 8-32 HXWS 12
13* 309645000 Swt 120V 60HZ
14* 2793 Capac Run 230V 50HZ Integral
2792
15* 560002592 Box Capac 230V 50HZ Integral and
16* 2477 Holder Capacitor 230V 50HZ
17* 360668000 Bushing Snap 230V50HZ Integral
Cord Extu 120/60
Cord Extu 230/50/60
Capac Run 120V 60HZ, Procon
120V 60HZ Procon
Integral and 120V 60HZ Procon
* = not shown
9
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
ILLUSTRATED PARTS LIST
VANTAGE POST-MIX DISPENSER
7
6
8
10
IMI CORNELIUS INC.
www.cornelius.com
4
15
3
5
11
12
14
13
2
9
1
ORIENTATION OF WELD STUD
IS CRITICAL. STUD SHOULD BE
WITHIN BOUNDRY OF CYLINDER
FIGURE 9. CARBONATOR ASSEMBLY
Item
No.
Manual Part No. 312031003IPL
January 30, 2006; Rev B
EIMI Cornelius Inc., 2004–2006
Part No. Name
850000549 Carb Assy
1 560007415 Tank Carb 3.5 x 12
2 71860230 Valve Pres Relief
3 710660001 Prob Assy Insert
4 65267001 Valve Double Check Assy
5 31525007 O–ring
6 398024400 Nut Hex 10–32
7 60011038 Washer
Item
No.
10
Part No. Name
8 560006103 Valve Check Body
9 560006127 Plate Carb
10 398033002 O–ring
11 64686 Sleeve SS Check Valve
12 64560 Ball .3125 SS
13 31525012 O–ring
14 64678 Spring
15 750300261 O–ring
Vantage (Post–Mix)
ILLUSTRATED PARTS LIST
Item
No.
Part No. Name
560000108 Tube Prod .265 I.D.
1 174478000 Tube .265 I.D. (Sold by the Foot)
2 176000000 Ferrule .500 I.D.
3 176017000 Nut Swiv 7/16-20
4 77010400 Fitg Nipl .265 I.D.
FIGURE 10. TUBE ASSEMBLY
IMI CORNELIUS INC.
www.cornelius.com
1
2
3
4
Vantage (Post–Mix)
11
Manual Part Number: 312031003IPL
January 30, 2006; Rev. B
EIMI Cornelius Inc., 2004–2006
