IMI CORNELIUSINC.
One Cornelius Place
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
LARGE RESERVE CARBONATOR LOW PROFILE
MODEL NO.
416424-xxx
496424-xxx
1624
411624-xxx
CARBONATOR (LARGE RESERVE)
1of4
Rev A
Manual Part No. 319798003
1-29-86 Revised: 12--5--2001
ãIMI Cornelius Co., 1986-2001
IMI CORNELIUSINC.
One CorneliusPlace
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
LARGE RESERVE CARBONATOR LOW PROFILE
23
32
9
13
21
14
26
25
22
24
27
28
33
29
8
7
31
40
35
38
39
16
12
18
11
6
15
5
14
10
34
30
17
3
36
Manual Part No. 319798003
1-29-86 Revised: 12-5-2001
ãIMI Cornelius Co., 1986-2001
4
19
20

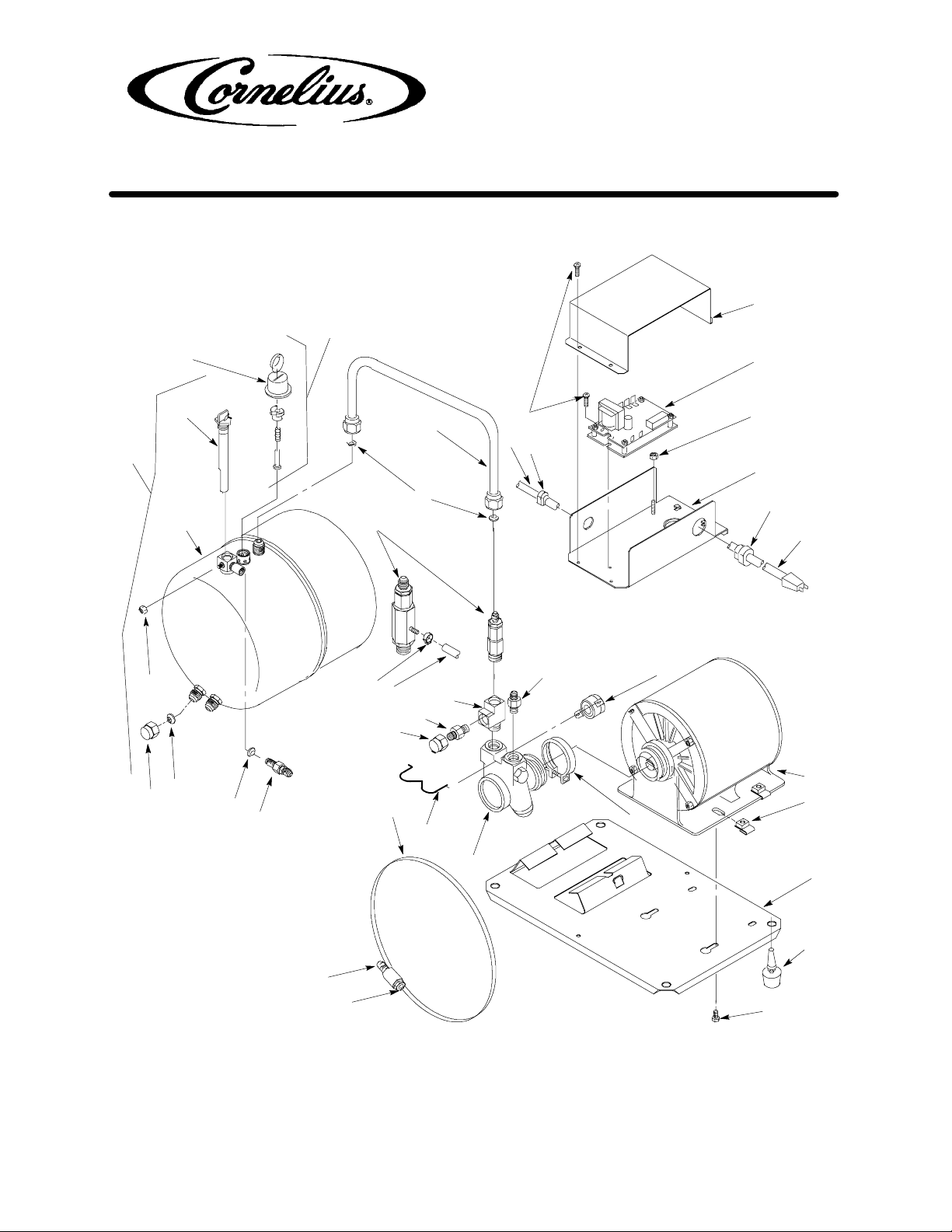

FIGURE 1. LARGE RESERVE CARBONATOR
LOW PROFILE ASSEMBLY
2of4
Rev A
1
2
37
CARBONATOR (LARGE RESERVE)
IMI CORNELIUSINC.
One Cornelius Place
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
LARGE RESERVE CARBONATOR LOW PROFILE
Item
No.
Part No. Name
1 5055 Base
2 396115010 Foot
3 449999968 Motor Pump 1/4H.P. 120V 50/60HZ
Domestic
449999969 Motor Pump 1/4H.P. 230V 50/60HZ
Export
4 312996000 Pump Water 100GPH
5 187483000 Clamp Pump and Motor
6 111337000 Fitg 3/8-MPT x 5/8-18
7 2991 Valve Chk Dual (See Figure 2)
0881 Valve Chk Vented
8 311304000 Gasket3/8Male Flare
9 4967 Cover Elec Box
10 4966 Bottom Box Cntl
11 395098000 Strain Relief
12 3175 Harn Wire
13 314015000 Control Liquid Level Domestic
197359000 Control Liquid Level Export
14 200498003 Nut Hex No. 8-32
15 317989000 Thermostat Cntl
16 318039000 Clip Thermo
17 317277000 Cord Serv Domestic
309834010 Cord Serv Export
560001468 Cord Serv Germany
18 320289000 Screw TR 6-32 PAPH 8
19 318308000 Screw TR 10-32 PAPH 32
20 321811000 Nut Hex No. 10-32
Item
No.
Part No. Name
21 3057 Tank (Includes 22-28)
22 3993 Tank
23 318362000 Stem Assy R-Val Yel
24 3035 Probe Level Cntl
25 311304000 Gasket 3/8 Male Flare
26 77045600 Fitg Cap 5/8--18
27 178025100 Gasket 1/4 Male Flare
28 183310000 Valve Chk (See Figure 3)
29 3041 Tube Water In
3072 Tube Water In Vented Check Valve
3917 Tube Water In Vented Check Valve
30 319453000 Strain Relief
31 174083000 Tube .156 I.D., Vented Check Valve
32 317974000 Deflector Water Relief
33 311527000 Clamp For Vented Check Valve
34 168049000 Fitg Conduit
35 3511 Strap Tank
36 311855000 Nut J-Nut 1/4-20
37 318976000 Bolt MA 1/4-20 HXSL 16
38 3883 Fitg T 3/8-FPT By 3/8-MPT
39 311437000 Fitg 3/8-MPT By 7/16-20
40 77045200 Fitg Cap 7/16-20
CARBONATOR (LARGE RESERVE)
3of4
Rev A
Manual Part No. 319798003
1-29-86 Revised: 12-50-2001
ãIMI Cornelius Co., 1986-2001
LARGE RESERVE CARBONATOR LOW PROFILE
Item
No.
Part No. Name
2991 Valve Chk Duel Assy
1 560000480 Washer Seal
2 560000432 -Ring .239 I.D.
3 312419000 Ball .312 Dia.
4 560000481 Spring Ball Check
FIGURE 2. LIQUID DUAL CHECK VAL VE ASSEMBLY
ILLUSTRATED PARTS LIST
3
4
IMI CORNELIUSINC.
One CorneliusPlace
Anoka,MN.55303--6234
Telephone 1-800-238-3600
Facsimile 1-800-258-0255
www.cornelius.com
2
1
3
4
2
1
Item
No.
Part No. Name
183310000 ValveChk Assy
1 183294000 Quad Ring .145 I.D.
2 183295100 Body
3 183296000 Ball .187 Dia.
4 183297000 Spring
5 183298000 Retainer Spring
6 183309000 Bulkhd Adap
FIGURE 3. CO2CHECK VALVE ASSEMBLY
KIT CHK VALVE P/N 0876
VALVE CHK VENTED P/N 0881
KIT REG WTR PRESS P/N 310150000
REG PRESS WTR P/N 311367000
3
4
5
2
6
1
KIT REPAIR REG P/N 311656000
KIT THERMOSTAT P/N 316599000
Manual Part No. 319798003
1-29-86 Revised: 12-5-2001
ãIMI Cornelius Co., 1986-2001
4of4
Rev A
CARBONATOR (LARGE RESERVE)
