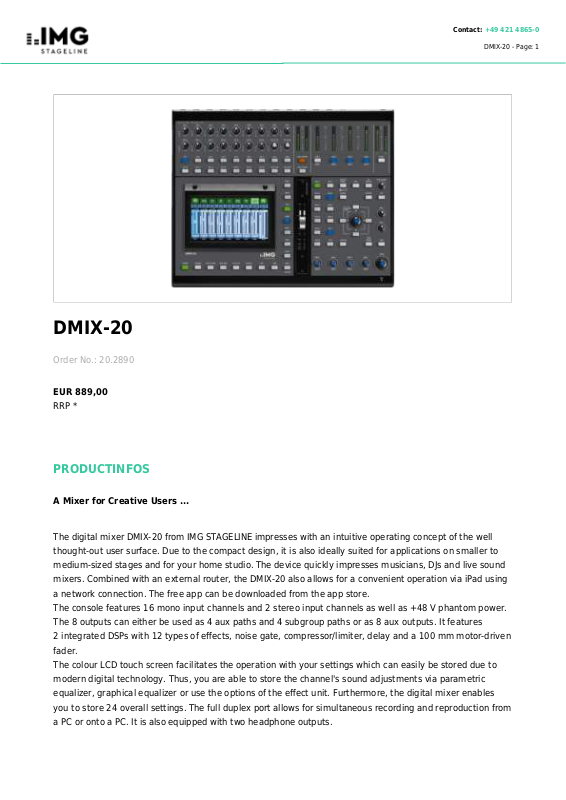

DMIX-20
Order No.: 20.2890
EUR 889,00
RRP *
PRODUCTINFOS
A Mixer for Creative Users ...
The digital mixer DMIX-20 from IMG STAGELINE impresses with an intuitive operating concept of the well
thought-out user surface. Due to the compact design, it is also ideally suited for applications on smaller to
medium-sized stages and for your home studio. The device quickly impresses musicians, DJs and live sound
mixers. Combined with an external router, the DMIX-20 also allows for a convenient operation via iPad using
a network connection. The free app can be downloaded from the app store.
The console features 16 mono input channels and 2 stereo input channels as well as +48 V phantom power.
The 8 outputs can either be used as 4 aux paths and 4 subgroup paths or as 8 aux outputs. It features
2 integrated DSPs with 12 types of effects, noise gate, compressor/limiter, delay and a 100 mm motor-driven
fader.
The colour LCD touch screen facilitates the operation with your settings which can easily be stored due to
modern digital technology. Thus, you are able to store the channel's sound adjustments via parametric
equalizer, graphical equalizer or use the options of the effect unit. Furthermore, the digital mixer enables
you to store 24 overall settings. The full duplex port allows for simultaneous recording and reproduction from
a PC or onto a PC. It is also equipped with two headphone outputs.
Page 2
19-channel digital audio mixer,
with touch screen, 2 DSP effect units and USB interface.
16 mono input channels with assignable controls
8 channel inserts
2 stereo input channels
1 USB audio channel
Full duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital
audio data from a PC and for recording mixings onto a PC
2 integrated DSPs as well as equalizer, noise gate, compressor/limiter and delay
4 aux send outputs and 4 subgroup outputs or 8 aux outputs
6 DCA groups
Control room function
100 mm motor-driven fader
Sampling rate: 24 bits/48 kHz
Settings can be stored
Remote control possible via iPad (when connected to external router)
RJ45 network connection for remote control
+48 V phantom power
2 adjustable headphone outputs
17.8 cm colour LCD touch screen (7") for display and settings
Mounting facility for extension modules available at option
482 mm (19") rack installation, 8 RS, with supplied mounting brackets
Contact: +49 421 4865-0
DMIX-20 - Page: 2
EVENT Rookie 05/2016
"The DMIX-20 is available for less than 1,000 Euros but you'll get a live console with fantastic features for
your band or studio: everyone was sceptical at first about the operation with one fader only, but absolutely
impressed after just a few minutes. The compact design allows you to place the console anywhere on stage;
the number of channels available is more than sufficient and the device provides ample possibilities for its
size."
TECHNICAL SPECIFICATIONS
DMIX-20
No. of channels 19
No. of inputs 19
Mic input 3 mV, bal. (combo jack)
Line input
750 mV, bal. (stereo),
100 mV (mono)
Page 3
DMIX-20
Insert input 800 mV
Contact: +49 421 4865-0
DMIX-20 - Page: 3
Master output
750 mV, bal. (XLR)
750 mV (jack)
Aux output 8 V
Insert output 800 mV
Control room 2.3 V
Headphones > 8 Ω
USB yes
Frequency range 20-20,000 Hz
THD < 0.01%
S/N ratio > 104 dB
Crosstalk > 80 dB
Equalizer bass ±24 dB/21-19,200 Hz (dep. on filter)
Equalizer midrange
±24 dB/21-19,200 Hz (dep. on filter)
±24 dB/21-19,200 Hz (dep. on filter)
Equalizer treble ±24 dB/21-19,200 Hz (dep. on filter)
equalizer DSP
Phantom power +48 V
Power supply ˜ 230 V/50 Hz/60 VA
Mains voltage ˜ 230 V
Mains frequency 50 Hz
Power consumption, operation 60 VA
Admiss. ambient temp. 0-40 °C
Width 442 mm
Height 130 mm
Depth 355 mm
Weight 7.3 kg
