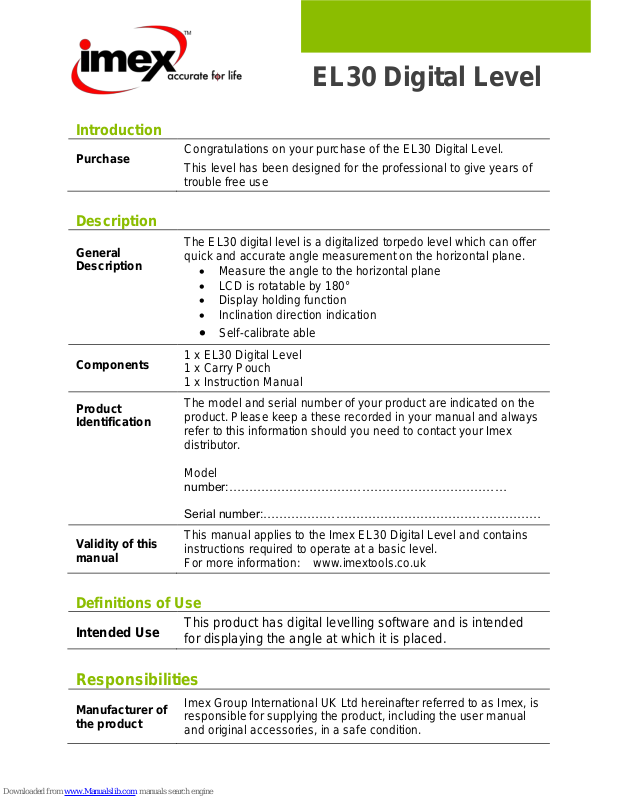

Page 1
Introduction
Purchase
Congratulations on your purchase of the EL30 Digital Level.
This level has been designed for the professional to give years of
trouble free use
Description
General
Description
The EL30 digital level is a digitalized torpedo level which can offer
quick and accurate angle measurement on the horizontal plane.
Measure the angle to the horizontal plane
LCD is rotatable by 180°
Display holding function
Inclination direction indication
Self-calibrate able
Components
1 x EL30 Digital Level
1 x Carry Pouch
1 x Instruction Manual
Product
Identification
The model and serial number of your product are indicated on the
product. Please keep a these recorded in your manual and always
refer to this information should you need to contact your Imex
distributor.
Model
number:……………………………………………………………
Serial number:……………………………………………………………
Validity of this
manual
This manual applies to the Imex EL30 Digital Level and contains
instructions required to operate at a basic level.
For more information: www.imextools.co.uk
Definitions of Use
Intended Use
This product has digital levelling software and is intended
for displaying the angle at which it is placed.
Responsibilities
Manufacturer of
the product
Imex Group International UK Ltd hereinafter referred to as Imex, is
responsible for supplying the product, including the user manual
and original accessories, in a safe condition.
EL30 Digital Level
Page 2
Person
responsible for
the product
The person responsible for the product has the following duties:
To understand the safety instructions on the product and the
instructions in the user manual.
To ensure that it is used in accordance with the instructions.
To be familiar with local regulations relating to safety and
accident prevention.
To inform Imex immediately if the product and the
application becomes unsafe.
To ensure that the national laws, regulations and conditions
for the operation of.
Operation
Instrument
Overview
Functions
Power
Mode Select
Calibrate
Sound/Backlight
Hold
Laser on/off
Press to turn the EL30 on/off
Select to display ° ,% , mm/m , inch/ft
Long Press to enter calibrate mode
Short press to turn sound on/off
Long press to turn backlight on/off
Press to freeze the display
Press to laser beam on/off
Screen Hold Laser On/Off Calibrate
Sound/Backlight Power Mode
Magnetic Base
LCD Display
Keypad
Laser Output
Main Body
Page 3
Battery
installation
1. Loosen the screws on the battery cover.
2. Open the battery cover and put batteries into the battery
case according to the polarity shown in the battery slot.
Replace the battery cover and tighten the screw.
Initial Set up
In order to ensure the measurement accuracy, it is recommended
that you check the accuracy before operating.
After fitting the batteries, place on a flat horizontal surface with the
LCD display facing you and press the power button to turn the
EL30 on. Record the angle value (A) on the display.
Rotate the EL30 180° with the screen facing away from you and
record the value (B).
If A, B angle value margin exceed 0.2 degree, it is necessary to
calibrate the horizontal accuracy.
Also follow above procedure in vertical position to check vertical
accuracy
Calibration
1. Select a flat and horizontal platform as a reference
surface
2. Press the power button to turn the unit on
3. Press and hold the ZERO button until -0- is displayed on
the LCD screen. Wait 3 seconds, press the ZERO button
again the LCD will now display -1-
4. Turn the unit 180 degrees, keeping the unit on the same
horizontal platform, and wait for 3 second, then press
ZERO, the LCD will display -2-, and then will display angle
value. Horizontal calibration is now complete.
Note: all the above operation should be operated on the same
position of the same plane.
To calibrate vertical plane, repeat above procedure on vertical
plane.
Technical
Specifications
Measuring Accuracy
±0.1°
Working Range
0°- 360°
Display Mode
5 x Display modes
Resolution
0.1°
Laser wavelength
650nm / Class 2
Laser indication range
±0.3mm/m
Power
3 x AAA Batteries
Working temperature
-10°C to +45°C
Size
305 x 60x 32mm
Weight
670g with batteries
Page 4
Maintenance
This instrument should be carefully operated and properly
preserved; any violent shock or falling will possibly result
in to damage the instrument.
Keep the instrument clean
Keep away from of wet and damp conditions
Do not attempt to disassemble the unit, as any
unprofessional disassembly will result in damage to the
instrument.
Take the batteries out when the instrument is not in use
for long periods of time.
Version: 05
English
Copyright © Imex Group International (UK) LTD 2016
