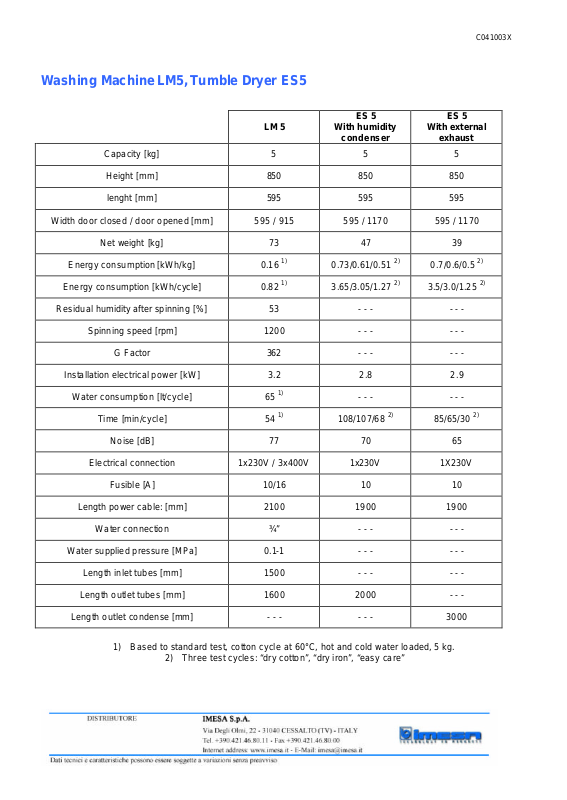

Washing Machine LM5, Tumble Dryer ES5
ES 5
LM 5
Capacity [kg] 5 5 5
Height [mm] 850 850 850
lenght [mm] 595 595 595
Width door closed / door opened [mm] 595 / 915 595 / 1170 595 / 1170
Net weight [kg] 73 47 39
Energy consumption [kWh/kg] 0.16 1) 0.73/0.61/0.51 2) 0.7/0.6/0.5 2)
Energy consumption [kWh/cycle] 0.82 1) 3.65/3.05/1.27 2) 3.5/3.0/1.25 2)
Residual humidity after spinning [%] 53 - - - - - -
With humidity
condenser
ES 5
With external
exhaust
C041003X
Spinning speed [rpm] 1200 - - - - - -
G Factor 362 - - - - - -
Installation electrical power [kW] 3.2 2.8 2.9
Water consumption [lt/cycle] 65 1) - - - - - -
Time [min/cycle] 54 1) 108/107/68 2) 85/65/30 2)
Noise [dB] 77 70 65
Electrical connection 1x230V / 3x400V 1x230V 1X230V
Fusible [A] 10/16 10 10
Length power cable: [mm] 2100 1900 1900
Water connection ¾” - - - - - -
Water supplied pressure [MPa] 0.1-1 - - - - - -
Length inlet tubes [mm] 1500 - - - - - -
Length outlet tubes [mm] 1600 2000 - - -
Length outlet condense [mm] - - - - - - 3000
1) Based to standard test, cotton cycle at 60°C, hot and cold water loaded, 5 kg.
2) Three test cycles : “dry cotton”, “dry iron”, “easy care”
Page 2
C041003X
Washing programmes for LM5 ( EU version ):
Water consumption
Material/Temp erature
Progr. 1 Cotton, flax; 90°C 5 80=3+77 2.0/1.9 85/80
Progr. 2 Cotton, flax; 60°C 5 72=6+66 1.6/1.5 73/68
Progr. 3 Cotton, flax; 60°C 5 65=6+59 1.1/0.82 59/54
Progr. 4 Cotton, flax; 40°C 5 65=0+65 0.40/0.40 40/40
Progr. 5 Polyester, nylon; 40°C, 2.5 54=0+54 0.35/0.35 25/25
Progr. 6 Polyester, nylon; 40°C, 2.5 42=0+42 0.35/0.35 20/20
Load
[kg]
(hot water + cold
[lt]
water)
Power [kWh]
(inlet water
cold/mixed)
Time [min]
(inlet water
cold/mixed)
Progr. 7 Wool, delicat e; 30°C 1.7 76=0+76 0.25/0.25 25/25
Progr. 8 Spinning 5 - - - 0.05 4
Drying programmes for ES5:
Material/Temp erature Temperature Load [kg]
Progr.
1
Progr.
2
Progr.
3
Progr.
4
Progr.
5
Cotton, flax Middle high max 5 3 95
Cotton, flax Middle high max 5 2.8 85
Cotton, flax Middle high max 5 2.6 75
Cotton, flax Middle high max 5 2.2 60
Polyester no ironing,
cotton
Middle low max 2.5 1.4 70
Power
[kWh]
Time [min]
Progr.
6
Progr. 7 Polyester, Cotton, Acrylic,
Progr. 8 Polyester, Cotton, Acrylic,
Polyester no ironing,
cotton
Rayon, Acetate
Rayon, Acetate
Middle low max 2.5 1.3 60
Middle low max 2.5 1.2 50
Middle low max 5 1.0 40
Page 3
C041003X
83
Vista da sotto
Bottom view
Vue dessous
Ansicht von unten
Vista desde ab ajo
520
595
190
Cavo d'allacciamento
Connection wire
Cable de branchement
Anschlußkabel
Cable de conexión
QUOTE - DIMENSIONS -
DIMENSI ONS - DIME NSIONEN -
DIMENSIONES (mm)
1165
420
585
130210
850
Ø
9
3
120
Scarico aria
Air exit
Sortie air
Abluft
Salida aire
100
580
Scarico aria
Air exit
Sortie air
Abluft
Salida aire
100
ES5
Cavo d'allacciamento
Connection wire
Cable de branchement
Anschlußkabel
Cable de conexión
Acqua calda Ø3/4"
90 12065
Hot water
Eau chaude
Warmasser
Agua caliente
Scarico Ø50
Drain
Vidange
Ablauf
Desaüe
Acqua Fredda Ø3/4"
Cold water
Eau froide
Kaltwasser
Agua fria
0
5
Ø
70
110
QUOTE - DIMENSIONS -
DIMENSIONS - DIMENSIONEN -
DIMENSIONES (mm)
1085
500
LM5
585
Vista da sotto
Bottom view
420
Vue dessous
Ansicht von unten
Vista desde abajo
520
595
130210
850
