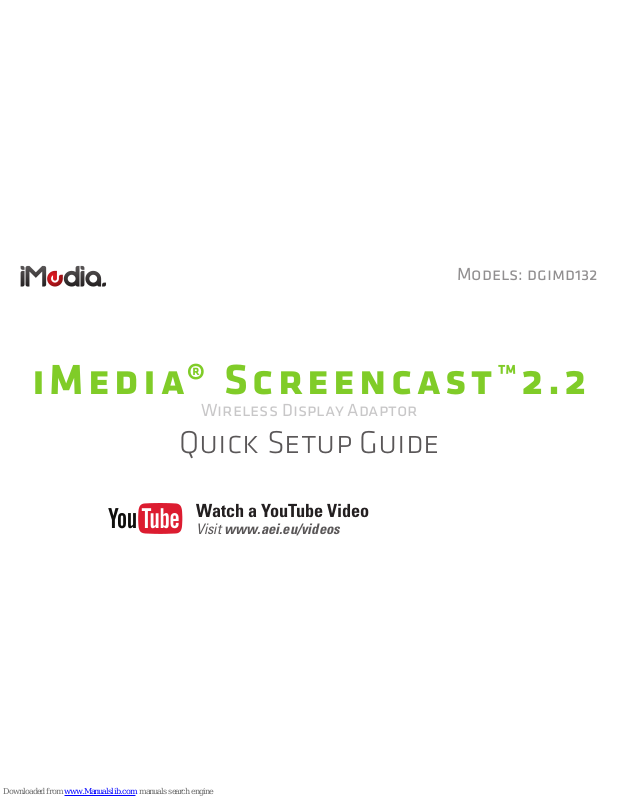

Models: dgimd132
iMedia® Screencast™2.2
Wireless Display Adaptor
Quick Setup Guide
Watch a YouTube Video
Visit www.aei.eu/videos
1 Verify the contents of the box.
DE: Prüfen Sie den Inhalt der Box.
FR: Vérifiez le contenu de la boîte.
NL: Controleer de inhoud van de doos.
• 1x iMedia® Screencast™ 2.2 Adaptor
• 1x Micro USB Cable, 1x USB Splitter Cable
• 1x UK/EU USB Mains Adaptor
Miracast. Airplay. DLNA.
UK Adaptor Mains Adaptor EU Adaptor
2 Connect the Screencast adaptor to an available HDMI socket on your TV.
DE: Verbinden Sie das Screencast -Adapter an einen freien HDMI -Buchse an Ihrem TV.
FR: Branchez l’adaptateur Screencast à une prise HDMI disponible sur votre téléviseur.
NL: Sluit de Screencast -adapter aan op een vrije HDMI aansluiting van uw TV.
3 Connect one end of the USB cable to the adaptor and the other end to a USB socket on your TV.
DE: Verbinden Sie ein Ende des USB-Kabels an den Dongle und das andere Ende an einen USB-Buchse an Ihrem TV.
FR: Branchez une extrémité du câble USB pour le dongle et l’autre extrémité à une prise USB de votre téléviseur.
NL: Sluit een uiteinde van de USB-kabel aan op de dongle en het andere uiteinde op een USB-aansluiting van uw TV.
4 If your TV does not have a USB socket, use the USB mains adaptor.
DE: Wenn Ihr Fernsehgerät nicht über einen USB-Anschluss , verwenden Sie das USB- Netzteil.
FR: Si votre téléviseur ne possède pas de prise USB , utilisez l’adaptateur secteur USB.
NL: Als uw TV een USB -aansluiting heeft, gebruikt u de USB- lichtnetadapter.
5 Turn on your TV and select the correct HDMI channel.
DE: Schalten Sie den Fernseher ein und wählen Sie die richtige HDMI Kanal.
FR: Allumez votre téléviseur et sélectionnez le canal HDMI correct.
NL: Zet uw TV aan en selecteer het juiste HDMI kanaal.
We,
AEI Security & Communications Limited,
declare under our sole responsibility that the products bearing the series code prefixed: DGTVx, DGIMx (x refers to the specific model number) are in conformity with the essential
requirements of Directive 1995/5/EC. These products have been tested against the following standards and specifications:
Low Voltage Directive
BS EN 60950-1:2006+A12:2011 Information technology equipment. Safety . General requirements.
Electromagnetic Compatibility Directive
BS EN 55022:2010+AC:2011 Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement.
BS EN 55024:2010 Information technology equipment. Immunity characteristics. Limits and methods of measurement.
BS EN 61000-3-2:2006+A2:2009 Electromagnetic compatibility (EMC). Limits. Limits for harmonic current emissions (equipment input current ≤ 16 A per phase).
BS EN 61000-3-3:2008 Electromagnetic compatibility (EMC). Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply
systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection.
Radio Equipment and Telecommunications Terminal Equipment (R&TTE ) Directive
BS EN 62311:2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz - 300 GHz).
BS EN 60950-1:2006+A12:2011 Information technology equipment. Safety . General requirements.
ETSI EN 301 489-1 v1.9.2 (2011-09) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements.
ETSI EN 301 489-17 v2.1.1 (2009-05) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part
17: Specific conditions for Broadband Data Transmission Systems.
ETSI EN 300 328 v1.8.1 (2012-04) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of
the R&TTE Directive.
The product is marked with the CE marking and Notified Body Number according to directive 1999/5/EC. Note: Original Declaration of Conformity has been signed.
DECLARATION OF CONFORMITY
2006201301/DGTV-DGIM
DigiSender, iMedia, Screencast SUPERSMART and their respective logos are trademarks
or registered trademarks of AEI Security & Communications Ltd.
© AEI Security & Communications Ltd. All rights reserved.
SPECIFICATIONS
Model:
DGIMD132
CPU:
Single-Core ARM Cortex-A9
Architecture:
HD Video Decoder (1080p@60fps)
OpenGL ES2.0 & OpenVG 1.1
RAM:
256MB DDR3
WiFi:
802.11 b/g/n
Functions:
Miracast - Android 4.2+, Windows 8+
AirPlay - iOS 7+
DLNA - All compatible devices
I/O:
1x HDMI 1.4
1x Micro USB
Dimensions:
75mm x 33mm x 9.3mm
Kit Contents:
1x Screencast 2.2 Adaptor, 1x Micro USB Cable, 1x USB Splitter Cable,
1x UK/EU Power Supply, 1x Quick Setup Guide
