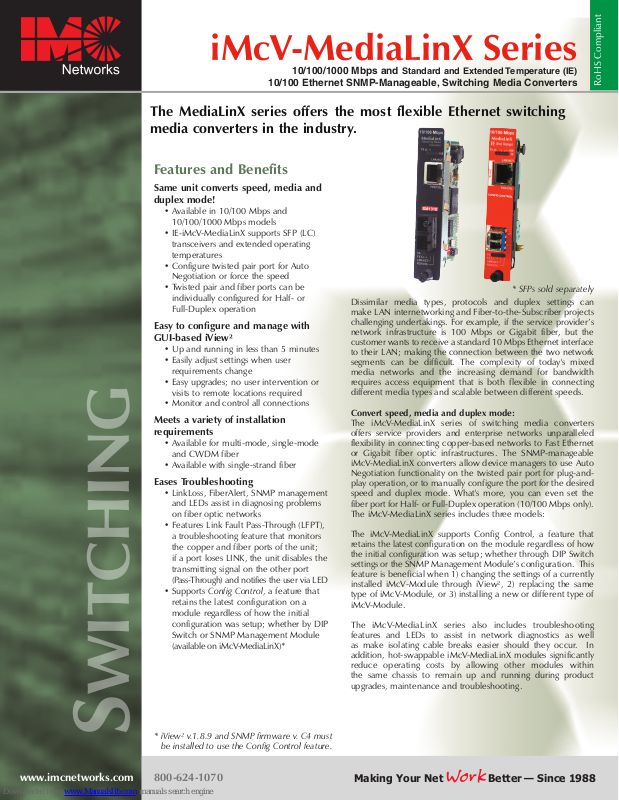

IMC Networks iMcV-MediaLinX, 856-18700 Specifications

Work

iMcV-MediaLinX Series

Switching

10/100/1000 Mbps and Standard and Extended Temperature (IE)

10/100 Ethernet SNMP-Manageable, Switching Media Converters

The MediaLinX series offers the most flexible Ethernet switching
media converters in the industry.

Features and Benefits

Same unit converts speed, media and
duplex mode!

• Available in 10/100 Mbps and
10/100/1000 Mbps models

• IE-iMcV-MediaLinX supports SFP (LC)
transceivers and extended operating
temperatures

• Configure twisted pair port for Auto
Negotiation or force the speed

• Twisted pair and fiber ports can be
individually configured for Half- or
Full-Duplex operation

Easy to configure and manage with
GUI-based iView²

• Up and running in less than 5 minutes

• Easily adjust settings when user
requirements change

• Easy upgrades; no user intervention or
visits to remote locations required

• Monitor and control all connections

Meets a variety of installation
requirements

• Available for multi-mode, single-mode
and CWDM fiber

• Available with single-strand fiber

Eases Troubleshooting

• LinkLoss, FiberAlert, SNMP management
and LEDs assist in diagnosing problems
on fiber optic networks

• Features Link Fault Pass-Through (LFPT),
a troubleshooting feature that monitors
the copper and fiber ports of the unit;
if a port loses LINK, the unit disables the
transmitting signal on the other port
(Pass-Through) and notifies the user via LED

• Supports Config Control, a feature that
retains the latest configuration on a
module regardless of how the initial
configuration was setup; whether by DIP
Switch or SNMP Management Module
(available on iMcV-MediaLinX)*

Dissimilar media types, protocols and duplex settings can
make LAN internetworking and Fiber-to-the-Subscriber projects
challenging undertakings. For example, if the service provider’s
network infrastructure is 100 Mbps or Gigabit fiber, but the
customer wants to receive a standard 10 Mbps Ethernet interface
to their LAN; making the connection between the two network
segments can be difficult. The complexity of today's mixed
media networks and the increasing demand for bandwidth
requires access equipment that is both flexible in connecting
different media types and scalable between different speeds.

Convert speed, media and duplex mode:
The iMcV-MediaLinX series of switching media converters
offers service providers and enterprise networks unparalleled
flexibility in connecting copper-based networks to Fast Ethernet
or Gigabit fiber optic infrastructures. The SNMP-manageable
iMcV-MediaLinX converters allow device managers to use Auto
Negotiation functionality on the twisted pair port for plug-and­play operation, or to manually configure the port for the desired
speed and duplex mode. What's more, you can even set the
fiber port for Half- or Full-Duplex operation (10/100 Mbps only).
The iMcV-MediaLinX series includes three models:

The iMcV-MediaLinX supports Config Control, a feature that
retains the latest configuration on the module regardless of how
the initial configuration was setup; whether through DIP Switch
settings or the SNMP Management Module’s configuration. This
feature is beneficial when 1) changing the settings of a currently
installed iMcV-Module through iView², 2) replacing the same
type of iMcV-Module, or 3) installing a new or different type of
iMcV-Module.

The iMcV-MediaLinX series also includes troubleshooting
features and LEDs to assist in network diagnostics as well
as make isolating cable breaks easier should they occur. In
addition, hot-swappable iMcV-MediaLinX modules significantly
reduce operating costs by allowing other modules within
the same chassis to remain up and running during product
upgrades, maintenance and troubleshooting.

* SFPs sold separately

RoHS Compliant

* iView² v.1.8.9 and SNMP firmware v. C4 must
be installed to use the Config Control feature.

www.imcnetworks.com

800-624-1070

Making Your Net

Better — Since 1988

Technical Specifications

IE-iMcV-MediaLinX TX/SFP

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IE-SFP 100/155 Mbps (OC-3)

• Supports jumbo packets up to 1916 bytes

• Supports Config Control

iMcV-MediaLinX

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3u 100Base-FX or SX fiber

• Supports jumbo packets up to 1916 bytes

• Supports Config Control

iMcV-Giga-MediaLinX

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T twisted pair

• IEEE 802.3z 1000Base-LX or SX fiber

• Supports packets up to 1632 bytes

All Modules

• Connectors: RJ-45 and ST, SC, LC or SFP

• IEEE 802.3x Flow Control

• AutoCross for MDI/MDIX

• Features LinkLoss and FiberAlert

• Features Link Fault Pass-Through (LFPT)

• Features Auto Negotiation and Selective Advertising

• Layer 2 packet switching, store and forward operation

• Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps
for 100 Mbps; 1,488,100 pps for 1000 Mbps (Gig only)

• 50/125µm or 62.5/125µm multi-mode fiber

• 9/125µm single-mode fiber

• Available for single-strand fiber

• Installs in any iMediaChassis or MediaChassis

• Supports GUI-Based iView²

• Supports Half- and Full-Duplex operation

• Includes diagnostic LEDs

• Includes hot-swappable architecture

Regulatory Approvals:

• FCC Class B

• CE

Shipping Weight:

0.30 lbs (.11 kg)

Operating Temperature:

+32° to +122° F (0° to +50° C);

-40° to +185° F (-40° to +85° C) IE-iMcV-MediaLinX;
5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Storage Temperature:

-13° to +158° F (-25° to +70° C);
5% to 95% (non-condensing)

Fiber Optics Specifications

For each product listed below in the Ordering Information section, the DISTANCE represents an approximate fiber distance based on industry-standard
fiber attenuation specifications. Actual distances will vary for each installation. For complete power budgets and information on calculating specific
distances, visit www.imcnetworks.com/go/fcs or contact IMC Networks Fiber Consulting Services at 949-465-3000.

Ordering Information

PART NUMBER DESCRIPTION DISTANCE

IE-iMcV-MediaLinX TX/SFP 10/100 to 100 Mbps Modules

856-18700 iMcV-MediaLinX, TX/SFP

§

Varies

iMcV-MediaLinX 10/100 to 100 Mbps Modules

856-15711 iMcV-MediaLinX, TX/FX-MM850-ST 2 km

856-15712 iMcV-MediaLinX, TX/FX-MM850-SC 2 km

856-15713 iMcV-MediaLinX, TX/FX-MM1300-ST 5 km

856-15714 iMcV-MediaLinX, TX/FX-MM1300-SC 5 km

856-15717 iMcV-MediaLinX, TX/FX-SM1310/PLUS-ST 40 km

856-15718 iMcV-MediaLinX, TX/FX-SM1310/PLUS-SC 40 km

856-15719 iMcV-MediaLinX, TX/FX-SM1310/LONG-ST 80 km

856-15720 iMcV-MediaLinX, TX/FX-SM1310/LONG-SC 80 km

856-15723 iMcV-MediaLinX, TX/FX-SM1550/LONG-SC 80 km

iMcV-MediaLinX 10/100 to 100 Mbps Single-Strand Fiber Modules *

856-15731 iMcV-MediaLinX, TX/SSFX-SM1310-SC (1550rcv) 20 km

856-15732 iMcV-MediaLinX, TX/SSFX-SM1550-SC (1310rcv) 20 km

856-15733 iMcV-MediaLinX, TX/SSFX-SM1310/PLUS-SC (1550rcv) 40 km

856-15734 iMcV-MediaLinX, TX/SSFX-SM1550/PLUS-SC (1310rcv) 40 km

856-15735 iMcV-MediaLinX, TX/SSFX-SM1310/LONG-SC (1550rcv) 60 km

856-15736 iMcV-MediaLinX, TX/SSFX-SM1550/LONG-SC (1310rcv) 60 km

§

SFP modules are sold separately. For more information on compatible IMC Networks

SFPs, go to: www.imcnetworks.com/Products/product.cfm?family=32

IE-SFP Modules: 100 to 155 Mbps (OC-3)

PART
NUMBER

W/ DDMI

808-38101 808-38111 MM850 LC 2 km 14.5
808-38102 808-38112 MM1300 LC 2 km 15
808-38103 808-38113 SM1310 LC 15 km 13
808-38104 808-38114 SM1310/PLUS LC 40 km 31
808-38105 808-38115 SM1550/LONG LC 80 km 31
808-38525 808-38535 SSFX-SM1310/1550/LONG LC 60 km 31
808-38526 808-38536 SSFX-SM1550/1310/LONG LC 60 km 31

PART
NUMBER

W/O
DDMI

PORT DESCRIPTION FIBER DISTANCE

POWER
BUDGET

(db)

PART NUMBER DESCRIPTION DISTANCE

iMcV-Giga-MediaLinX 10/100/1000 to 1000 Mbps Modules

856-11959 iMcV-Giga-MediaLinX, TX/SX-MM850-ST 220/550 m

856-11950 iMcV-Giga-MediaLinX, TX/SX-MM850-SC 220/550 m

856-11951 iMcV-Giga-MediaLinX, TX/LX-SM1310-SC 15 km

856-11952 iMcV-Giga-MediaLinX, TX/LX-SM1310/PLUS-SC 40 km

856-11953 iMcV-Giga-MediaLinX, TX/LX-SM1550/LONG-SC 80 km

856-11958 iMcV-Giga-MediaLinX, TX/LX-SM1550/XLONG-SC 100 km

iMcV-Giga-MediaLinX 10/100/1000 to 1000 Mbps Single-Strand Fiber Modules *

856-11940 iMcV-Giga-MediaLinX, TX/SSLX-SM1310-SC (1550rcv) 10 km

856-11941 iMcV-Giga-MediaLinX, TX/SSLX-SM1550-SC (1310rcv) 10 km

856-11933 iMcV-Giga-MediaLinX, TX/SSBX-SM1310-SC (1490rcv) 10 km

856-11935 iMcV-Giga-MediaLinX, TX/SSBX-SM1490-SC (1310rcv) 10 km

856-11937 iMcV-Giga-MediaLinX, TX/SSBX-SM1310/PLUS-SC (1490rcv) 30 km

856-11939 iMcV-Giga-MediaLinX, TX/SSBX-SM1490/PLUS-SC (1310rcv) 30 km

856-11942 iMcV-Giga-MediaLinX, TX/SSLX-SM1310/PLUS-SC (1550rcv) 40 km

856-11943 iMcV-Giga-MediaLinX, TX/SSLX-SM1550/PLUS-SC (1310rcv) 40 km

856-11954 iMcV-Giga-MediaLinX, TX/SSLX-SM1490/LONG-SC (550rcv) 70 km

856-11955 iMcV-Giga-MediaLinX, TX/SSLX-SM1550/LONG-SC (1490rcv) 70 km

*

These products have single-strand fiber technology. For more information go to:

www.imcnetworks.com/products/SSFX.cfm

IMC Networks

Headquarters

19772 Pauling
Foothill Ranch, CA 92610
TEL: [phone]
FAX: [phone]
[e-mail]

IMC Networks

Europe

Herseltsesteenweg 268
B-3200 Aarschot, Belgium
TEL: [phone]
FAX: [phone]
[e-mail]

IMC Networks

Eastern US/Latin America

28050 U.S. Hwy. 19 North, Suite 306
Clearwater, FL 33761
TEL: [phone]
FAX: [phone]
[e-mail]

IMC Networks

Fiber Consulting Services

For information call:
TEL: [phone]
1-800-624-1070 (US/CAN)
[phone] (Europe)
[e-mail]

Copyright © 2012 IMC Network s. All ri ghts
reserved. The information in this document is
subject to change without notice. IMC Networks
assumes no responsibility for any errors that may
appear in this document. Specific product names
may be trademarks or registered trademarks and
are the property of their respective companies.

DS-iMcV-MediaLinX-1204
