Fig.1: Package contents
Quick Installation Guide for IMAGO camera models:
ITN-12P3 NB 4 & ITN-32P3 NB 4
Thank you for purchasing the Imago IP Camera. For its proper installation, follow this short instruction and
user manual to ensure the trouble-free operation and long life of the camera. If you have any questions
during the installation or use of the product, contact the technical support of your supplier.
Package contents
Camera
Drill template
Set of wall plugs (ø 6 mm) and screws
Waterproof cap for RJ-45 connector
CD with recording software iVMS-4200, Camera Installation Wizard
w w w . c a m e r a c a m e r a . g r
info@cameracamera.gr | +30 210 6613866
www.facebook.com/cameracamera.gr
Notice
The camera should be stored in a dry environment.
Do not turn on the camera and do not work with voltage in a humid environment.
Do not install cameras in a high humidity environment.
Do not install your camera on unstable or vibrating surfaces or brackets.
To remove the camera housing, use the included tools.
Do not use excessive force during the installation – you might damage the device.
If water gets into the camera, immediately disconnect it from the network and voltage supply.
Do not touch the camera during a thunderstorm.
Do not insert any objects in the camera.
Do not perform any other mechanical modifications than those listed in this guide or user
manual.
Do not replace / adjust components on the printed circuit board and wiring of connectors.
Do not use the camera with signs of damage or defects and/or with damaged cables.
Do not repair your camera yourself; in case of failure, contact the supplier of your camera.
Clean your camera with a cloth dampened with water - do not use chemicals, avoid abrasive
materials when cleaning.
Connect the camera using the UTP or STP cable category 5 or higher, with the RJ-45
connector.
The manufacturer is not liable for damages that were caused by unusual or unforeseeable
circumstances and the force majeure.
Do not throw the camera in the trash; after the end of life of the equipment it is necessary to
dispose of the product according to your applicable local law. Use the collection points for
WEEE in your area, ensuring the environmentally friendly disposal or return the product to a
vendor of electrical equipment.
The physical installation of the camera
The camera can be mounted both on horizontal and vertical surfaces (wall, suspended ceiling, roof
veneers etc.)
Select a location to install the camera, consider its location and direction to avoid the Sun in the view
of the camera
Cameras should be facing down to avoid direct Sun shining into the camera lens
The camera bracket has a cutout for cable outlet in case of a surface cabling – this cutout shall face
directly down
Use a template to drill the mounting holes
o When installing the camera on a brick structure, drill the wall plug holes of ø 6 mm (indicated
"1" in the template) and insert the wall plugs into the holes
o For the cable entry drill holes with the diameter of at least 20 mm (indicated "A" in the
template - not needed if the cabling is guided on the surface, e.g. in a bar)
The camera is connected with the bracket with the ball joint – on the camera bracket release the
matrix that ensures the camera alignment - see Fig. 2 2
w w w . c a m e r a c a m e r a . g r
info@cameracamera.gr | +30 210 6613866
www.facebook.com/cameracamera.gr
Fig. 2: Camera IDN31P1 NB 2.8 (nut to fix its
position)
Fig. 3 Dismantled cap of the RJ-45 connector
Use the supplied screws to attach the camera body, align it if necessary and tighten the nut on the
bracket to secure the position - see Fig. 2
No need to focus the camera as it has been focused by the manufacturer
Check the direction of the camera in a Web browser (see the next chapter) or adjust its direction
Connect the camera to a data switch using the UTP or STP cable with the RJ-45 connector - the
camera is powered via PoE - Power over Ethernet according to IEEE 802.3af standard; for power
only use elements that meet this international standard
If you do not have Power over Ethernet available, you can use the power adapter with the 12VDC/1A
output (not included)
When routing the cable outdoors or in moist environments, use cap of the RJ-45 connector that
ensures the water resistance of the connection - see Fig. 3 and 4
w w w . c a m e r a c a m e r a . g r
info@cameracamera.gr | +30 210 6613866
www.facebook.com/cameracamera.gr

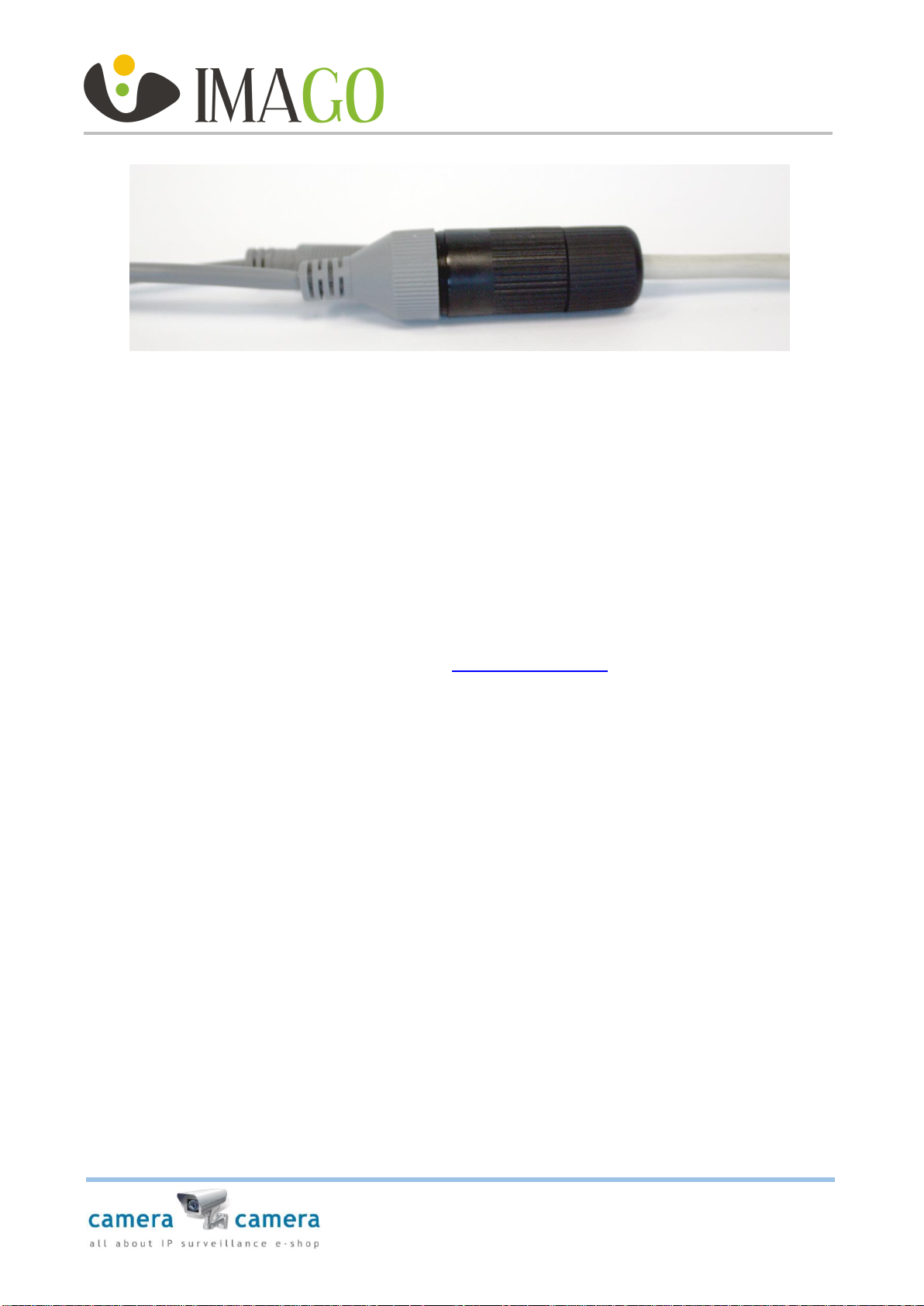

Fig. 4 Assembled cap of the RJ-45 connector
The first access to the camera
After connecting the camera to the power supply and the data network the camera can be accessed
via a web browser; the camera starts about 60 seconds.
The default setting of the camera:
o IP address: 192.0.0.64 (DHCP Client not enabled)
o User name: admin
o Password: 12345
The camera can be found on the network using the application of the recording software iVMS-4200
on the attached CD or can be downloaded at www.imago-video.com
Run the installation file from the CD (as a standard iVMS-4200.exe), accept the license agreement
and follow the instructions on the screen
After installation run the software iVMS-4200 Client and log in - default login data:
o User name: admin
o Password: choose your own password when loging-in for the first time
After logging in, use the "Settings" menu on the top bar and select the "Device Management"
In the application a panel opens for configuring the devices managed by the recording software
iVMS-4200
In the upper left part click on the tab "Server" and select "DVR, IPC, Encoder" from the list
In the bottom right part you will now see the available cameras on the network ("Online Device") - see
Fig. 5
Double click on the found camera to open setting basic network parameters of the camera according
to the configuration of your network environment, enter the password for the user "admin" set in the
camera, and save by pressing the "Confirm" button
Open a Web browser and enter the IP address of the camera
Enter the login data and click on the "Login" button
After the first login you will be prompted to download and install the WebComponents addition that
provides the stream display in browsers.
Save the file (typically WebComponents.exe), close the web browser, run the downloaded installation
file and follow the on-screen instructions. After installation is complete, open the web browser again
with the camera's IP address and enter login information. Now you can view the live image from the
camera.
w w w . c a m e r a c a m e r a . g r
info@cameracamera.gr | +30 210 6613866
www.facebook.com/cameracamera.gr
Fig. 5: Software iVMS-4200 – searching for camera in the network
Restoring the factory settings
Disconnect the camera from the power supply
Press and hold the "Reset" button which is located on the back of the camera body
Keep the button pressed and connect the camera to power supply
Hold the reset button for at least 10 seconds and then release it
After a while the camera will start with default parameters
