Imagistics IM3520, IM2520F, IM2520, IM2020 User Manual

IP Scanner

im2020, im2520, im2520f, im3520

4514-7704-01

Contents

im2020, im2520, im2520f, im3520

Contents

1 Introduction

1.1 Welcome ........................................................................................1-1

Trademark Acknowledgements ..................................................1-1

1.2 Precautions....................................................................................1-2

General precautions ...................................................................1-2

1.3 Enclosed Accessories ..................................................................1-3

1.4 Preparing the LAN Cable and IP Address...................................1-3

1.5 Acceptance of the End User License Agreement ......................1-3

1.6 Compatible Operating Systems...................................................1-4

1.7 Operating Environment of Utilities..............................................1-4

1.8 Specifying the IP Address............................................................1-5

2 Making Connections

2.1 LAN Connection............................................................................2-1

Connecting the LAN cable..........................................................2-1

LED indicators ............................................................................2-2

2.2 Installing IP Scanner.....................................................................2-3

Utilities disk.................................................................................2-3

Installing IP Scanner

(Windows Me, 98/95, XP, 2000 and NT4.0)...............................2-3

Uninstalling (Windows Me, 98/95 and NT4.0) ............................2-7

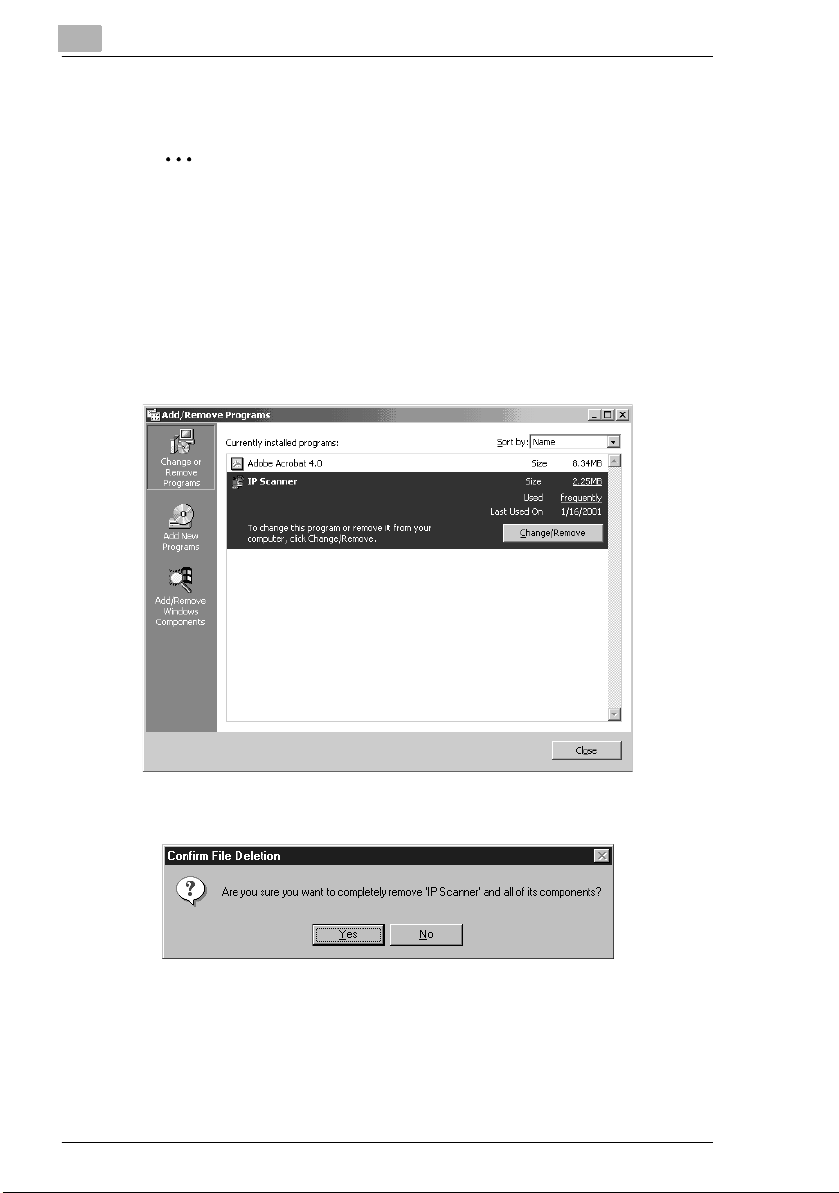

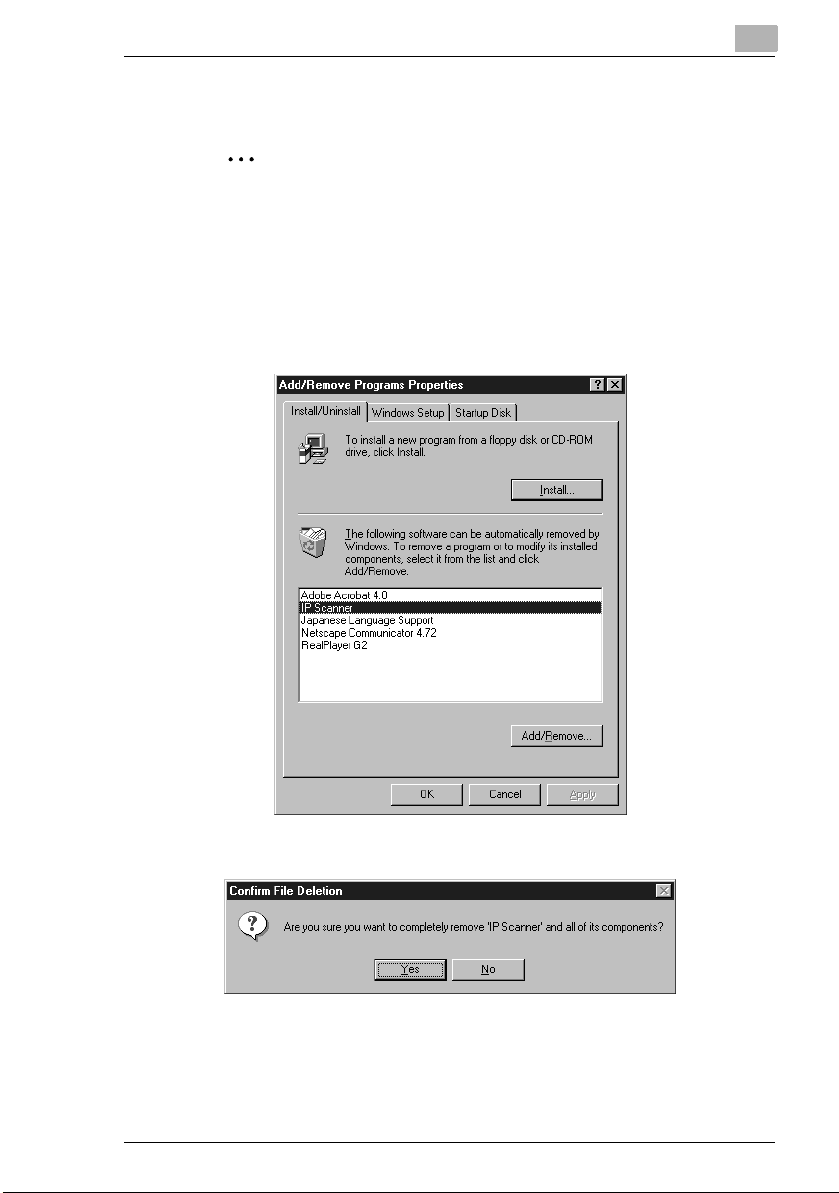

Uninstalling (Windows XP and 2000) .........................................2-8

3 Using IP Scanner

3.1 IP Scanner......................................................................................3-1

3.2 IP Scanner Window and Dialog Boxes........................................3-3

IP Scanner i

Using a dial-up router .................................................................3-2

Using a modem or terminal adapter ...........................................3-2

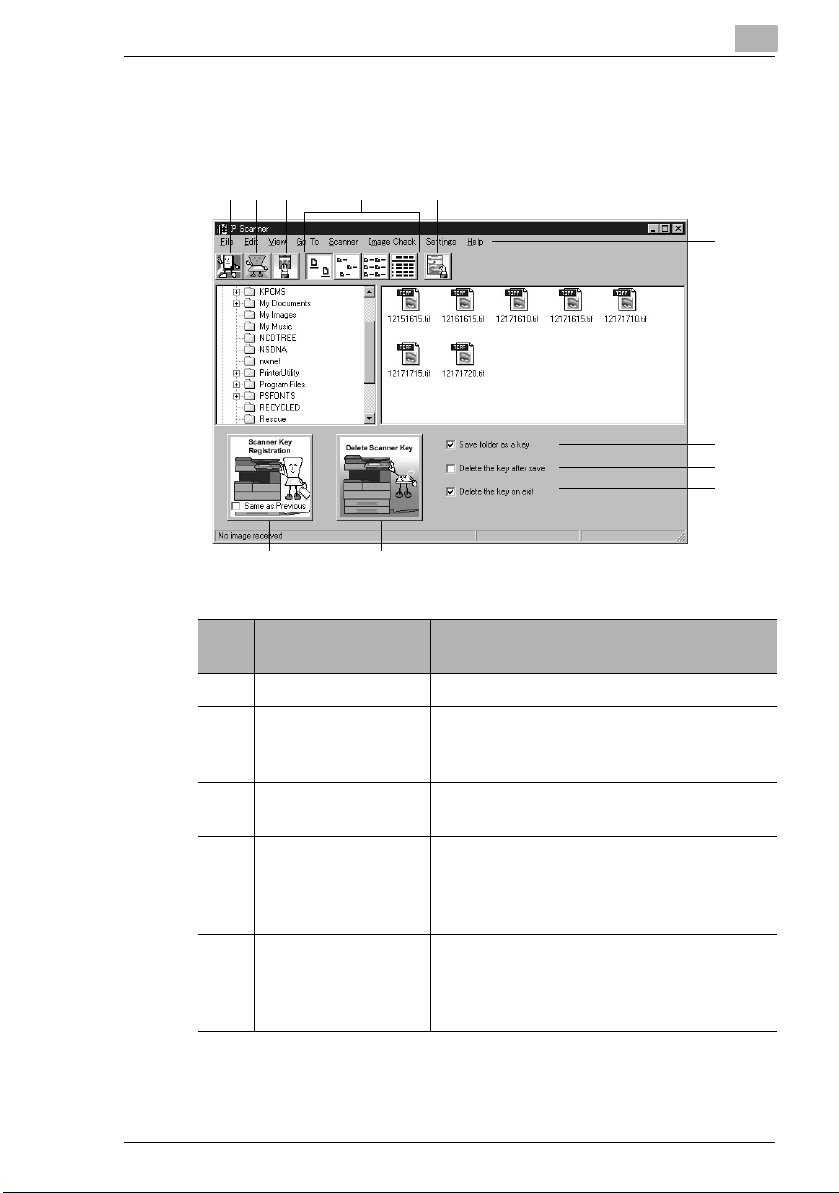

Main window...............................................................................3-3

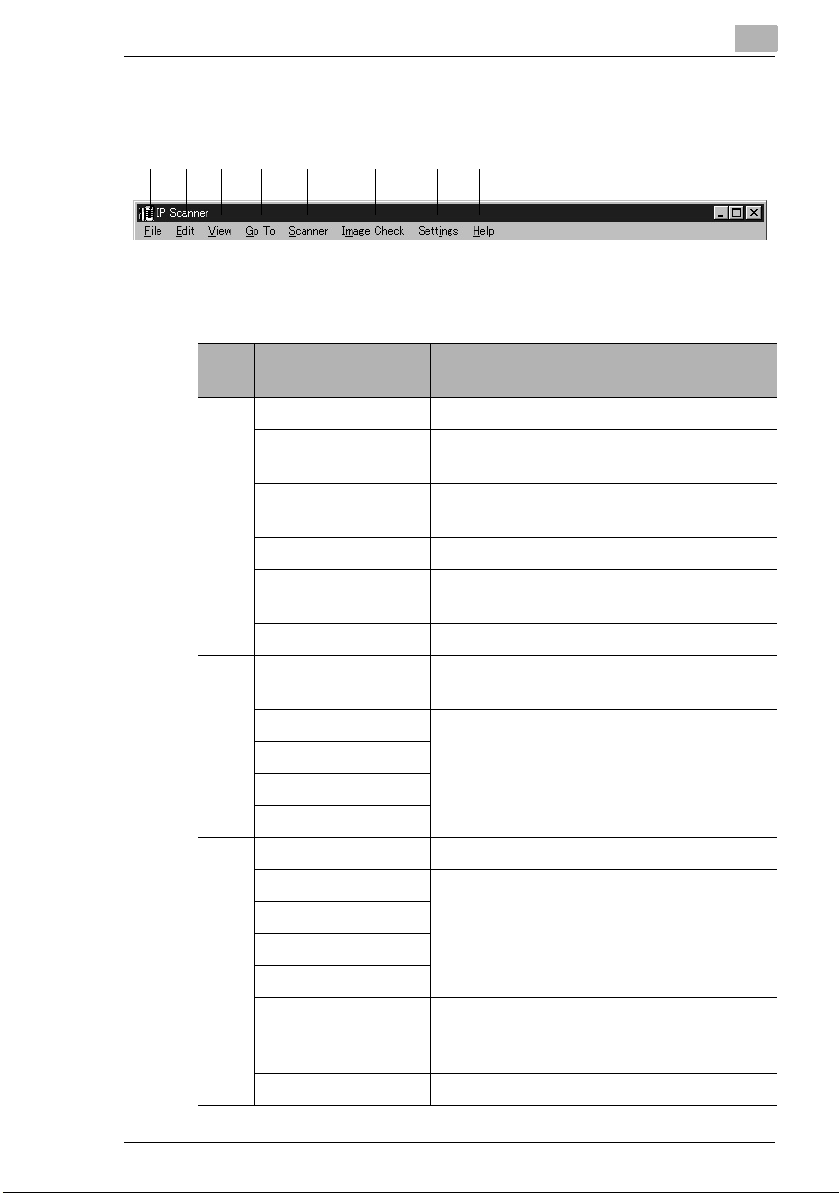

Main window (menu bar) ............................................................3-5

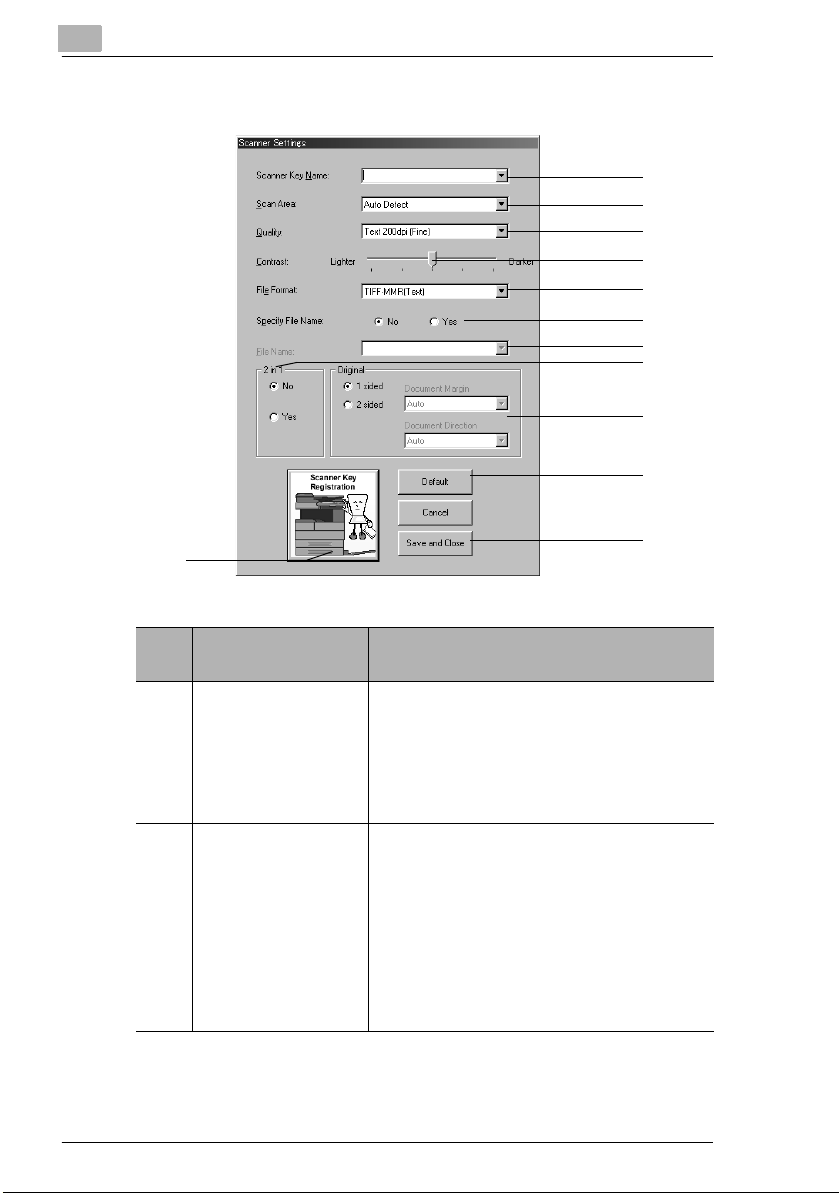

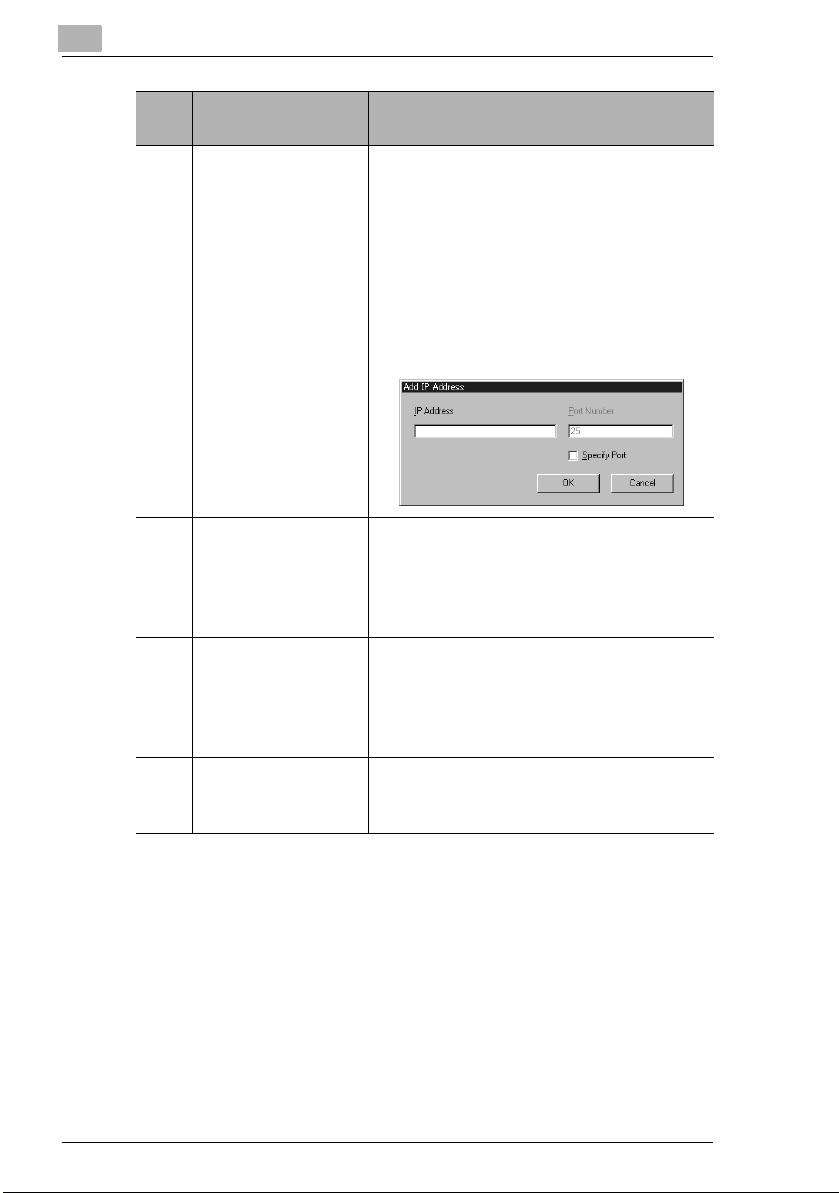

Scanner Settings dialog box.......................................................3-8

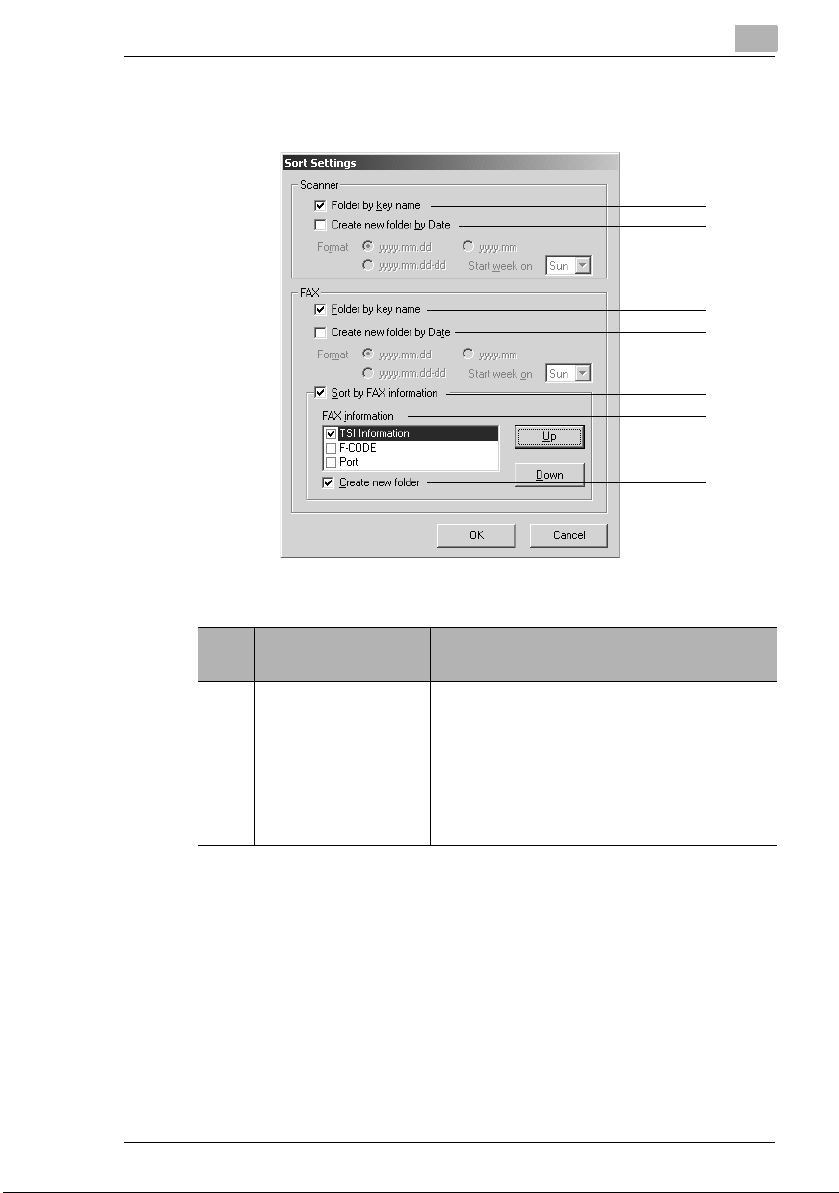

Sort Settings dialog box............................................................3-11

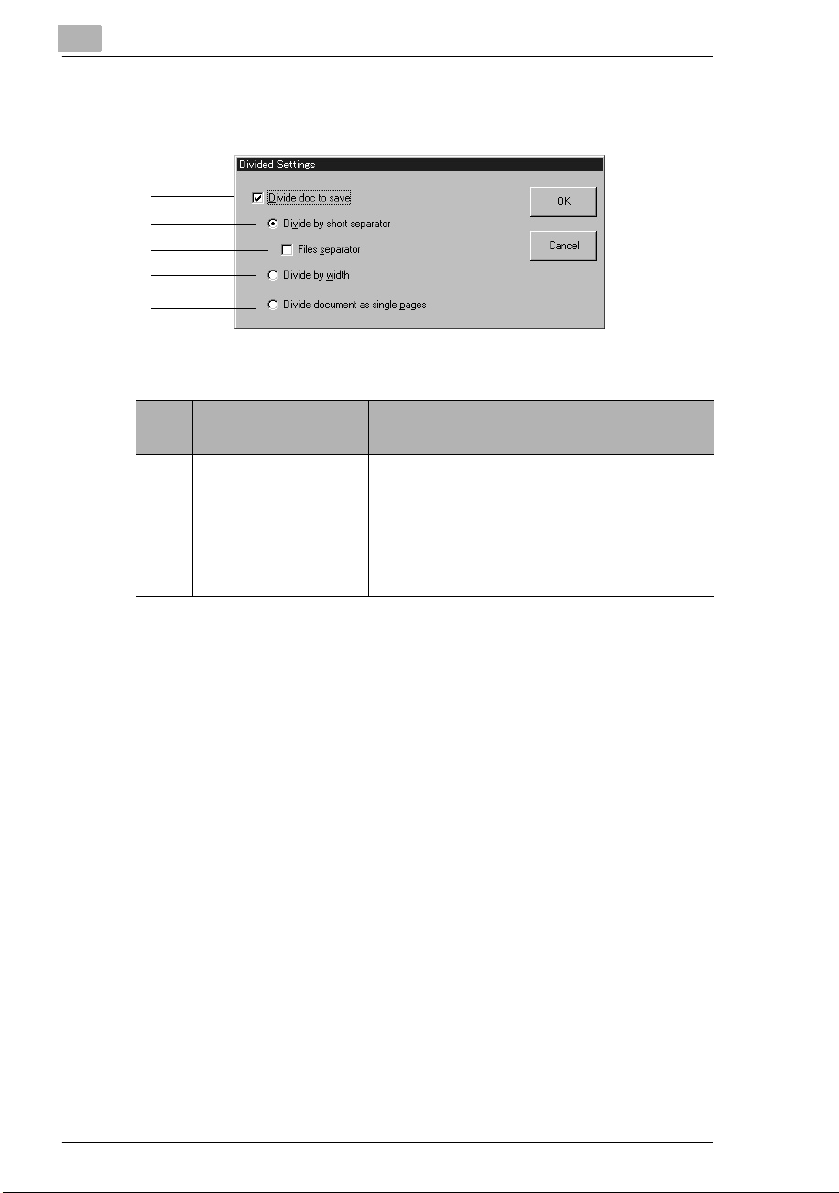

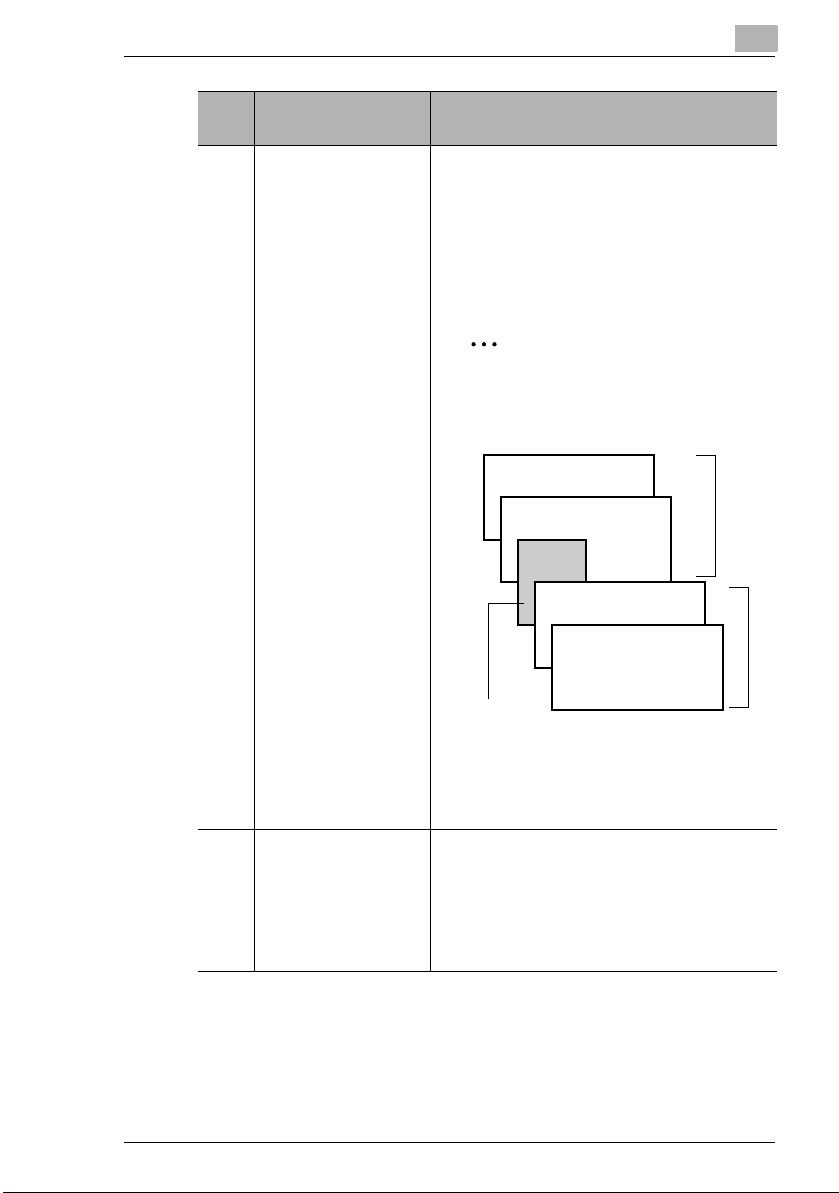

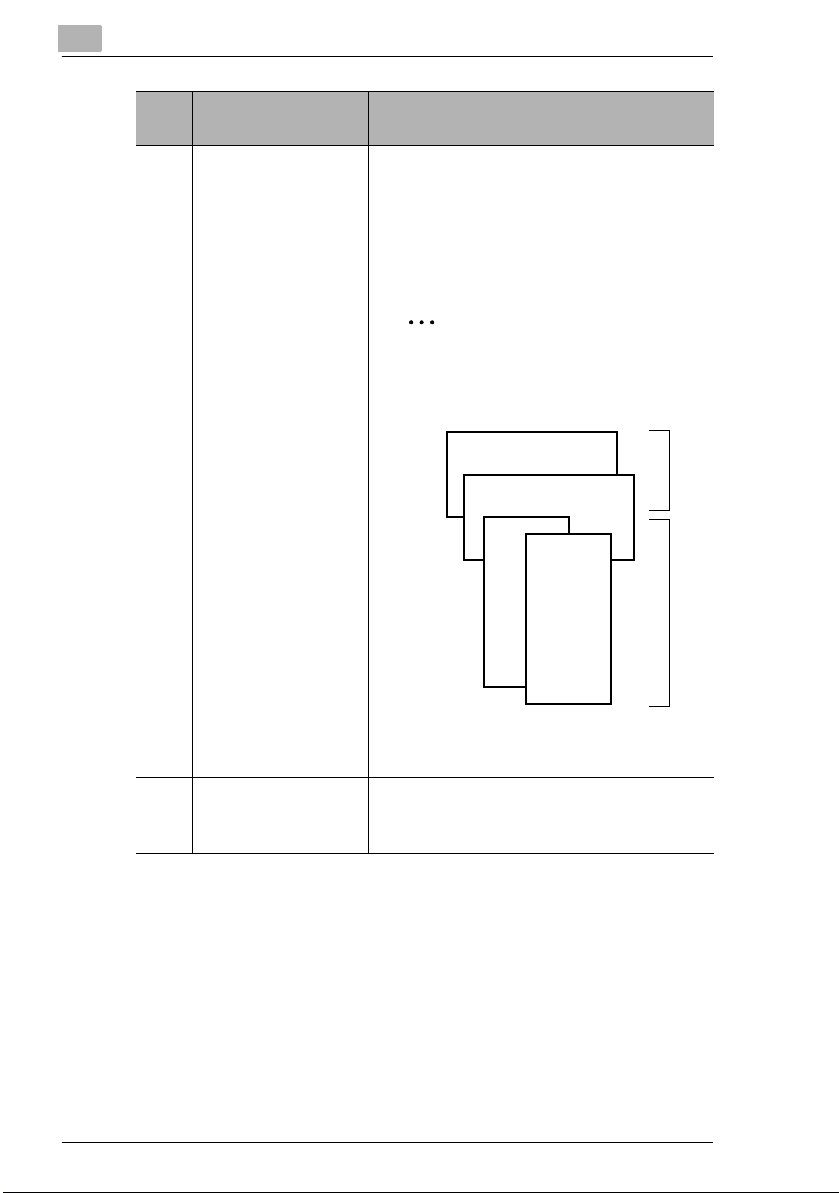

Divided Settings dialog box ......................................................3-14

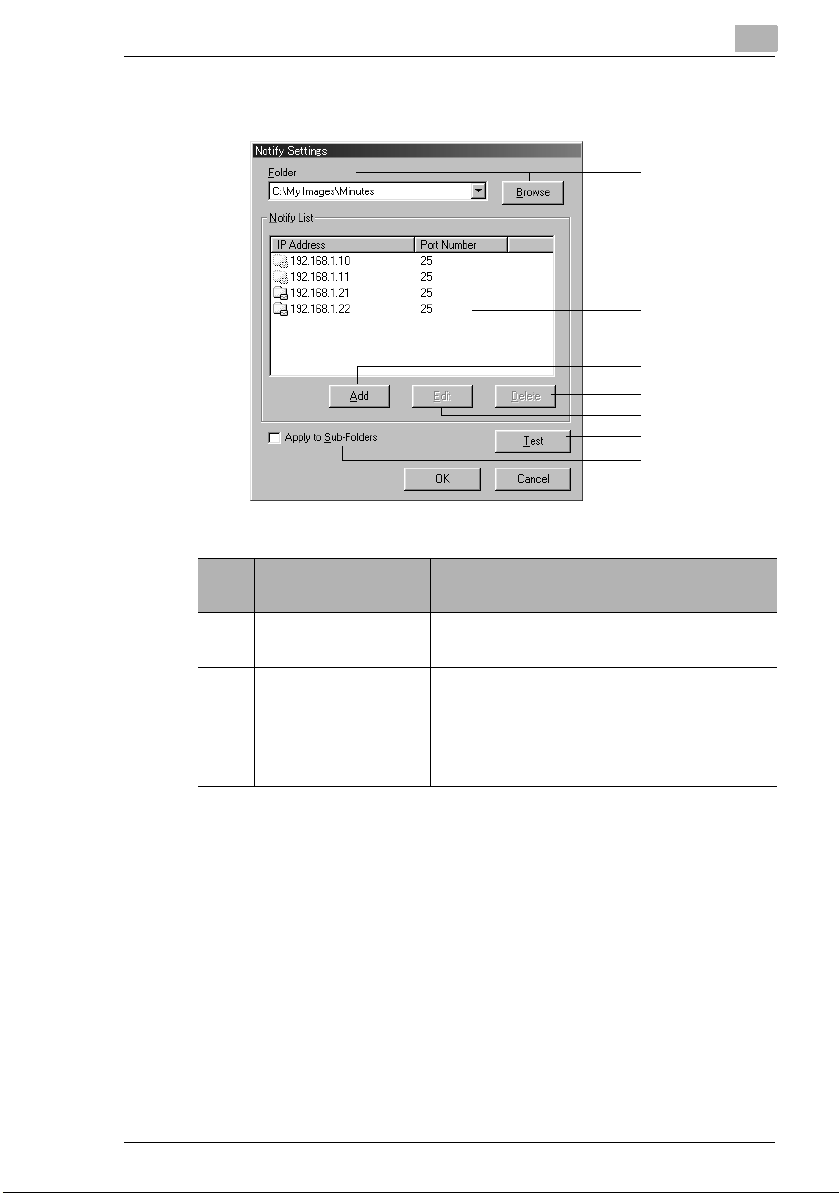

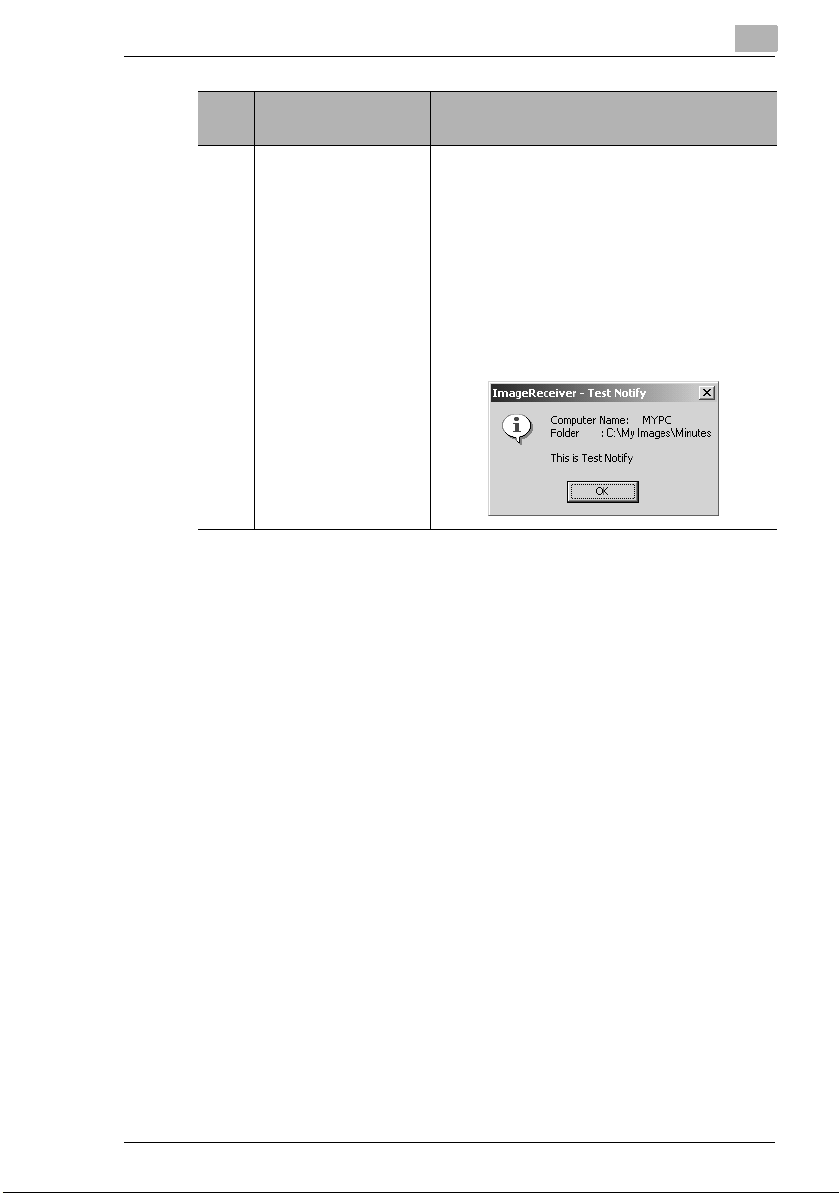

Notify Settings dialog box .........................................................3-17

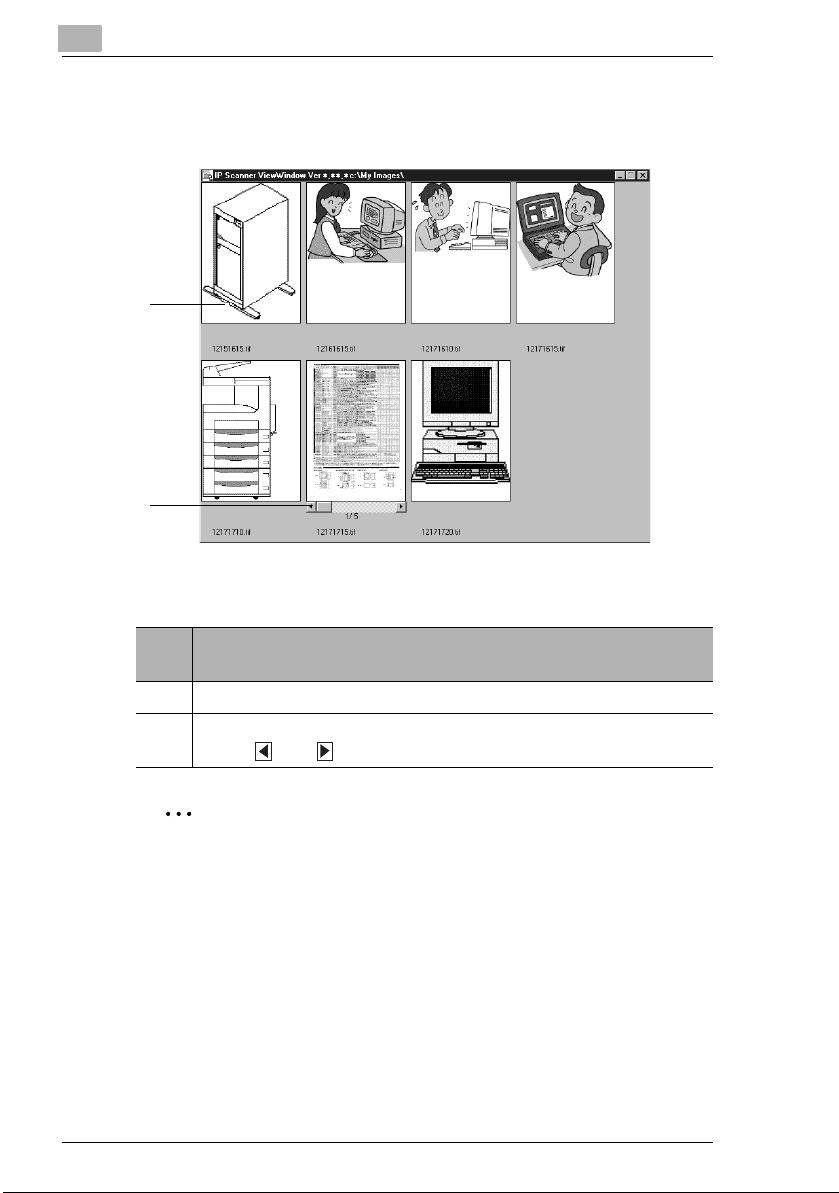

ViewWindow.............................................................................3-20

Contents

im2020, im2520, im2520f, im3520

3.3 Basic Transmission.................................................................... 3-21

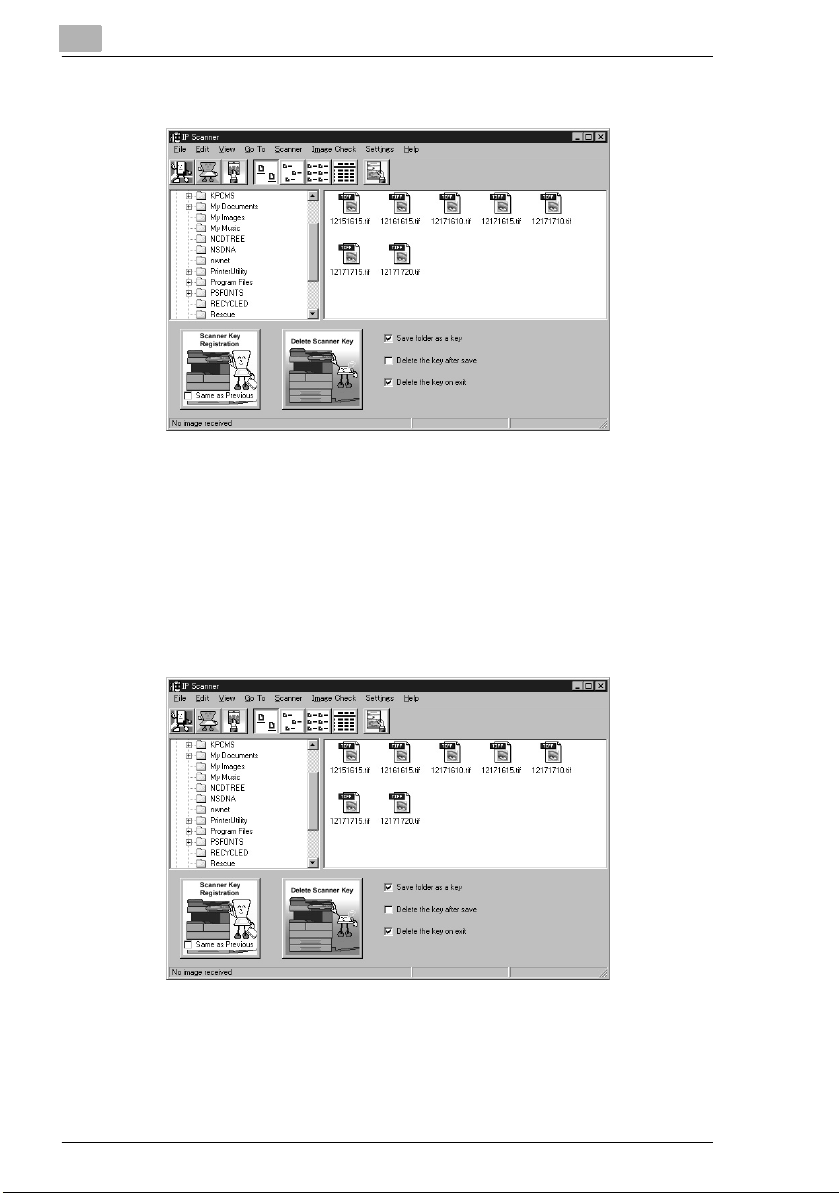

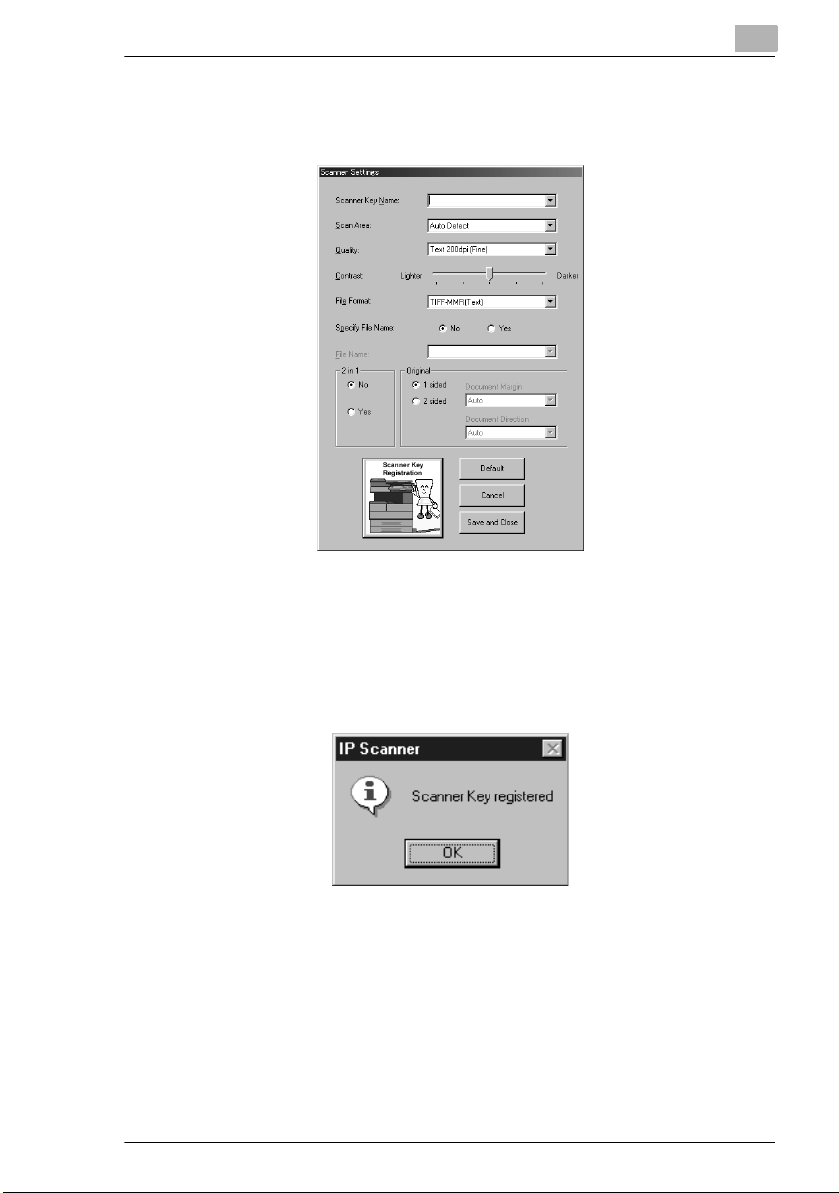

Programming the scanner button (from the computer) ............ 3-21

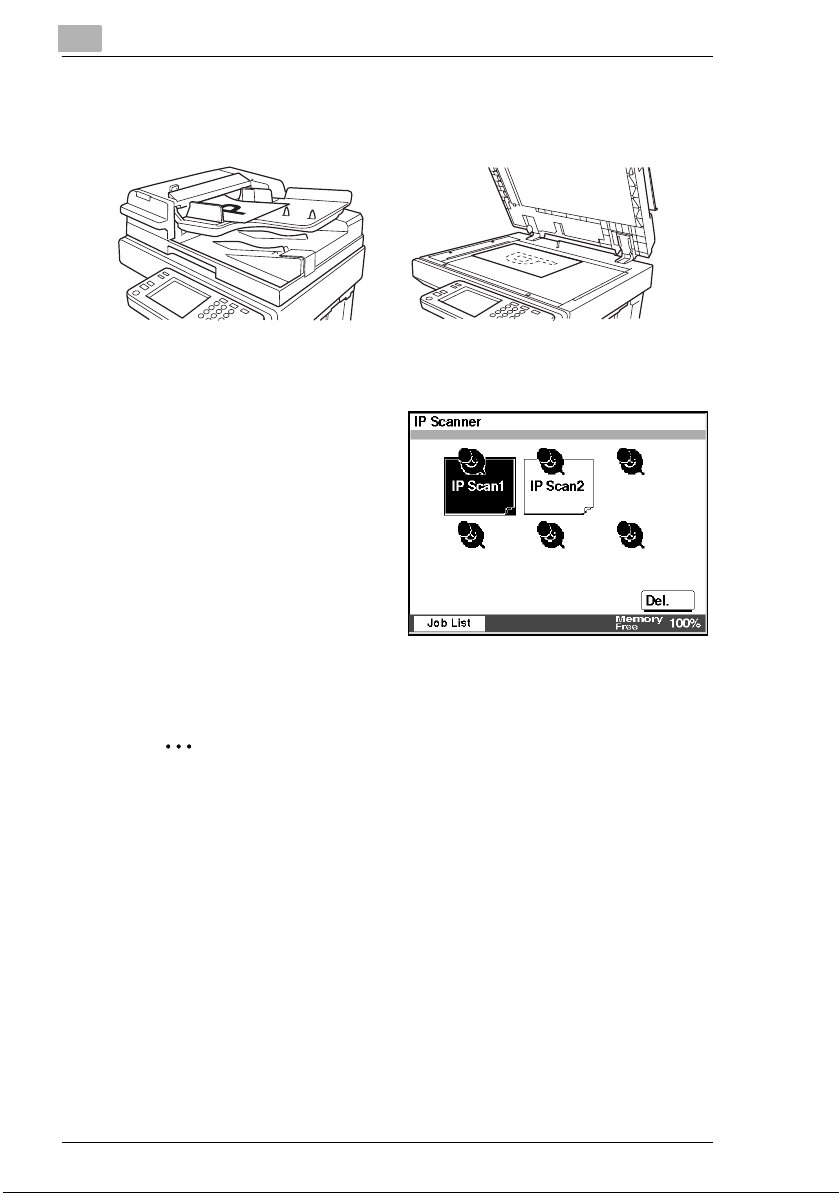

Scanning documents (from the copier).................................... 3-24

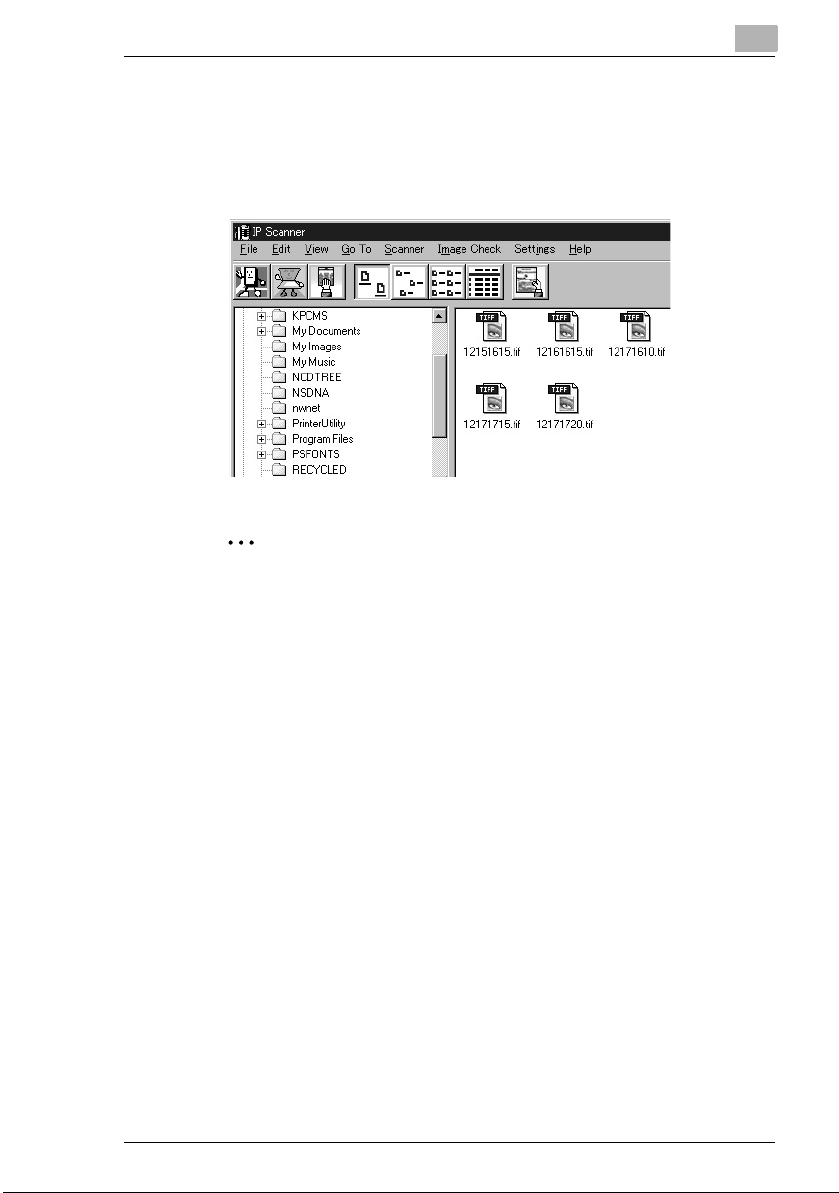

Viewing the scanned image (from the computer) .................... 3-25

ii IP Scanner

Introduction

im2020, im2520, im2520f, im3520

1 Introduction

1.1 Welcome

This manual provides descriptions on the use of IP Scanner.

For precautions concerning the use and safety of the main device, refer to
the User Manual provided with the device.

Store the User Manual and utilities disk in a safe place.

Trademark Acknowledgements

Windows®, Windows NT®, Microsoft® and its logo are registered
trademarks of Microsoft Corporation in the United States and other
countries.

Network FAX is a registered trademark of Comuse Co., Ltd.

All other company names and product names mentioned in this manual
are trademarks or registered trademarks of their respective companies.

1

IP Scanner 1-1

1

im2020, im2520, im2520f, im3520

1.2 Precautions

General precautions

1. The reproduction of the content of this manual, either partially or in full,
is prohibited without prior permission.

2. The content of this manual is subject to change without notice.

3. Unauthorized duplication or modification is strictly prohibited.

4. This manual was created with careful attention to content; however, if
inaccuracies, errors or omissions are noticed, please contact your
sales or service representative.

5. Some network application functions may not be supported, depending
on the operating environment or other software.
The actual performance of network application functions is determined
by various factors, such as the system configuration, customer data
and operator controls.
Since the operating environment of network application functions
differs depending on the customer, the configuration of specific
products and the suitability of the application software should be
determined specifically for the customer.

6. We assume no responsibility for consequences arising from use,
regardless of items 4 and 5 mentioned above.

7. The software provided with the device, the software included on the
CD-ROM and information such as the design of and materials related
to this manual are the sole property of NEC Corporation, NEC Access
Technica and their licensors.
NEC Corporation, NEC Access Technica and their licensors own all
patents, copyrights and titles to this manual, from the design,
production and duplication to the use and marketing rights. However,
these limitations do not apply if written permission to transfer the
above-mentioned rights to another company is received.

8. The touch panel screens and computer windows and dialog boxes
shown in this manual may differ slightly from the actual products.

Introduction

1-2 IP Scanner

Introduction

im2020, im2520, im2520f, im3520

1.3 Enclosed Accessories

Internet Fax & Network Scan Kit

G CD-ROM containing electronic manuals

G Utility Disk (CD-ROM)

✎

Tip

In order to use the IP Scanner, the Network Interface Card and the
Internet Fax & Network Scan Kit must be installed.

CAUTION

Only use the CD-ROM in a player that is CD-ROM-compatible.

➜ If a player not compatible with the CD-ROM format is used, your ears

or speakers may be damaged by the loud noise produced.

1.4 Preparing the LAN Cable and IP Address

In order to use the IP Scanner, a LAN cable and a registered IP address
are required.

The LAN cable is not included; it must be prepared by the user.

1

✎

1.5 Acceptance of the End User License Agreement

In order to use the network functions, you must agree not to make illegal
copies of or pass to unlicensed persons the software provided with the
device or the software included on the CD-ROM. Before using these
functions, you must read the enclosed End User License Agreement and
agree to the terms of use for the software.

IP Scanner 1-3

Note

The LAN cable should be a cable for Fast Ethernet 100BASE-TX
(Category 5).

1

im2020, im2520, im2520f, im3520

1.6 Compatible Operating Systems

Utility Operating System

IP Scanner Windows® Me/Windows® 98/Windows® 95/Windows® 2000/

Windows® NT4.0/Windows® XP

1.7 Operating Environment of Utilities

IP Scanner

Processor Pentium 133 MHz or higher

Memory 32 MB or more (64 MB recommended)*

Hard disk free space 50 MB or more

* 64 MB or more (128 MB recommended) for Windows® XP or Windows® 2000

Introduction

1-4 IP Scanner

Introduction

im2020, im2520, im2520f, im3520

1.8 Specifying the IP Address

Be sure to specify the IP address of the copier before using the IP
Scanner.

Specify the IP address from the Basic Settings screen.

✎

Note

After changing the settings, turn the unit off, then on again.

1

Parameter Description

DHCP Specify whether to automatically retrieve the IP

IP Address Type in the IP address of this unit.

Subnet Mask Type in the subnet mask of the connected

Gateway Type in the default gateway address of the

IP Scanner 1-5

address from the DHCP server or to specify a
fixed IP address.

*Type in the IP address only if the “DHCP”
parameter is set to “IP Input”.

network.
*Type in the subnet mask only if the “DHCP”
parameter is set to “IP Input”.

connected network.
*Type in the default gateway address only if the
“DHCP” parameter is set to “IP Input”.

1

im2020, im2520, im2520f, im3520

Introduction

1 Press the [Utility] key on the copier control panel.

2 Touch [Administrator Management].

3 Use the keypad to type in the administrator access code, and then

touch [Enter].

4 Touch [Admin. 2].

5 Touch [Network Set].

6 Touch [Basic Setting].

7 Specify the settings described above.

8 Touch [Enter].

✎

Note

In order to apply the new settings, the unit must be turned off, then on
again.

1-6 IP Scanner

Making Connections

im2020, im2520, im2520f, im3520

2 Making Connections

2.1 LAN Connection

This copier can transmit with the TCP/IP protocol on a LAN. Therefore, the
LAN cable must be connected.

Connect to the LAN by using a LAN cable (cable for Fast Ethernet
100BASE-TX).

Connecting the LAN cable

Insert one plug on the LAN cable into the connector (marked LAN) at the
back of the machine, and then insert the other plug into the hub.

✎

Tip

The connector is at the back of the machine.

The LAN cable should be a cable for Fast Ethernet 100BASE-TX
(Category 5).

2

USB

LAN

IP Scanner 2-1

The LAN cable is not included as an accessory.

Connector for LAN cable

USB printer connector (optional)

LED indicator

• For more details, refer to the manual for
the printer controller.

Power cord connector

2

im2020, im2520, im2520f, im3520

Making Connections

LED indicators

LED Color Condition Meaning

Green Lit The LAN is connected correctly.

Off The copier has not been turned on.

The LAN is not connected correctly.

Flashing Data is being sent or received.

Red Lit Operating at 100 Mbps

Off Operating at 10 Mbps

2-2 IP Scanner

Making Connections

im2020, im2520, im2520f, im3520

2.2 Installing IP Scanner

The procedure for installing IP Scanner is described below.

Precautions

G For details on installing the Network FAX, refer to the Network FAX

User’s Manual.

✎

Note

Do not install IP Scanner onto computers used as mail servers or
computers where a mail server is installed.

Utilities disk

The utilities disk contains the IP Scanner and Network FAX applications.

In order to install each utility, the amount of hard disk space shown below
must be available.

G IP Scanner: About 5 MB

G Network FAX: About 22 MB

Installing IP Scanner (Windows Me, 98/95, XP, 2000 and NT4.0)

1 Start up Windows, and then insert the utilities disk (CD-ROM) into the

CD-ROM drive.

The Installer starts up, and the Installer dialog box appears.

2

✎

2 Click the [GO] button beside Install IP Scanner.

IP Scanner 2-3

Tip

If the installer does not start up automatically, double-click “My
Computer” on the desktop, and then double-click the icon for the
CD-ROM drive containing the CD-ROM. Double-click [setup.exe]
on the CD-ROM to start up the installer.

2

im2020, im2520, im2520f, im3520

Making Connections

3 Check the contents of the dialog box, and then click the [Next] button.

4 Check which folder IP Scanner will be installed into, and then click the

[Next] button.

❍ To change the folder where IP Scanner will be installed, click the

[Browse...] button, and then select the desired folder.

❍ While specifying settings in the installer dialog boxes, if you

choose the wrong setting or want to change a setting, click the
[Back] button to return to the previous dialog box and specify the
settings as desired.

2-4 IP Scanner

Making Connections

im2020, im2520, im2520f, im3520

5 Select the folder where IP Scanner will be registered, and then click

the [Next] button.

The installation begins.

6 Click the [Finish] button.

2

7 In the Installer dialog box, click the [Close] button.

IP Scanner 2-5

A message may appear, informing you that the computer should be
restarted.
Restart the computer to complete the installation.

2

im2020, im2520, im2520f, im3520

Making Connections

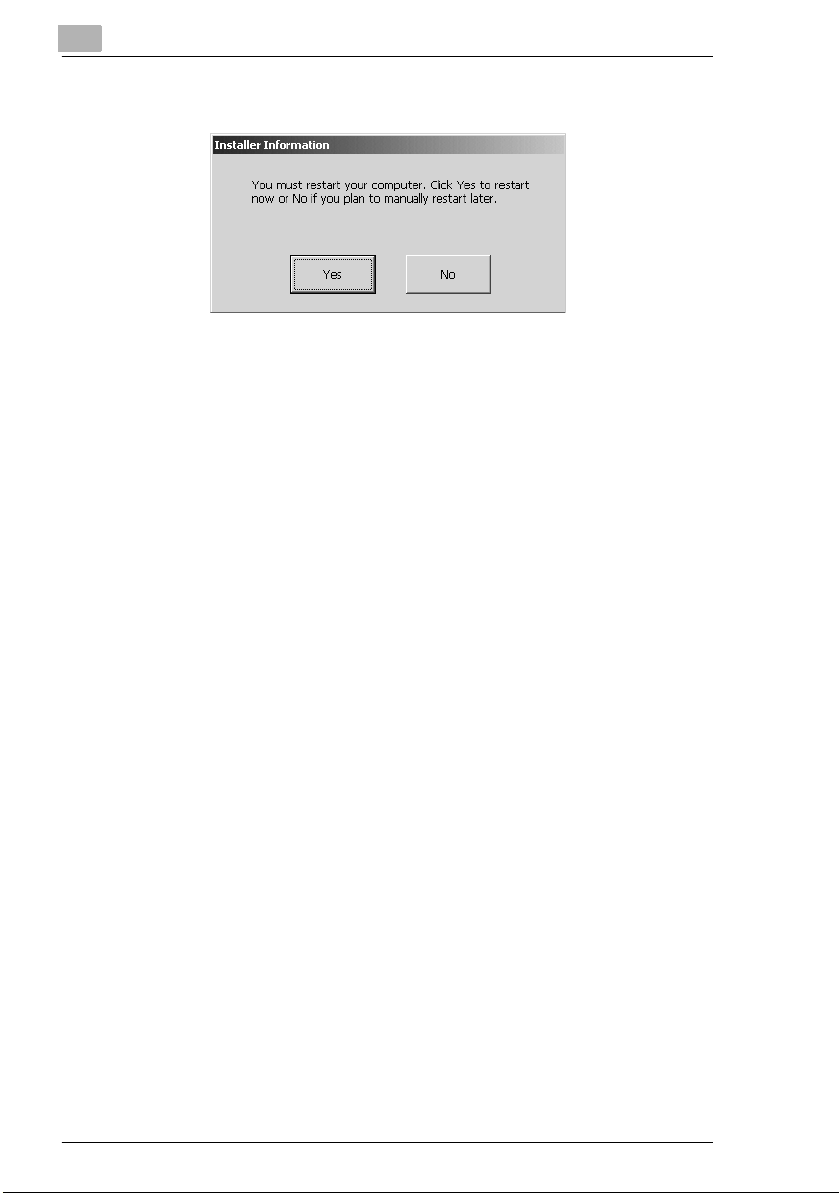

8 Restart the computer.

❍ Click the [Yes] button to restart the computer.

2-6 IP Scanner

Making Connections

im2020, im2520, im2520f, im3520

Uninstalling (Windows Me, 98/95 and NT4.0)

✎

Note

Quit Image Receiver before uninstalling IP Scanner.

1 In Windows, click the [Start] button, point to [Settings], and then click

[Control Panel] to display the Control Panel window.

2 Double-click the [Add or Remove Programs] icon.

3 Select “IP Scanner”, and then click the [Add/Remove...] button.

2

4 Click the [Yes] button.

5 Restart the computer.

IP Scanner 2-7

2

im2020, im2520, im2520f, im3520

Making Connections

Uninstalling (Windows XP and 2000)

✎

Note

Quit Image Receiver before uninstalling IP Scanner.

1 In Windows, click the [Start] button, point to [Settings], and then click

[Control Panel] to display the Control Panel window.

2 Double-click the [Add/Remove Programs] icon (the [Add or Remove

Programs] icon in Windows XP).

3 Select “IP Scanner”, and then click the [Change/Remove] button.

4 Click the [Yes] button.

5 Restart the computer.

2-8 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

3 Using IP Scanner

✎

Note

In order for a computer to be used as a recipient, the TCP/IP setting
must first be specified.

3.1 IP Scanner

G First, install IP Scanner onto the computer.

Refer to “Installing IP Scanner”.

G The transmitted image is received by the Image Receiver, and saved

by IP Scanner as an image file in the “My Images” folder.
If the “Save folder as a key” check box in the main window was
selected, a new folder with the same name as the scanner button is
created and the image file is saved in that folder.
*This setting is available only if the document is scanned with a
scanner function. For details on saving the data when the received fax
document is transferred to IP Scanner, refer to “Sort Settings dialog
box” on page 3-11.

G When using IP Scanner, be sure that Image Receiver is running.

While Image Receiver is running, its icon ( ) appears in the Windows
taskbar. Normally, Image Receiver starts up automatically when
Windows starts up. If Image Receiver has not started up, start it up as
described below.

3

G When Image Receiver begins to receive image data, the icon in the

✎

IP Scanner 3-1

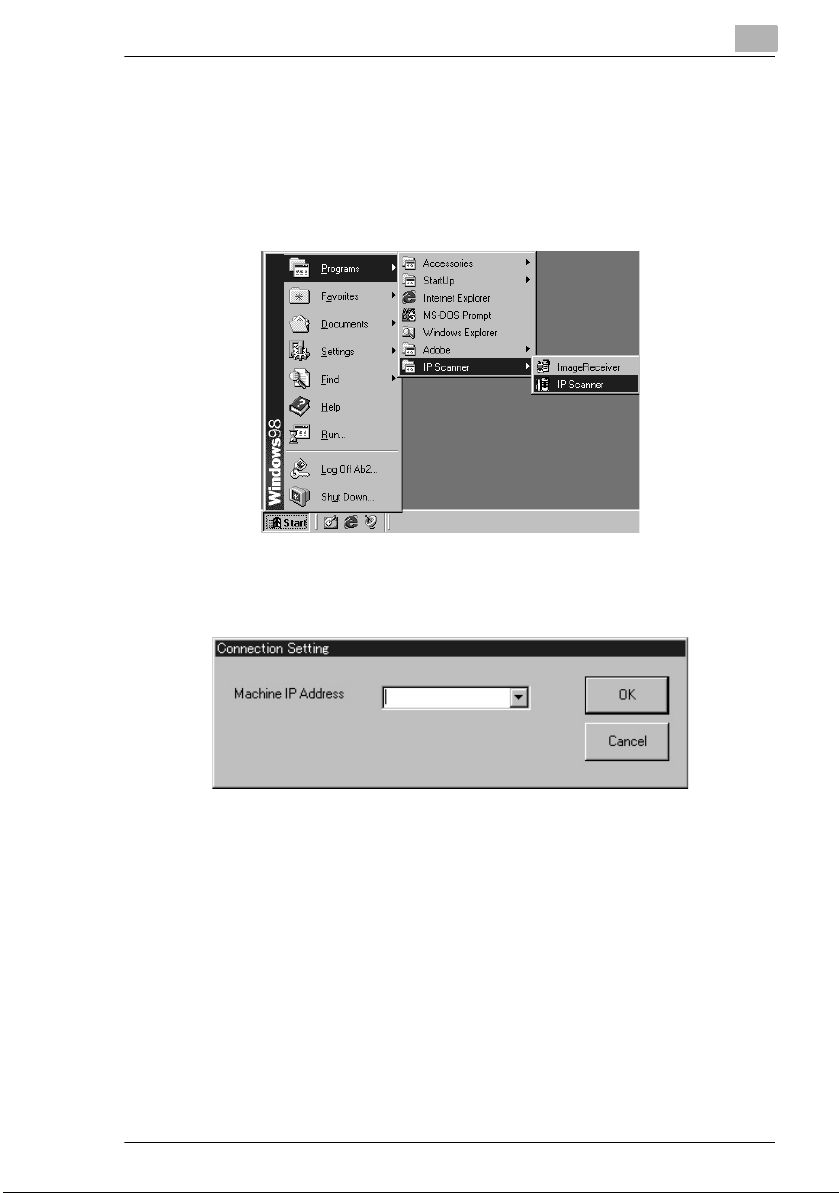

“Start” → “Programs” → “IP Scanner” → “Image Receiver”

Windows taskbar flashes.

Note

With IP Scanner, JBIG-encoded TIFF files cannot be viewed.

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Using a dial-up router

G When using IP Scanner, be sure that the IP address of the main device

is correctly specified.
If an incorrect IP address is specified in an environment where a dial­up router is used, the dial-up router may unnecessarily be dialed up.
In addition, depending on the network environment of the computer,
the dial-up router may be unnecessarily dialed up, regardless of
whether the correct IP address was specified.

Using a modem or terminal adapter

G If a computer with a built-in modem (or a computer connected to

terminal adapter) is used, they may be used to dial up.
If this occurs, select either “Never dial a connection” or “Dial whenever
a network connection is not present” in the “Dial-up settings” group box
on the Connections tab of the Internet Properties dialog box. For
details, refer to the instruction manual for the operating system.

3-2 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

3.2 IP Scanner Window and Dialog Boxes

Main window

23145

67

3

11

8

9

10

Num
ber

1 [Close] button Quits IP Scanner.

2 [Scanner Settings]

3 [Check RX now]

4 [Large Icons] button

5 [Thumbnails] button Starts up View Window and displays a list

IP Scanner 3-3

Item Name Description

Displays the Scanner Settings dialog box.

button

button

[Small Icons] button
[List] button
[Details] button

Refer to “Scanner Settings dialog box” on
page 3-8.

Checks if scan data has arrived.

Allows the display of the icons to be
changed.

of thumbnails for all TIFF and PDF files in
the open folder. Refer to “ViewWindow”
on page 3-20.

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Num

Item Name Description

ber

6 [Scanner Key

Registration] button

7 [Delete Scanner

key] button

8 “Save folder as a

key” check box

9 “Delete the key after

save” check box

10 “Delete the key on

exit” check box

11 Menu bar Allows various settings to be specified.

Programs a button on the copier for
specifying the computer where scan data
is sent.
Click this button to display the Scanner
Settings dialog box.
If the Same as Previous check box is
selected, the button can be programmed
with the same settings as when it was
previously programmed.

The programmed scanner button on the
copier is erased.

If this check box is selected, a folder with
the same name as the button is
automatically created when the scanner
button is programmed.

If this check box is selected, the scanner
button is automatically erased as soon as
the scanned image is saved in a folder.

If this check box is selected, the scanner
button is automatically erased when IP
Scanner is closed.

3-4 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Main window (menu bar)

23145678

Num

Menu Description

ber

1File

• View file Allows the selected image file to be
viewed.

• New Folder Creates a new folder in the folder that is
displayed.

• Delete Deletes the selected file or folder.

• Rename Allows the name of the selected file or

folder to be changed.

• Exit Quits IP Scanner.

2 Edit Allows the selected image file to be

viewed.

• Cut Selects, moves, copies, etc. the file or

• Copy

• Paste

• Select All

3View

• Large Icons Allows the display of the icons to be

• Small Icons

• List

• Details

• Thumbnails Starts up View Window and displays a list

• Refresh Updates the display of files and folders.

folder.

changed.

of thumbnails for all TIFF and PDF files in
the open folder.

3

IP Scanner 3-5

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Num

Menu Description

ber

4Go To

• Saving folder Displays the folder where the data was
saved.

5 Scanner

• Scanner Settings Displays the Scanner Settings dialog box.
Refer to “Scanner Settings dialog box” on
page 3-8.

• Scanner Key

Registration

• Scanner Key

Delete

• Reg. same as

previous

6 Image Check

• Check now Checks if scan data has arrived.

• Automatic Automatically checks if scan data has

• Manual Manually checks if scan data has arrived.

Programs a scanner button on the copier.

Erases the scanner button registered in
the main unit.

Programs the button with the same
settings as when it was previously
programmed.

arrived.

3-6 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Num
ber

7 Settings

8Help

Menu Description

• Connection
Setting

• Image Folder
Setting

Specifies the IP address of the device.

Changes the folder where the image is
saved.

✎

Note

A network drive cannot be specified.

• Viewer settings Changes the viewer that is opened from IP

Scanner.

• Sort settings Displays the Sort Setting dialog box.

Refer to “Sort Settings dialog box” on
page 3-11.

• Divided settings Displays the Divided Setting dialog box.

Refer to “Divided Settings dialog box” on
page 3-14.

• Notify Settings Displays the Notify Setting dialog box.

Refer to “Notify Settings dialog box” on
page 3-17.

• Selected folder as
saving location

• Configure Arrival
Notification

• Show dialogue
after received

• Notify other PC
after received

• Computer
Information

• Help Displays help for IP Scanner.

• About This

Product

Specifies the displayed folder as the save
destination.

Specifies the displayed folder as the
notification folder for computer reception
notifications.

Displays a dialog box to notify that the
image was received.

Sends a notification informing a different
computer that the image was received.

Displays the IP address of the computer
and the SMTP port of Image Receiver.

Displays the version information for IP
Scanner.

3

IP Scanner 3-7

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Scanner Settings dialog box

1

2

3

4

5

6

7
8

9

10

12

Num

Item Name Description

ber

1 “Scanner Key

Name” box

Type in the name of the scanner button
that will appear on the copier.

11

If the Save folder as a key check box in
the main window was selected, a folder
with the same name as the button is
created on the computer.

2 “Scan Area” box From the drop-down menu, select the size

of the scanning area: “Auto Detect”,

“A4P”, “A4L”, “A3P”, “A5P”, “A5L”, “B4P”,
“B5P”, “B5L”, “FLS.”, “Letter P”, “Letter L”,
“11 × 17 P”, “51/2 × 8 1/2 P”, “51/2 × 81/

2 L”, “Legal P”, “Exec. P” or “Exec. L”.
If “Auto detect” is selected, the scanning
area is automatically determined
according to the size of the document.

3-8 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Num
ber

3 “Quality” box From the drop-down menu, select the

4 “Contrast” slider Specify the scanning contrast.

5 “File Format” box From the drop-down menu, select the

6 “Specify File Name”

7 “File Name” box Type in the name that the file will be saved

8 “2in1” group box If “Yes” is selected, a two-page document

9 “Original” group box Select whether the document is single-

Item Name Description

scanning resolution: “Text 200dpi (Fine)”,
“Text 400dpi (Super Fine)”, “Text 600dpi”,
“Photo 200dpi (GSR)”, “Photo 400dpi (S-

GSR)”, “Photo 600dpi”, “Text+Photo
200dpi”, “Text+Photo 400dpi” or
“Text+Photo 600dpi”.

format in which the file is saved: “TIFF-
MMR (Text)”, “TIFF-MH (Photo)”, “PDF-
MH (Photo)” or “PDF-MR (Text)”.
Depending on whether the data is
encoded, some images may not viewed
on the computer.
In that case, select an MH setting to
improve the possibility of viewing the
image. An amount of encoded data exists
in image data; however, generally, MMR
has more than MH.

If “Yes” is selected, a specified file name

parameter

will be given to the image data when it is
saved.
If “No” is selected, the file will be saved
with a name consisting of the device name
and date that the image was scanned.

with when Specify File Name is set to
“Yes”.

is scanned and filed as a one-page
scanned image.
Available only if an automatic document
feeder is used.

sided or double-sided. If “2 sided” is
selected, the location of the binding
margin and the document orientation can
be specified.

3

IP Scanner 3-9

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Num

Item Name Description

ber

10 [Default] button Reverts all parameters to their default

settings.

11 [Save and Close]

button

12 [Scanner Key

Registration] button

Saves the current settings and closes the
Scanner Settings dialog box.

Programs a button on the copier for
specifying the location where the data is
filed.

3-10 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Sort Settings dialog box

3

1
2

3

4

5

6

7

Num
ber

1 “Folder by key

IP Scanner 3-11

Item Name Description

If this check box is selected, a folder with

name” check box

the same name as the button is
automatically created when the scanner
button is programmed.
This check box is connected to the Save

folder as a key check box in the main

window.

3

im2020, im2520, im2520f, im3520

Num

Item Name Description

ber

2 “Create new folder

by Date” check box

3 “Folder by key

name” check box

4 “Create new folder

by Date” check box

5 “Soft by FAX

information” check
box

Using IP Scanner

If this check box is selected, a folder is
created with a name that is the same as
the date that the image was sent from the
copier and the data is saved in that folder.
The format of the date can be specified.
Example: For December 24, 2003

•“yyyy.mm.dd”: Ex. 2003.12.24

•“yyyy.mm”: Ex. 2003.12

•“yyyy.mm.dd-dd”: Ex. 2003.12.22-28

*If a day is selected:
(A week is considered to be 7 days from
the selected day. However, at the end of
the month, the month will not be
straddled.)

If this check box is selected and a
received fax document is transferred to IP
Scanner, a folder with the same name as
the button is automatically created when
the scanner button is programmed.
This check box functions independently of
the Save folder as a key check box in the
main window.
Refer to “Forwarding a Received FAX to
IP Scanner” of the Scanner Mode User
Manual.

If this check box is selected, a folder is
created with a name that is the same as
the date that the fax was received and the
data is saved in that folder. The format of
the date can be specified.
Example: For December 24, 2003

•“yyyy.mm.dd”: Ex. 2003.12.24

•“yyyy.mm”: Ex. 2003.12

•“yyyy.mm.dd-dd”: Ex. 2003.12.22-28

*If a day is selected:
(A week is considered to be 7 days from
the selected day. However, at the end of
the month, the month will not be
straddled.)

If this check box is selected, a folder is
created using the recipient information of
the fax and the data is saved in that folder.

3-12 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Num
ber

6 “Fax information” list Click the [Up] button and the [Down]

7 “Create a new

Item Name Description

button to select the fax information that will
be used to classify the data.
From the selected items, the items at the
top of the list will be given priority when the
data is classified.

If this check box is selected and there is

folder” check box

no folder created with transmission source
information for the recipient’s fax, a folder
is created with the transmission source
information of a new fax and the document
(image data) is saved in that folder.

3

IP Scanner 3-13

3

im2020, im2520, im2520f, im3520

Divided Settings dialog box

1

2

3

4

5

Num

Item Name Description

ber

1 “Divide doc to save”

check box

Using IP Scanner

If this check box is selected, the scanned
document is separated and saved as
individual files.
This enables you to scan in a single
operation a document that will be saved
as separate files.

3-14 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Num
ber

2 “Divide by short

Item Name Description

If this setting is selected and documents of

separator” setting

different lengths are scanned, those
documents are identified as interleaves
separating the document that are saved
as separate files.
This setting is available only if the Divide

doc to save check box is selected.

✎

Note

Load the documents so that the left
sides of the pages (leading edges) are
aligned.

3

1

3 “Files separator”

IP Scanner 3-15

check box

2

3

1 Document 1
2 Document 2
3 Interleaf (document with a different
length)

If this check box is selected, the
documents inserted as interleaves are
also saved as image data.
This check box is available only if the

Divie by short separator setting is

selected.

3

im2020, im2520, im2520f, im3520

Num

Item Name Description

ber

4 “Divide by width”

setting

Using IP Scanner

If this setting is selected and documents of
different widths are scanned, the
documents of the same width are saved
together as separate files.
This setting is available only if the Divide

doc to save check box is selected.

✎

Note

Load the documents so that the top
edges of the pages (edges toward the
rear of the machine) are aligned.

1

2

5 “Divide document

as single pages”
setting

3-16 IP Scanner

1 Document 1
2 Document 2

If this setting is selected, each page of the
scanned document is saved as a separate
file.

Using IP Scanner

im2020, im2520, im2520f, im3520

Notify Settings dialog box

Num
ber

1 “Folder” and

2 “Notify List” Displays information on the notification

Item Name Description

Select the folder where image data will be

“Browse” box

saved.

destination specified for the folder
selected in the list. A faint icon beside a
folder indicates that the notification
destination is set for the containing folder.

3

1

2

3

5
4

7

6

IP Scanner 3-17

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Num

Item Name Description

ber

3 [Add] button Adds a notification destination. Type in the

IP address of the computer that will
receive the notification, and then click the
[OK] button.
If a port number is specified, select the
“Specify Port” check box, and then specify
the port number.
Specify the SMTP port number used by
Image Receiver on the computer to
receive the notification. Normally, “25”.

4 [Edit] button The selected notification destination can

be corrected or changed.
Folders (faint icons) where a notification
destination is set for the containing folder
cannot be edited.

5 [Delete] button Deletes the selected notification

destination.
Folders (faint icons) where a notification
destination is set for the containing folder
cannot be deleted.

6 “Apply to Sub-

Folders” check box

If this check box is selected, the same
notification settings are applied to all sub­folder contained in the selected folder.

3-18 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Num
ber

7 [Test] button Sends a test notification to the selected

3

Item Name Description

notification destination. The following
dialog box appears on the computer
specified as the notification destination.
Image Receiver must be started up on the
computer specified as the notification
destination. In addition, a test notification
cannot be sent to a notification destination
(faint icon) specified as a containing
folder.

IP Scanner 3-19

3

im2020, im2520, im2520f, im3520

Using IP Scanner

ViewWindow

1

2

Num

Description

ber

1 Click an image to view the file.

2 Appears when the file contains multiple pages.

Click and to change the page.

✎

Note

JBIG-encoded TIFF files cannot be displayed.

Images created with a device other than this copier (for example, with
a computer) may not be displayed.

3-20 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

3.3 Basic Transmission

Programming the scanner button (from the computer)

1 On the computer, start up IP Scanner.

❍ “Start” → “Programs” → “IP Scanner” → “IP Scanner”

2 Type in the IP address of the main device, and then click the [OK]

button.

3

IP Scanner 3-21

❍ If the IP address of the main unit has been set, this operation is not

required.

3

im2020, im2520, im2520f, im3520

Using IP Scanner

The main window appears.

3 Check that Image Receiver has started up.

❍ Normally, Image Receiver starts up automatically when Windows

starts up.

❍ If Image Receiver has not started up, start it up as described

below.
“Start” → “Programs” → “IP Scanner” → “Image Receiver”

4 In the main window, click the [Scanner Key Registration] button.

3-22 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

5 In the “Scanner Key Name” box on the Scanner Settings dialog box,

type in the name.

6 Specify the settings for “Scan Area”, “Quality”, and “Contrast”, and

then click the [Scanner Key Registration] button.

3

7 Click the [OK] button.

IP Scanner 3-23

The scanner button on the copier is programmed.

3

im2020, im2520, im2520f, im3520

Using IP Scanner

Scanning documents (from the copier)

1 Position the document(s) to be scanned.

2 Press the [Extra Scan] key.

3 Touch the scanner button for

the destination of the scan.

4 Press the [Start] key.

✎

Note

Only one scanner button can be programmed from a single computer
(same IP address).

A maximum of six scanner buttons on a copier can be programmed.

If the maximum number of scanner buttons is reached, they can be
deleted from the touch panel.
Select the scanner button that you wish to delete, and then touch
[Del.].
When a scanner button is deleted from the touch panel, the message
“Ready” remains displayed on the computer. If this occurs, click the
[Delete Scanner Key] button from the computer, and then follow the
instructions that appear to return to the Scanner Settings dialog box.

3-24 IP Scanner

Using IP Scanner

im2020, im2520, im2520f, im3520

Viewing the scanned image (from the computer)

➜ In the main window, select the image file that you wish to view, and

then double-click it.

The software corresponding to the TIFF or PDF file format starts up.

✎

Tip

The transmitted image is received by the Image Receiver, and saved
by IP Scanner as an image file in the “My Images” folder.
If the “Save folder as a key” check box in the main window was
selected, a new folder with the same name as the button is created
and the image file is saved in that folder.

3

IP Scanner 3-25

Click the [Thumbnails] button to display a list of thumbnails for all TIFF
and PDF files in the opened folder. Click a thumbnail to display the file.
→ Refer to “ViewWindow” on page 3-20.

If the “Show dialogue after received” setting is selected, the file can be
displayed by selecting [Details]-[Open] in the dialog box that appears
at transmission.

3

im2020, im2520, im2520f, im3520

Using IP Scanner

3-26 IP Scanner

2003. 7

im2020, im2520, im2520f, im3520

The information contained in this manual is

subject to change without notice to

incorporate improvements made on the

product or products the manual covers.
