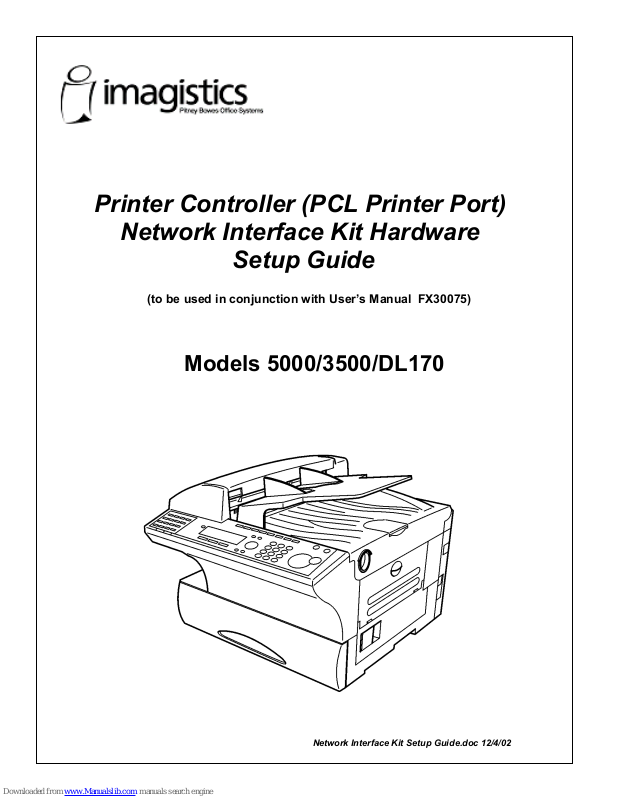

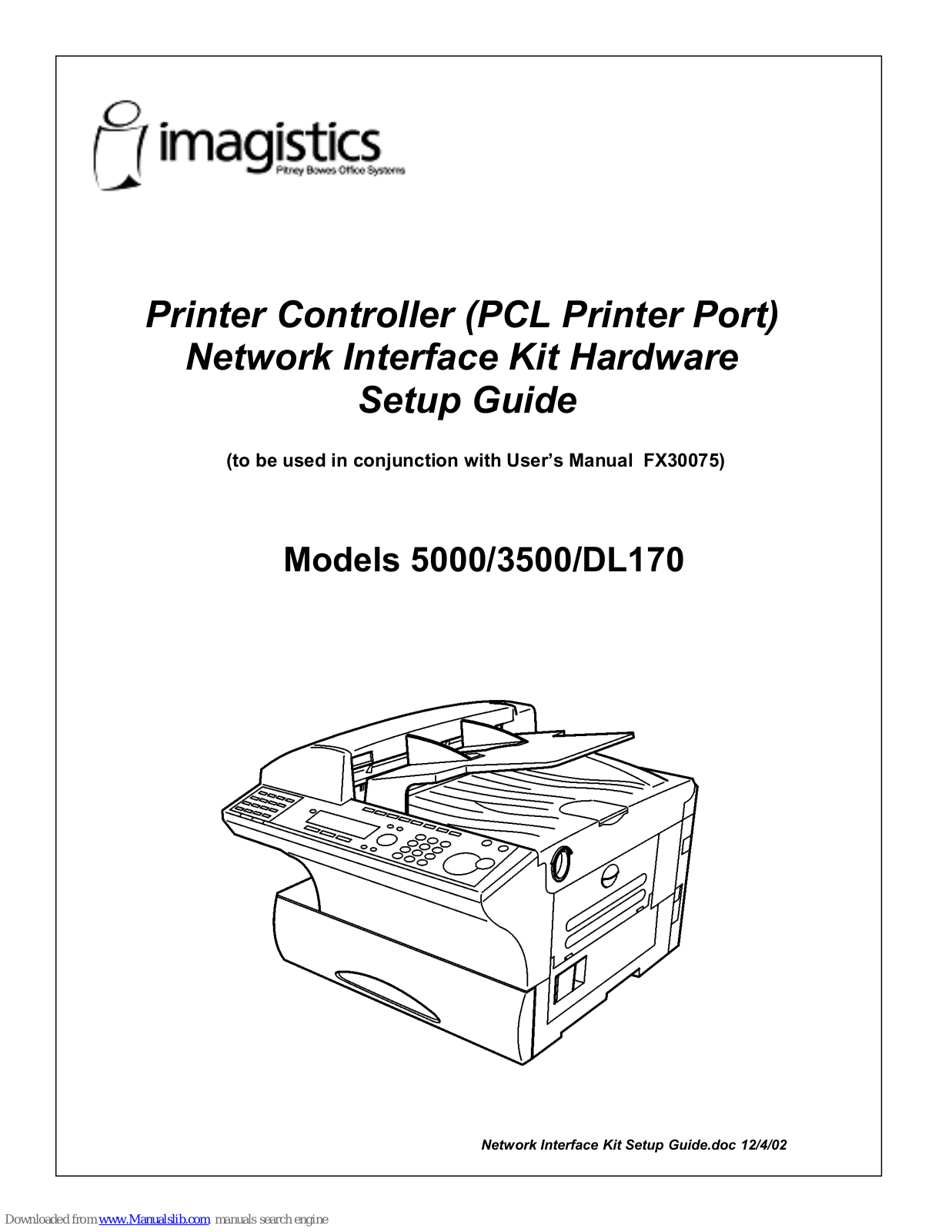

imagistics DL170, 3500, 5000 Setup Manual

Printer Controller (PCL Printer Port)

Network Interface Kit Hardware

Setup Guide

(to be used in conjunction with User’s Manual FX30075)

Models 5000/3500/DL170

Network Interface Kit Setup Guide.doc 12/4/02

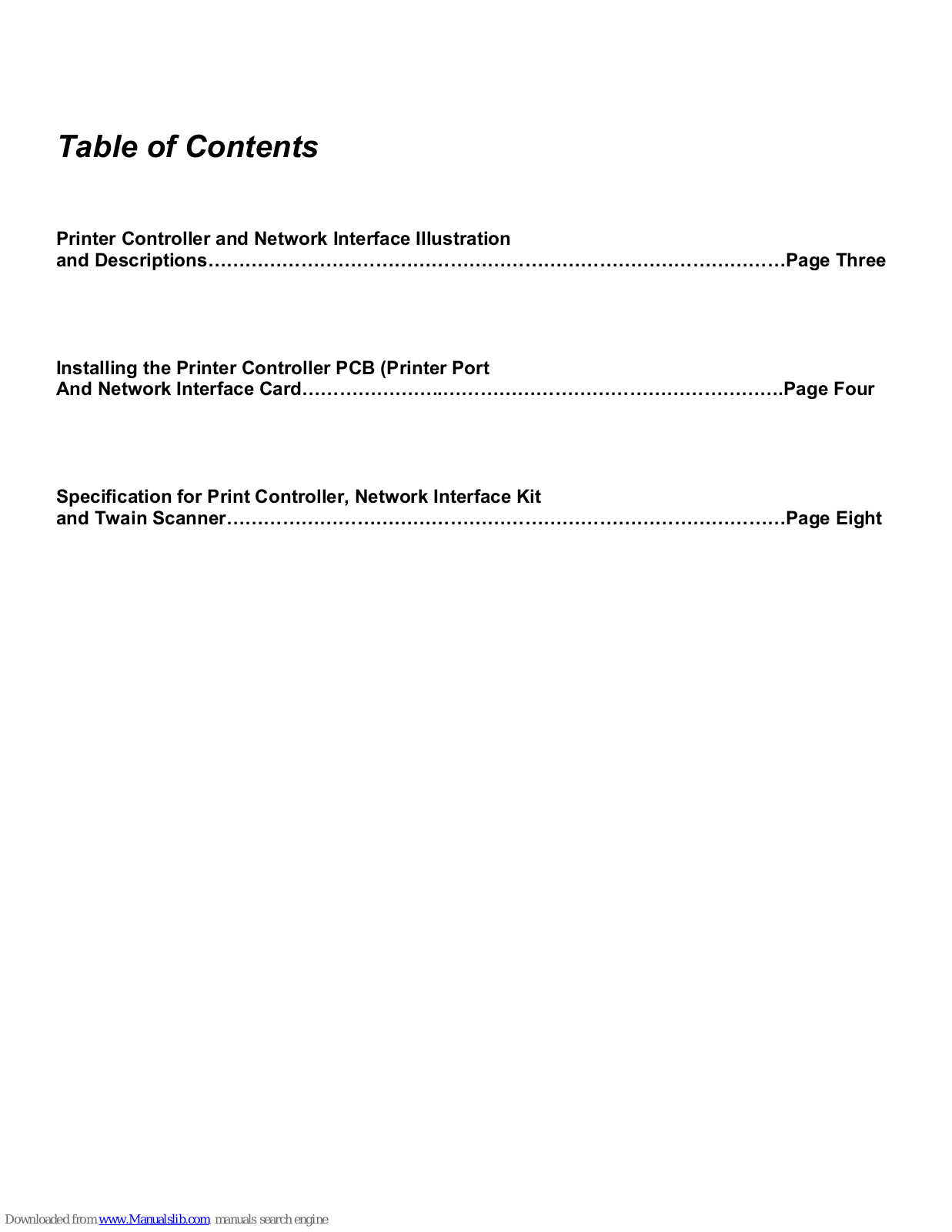

Table of Contents

Printer Controller and Network Interface Illustration
and Descriptions…………………………………………………………………………………Page Three

Installing the Printer Controller PCB (Printer Port
And Network Interface Card…………………..……………………………………………….Page Four

Specification for Print Controller, Network Interface Kit
and Twain Scanner………………………………………………………………………………Page Eight

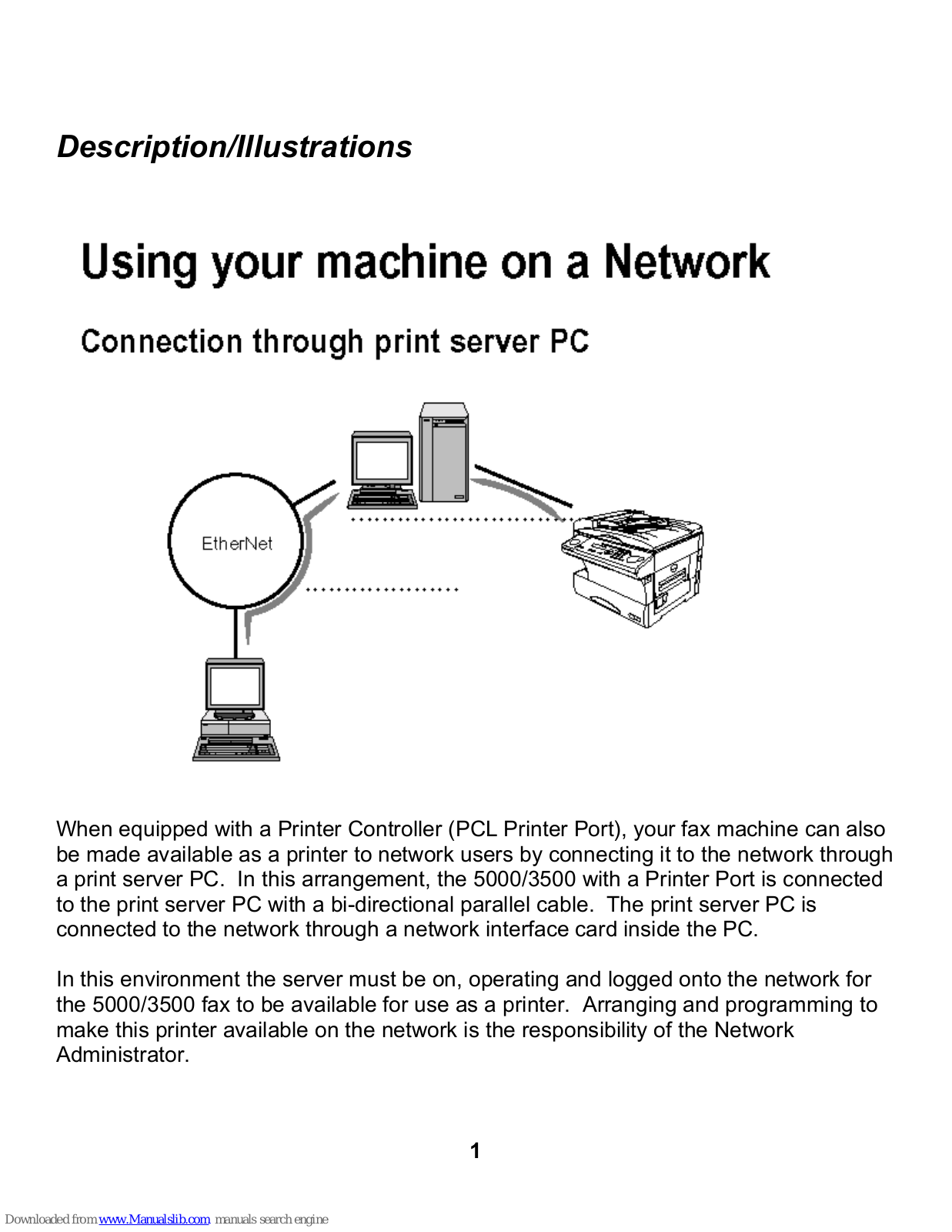

Description/Illustrations

When equipped with a Printer Controller (PCL Printer Port), your fax machine can also
be made available as a printer to network users by connecting it to the network through
a print server PC. In this arrangement, the 5000/3500 with a Printer Port is connected
to the print server PC with a bi-directional parallel cable. The print server PC is
connected to the network through a network interface card inside the PC.

In this environment the server must be on, operating and logged onto the network for
the 5000/3500 fax to be available for use as a printer. Arranging and programming to
make this printer available on the network is the responsibility of the Network
Administrator.
