Integrated
Content
Environment

AS-3981-AD

Analog-to-Digital Audio Converter/
Synchronizer

Installation and Operation Manual

Edition B
April 2005

Contents

Preface

Manual Information .............................................................................. vii

Purpose ........................................................................................... vii

Audience ........................................................................................ vii

Revision History ............................................................................ vii

Writing Conventions ..................................................................... viii

Obtaining Leitch Documents .......................................................... ix

Unpacking the Module .............................................................................x

Safety Standards and Compliances ........................................................ xi

Safety Terms and Symbols ............................................................. xi

Chapter 1: Introduction

Overview ..................................................................................................1

Product Description ..................................................................................2

Main Features ...................................................................................2

Front and Back Modules ..........................................................................3

Front Module ....................................................................................3

Back Module .....................................................................................4

Plug-In Adapter .................................................................................5

Signal Flow ..............................................................................................6

Chapter 2: Installation and Removal

Overview ..................................................................................................7

Packing List ..............................................................................................8

Installing AS-3981-AD Modules .............................................................8

Removing AS-3981-AD Modules ...........................................................8

Setting Jumpers ........................................................................................9

Audio Tracking Pairs .............................................................................11

AS-3981-AD Installation and Operation Manual iii

Contents

Upgrading AS-3981-AD Firmware ....................................................... 13

Upgrading the Firmware (Discovery Method) ............................... 13

Upgrading the Firmware (Drag-and-Drop Method) ...................... 15

Correcting a Failed Upgrading Procedure ............................................. 17

Setting the Module to Fail-Safe Loader Mode ............................... 17

Upgrading the Firmware in Fail-Safe Mode .................................. 17

Rebooting the Module .................................................................... 19

Chapter 3: Operation

Overview ............................................................................................... 21

Operation Notes ..................................................................................... 22

Cross-Functional Parameter Changes ................................................... 23

Navigating the Operator and All Lists .................................................. 24

Operator and All List Parameters .......................................................... 25

Setup Parameters ................................................................................... 30

Alarms ................................................................................................... 31

Alarm Synchronization .................................................................. 31

Identifying the Cause of an Alarm ................................................. 31

Enabling or Disabling an Alarm Parameter ................................... 32

Restoring Default Settings ............................................................. 32

State Recovery Parameter Availability ................................................. 33

LEDs and Module Indicators ................................................................ 34

General Information ....................................................................... 34

Card-Edge Locations ...................................................................... 35

LED Descriptions ........................................................................... 36

Module Indicator Descriptions ....................................................... 37

Chapter 4: Specifications

iv AS-3981-AD Installation and Operation Manual

Overview ............................................................................................... 39

Input ...................................................................................................... 40

Balanced Analog Audio ................................................................. 40

External Reference ......................................................................... 40

Output .................................................................................................... 41

Digital Audio .................................................................................. 41

Processing Performance ................................................................. 42

Miscellaneous ........................................................................................ 43

Power Consumption ....................................................................... 43

Start-Up Time ................................................................................ 43

Appendix A: Tree View Navigation

Overview ................................................................................................45

Navigating the Tree View ......................................................................46

Tree View Parameters ............................................................................47

Appendix B: Manipulating Audio Bits

Overview ................................................................................................51

Channel Status Bits ................................................................................52

Validity and User Bits ............................................................................54

Index

Keywords ...............................................................................................55

Contents

AS-3981-AD Installation and Operation Manual v

Contents

vi AS-3981-AD Installation and Operation Manual

Manual Information

Purpose

Preface

Audience

Revision History

This manual details the features, installation, operation, maintenance,
and specifications of the NEO™ AS-3981-AD Analog-to-Digital Audio
Converter/Synchronizer.

This manual is written for engineers, technicians and operators
responsible for the installation, setup, maintenance, and operation of the
NEO AS-3981-AD Analog-to-Digital Audio Converter/Synchronizer.

Table P-1. Revision History

Edition Date Revision History

A February 2003 Initial release

B February 2005 Revision of product codes, alarms

modifications, and template updates

AS-3981-AD Installation and Operation Manual vii

Preface

Writing Conventions

This manual adheres to the following writing conventions.

Table P-2. Writing Conventions

Term or Convention Description

Bold Indicates dialog box, property sheet, field,

Italics Indicates email addresses, names of books

CAPS Indicates a specific key on the keyboard,

button, check box, list box, combo box,
menu, submenu, window, list, and
selection names

and publications, and first instances of new
terms and specialized words that need
emphasis

such as ENTER, TAB, CTRL, ALT,
DELETE

Code

> Indicates the direction of navigation

hyperlink Indicates a jump to another location within

Internet address

Note

Indicates variables or command-line
entries, such as a DOS entry or something
you type into a field.

through a hierarchy of menus and
windows.

the electronic document or elsewhere

Indicates a jump to a Web site or URL

Indicates important information that helps
to avoid and troubleshoot problems

viii AS-3981-AD Installation and Operation Manual

Obtaining Leitch Documents

Installation, navigation, configuration, and setup information is now
included in the NEO FR-3901, FR-3903, and FR-3923 Mounting
Frames Installation and Operation Manual. If your current NEO frame
manual is Edition A, B, C, or D, you will need to download an updated
version from the Leitch Web site to access this information.

Leitch documents can be viewed or downloaded from the Leitch Web
site at www.leitch.com
Alternatively, contact your Leitch customer service representative to
request a document.

Preface

(go to Support>Documentation).

AS-3981-AD Installation and Operation Manual ix

Preface

Unpacking the Module

Before you install and configure NEO modules, follow these steps:

1. Check the equipment for any visible damage that may have
occurred during transit.

2. Confirm that you have received all items listed on the packing list.

3. Remove the anti-static shipping pouch, if present, and all other
packaging material.

4. Retain the original packaging materials for possible reuse.

5. Contact your Leitch sales representative if parts are missing or
damaged.

Keep at least one set of original packaging in the event that a product
needs to be returned for service. If the original package is not available,
you can purchase replacement packaging from Leitch Technology.
Otherwise, you can supply your own packaging as long as it meets the
following criteria:

• The packaging must be able to withstand the product’s weight.

• The product must be held rigid within the packaging.

• There must be at least two inches (five centimeters) of space
between the product and the container.

• The corners of the product must be protected.

If the product is still within the warranty period, Leitch Technology will
return it to you by prepaid shipment after servicing.

x AS-3981-AD Installation and Operation Manual

Safety Standards and Compliances

See the NEO Safety Instructions and Standards Manual to find the
safety standards and compliances for this NEO series product. A safety
manual is shipped with every FR-3901, FR-3903, and FR-3923
Mounting Frames Installation and Operation Manual and can be
downloaded from the Leitch Web site at www.leitch.com
contact your Leitch customer service representative for a copy of this
safety manual.

Safety Terms and Symbols

This manual uses the following safety terms and symbols. See your
NEO Safety Instructions and Precautions Guide for more information.

Table P-3. Safety Terms and Symbols Used in Manual

Preface

. Alternatively,

WARNING:
Statements identifying conditions or practices that can result in
personal injury or loss of life: High voltage is present. Uninsulated
dangerous voltage within the product’s enclosure may be sufficient
to constitute a risk of electric shock to persons.

CAUTION:
Statements identifying conditions or practices that can result in
damage to the equipment or other property: Important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

AS-3981-AD Installation and Operation Manual xi

Preface

xii AS-3981-AD Installation and Operation Manual

Overview

Chapter 1

Introduction

The AS-3981-AD is an Analog-to-Digital Audio Converter/
Synchronizer designed for NEO 1RU and 3RU rack-mounted frames.

Note

Installation, navigation,
configuration, and setup
information is now included in
the NEO FR-3901, FR-3903,

and FR-3923 Mounting Frames
Installation and Operation
Manual. If your current NEO

frame manual is Edition A, B,
C, or D, you will need to
download an updated version
from the Leitch Web site
(www.leitch.com
information.

) to access this

This chapter covers the following topics:

• “Product Description” on page 2

• “Front and Back Modules” on page 3

• “Signal Flow” on page 6

See the FR-3901, FR-3903, and FR-3923 Installation and Operation
Manual for information about NEO frames. The frame manual includes
information about these items:

• General information about module unpacking, installation,

removal, navigation, configuration, and setup

• Card-edge screen savers

• State recovery parameters

• Fan modules

• Resource modules

• Alarm interconnect modules

• Power supplies

• Servicing instructions

AS-3981-AD Installation and Operation Manual 1

Chapter 1: Introduction

Product Description

The AS-3981-AD consists of two independent audio processing units,
capable of handling two pairs (four channels) of analog audio inputs,
and two pairs of digital audio outputs. This module provides audio
synchronization and delay, in addition to full audio processing
capabilities, including gain, channel swap, invert, and delay control.
The AS-3981-AD also has four independent tone generators.

Main Features

These are the main features of the AS-3981-AD module:

• Two independent analog-to-digital conversion channels

• Audio-to-video synchronization and delay with tracking capability

• 32/44.1/48/96 kHz capability

• Selectable 16-, 20-, and 24-bit analog-to-digital conversion

• Internal audio processing amplifier

• Multiple tone generators (750 Hz, 1.5 kHz, 3 kHz, and 6 kHz)

• Four balanced analog audio inputs

• Peak/Silence/Tone indication

• Selectable delay for each channel

• Two balanced and two unbalanced AES audio outputs

• External video and DARS reference input

• Compliance with AES 11

• Capability for control via card-edge, local control panels, remote
control panels, and GUI applications such as Command Control
System™ Pilot (3901RES-E resource module is required for
Ethernet use)

2 AS-3981-AD Installation and Operation Manual

Front and Back Modules

Front Module

NEO front modules are designated by the suffix “-FM.” For example,
the front module of the AS-3981-AD is the “AS-3981-AD-FM.”

Figure 1-1 illustrates the position of the LEDs and card-edge controls

on the AS-3981-AD-FM front module.

Front view

Chapter 1: Introduction

Remote/Local switch
(hidden behind extractor)

Card extractor

Escape button

Nav+/Nav- switch

64 X 16 VFD
submodule

Visible display area

Enter button

(up/down)

Top view

)

l
a
n
o

i
t

c
n
u

f

­n

t
n
e
s

k

e

c

d

r

t

y

o

l

p

s

a

l

k

k

k

e

c

c

c

d

/

o

o

o

l

l

l

c

n

n

n

n

e

e

e

y

G

G

S

G

o
n

e

(

c

t

t

n

n

n

e

e

e

r

s

s

e

e

f

k

e

r

r

e

a

r

p

p
S
R
A
D

e
p

S

1

R

S

1
h

E

A

C

A

D

)

l
a
n
o

i
t

c
n
u

f

­n
o
n

(
t
n
e
s

e

e

t

n

u

o
t

m

1

1

h

h

C

C

e

k

e

e

t

r

a

n

u

p

e

o

m

t

p

2
S

2

2

2

h

h

h

E

C

C

C

A

Nav +
Nav -

Module indicators

Minor

Enter

Esc

Major
Alarm

Alarm

Remote/Local
switch

Module

Status

Power

SW1

REM LOC

LEDs

Escape button

Figure 1-1. AS-3981-AD-FM Front Module

AS-3981-AD Installation and Operation Manual 3

Nav+/Nav- switch
(up/down)

MAJOR

MINOR

ALARM

ALARM

Enter button

POWER

MODULE

STATUS

Extractor handle

Chapter 1: Introduction

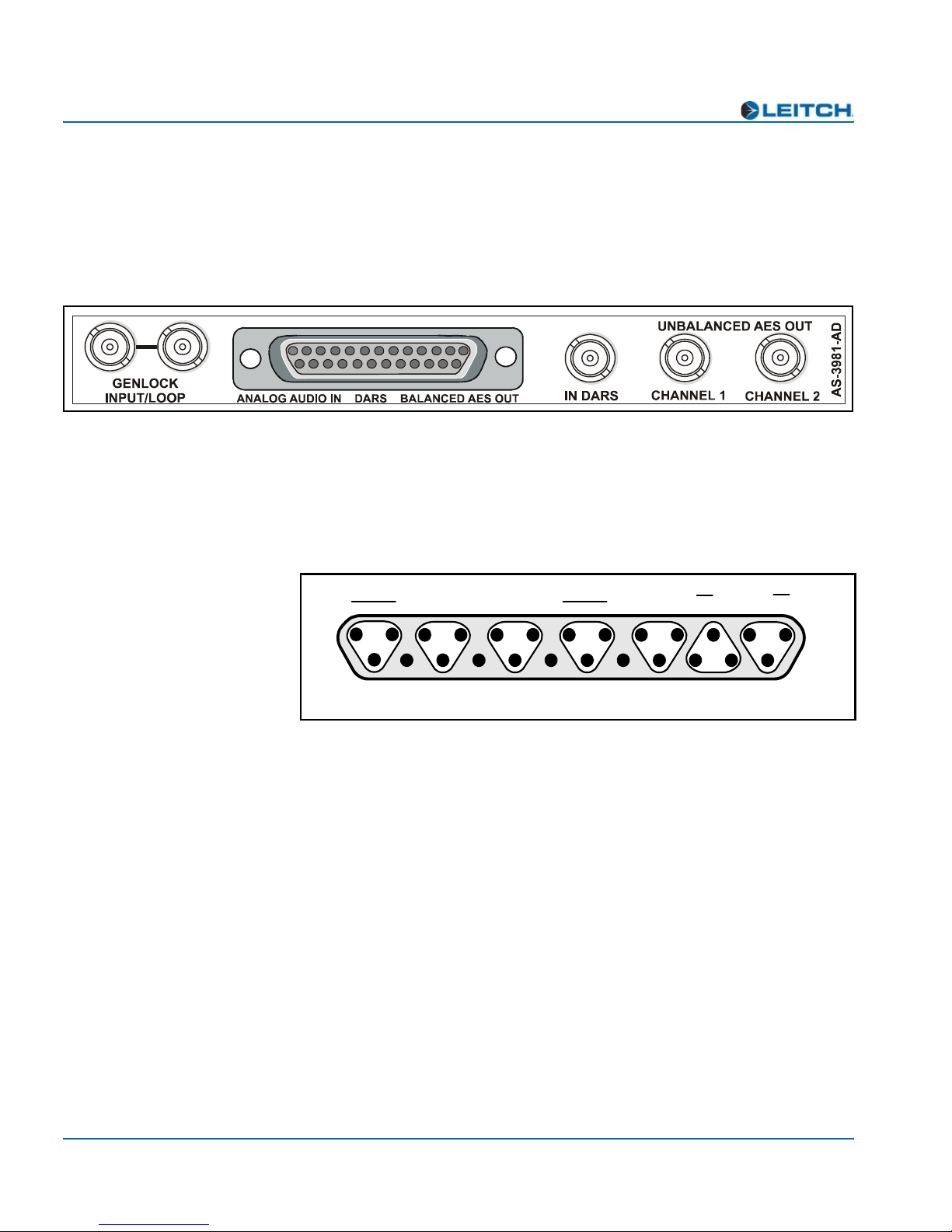

Back Module

In the NEO frame, back modules are placed directly behind the front
modules. Back modules are designated by the suffix “-BM”. For
example, the back module of the AS-3981-AD is the
“AS-3981-AD-BM.” (See Figure 1-2)

Figure 1-2. AS-3981-AD-BM Back Module

Back Module Pinouts

Figure 1-3 shows the pinouts for the Balanced Analog Audio In/DARS

In/Balanced AES Out connector on the AS-3981-AD-BM back module.

Balanced

AES out

-

G

+

Channel 2

-

G

+

Channel 1

13

25

-

+

Channel

2B

Balanced analog audio in

+

AG

Channel

2A

AG

-

AG

-

+

AG AG

Channel

1B

DARS in

-

AG

AG

-

+

Channel

1A

G

+

AG

Figure 1-3. AS-3981-AD-BM Back Module Balanced Pinouts

1

14

4 AS-3981-AD Installation and Operation Manual

Plug-In Adapter

Chapter 1: Introduction

The AS-3981-AD-BM back module is shipped with a detachable
plug-in adapter (AIB-25-MF) for connecting twisted-pair audio cables
directly to the back module. Figure 1-4 identifies the screw terminals
for the AIB-25-MF plug-in adapter.

Analog audio input (1st two rows)

+

Ch 2A

+

Ch 1A

G

balanced

_

_

+

Analog

grounds

Digital

grounds

G

G

G

G

G

Ch 1B

+

AES 1

+

Ch 2B

+

_

_

G

G

_

GG

_

+

G

AES 2 DARS

balancedbalanced

Digital audio output and DARS input (3rd row)

Figure 1-4. Screw Terminals for the AIB-25-MF Plug-In Adapter

G

G

_

AS-3981-AD Installation and Operation Manual 5

Chapter 1: Introduction

A

Audi

Signal Flow

Figure 1-5 illustrates the signal flow of the AS-3981-AD.

o tracking

Analog
audio input
(4 channel)

NTSC or PAL

composite analog

reference

Genlock

A-D

(for analog

inputs)

Audio
frame

sync

CPU

control

Audio

proc

Tone

generator

Figure 1-5. Functional Block Diagram of the AS-3981-AD

udio

matrix

Digital
output

(2 AES)

6 AS-3981-AD Installation and Operation Manual

Overview

Caution

Before installation, please read
the NEO Safety Instructions and
Precautions Manual. This
document contains important
information about the safe
installation and operation of
NEO products.

Chapter 2

Installation and Removal

Installation, navigation, configuration, and setup information is now
included in the NEO FR-3901, FR-3903, and FR-3923 Mounting
Frames Installation and Operation Manual. If your current NEO frame
manual is Edition A, B, C, or D, you will need to download an updated
version from the Leitch Web site (www.leitch.com
information.

In this chapter, you can find information on the following topics:

• “Packing List” on page 8

) to access this

• “Installing AS-3981-AD Modules” on page 8

• “Removing AS-3981-AD Modules” on page 8

• “Setting Jumpers” on page 9

• “Audio Tracking Pairs” on page 11

• “Upgrading AS-3981-AD Firmware” on page 13

• “Correcting a Failed Upgrading Procedure” on page 17

AS-3981-AD Installation and Operation Manual 7

Chapter 2: Installation and Removal

Packing List

The AS-3981-AD package includes these items:

• One AS-3981-AD-FM front module

• One AS-3981-AD-BM back module

• One AIB-25-MF plug-in adapter

•One AS-3981-AD Analog-to-Digital Audio Converter/Synchronizer
Installation and Operation Manual per order

Installing AS-3981-AD Modules

This module requires no specialized installation procedures. For general
information about installing NEO modules, see your NEO FR-3901,

FR-3903, and FR-3923 Mounting Frames Installation and Operation
Manual.

For information on audio tracking pairs, and installing cooperative
modules together, see “Audio Tracking Pairs” on page 11.

Removing AS-3981-AD Modules

This module requires no specialized removal procedures. For general
information about removing NEO modules, see your NEO FR-3901,

FR-3903, and FR-3923 Mounting Frames Installation and Operation
Manual.

8 AS-3981-AD Installation and Operation Manual

Setting Jumpers

The AS-3981-AD has the following jumpers:

Chapter 2: Installation and Removal

•Four 600

Ω/Hi-Z analog impedance input jumpers

• One set of balanced/unbalanced DARS input jumpers

See Figure 2-1 for the location of these jumpers, and Table 2-1 on

page 10 for information on the four valid jumper configurations.

Jumpers J28 and J29
(balanced/unbalanced

DARS)

Jumper J30

(600Ω/Hi-Z Ch 1A)

Jumper J31

(600Ω/Hi-Z Ch 1B)

AS-3981-AD Installation and Operation Manual 9

Jumper J32

(600Ω/Hi-Z Ch 2A)

Jumper J33

(600Ω/Hi-Z Ch 2B)

Figure 2-1. AS-3981-AD DARS and Impedance Jumpers

Chapter 2: Installation and Removal

Table 2-1. Valid Jumper Configurations

Jumper Name

Jumpers J28 and J29
(balanced and
unbalanced DARS)

Jumpers J30-J33

(600Ω /Hi-Z)

Jumper Pair
Setting

Balanced

Unbalanced
(default)

600Ω

Hi-Z
(default)

Visual
Configuration

1

1

2

1

2

2

1

2

3

3

3

3

10 AS-3981-AD Installation and Operation Manual

Audio Tracking Pairs

Selected audio and video NEO modules are designed to connect to each
other in audio tracking pairs. This feature provides audio-to-video
synchronization and delay with tracking capability. External
connections are not required for this feature.

The AS-3981-AD module can be used as part of an audio tracking pair.
To use this feature, install the AS-3981-AD video module directly
above the audio module. Alternately, install the AS-3981-AD module at
the bottom of column one in the frame, with the audio module at the top
of column two.

The audio-tracking pairs feature can be enabled or disabled. See
DnBusEn (down bus enable) in the Operator and All List, or the Tree
View Parameter List.

The following table lists the audio tracking pairs in which the
AS-3981-AD can be used. Use this table to help plan where to install
your modules.

Chapter 2: Installation and Removal

Table 2-2. Audio Tracking Pairs

Input Output

Analog video NTSC/PAL Analog video NTSC/PAL DES-3901

Digital video SDI 525/625

Four-channel analog audio 2 AES digital audio - 110Ω AS-3981-AD

2 AES digital audio - 75Ω

Digital video SDI 525/625 Digital video SDI 525/625 DES-3901-S

Analog video SDI 525/625

Analog video NTSC/PAL
Four-channel analog audio

Analog video NTSC/PAL Analog video NTSC/PAL DNS-3901

Four-channel analog audio 2 AES digital audio - 110Ω AS-3981-AD

2 AES digital audio - 110Ω AS-3981-AD
2 AES digital audio - 75Ω

Digital video SDI 525/625

2 AES digital audio - 75Ω

Audio Tracking
Pair

AS-3981-AD Installation and Operation Manual 11

Chapter 2: Installation and Removal

Table 2-2. Audio Tracking Pairs (Continued)

Input Output

Audio Tracking
Pair

Digital video SDI 525/625 Digital video SDI 525/625 DNS-3901-S

Analog video NTSC/PAL

Analog video NTSC/PAL
Four-channel analog audio

2 AES digital audio - 110Ω AS-3981-AD
2 AES digital audio - 75Ω

Digital video SDI 525/625 Digital video SDI 525/625 VFS-3901

Four-channel analog audio 2 AES digital audio - 110Ω AS-3981-AD

2 AES digital audio - 75Ω

12 AS-3981-AD Installation and Operation Manual

Chapter 2: Installation and Removal

Upgrading AS-3981-AD Firmware

Firmware upgrading is a routine procedure that you must perform to
install newer versions of software on the AS-3981-AD module. Pilot,
Co-Pilot, or Navigator software applications are required for this
procedure. You can use either the Discovery or the drag-and-drop
method. When performing the upgrading procedure, check the
appropriate readme file to confirm which files are needed. Use care to
ensure that you upload the correct files to the intended module.

If for some reason the upgrade fails, the module may not respond to
controls and will appear to be non-functional. In that event, follow the
procedures described in “Correcting a Failed Upgrading Procedure” on

page 17.

Upgrading the Firmware (Discovery Method)

Follow these steps to upgrade the firmware using the Discovery
method:

1. Download the most recent appropriate upgrade package from the

Leitch Web site or from your CD-ROM, and then unzip the upgrade
package.

2. If the affected module has not been discovered, perform the

Discovery operation, as described in your CCS software
application manual or online help.

3. Double-click the device icon.

The Configuration... window opens. On the Software Upgrade
tab, the /slotx/boot (where x is the slot number) directory appears
in the Select the device directory to transfer to: field.

4. Click Add, and in the Add Upgrade Files box, browse and select

the boot folder in the module’s upgrade; click OK.

The Add Upgrade Files box appears.

5. Select the file and then click OK.

6. Click Perform Transfer and then click Yes.

AS-3981-AD Installation and Operation Manual 13

This may take several minutes.

7. Wait for the message File transfer to device succeeded in the

status bar.

Chapter 2: Installation and Removal

If an fl0 folder is included in the .zip file, the files within that folder
must now be uploaded as shown below. (In some cases, the readme file
may indicate other separate files must be uploaded instead.)

Follow these steps to upload the remaining files:

1. On the Software Upgrade tab, select the /slotx/fl0 (where x is the

2. Click Add, and in the Add Upgrade Files box, browse and select

3. Click OK.

4. Select the files shown in the Add Upgrade Files box, and then

Caution

You must delete unwanted files
in the Add upgrade files for
transfer to device: field before
transferring the files. Otherwise,
the upgrading procedure will
fail.

5. Select and delete unwanted files (for example: vxWorks.lzs) in the

6. Click Perform Transfer and then click Yes.

7. Wait for the message File transfer to device succeeded.

slot number) directory in the Select the device directory to
transfer to: field.

the fl0 folder in the module’s upgrade package.

click OK.

Add upgrade files for transfer to device: field by clicking
Remove.

This may take a moment.

8. Click Reboot Device and then click Ye s.

9. Wait 30 seconds, and then close the Configuration... box.

The module name appears at the card edge.

14 AS-3981-AD Installation and Operation Manual

Chapter 2: Installation and Removal

Upgrading the Firmware (Drag-and-Drop Method)

Follow these steps to upgrade the firmware using the drag-and-drop
method:

1. Download the appropriate most recent upgrade package from the

Leitch Web site or from your CD-ROM, and then unzip the upgrade
package.

2. If the affected module has not been discovered by your CCS

software application, enter the Build mode, and then drag or copy
and paste the module’s device icon from the catalog folder into the
Network or Discovery folder.

3. Right-click the device icon and then select Properties.

4. On the NRO or Device tab of the Navigation Properties box, enter

the IP address of the frame that holds the module. (See Figure 2-2.)

Caution

Do not make changes in the
third field (located above and to
the right of the Set Default
button.)

Enter frame IP number here

Do not make changes in
this field

Figure 2-2. Navigation Properties Box

5. In the last field, enter the slot number of the module, and then close

the window.

6. Double-click the device icon.

AS-3981-AD Installation and Operation Manual 15

The Configuration... window opens. On the Software Upgrade
tab, the /slotx/boot (where x is the slot number) directory appears
in the Select the device directory to transfer to: field.

7. Click Add, and in the Add Upgrade Files box, browse and select

the boot folder in the module’s upgrade.

Chapter 2: Installation and Removal

8. Click OK.

9. Select the file and then click OK.

10. Click Perform Transfer and then click Yes.

11. Wait for the message File transfer to device succeeded in the

If an fl0 folder is included in the .zip file, the files within that folder
must now be uploaded as shown below. (In some cases, the readme file
may indicate other separate files must be uploaded instead.)

Follow these steps to upload the remaining files:

1. On the Software Upgrade tab, select the /slotx/fl0 (where x is the

The Add Upgrade Files box appears.

This may take several minutes.

status bar.

slot number) directory in the Select the device directory to
transfer to: field.

Caution

You must delete unwanted files
in the Add upgrade files for
transfer to device: field before
transferring the files. Otherwise,
the upgrading procedure will
fail.

2. Click Add, and in the Add Upgrade Files box, browse and select
the fl0 folder in the module’s upgrade package.

3. Click OK.

4. Select the files shown in the Add Upgrade Files box, and then
click OK.

5. Select and delete unwanted files (for example: vxWorks.lzs) in the

Add upgrade files for transfer to device: field by clicking
Remove.

6. Click Perform Transfer and then click Yes.

7. Wait for the message File transfer to device succeeded.

This may take a moment.

8. Click Reboot Device and then click Ye s.

9. Wait 30 seconds and then close the Configuration... box.

The module name appears at the card edge.

16 AS-3981-AD Installation and Operation Manual

Chapter 2: Installation and Removal

Correcting a Failed Upgrading Procedure

Firmware upgrades may fail in the event of network interruptions,
power failures, or if too much data is uploaded to the NEO module.
Often, uploads of too much data can occur for one of the following
reasons:

• The boot file (typically vxWorks.lzs) was accidentally uploaded

during the fl0 procedure, instead of the boot procedure.

• Files were sent to the wrong NEO module.

• The particular hardware version of the module requires only some

(but not all) of the available fl0 files.

• The upgrade .zip file was mistakenly sent to the module.

All of these problems can be corrected by re-installing the firmware
while in a fail-safe mode, as described in the following pages. When
you are performing this procedure, check the appropriate readme file to
confirm which files are needed. Use care to ensure that you upload the
correct files to the intended module.

Setting the Module to Fail-Safe Loader Mode

Follow these steps to set a NEO module to the fail-safe loader mode:

1. Remove the affected module from the NEO frame.

2. Press the Nav switch down while simultaneously pressing both the

Escape and Enter buttons.

3. While still pressing the buttons and the navigation switch, reinsert

the module into the frame and hold for approximately three seconds
until the display on the module reads Offline-H (or Offline-L)
Upload Required.

Upgrading the Firmware in Fail-Safe Mode

Follow these steps to upgrade the firmware in the fail-safe mode:

Note

To successfully upgrade the
firmware, you must follow these
steps in the exact sequence
described.

1. Download the most recent appropriate upgrade package from the

Leitch Web site or from your CD-ROM, and then unzip the upgrade
package.

AS-3981-AD Installation and Operation Manual 17

Chapter 2: Installation and Removal

2. If the affected module has not been discovered by your CCS

3. Right-click the device icon and then select Properties.

4. On the NRO or Device tab of the Navigation Properties box, enter

software application, enter the Build mode, and then drag or copy
and paste the module’s device icon from the catalog folder into the
Network or Discovery folder.

the IP address of the frame that holds the module. (See Figure 2-3.)

Caution

Do not make changes in the
third field (located above and to
the right of the Set Default
button.)

Enter frame IP number here

Do not make changes in
this field

Figure 2-3. Navigation Properties Box

5. In the last field, enter the slot number of the module, and then close
the window.

6. Double-click the device icon.

The Configuration... box opens. On the Software Upgrade tab,
the /slotx/boot (where x is the slot number) directory appears in the
Select the device directory to transfer to: field.

7. Click Add, and in the Add Upgrade Files box, browse and select

8. Click OK.

9. Select the file and then click OK.

10. Click Perform Transfer and then click Yes.

11. Wait for the message File transfer to device succeeded in the

18 AS-3981-AD Installation and Operation Manual

the boot folder in the module’s upgrade.

This may take several minutes.

status bar.

Rebooting the Module

Follow these steps to reboot the affected NEO module:

Note

Some NEO modules will reboot
automatically. In these cases,
the Reboot button will be
grayed out. During this time, the
module’s card-edge display will
show the word Rebooting
before the name of the module
appears. These modules do not
require the fl0 file.

1. Click Reboot Device, and then click Ye s.

After the module has rebooted, a message box advises you to wait
until the device has rebooted.

2. Wait 30 seconds.

3. On the Software Upgrade tab, select the /slotx/fl0 (where x is the

slot number) directory in the Select the device directory to
transfer to: field.

4. Click Add, and then browse and select the fl0 folder in the

module’s upgrade package.

5. Click OK.

6. Select the files shown in the Add Upgrade Files box, and then

click OK.

Chapter 2: Installation and Removal

Caution

You must delete unwanted files
in the Add upgrade files for
transfer to device: field before
transferring the files. Otherwise,
the upgrading procedure will
fail.

7. Select and delete unwanted files (for example: vxWorks.lzs) in the

Add upgrade files for transfer to device: field by clicking
Remove.

8. Click Perform Transfer and then click Yes.

9. Wait for the message File transfer to device succeeded.

This may take a moment.

10. Click Reboot Device and then click Ye s.

11. Wait 30 seconds, and then close the Configuration... box.

The module name appears at the card edge.

AS-3981-AD Installation and Operation Manual 19

Chapter 2: Installation and Removal

20 AS-3981-AD Installation and Operation Manual

Overview

Chapter 3

Operation

Installation, navigation, configuration, and setup information is now
included in the NEO FR-3901, FR-3903, and FR-3923 Mounting
Frames Installation and Operation Manual. If your current NEO frame
manual is Edition A, B, C, or D, you will need to download an updated
version from the Leitch Web site (www.leitch.com
information.

) to access this

This chapter describes how to operate the AS-3981-AD module using
card-edge controls.

The following topics are found in this chapter:

• “Operation Notes” on page 22

• “Cross-Functional Parameter Changes” on page 23

• “Navigating the Operator and All Lists” on page 24

• “Operator and All List Parameters” on page 25

• “Setup Parameters” on page 30

• “Alarms” on page 31

• “State Recovery Parameter Availability” on page 33

• “LEDs and Module Indicators” on page 34

AS-3981-AD Installation and Operation Manual 21

Chapter 3: Operation

Operation Notes

When using the AS-3981-AD module, observe the following operation

Caution

If you do not observe these
“Operation Notes,” you may
accidentally change your
parameter settings.

notes:

• If you change parameters within 16 seconds after the AS-3981-AD

• Although the effect of a parameter change may appear to be

banner first appears on the VFD, your changes will not be saved.
Parameter changes that you make after this 16-second delay will be
saved and restored if the module loses power and must be restarted.

immediate, the module requires 20 seconds to save the latest
change. If another change is made during these 20 seconds, the first
parameter change and the second parameter change will not be
saved until 20 seconds after the second parameter change. There is
no limit to the number of changes that can be made within 20
seconds of each other. However, none of these changes will be
saved until 20 seconds after the last parameter change.

• When you set the FctryRcl (factory recall) parameter to Yes , the
module takes several seconds to reset all of the parameters. (Setup
parameters are not affected by this factory recall mode.) The lists of

“Operator and All List Parameters” on page 25 and “Tree View
Parameters” on page 47 indicate parameter default settings that are

restored when FctryRcl is set to Ye s .

• Changes in some parameters will cause additional changes in other
parameters, or lock them out entirely. See page 23 for more
information on these cross-functional parameter changes.

22 AS-3981-AD Installation and Operation Manual

Cross-Functional Parameter Changes

When you select values in specific parameters, you force changes to
occur in other parameters.

Table 3-1. Cross-Functional Parameter Changes

Condition Forced Setting

Chapter 3: Operation

SampleRate=set to a new option

ALOVMode = Mute
&
Video is not present

• Delay_1A initialized to 0

• Delay_1B initialized to 0

• Delay_2A initialized to 0

• Delay_2B initialized to 0

Balanced analog audio output for
Channel 1A, Channel 1B,
Channel 1B, and Channel 2B
is muted

AS-3981-AD Installation and Operation Manual 23

Chapter 3: Operation

Navigating the Operator and All Lists

To navigate, and then view or change a parameter from the Operator
and All Lists, follow these steps:

1. Open the front panel of the NEO frame.

2. Press any card-edge control to turn on the VFD screen.

The message AS-3981-AD appears. If a previous user has left the
display at a different parameter name, repeatedly press the Escape
button until the message AS-3981-AD appears.

3. Push the Enter button.

Note

After several seconds of
inactivity, a scrolling message
will appear, describing the
purpose of the currently selected
parameter.

The name of the first parameter option in the list appears.

4. Push the Enter button again to access the options for the parameter
displayed on the VFD screen.

OR

Press the Nav+/Nav- switch down repeatedly to view other
parameters, and then press Enter to access an item’s parameter
options.

5. Press the Nav+/Nav- switch up or down to scroll through the
different selectable parameter options, and then press Enter to
select the value you want.

OR

Press the Nav+/Nav- switch up or down to adjust the numeric
parameter value, and then press Enter.

6. Close the front panel of the frame to ensure the cooling system
continues to operate properly.

24 AS-3981-AD Installation and Operation Manual

Operator and All List Parameters

This complete list of parameter settings is arranged so that the settings

Note

You can reset the default values
for all of the parameters
automatically via the FctryRcl
parameter, found in this table.

most likely requiring changes are placed at the top of the list. Items on
the bottom of the list are the least likely to require changing. Parameters
with the designation [RO] are “read-only.” An asterisk (*) indicates the
default user range or value.

The All List is a long flat list of all the available parameters, arranged
from the most-used to least-used. It is intended for a “Supervisor”
security designation. The Operator List is a condensed version of the
All List, and is intended for an “Operator” security designation. The
following table shows all available parameters. Parameters accessed
only from within the All List are shaded in gray.

See “Navigating the Operator and All Lists” on page 24 for instructions
on navigating this list using card-edge controls.

Chapter 3: Operation

Table 3-2. Operator and All List Parameters

Card-Edge ID

SampleRate Sample Rate Sets the sample rate

Delay_1A,
Delay_1B,
Delay_2A,
Delay_2B

Gain_1A,
Gain_1B,
Gain_2A,
Gain_2B

Parameter
Name

Delay in 1A
to
Delay in 2B

Gain in 1A
to
Gain in 2B

Function

Adjusts delay for input channel 1A to
Channel 2B

Adjusts gain for input channel 1A through
to channel 2B

User Range or
Options

• 32 kHz

• 44.1 kHz

• 48 kHz*

• 96 kHz

• 0 *to 1980.0 ms
@ 32 kHz

• 0* to 1436.7 ms
@ 44.1 kHz

• 0* to 1320.0 ms
@ 48 kHz

• 0* to 660.0 ms
@ 96 kHz

-18.0 dB to 18.0 dB

(0 dB*)

AS-3981-AD Installation and Operation Manual 25

Chapter 3: Operation

Table 3-2. Operator and All List Parameters (Continued)

Card-Edge ID

Invert1A,
Invert1B,
Invert2A,
Invert2B

Out1_Resln,
Out2_Resln

Out1ASrc Out 1A Source Selects the source for output channel 1A

Parameter
Name

Invert in 1A
to
Invert in 2B

Out Channel 1
Resolution to
Out Channel 2
Resolution

Function

Inverts input channel 1A through to
channel 2B

Selects the dithering resolution for output
channel 1 to channel 2

User Range or
Options

• No*

•Yes

• 24 bits

• 20 bits*

• 16 bits

• In 1A*

• In 1B

• In 2A

• In 2B

•Mute

• Tone1

• Tone2

• Tone3

• Tone4

Out1BSrc Out 1B Source Selects the source for output channel 1B

• In 1A

• In 1B*

• In 2A

• In 2B

•Mute

• Tone1

• Tone2

• Tone3

• Tone4

26 AS-3981-AD Installation and Operation Manual

Table 3-2. Operator and All List Parameters (Continued)

Chapter 3: Operation

Card-Edge ID

Out2ASrc Out 2A Source Selects the source for output channel 2A

Out2BSrc Out 2B Source Selects the source for output channel 2B

Parameter
Name

Function

User Range or
Options

• In 1A

• In 1B

• In 2A*

• In 2B

•Mute

• Tone1

• Tone2

• Tone3

• Tone4

• In 1A

• In 1B

• In 2A

• In 2B*

•Mute

• Tone1

• Tone2

• Tone3

• Tone4

AudIp1Lvl,
AudIp2Lvl

DitherMode Output Dither

Tone1Lvl Tone 1 Level Set Adjusts the level of the 750 Hz audio tone

Tone2Lvl Tone 2Level Set Adjusts the level of the 1500 Hz audio tone

AS-3981-AD Installation and Operation Manual 27

Audio Input 1
Level to
Audio Input 2
Level

Mode

Indicates the operational level adjustment
for input channel 1 to channel 2

Selects the dithering mode for all outputs

generator

generator

12.0 dB to 28.0 dB

(24.0 bits*)

• None*

•On

-36.0 dBFS to

0.0 dBFS

(-18 dB*)

-36.0 dBFS to

0.0 dBFS

(-18 dB*)

Chapter 3: Operation

Table 3-2. Operator and All List Parameters (Continued)

Card-Edge ID

Tone3Lvl Tone 3Level Set Adjusts the level of the 3000 Hz audio tone

Tone4Lvl Tone 4 Level Set Adjusts the level of the 6000 Hz audio tone

FadeRate Fade Rate Controls the fading rate when channels are

ALOVMode Audio Loss on

LockMode Lock Mode Sets the module working mode

LckSource Lock Source Selects the reference source for the on-board

Parameter
Name

Video Mode

Function

generator

generator

swapped or muted

Selects the output audio mode when the
input video is disrupted.

Genlock circuitry

User Range or
Options

-36.0 dBFS to

0.0 dBFS
(-18 dB*)

-36.0 dBFS to

0.0 dBFS
(-18 dB*)

0 s to 10.000 s
(0.010 s*)

•Mute

• Pass*

•Sync*

• Delay

• FreeRun

• DnStream

• DARS

DnBusEn Down Bus

Enable

DARSPrsnt
[RO]

DARSRefErr
[RO]

GlStdFb
[RO]

GlVPrsnt
[RO]

DARS Signal
Present

DARS Reference
Error

GL Video
Standard
Feedback

GL Video
Present

Allows the passing of signals to downstream
card for concatenated function

Returns the presence of input DARS signal

Returns the locking status of DARS input
with respect to external reference video
signal

Returns the detected external reference
signal standard

Returns the presence of the video signal
from the external reference source

• Card GL*

• No*

•Yes

•No

•Yes

• Error

•No Error

• Not Valid

•PAL-B

•NTSC

•No

•Yes

28 AS-3981-AD Installation and Operation Manual

Table 3-2. Operator and All List Parameters (Continued)

Chapter 3: Operation

Card-Edge ID

GlLocked
[RO]

Ch1Peak
[RO]

Ch1Mute
[RO]

Ch2Peak
[RO]

Ch2Mute
[RO]

Fctry_Rcl Factory Recall Recalls the factory default settings

Setup Setup Parameters Sets the parameters for display and usability

Parameter
Name

GL Locked Returns the locked status of the external

Out Channel 1
Peak

Out Channel 1
Mute

Out Channel 2
Peak

Out Channel 2
Mute

Function

reference signal

Indicates that channel 1 is above peak

Indicates that channel 1 is muted

Indicates that channel 2 is above peak

Indicates that channel 2 is muted

(see Appendix A: “Tree View Navigation”

on page 45 for a complete list Of Setup

parameters and factory default settings)

User Range or
Options

• Not Locked

•Locked

• Not Valid

•No

•Yes

•No

•Yes

•No

•Yes

•No

•Yes

• No*

•Yes

Various

AS-3981-AD Installation and Operation Manual 29

Chapter 3: Operation

Setup Parameters

You can modify the Setup parameters to configure the card-edge

Note

Setup parameters on a local or
remote control panel may be
different from the card-edge
parameters described here.

controls for your personal needs. The Setup section appears at the end
of all three navigation lists and consists of these items:

•Alarms

• Navigation modes

• Adjustment modes

•Browse modes

• Scroll modes

• Display intensity

• Parameter descriptions

•Name

• FrameIP

•Sync full

• About mode

The structure of the Setup menu is located at the end of Appendix A:
“Tree View Navigation.” See your NEO FR-3901, FR-3903, and
FR-3923 Mounting Frames Installation and Operation Manual for
more information on Setup items, including descriptions and operation
notes.

30 AS-3981-AD Installation and Operation Manual

Alarms

AS-3981-AD modules provide a default list of four alarms. You can
disable any alarm by modifying the Alarms parameter in the Setup
section.

When you select Alarms, all of the active alarms are visible in the
display, below Config (Configurations). If no alarms are active, only
Config appears.

Alarm Synchronization

Alarm synchronization is available for this module if your NEO frame
contains a 3901RES-E resource module that supports the feature. When
active, alarm synchronization ensures that the alarm configuration
settings of card-edge controls and the CCS control software and control
panels are consistent.

Chapter 3: Operation

If the AS-3981-AD module is set for local control, the alarm settings
will appear the same at both the card edge and via CCS, but the settings
can only be changed using the card-edge controls. If the module is set
for remote control, the alarm settings can be changed via both the
card edge and CCS control software and control panels.

Alarm configuration settings undergo DejaView (state recovery)
automatically. This means that when a module is hot-swapped, the
alarm configuration for the new module is updated to the settings of the
module that was previously in that slot. See “State Recovery Parameter
Availability” in this chapter for more information.

Identifying the Cause of an Alarm

To identify the reason for an alarm, select the active alarm, and then
press Enter. A scrolling message appears on the VFD describing the
cause of the fault.

AS-3981-AD Installation and Operation Manual 31

Chapter 3: Operation

Enabling or Disabling an Alarm Parameter

To enable or disable an alarm parameter, follow these steps:

1. Select Alarms, then select Config, and then press Enter.

2. Select one of the alarm parameters, and then press Enter.

3. Press Enabled or Disabled.

4. Press Enter to activate the selection.

Restoring Default Settings

To restore the alarms to their default settings, follow these steps:

1. Select Alarms, select Config, and then press Enter.

2. Scroll down the list of alarms, and then select Reset.

3. Press Enter to activate the selection.

The following table lists the default alarms for the AS-3981-AD
module. You can enable or disable these settings, but you cannot change
the level of the alarm.

Table 3-3. AS-3981-AD Default Alarms

Card-Edge
Alarm ID

DARSPrsnt DARS Present Major Loss of DARS reference

DARSRefErr DARS Reference

GlVPrsnt Genlock Video

GlLocked Genlock locked Major Loss of locked reference

Name of Alarm

Error

Present

Alarm
Level

Minor Error in the DARS

Major Loss of genlock video

Meaning

reference signal

reference

32 AS-3981-AD Installation and Operation Manual

State Recovery Parameter Availability

The parameter settings for this module are automatically saved onto the
3901RES-E resource module installed in your NEO frame every five
minutes. If a module should fail and be replaced with a cold spare, the
state parameters can be automatically recovered. For more information
on this feature, see the NEO FR-3901, FR-3903, and FR-3923
Mounting Frames Installation and Operation Manual (Edition E and
above).

Chapter 3: Operation

AS-3981-AD Installation and Operation Manual 33

Chapter 3: Operation

LEDs and Module Indicators

General Information

Each AS-3981-AD module has 12 card-edge LEDs and four module
indicators.

The module generates visible alarm signals to alert users of failures or
impending failures. You will find these alarm signals in the following
locations:

• As red or yellow LEDs on the front module card-edge

• As red or yellow LEDs on the 3901AIC Alarm Interconnect
Module or the 3901RES-E Resource Module (visible via light pipes
through the frame’s front panel)

• As part of a list of activated alarms in the Setup menu

• In external systems connected to the alarm contact closures at the
back of the NEO frames

• On a PC screen where you use Pilot or another GUI-based control
application

34 AS-3981-AD Installation and Operation Manual

Card-Edge Locations

Figure 3-1 illustrates the locations of the LEDs and module indicators

of the AS-3981-AD.

Chapter 3: Operation
