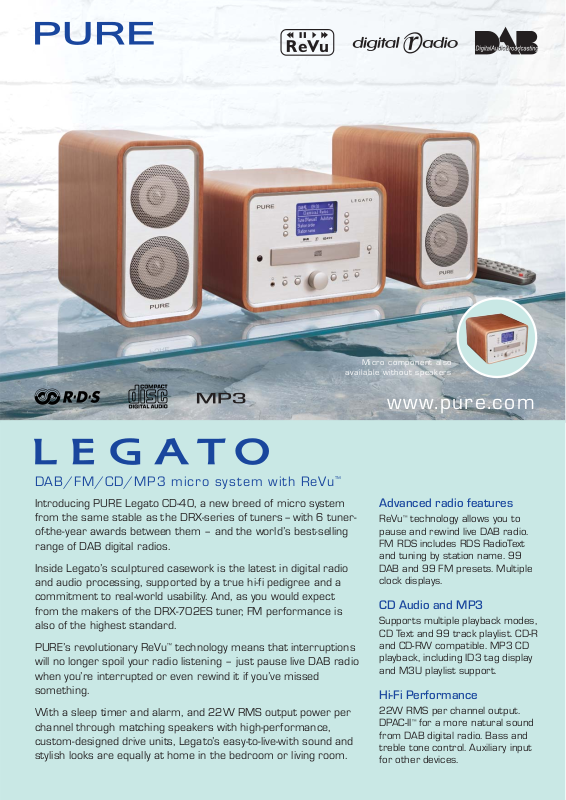

Imagination Technologies Legato Factsheet

Introducing PURE Legato CD-40, a new breed of micro system
from the same stable as the DRX-series of tuners –with 6 tuner­of-the-year awards between them – and the world’s best-selling
range of DAB digital radios.

Inside Legato’s sculptured casework is the latest in digital radio
and audio processing, supported by a true hi-fi pedigree and a
commitment to real-world usability. And, as you would expect
from the makers of the DRX-702ES tuner, FM performance is
also of the highest standard.

PURE’s revolutionary ReVu

™

technology means that interruptions
will no longer spoil your radio listening – just pause live DAB radio
when you’re interrupted or even rewind it if you’ve missed
something.

With a sleep timer and alarm, and 22W RMS output power per
channel through matching speakers with high-performance,
custom-designed drive units, Legato’s easy-to-live-with sound and
stylish looks are equally at home in the bedroom or living room.

Advanced radio features

ReVu™technology allows you to
pause and rewind live DAB radio.
FM RDS includes RDS RadioText
and tuning by station name. 99
DAB and 99 FM presets. Multiple
clock displays.

CD Audio and MP3

Supports multiple playback modes,
CD Text and 99 track playlist. CD-R
and CD-RW compatible. MP3 CD
playback, including ID3 tag display
and M3U playlist support.

Hi-Fi Performance

22W RMS per channel output.
DPAC-II

™

for a more natural sound
from DAB digital radio. Bass and
treble tone control. Auxiliary input
for other devices.

DAB/FM/CD/MP3 micro system with ReVu

™

www.pure.com

Micro component also

available without speakers

ReVu™TECHNOLOGY – PAUSE AND REWIND LIVE RADIO

ReVu allows you to take a break from the radio and come back to the same
place, or go back to something you missed – all at the touch of a button on
the unit or remote control. Maximum ReVu record time is between 20 and 40
minutes depending on the bit rate of the broadcast signal.

ALL THE BENEFITS OF DAB

The DAB transmission standard provides high-quality, interference-free digital
audio without hiss, crackle and fade. Easy-to-use autotune function locates all
available DAB stations. Select stations by name and list them alphabetically or
by most listened to. Scrolling text shows additional data such as song titles,
artists’ names, programme descriptions, news headlines and more.

FM BROUGHT UP TO DATE

For the few local stations not transmitting on DAB, FM with RDS provides
station name listing and RadioText. Legato stores station names to allow
alphabetic display, selection by station name and station renaming.

CD-R/RW AND MP3 COMPATIBLE

Play standard audio CDs, or those you have created yourself including MP3
CDs. MP3 CDs allow you to store over 200 tracks on a single disc, and Legato
supports M3U files for MP3 playlist selection.

WIDE VARIETY AND CHOICE OF STATIONS

Up to twice as many stations are available on DAB in many areas as via FM.
UK stations broadcast digitally include national BBC Radios 1-4, BBC Radio 5
Live, Classic FM, talkSPORT and Virgin Radio, plus many local and unique-to­digital stations.

UNIQUE DPAC-II

™

TECHNOLOGY

DAB output boasts optimised DPAC-II technology (Digital Psycho-Acoustic
Compensation-II). Developed by PURE Digital, DPAC-II produces a significantly
more natural sound than other digital radio tuners.

EXTENSIVE CONNECTIVITY

Auxiliary input allows connection of alternative line-level devices (e.g. MiniDisc).
Optical output for connection to digital amplifier or recorder. Variable level
stereo analogue output for connection to active subwoofer or alternative
amplifier/recorder. 3.5 mm headphone socket on front panel for easy access.
USB connector enables download of software upgrades from an internet­connected PC, enabling support for future updates.

TECHNICAL SPECIFICATIONS

Amplifier

22W RMS per channel power output (into 4 Ohms)

15 Hz to 35 kHz frequency response

Dynamic Virtual Sub Technology™ provides a variable
bass boost relative to volume

Bass and treble tone control

CD player

CD-R and CD-RW playback compatible

Support for CD Text and 99 track audio CD playlist

Multiple playback modes (repeat, shuffle, etc.)

MP3 playback, including support for ID3 tags and
M3U playlists

DAB

PURE ReVu™ enables pause and rewind of live DAB
digital radio

Full Band III (174 - 240 MHz) reception. Fully compliant
with ETS 300 401 and capable of decoding all DAB
transmission modes 1-4

Fast autotune feature

DPAC II provides a more natural sound from DAB
transmissions

FM

Supports RDS and RadioText

Tune by RDS station name

87.5 -108 MHz frequency range

Speakers

6 Ohms (nominal) impedance

30W RMS power handling

Twin 3" custom designed full range drive units

Neodymium magnets

Phase correction plugs

Bass reflex ported

Connectors

3.5 mm headphone output

RF F-connector 75 Ohms for DAB aerial connection

Dual phono for external line level audio input

Dual phono for stereo analogue audio output

Optical Toslink connector for digital S/PDIF output
(IEC958 @ 48 kHz)

USB connector for future software upgrades

Stereo spring-clip terminals

General

Fully featured remote control

CE marked. Compliant with the EMC and Low Voltage
Directives (89/336/EEC and 73/23/EEC)

Main unit dimensions (excluding controls)
210 (w) x 155 (h) x 215 mm (d)

Speaker dimensions 105 (w) x 215 (h) x 215 mm (d)

2 x 3 m speaker cable supplied

Mains cable supplied

‘T’ indoor aerial supplied

Telephone support hotline and website

Two years warranty
