ImageQuest W150 User Manual

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
i n s t a l l a t i o n .
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
m e a s u r e s :

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet of a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.

D E C L A R ATION OF CONFORMITY

D E C L A R ATION OF CONFORMITY

WE ImageQuest CO., LTD.

Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA

declare under our sole responsibility that the product:

Kind of equipment : COLOR LCD CLIENT

Type-Designation : W15L00001

to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)

Safety : EN 60950 : 1992 + A1, A2, A3, A4, A11
EMC : EN 55022 / 1998, EN 55024 : 1998

EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995

following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.

Accredited testlaboratory:

TÜV Rheinland

Am Grauen Stein

51105 Köln

KOREA /Oct. 31, 2001 HONG KI, KIM

(Place and date of issue) (Name and signature of

authorized person)

Contents

1. Introduction of W150 ......................1

OverView ...............................................1

Function ................................................1

Feature ..................................................1

2. Before the Operation ......................3

System structure ....................................3

Front of W150 .............................................3

Hot Keys .................................................4

Rear of W150 ..............................................4

System Connection ................................6

Connection of External Device .............6

3. Operation of W150 ..........................7

Setup of Operating Environment .........7

Menu window Composition .....................7

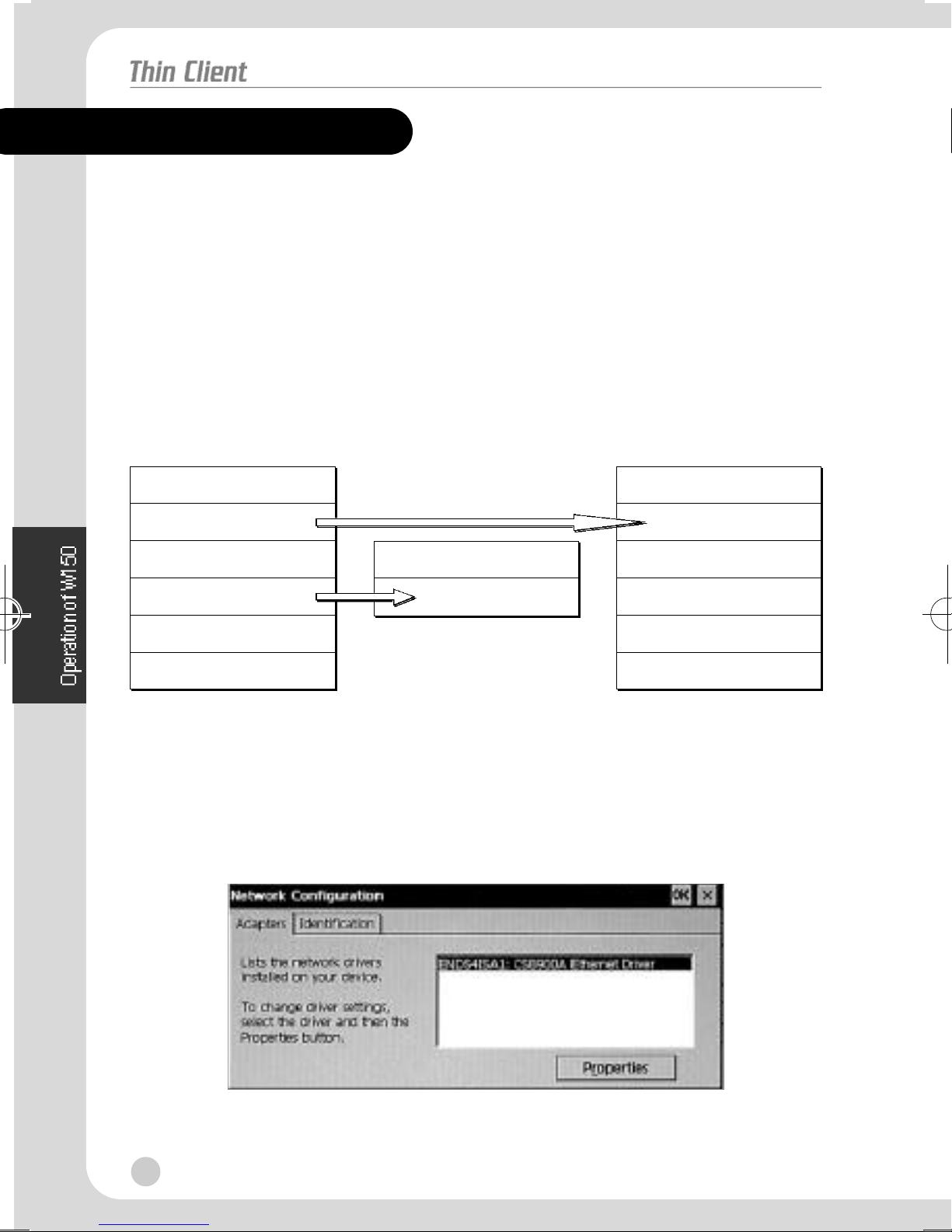

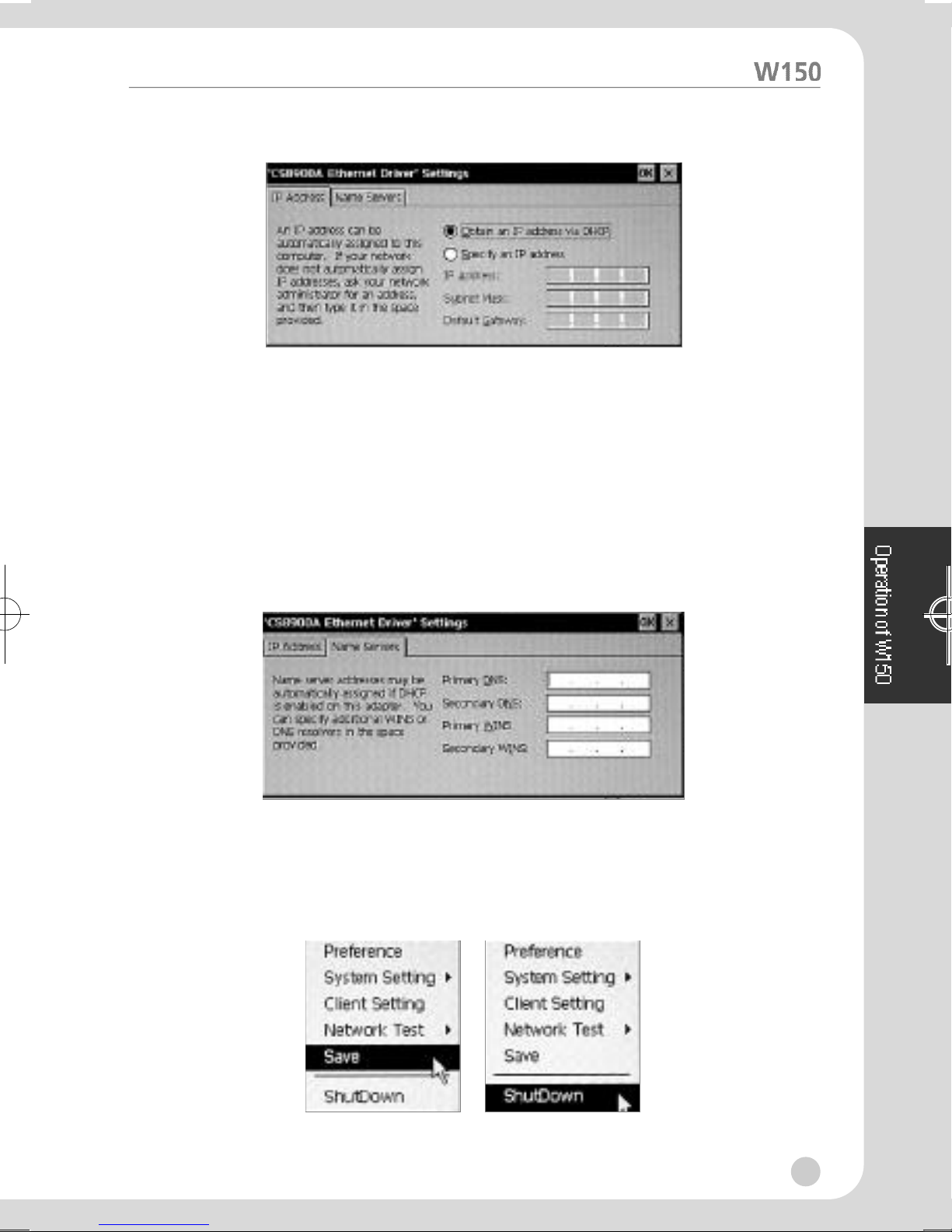

Setup of Network ......................................7

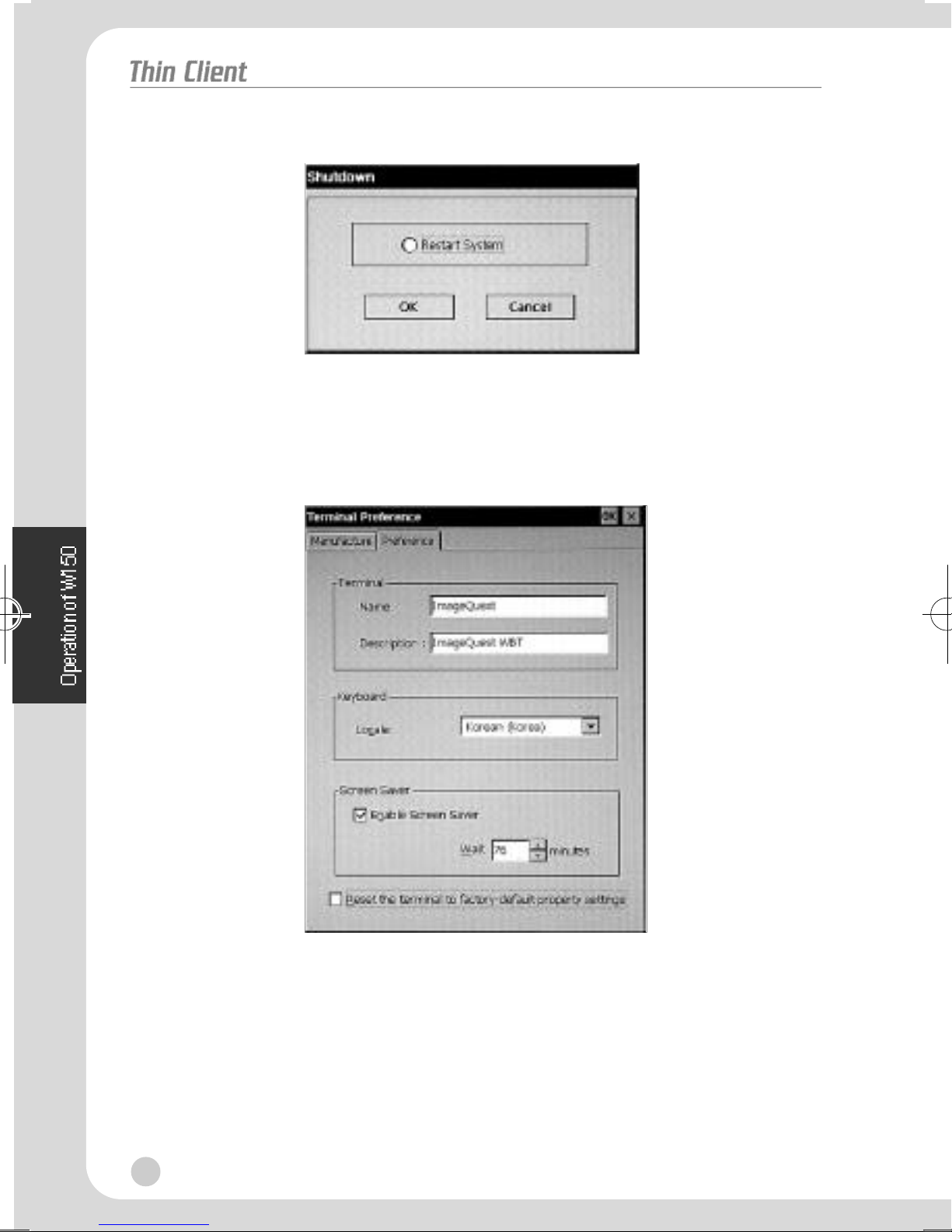

Setup of Preference ...................................9

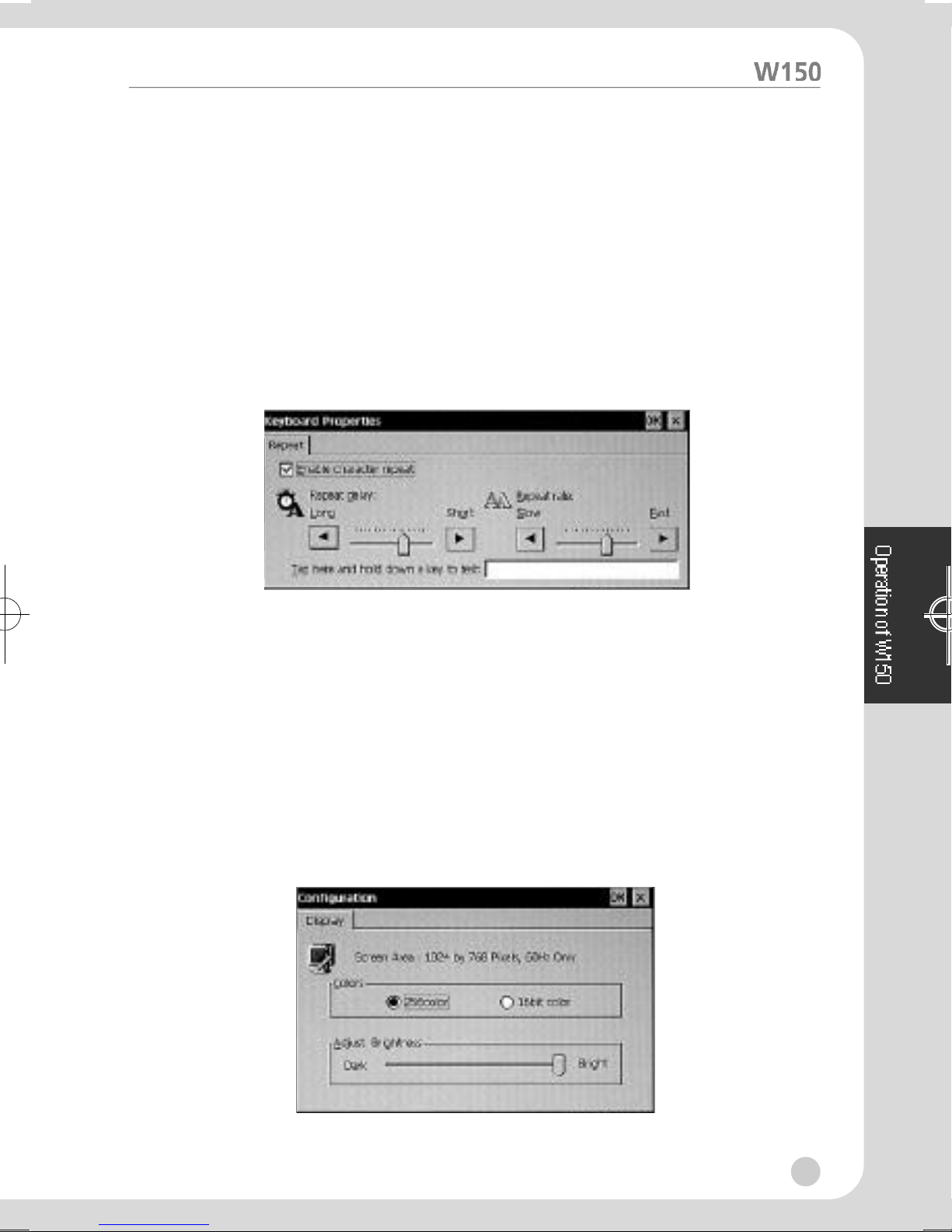

Setup Keyboard Feature ..........................10

Setup of Display Feature .........................10

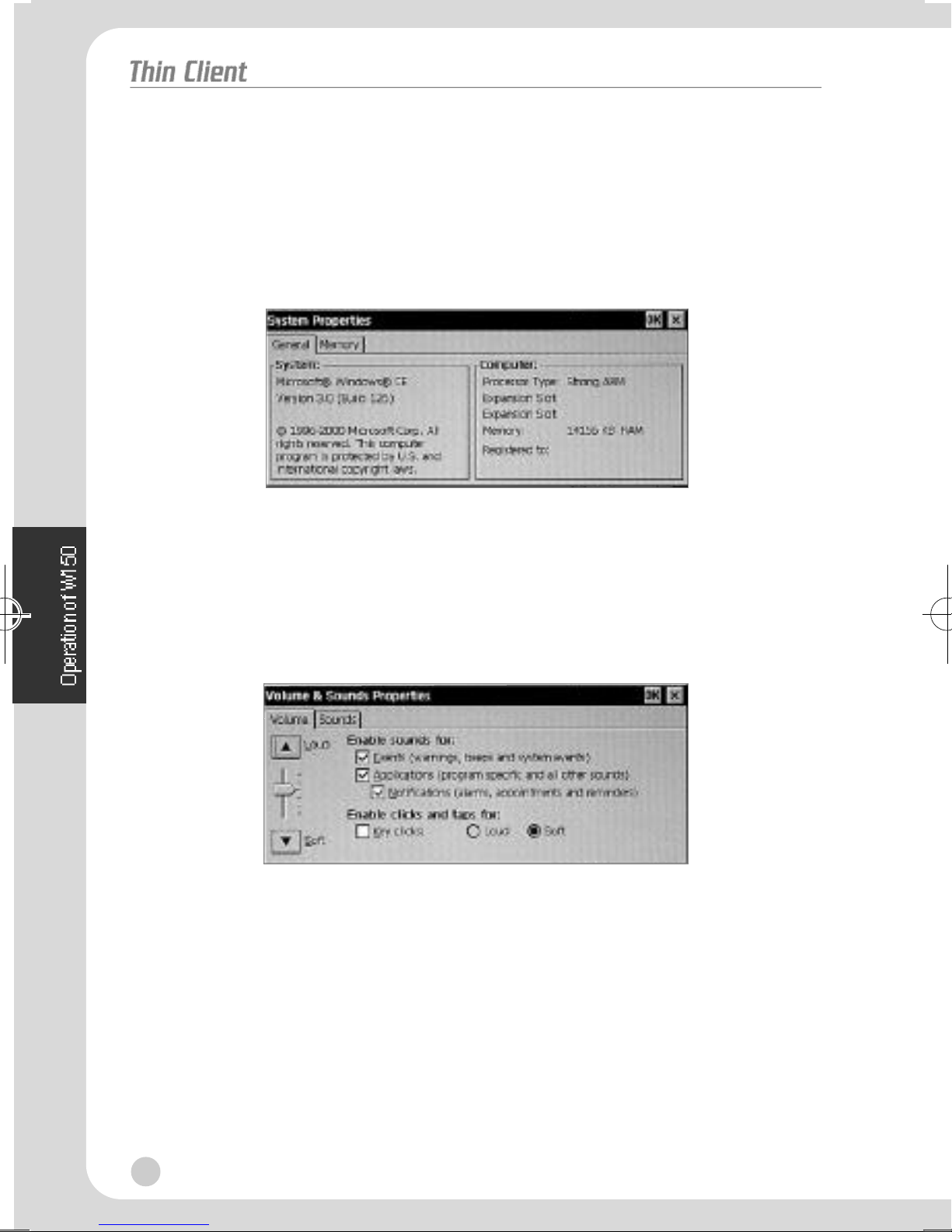

System Properties ....................................11

Volume & sound Properties .....................11

Network Environment View ...............12

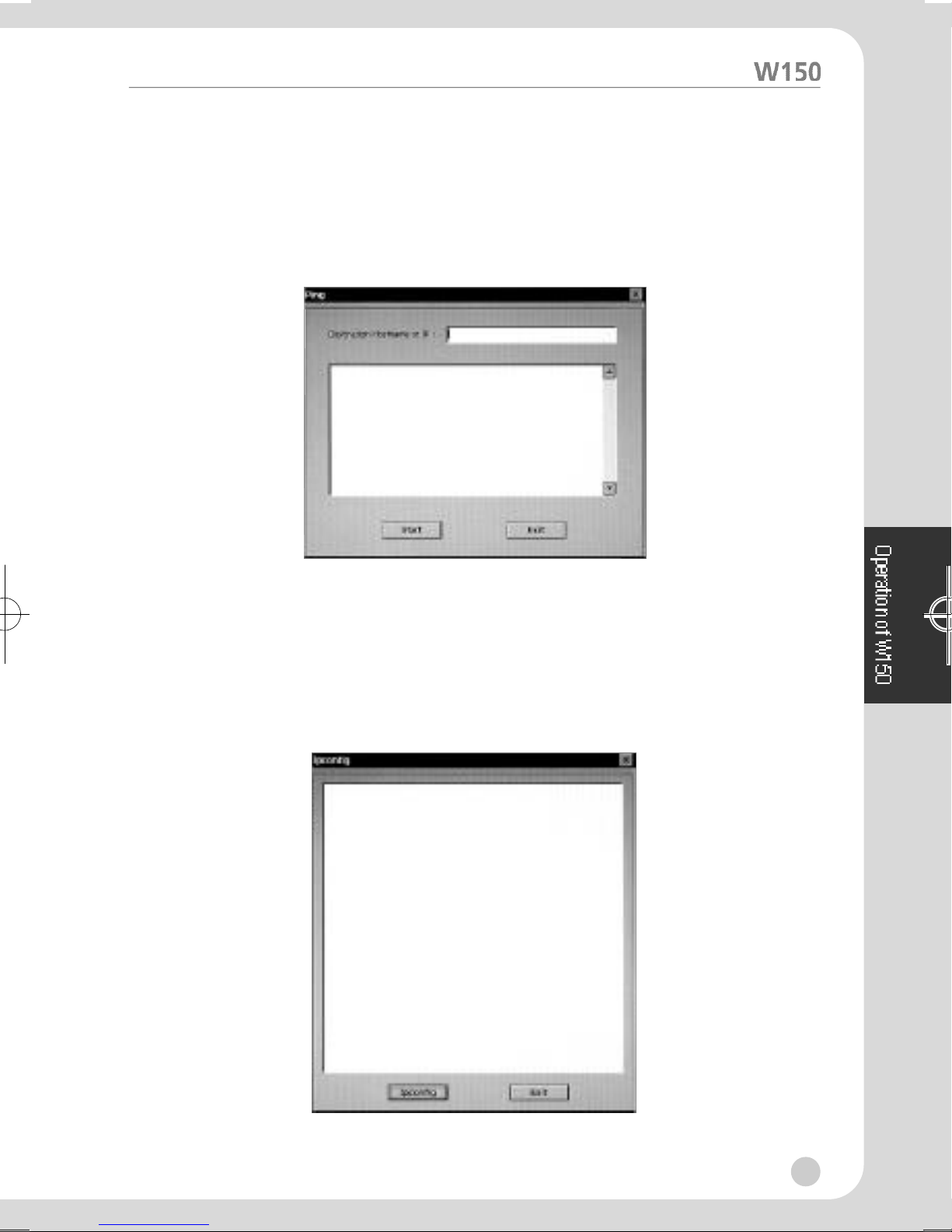

Ping ..........................................................12

Ipconfig .....................................................12

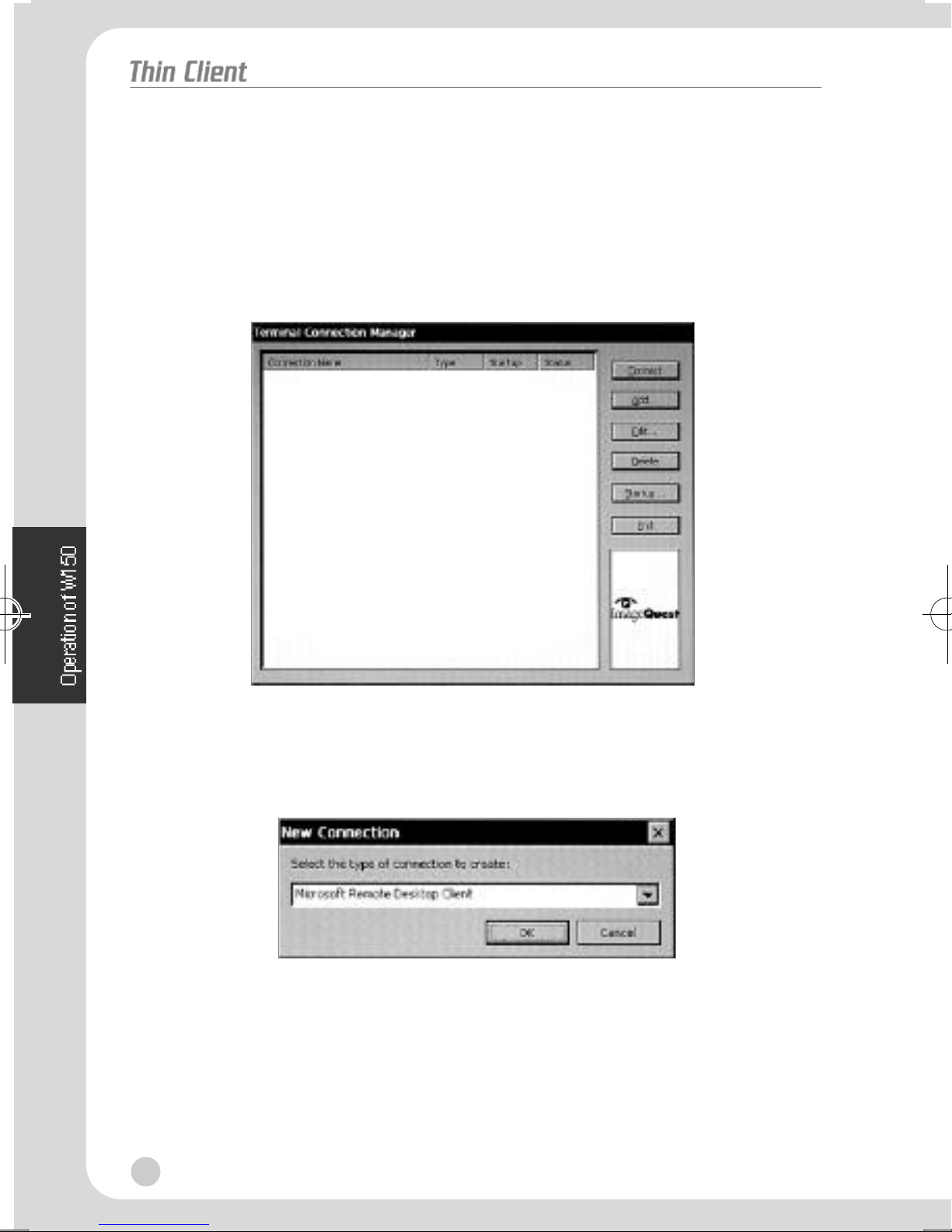

Terminal Connection Manager ...........13

New connection Creation .......................13

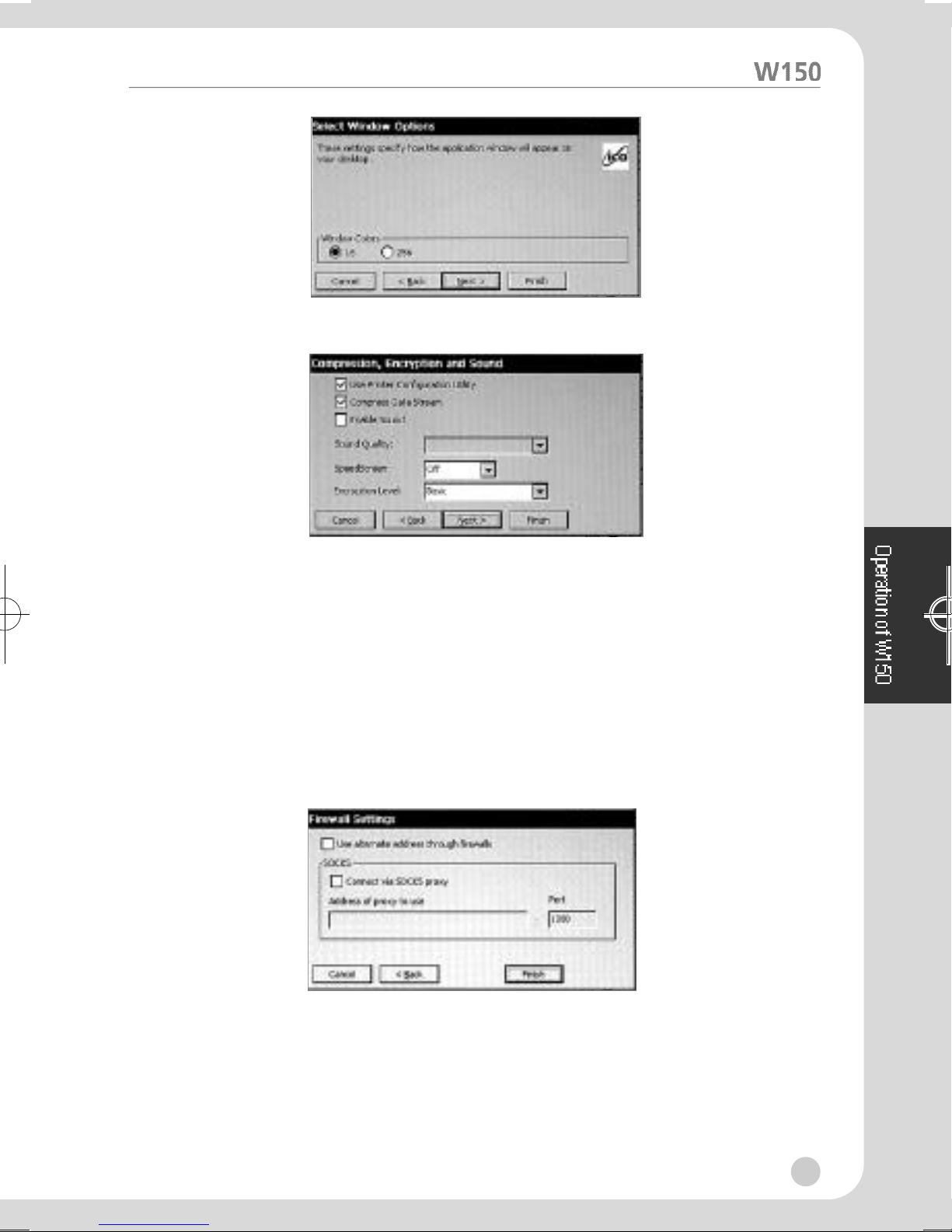

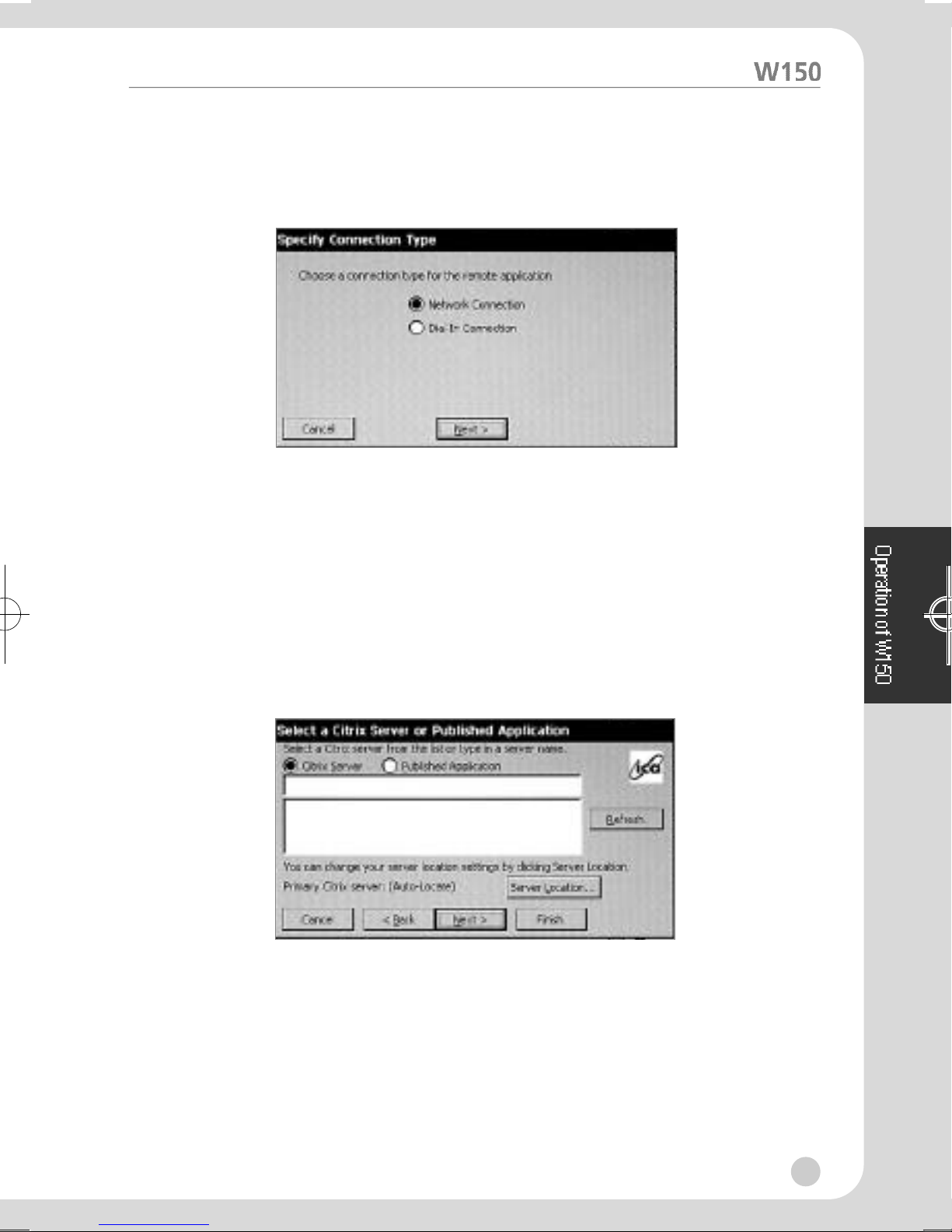

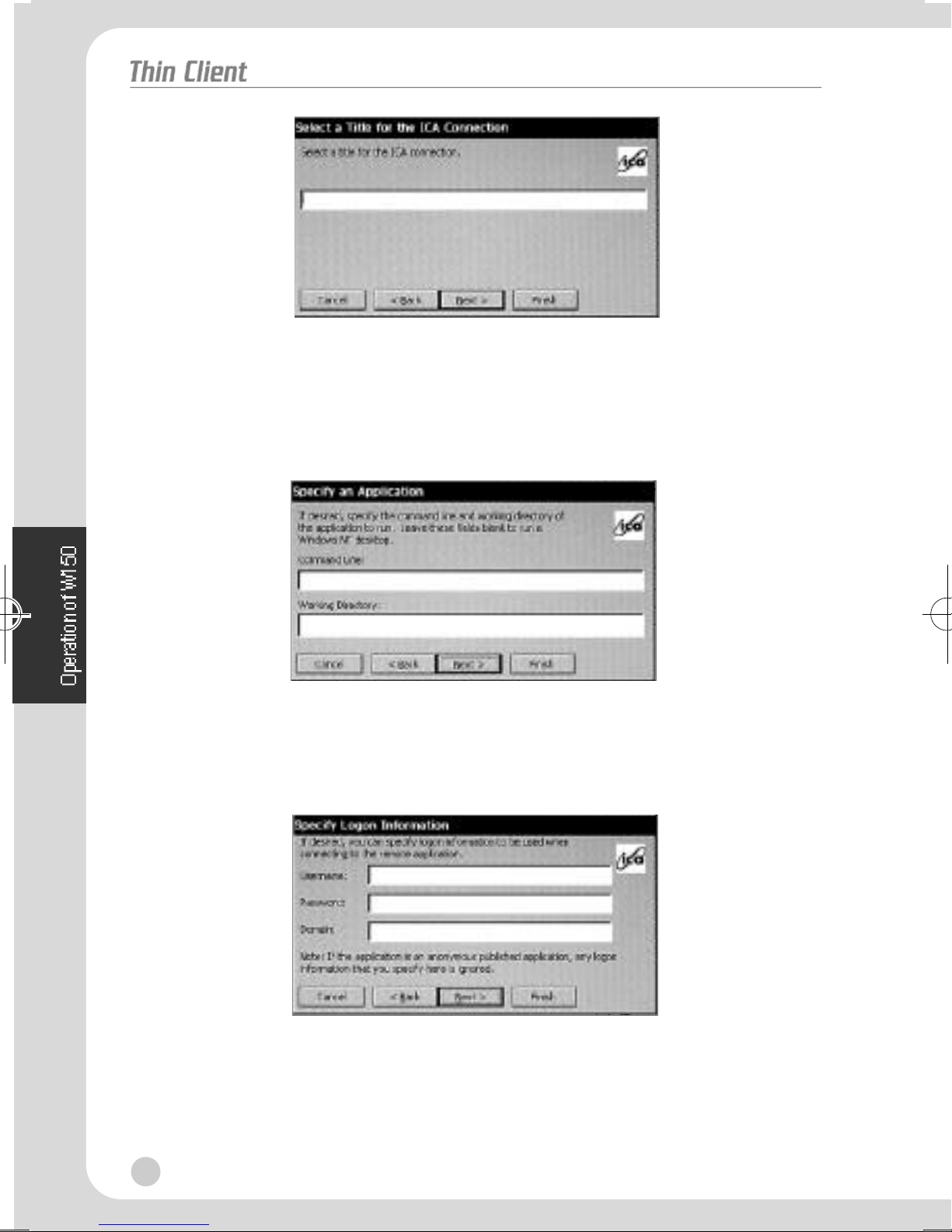

Additional Creation of ICA Connection . . .1 4

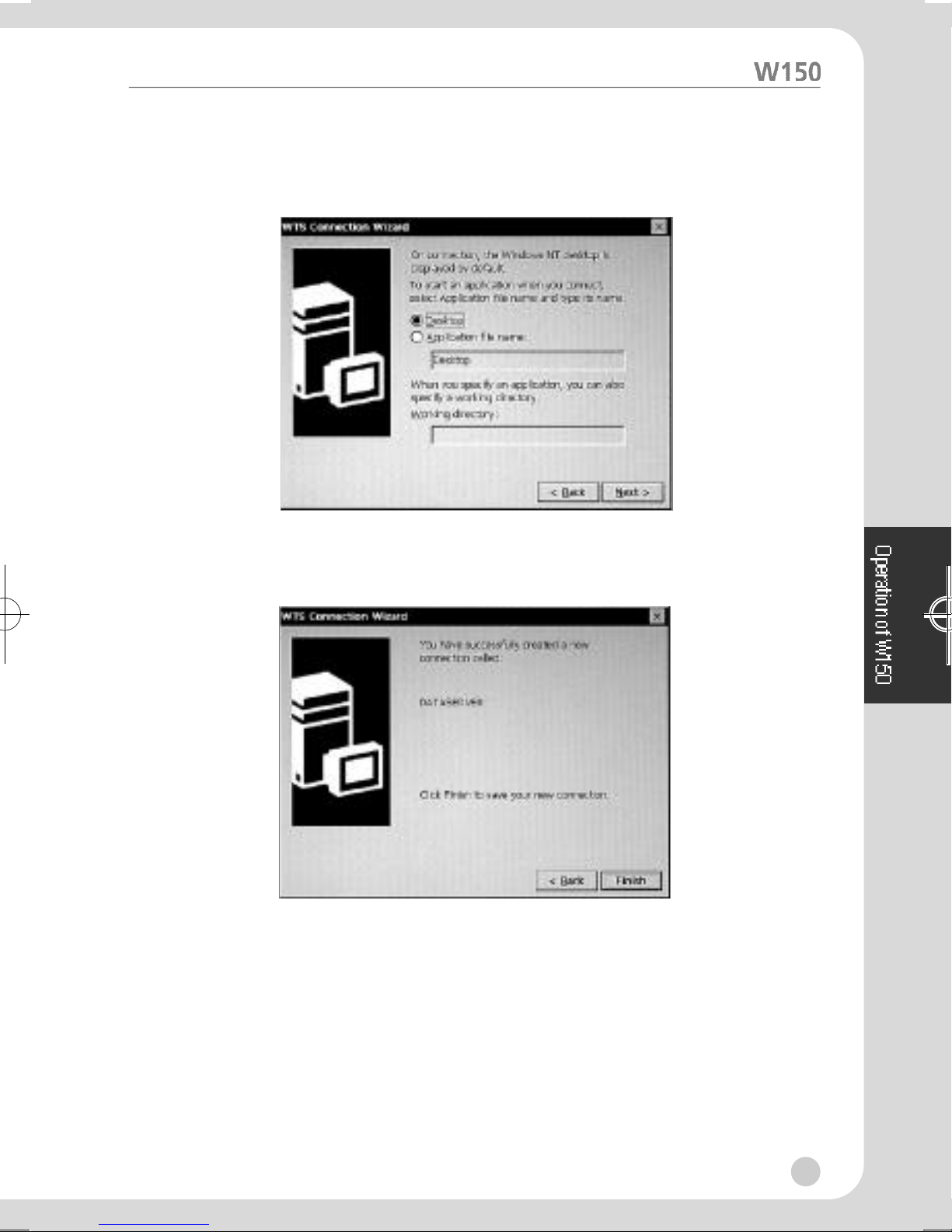

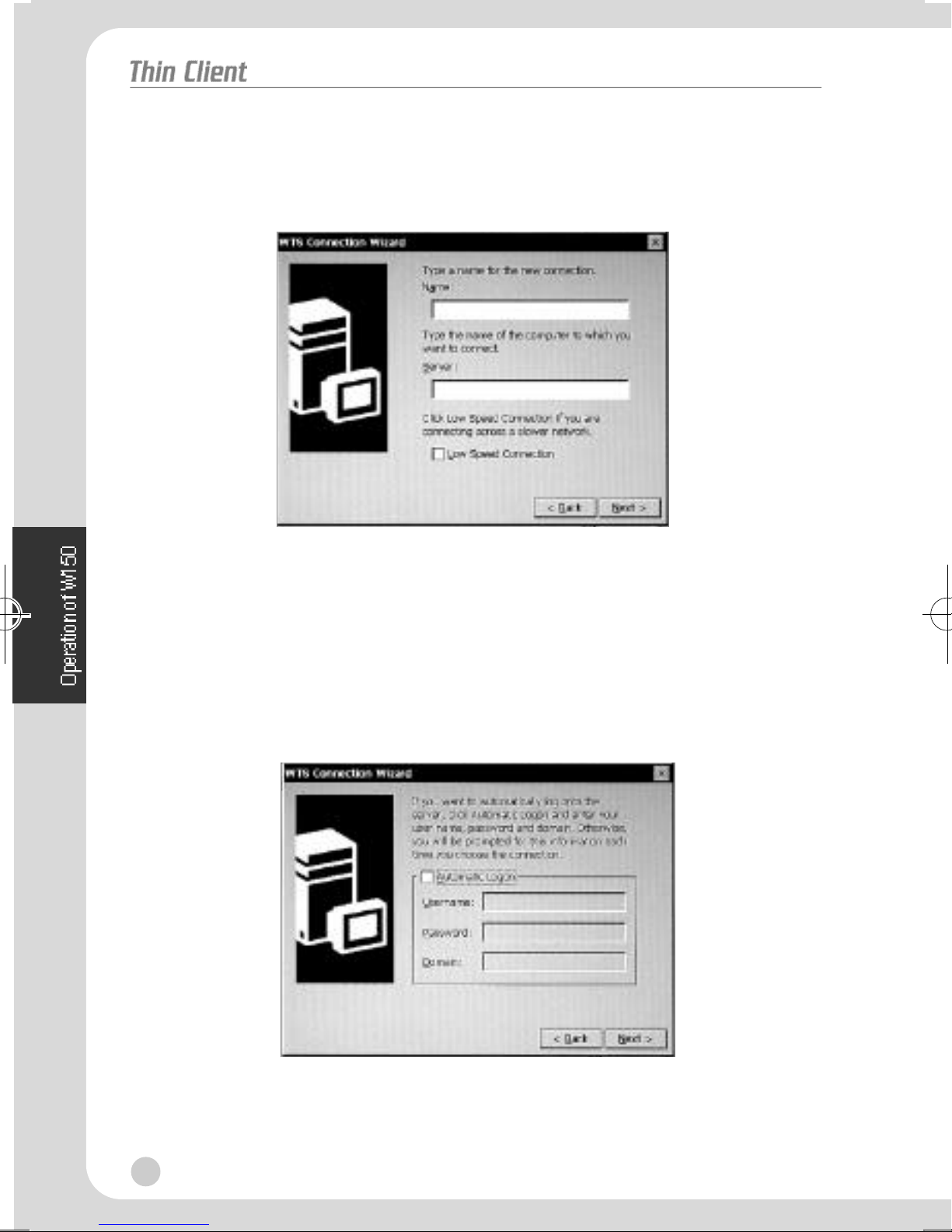

Additional Creation of RDP Connection . . .1 7

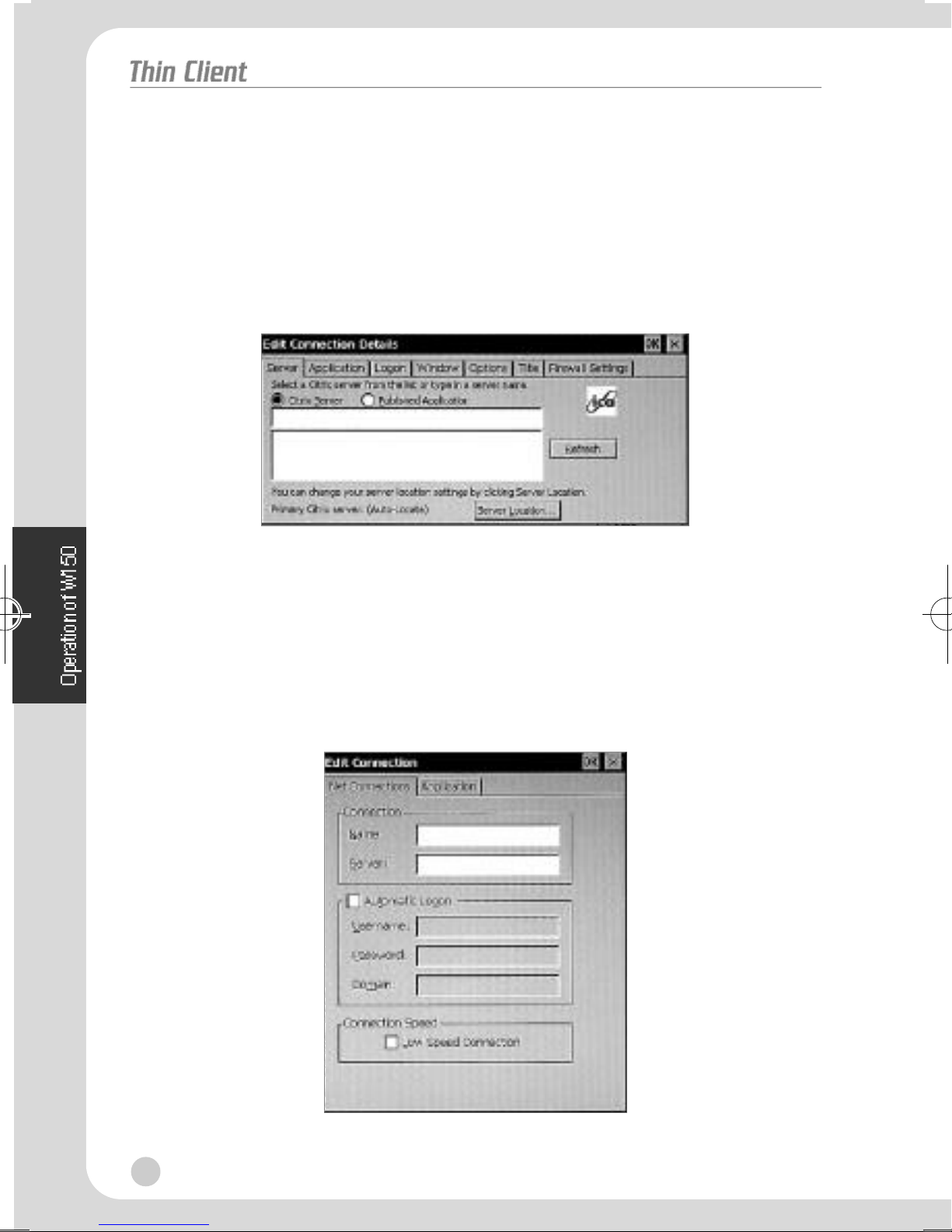

Connection Editing and Deletion ...........19

Editing of ICA Connection . . . . . . . . . . . . . . . . . . . . . . . . . .1 9

Editing of RDP Connection . . . . . . . . . . . . . . . . . . . . . . . . .1 9

Connection Deletion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 0

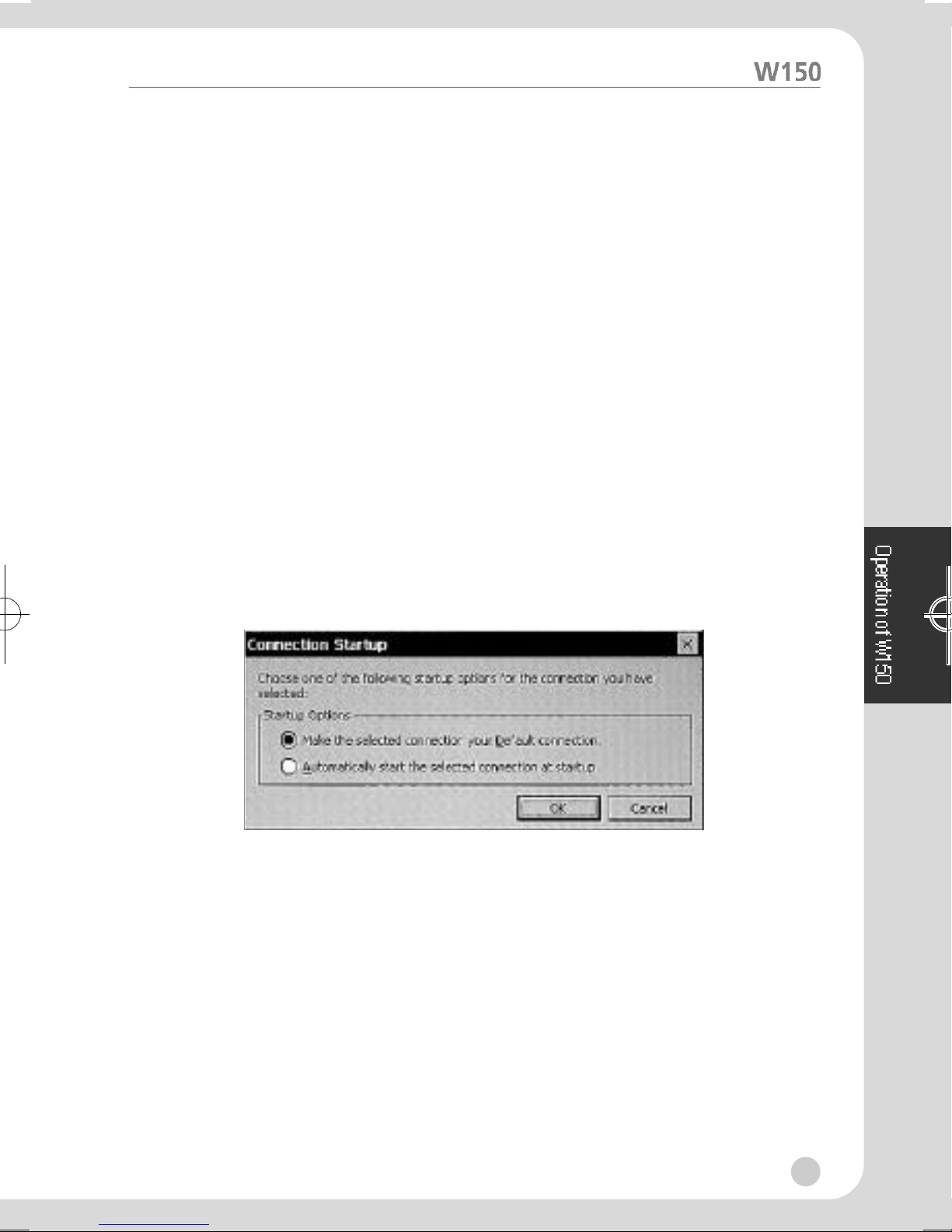

Start-up Connection Setup .....................20

Server Connection ...................................21

Using of W150 Hot Keys .........................21

W150 Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1

Multi Connection start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1

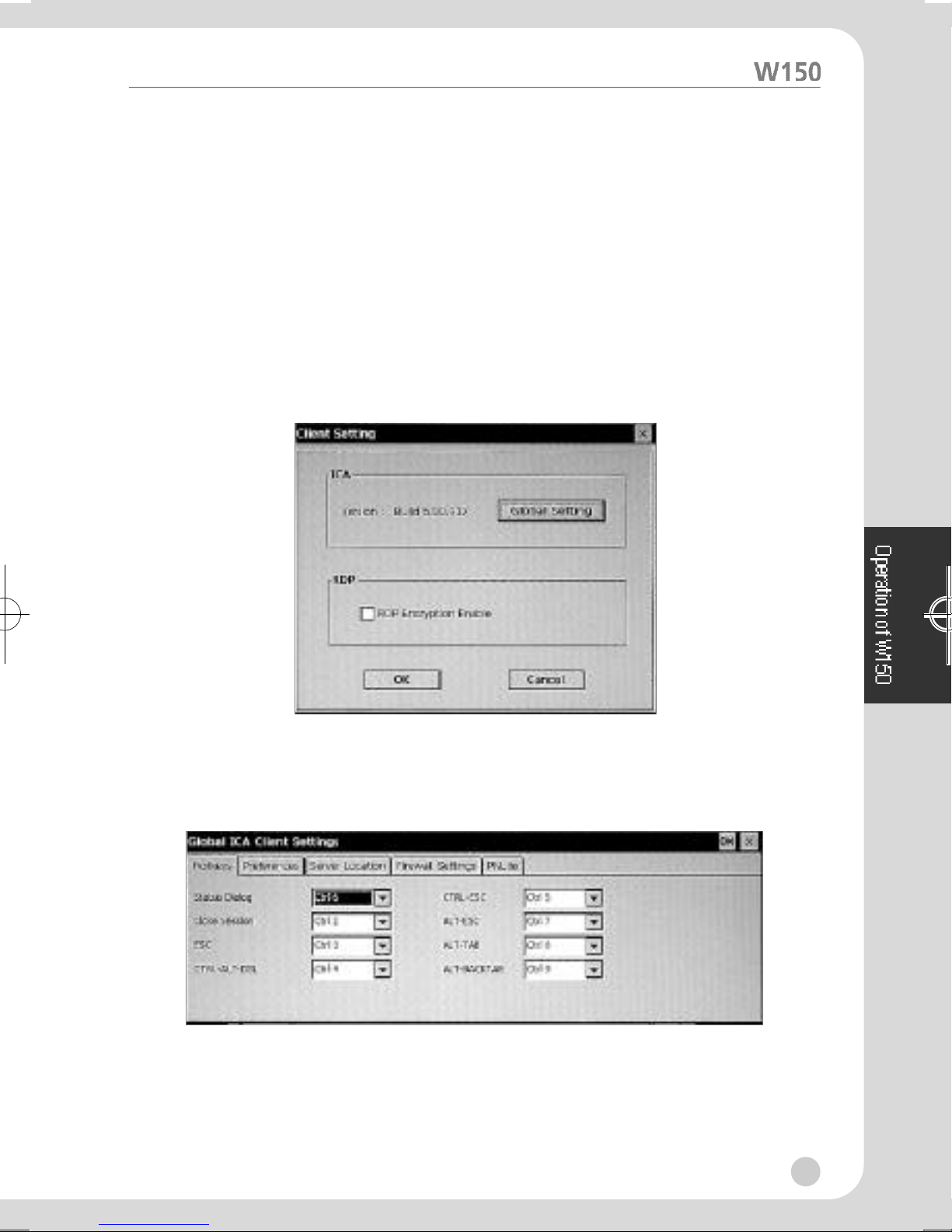

Client Setting and Save ..........................22

Client Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2

Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 3

Ending the Operation .............................23

Disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 3

Terminal Ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 3

4. Troubleshooting ........................24

5. System Specification .................25

1. Introduction of W150

Overview

“Easy installation, Optimized function, The least expenses”.
It is this web terminal’s strong points that you can expect when you utilize it in
your environments.
Under the basic environments of server based on computing and internet
connection speed of 56kbps, you can use various applications on the high
performance servers based on Windows 2000 Server OS as well as internet
connection.

Classification

Operation Mode

CPU

SDRAM

FLASH

Operating System

Intel Strong ARM 206Mhz

Windows CE 3.0

W150

WBT

16M

8M

Function

All the application programs are operated through the server, not in itself
W 1 5 0 .
W150 as a client transfers to the server only the inputs of mouse and
keyboard.
The result of application programs executed in the server are transferred to
the client with the use of Protocol ( RDP or ICA ). Accordingly, traffic size that
causes problems in the existing network is reduced considerably and no
sophisticated is required for client.

Features

As Operation system, “Windows CE” is utilized

W150 has an open type architecture. It is run with a 32 bit multitasking and
multithread operating system that supports various types of device.

°§Utilize a kernel based on the architecture of WINDOWS NT.
°§Support pre-occupied multi tasking and multi thread.

1

°§Provides a user friendly GUI environment
°§Booting process is not necessary since the operating system is stored on

R O M .

Strong ARM CPU as of Intel

°§Low powered (4W) operation is available.
°§Size and Weight are reduced

°§Low noise ( no cooling fan is required )

Quick Booting Circuit Design (Compared to the general PC)
During the Power On, system booting is performed in the last task

environment.
A/S Cost Reduced

Since there are no fixture elements such as HDD, FDD, CD-ROM, and cooing
fan that are main causes of trouble, only minimum A/S is required.

Can be operated in the server environment

The program is executed in the server and only the results of execution (screen
value) are displayed on the client.
Multi-user who are connecting to the server at the same time can execute
own program independently.

Application Server

Basic duty Server

Headquater LAN

WBT Clients

ERP Server ASP Server

EC Web Hosting Server

(ISP DATA Center)

Branch office LAN

Application Server

WBT

- Win CE

- Windows 2000

- Meta Frame

2

2. Before the operation

In the section, the structure and setup method of W150 is described.

System Structure

You should be familiar with the system structure for the proper connection of

peripheral devices. Basic parts supplied include a mount ( Main body ),
keyboard, mouse, adaptor, and AC power cord.

°‹Front Side of W150

3

Hot Keys

Power

If you put briefly this button for screen on/off.
The system is reset if you put the button for 3 seconds or longer.

Web

If you put this button, with the server connected state, Internet Explore
Window of server is displayed.

E-mail

If you put this button, with the server connected state, Outlook Express of
Window server is displayed.

Bright

This is used to adjust the brightness of the screen. Press “°„“ to brighten the
screen, and press “°Â“ to darken it.

°‹Rear of W150

4

ICON

N A M E

USB

(Optional)

Functions Description

This is a typical aerial bus. An external device that
supports USB is faster than a serial port and easy to
connect. Since USB supports the data transmission
rate of 12Mbps, any types of peripheral devices can
be connected without worrying about the operation
speed.
In addition, it can accommodate up to 127 devices.
Moreover, connection can be made during the PC
operation as well. No power of peripheral devices is
required.

RS-232C

(Optional)

Mouse

Keyboard

Phone

MIC

LAN

Power

This is connected to D-type connector that consist of 9
pins and interfaces with other serial device for
transmitting/receiving data

PS/2 Port, connected to MINI-DIN connector made up
of 6 pins.

Input jack for speaker
Input jack for microphone
Single line for digital transmission

This interface is connected to a RJ-45 Jack made up of 8 pins
This is connected to an adapter that supplies power to

the system

5
