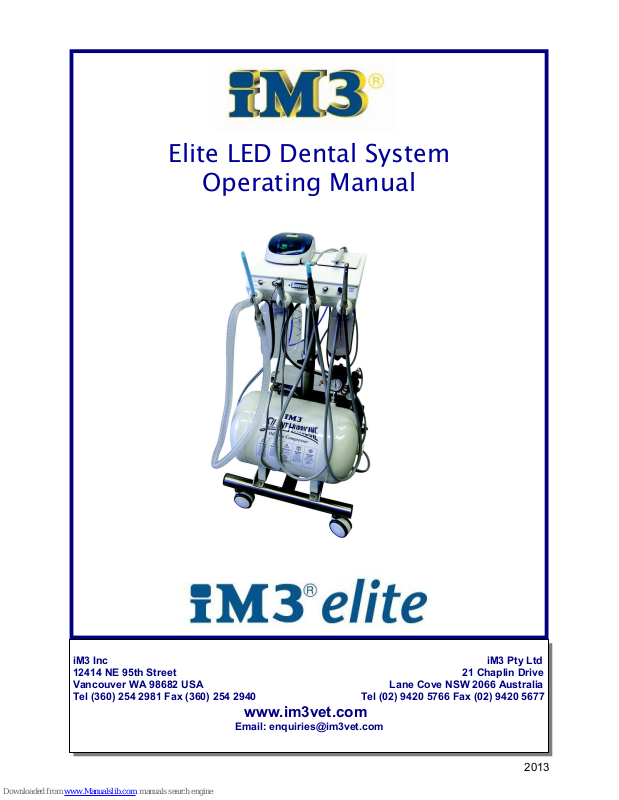

iM3 Elite Operating Manual

Elite LED Dental System

Operating Manual

iM3 Inc iM3 Pty Ltd
12414 NE 95th Street 21 Chaplin Drive
Vancouver WA 98682 USA Lane Cove NSW 2066 Australia
Tel [phone] Fax [phone] Tel [phone] Fax [phone]

www.im3vet.com

Email: [e-mail]

2013

2

TABLE OF CONTENTS

Table of content

2.

iM3 Dental Systems Unique Design Features..............................................................

3.

iM3 elite Control Panel Guide......................................................................................

4.

Getting Started.................................................................................................................

5-6

iM3 Distilled Water and CLS Enviro Solution Supply................................................

7.

iM3 Filtration System.....................................................................................................

8.

iM3 Suction System.........................................................................................................

9.

3 Way Air Water Syringe...............................................................................................

10.

Ultrasonic Scaler Coolant Outlet..................................................................................

10.

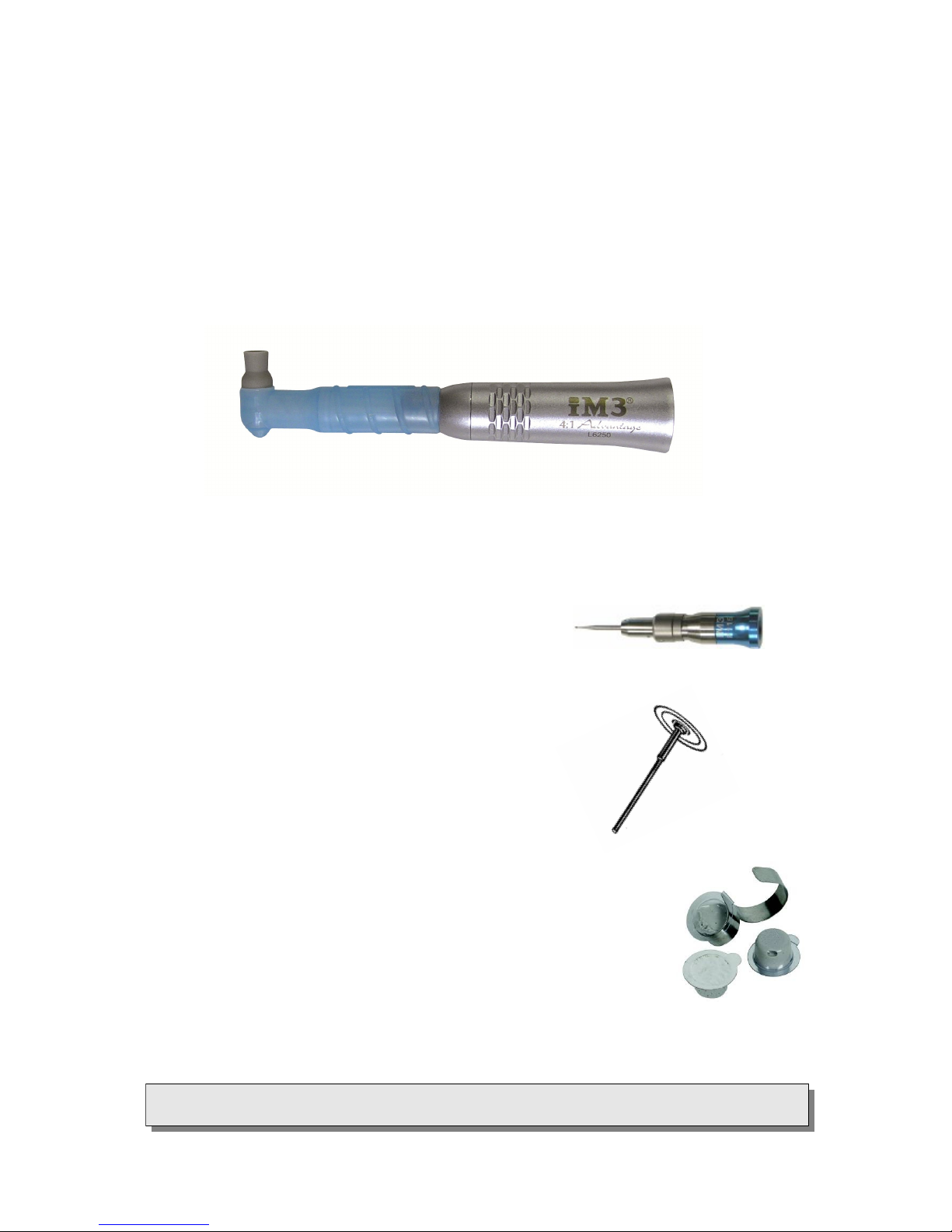

Low Speed Handpiece and Attachments......................................................................

11. - 13.

High Speed Handpiece ...................................................................................................

14.

iM3 Dental System Bur Kits & Rodent Kit.................................................................

15.

Handpiece Pressure Adjustment....................................................................................

16.

Handpiece Lubrication....................................................................................................

17.

Handpiece Sterilization..................................................................................................

18.

Handpiece Maintenance..................................................................................................

19.

Silent Hurricane Oil Free Compressor ….....................................................................

Identifying Air Leaks..................................................................................................

Compressor Component Details.................................................................................

Adjusting Regulator Pressure.....................................................................................

Compressor Maintenance…………………………………………………………...

20.

20.

21.

22.

23.

Trouble Shooting;

High Speed Handpiece ................................................................................................

Replacing Cartridge Valves ………………………………………………………..

Low Speed Handpiece .................................................................................................

24.

24.

25.

.

iM3 Operator Safety

Im3 Dental machines should be operated by a qualified person—for Veterinary use only

For operator safety, it is recommended that safety goggles

or visor, face mask and surgical gloves be worn

during all procedures.

Visit Our Web Site: www.im3vet.com

3

Unique Design Features

iM3 Dental Systems are designed with unique and practical features to make your work even
more satisfying and productive. Please note; some features listed below, may be optional
depending on the system you purchase.

Control Top

The Corian® top is a non-porous work surface which is easy to sanitize. It incorporates a groove
around the edge to prevent burs falling on the floor during procedures. The control box is made
from powder coated aluminum that won’t warp or deteriorate with age.

Color Coded System

All supply lines on iM3 dental systems are color coded to simplify service and
maintenance requirements.

Maintenance Instructions

All maintenance instructions are conveniently printed on the back of the dental machine

ensuring the system is kept in perfect working order. Compressor instructions are printed on the
white compressor tank.

Power Board

A four socket electric power board is conveniently located on the side of the control panel, fea­turing an IEC female socket.

Adjustable Stainless Steel Stand

The iM3 stand is made from high quality stainless steel and is height adjustable for work and
ease of storage.

Ultrasonic Scaler Coolant Outlet

The ultrasonic scaler coolant outlet is mounted conveniently on the rear of the control box, to
allow the use of the water or system to supply the coolant to your ultrasonic dental scaler.

CLS Enviro System

CLS Enviro System is an ingenious occupational health and patient safety system. CLS is
designed to help reduce the risk of atmospheric pollution and the transfer of viruses, such as
FIV from patient to patient and reduce unpleasant mouth odors.

LED Advantage High Speed Handpiece

The self-generated LED provides daylight-quality, neutrally-coloured white light at 22,000 Lux.
Patented Hygiene system, prevents the suck back of aerosols and micro-particles into the tur-

bine. LED’s offer a robust, long lasting Light source that barely heat up, are shock resistant and

that do not emit any harmful IR and UVA rays.

Particle Filters and Bacterial Filters

Particle filters and bacterial filters are installed on all iM3 dental systems to help reduce particles
entering the water supply and reduce unpleasant environmental odors from the HP exhaust col­lection bottles.

Suction System

This air driven suction system can be autoclaved (handpiece only) and is an extremely

important tool in the removal of debris from the back of the mouth after scaling.

Oil Free Silent Hurricane Compressor

Mounts underneath the unit on the stainless steel stand—supplying air wherever the unit is to be

used, and is considered more convenient than a noisy compressor which is usually situated in
another room and requires a length of air line. iM3’s has produced an Oil free compressor - low
maintenance, oil free air.

4

iM3 elite Control Panel - Front

(A) Powerful suction handpiece and suction tip.
(B) 3 way air/water syringe.
(C) Handpiece pressure gauge.
(D) Selector water/CLS switch.
(E) Water flow control for high speed handpiece
(F) Low speed handpiece position.
(G) High speed handpiece position
(H) Magnetic bur holder.
(I) Corian top
(J) IEC power board on side of machine.
(K) Handpiece exhaust collection bottle 500ml
(L) Suction waste collection bottle 1000ml

(M) Coolant outlet for ultrasonic scaler (on back panel)
(N) On/Off pressure switch for coolant system (on back panel)
(O) IEC female outlet for main power supply 240v.

iM3 Dental Systems

A

D

L

J

C

B

F

G

H

E

I

iM3 elite Control Panel - Back

M

N O

K

L

5

Getting Started

1. Attach all four castor wheels to the stainless steel stand base.

2. Loosen the black stand height adjustment knob and lift the dental control box to working
height. Tighten the stand height adjustment knob to secure.

3. Screw on the high speed handpiece waste collection bottle (small) and suction (large) waste
collection containers under the control panel. (See page 4. K & L)

4. Fill the clear plastic water bottle with distilled water and screw into the black holder with the
blue tubing at the back of the machine, do not over tighten.

5. If using the CLS Enviro System. Fill the amber plastic bottle with the CLS Concentrate

Solution (8.5oz or 250 ml) and dilute with distilled water (25.4oz or 750ml) to make a

33.82 oz or 1 litre solution. Screw the bottle into the holder with the green tubing. Do not

over tighten.

6. Suction. Attach one end of the corrugated tubing to the inlet above the suction waste
container. Fit the suction handpiece and evacuator tip to the corrugated tubing and place in
the suction handpiece holder. Make sure the handpiece suction control lever is in the open
position, pointing down. Page 4. A

7. Place the 3 way air/water syringe in its handpiece holder. (page 4. B)

8. Assemble the handpieces according to the manufacturers instructions. Screw the gray
handpiece air/water line onto the handpiece and place in correctly labeled handpiece holder
on the dental system.

9. Make sure the main air line is connected to the compressor outlet tap. (See page 25),

10. Plug the power cord supplied into the back of the dental machine (page 4. O) and connect to
an electrical outlet and turn ON.

iM3 Dental Systems

6

Getting Started

11. Turn on the switch located on the power board. This will allow the compressor to pressurize.

(see page 23. air tank pressure)

12. Make sure your compressor is set to deliver the correct working pressure. The air pressure
regulator gauge should read 80 psi (5.5 BAR). If adjustment is required, please see page 24
for compressor pressure adjustment instructions. iM3 factory sets the pressure.

13. Place the two foot control pedals on the floor in front of the unit. One foot pedal operates the

handpieces and one operates the suction (indicated by the word Suction on the pedal) .

14. Check handpiece operation:

a) Remove suction handpiece from holder and depress suction foot control pedal, make
sure the gray flow control on the handpiece is in the down or open position.
b) Remove High Speed Handpiece from holder and depress the handpiece foot control
pedal—handpiece should now operate.
c) Replace the High Speed handpiece and remove the Low Speed Handpiece from holder

and depress handpiece foot control pedal—handpiece should now operate.

NOTE: The elite is fitted with automatic handpiece holders. Only one handpiece (LS or HS)

can be used at any one time. If both handpieces are removed from the holder neither HP will
function correctly as they will have low air pressure.

15. Adjust individual handpiece pressure if required, (see page 16.). Each handpiece (Low

speed and high speed) has a specific pressure requirement and is factory set by iM3.

16. Pressurize water system by moving the coolant water system switch to ON, located on the

back of the control panel. (see page 4. N )

Important. When filling distilled water and/or CLS Enviro bottles de-pressurize the
water system, (see page 7.). Check water and air supply to the 3 way air water syringe.

Depress the right hand button for air and left hand button for water or both together for
mist.

17. Water volume. Remove high speed handpiece, from holder and depress foot control pedal.

Adjust water spray volume to a fine mist by rotating the flow control knob. (see page 4 “E”)

iM3 Dental Systems

7

iM3 Distilled Water and CLS Enviro Solution Supply

Each iM3 dental system is supplied with a clear and an amber (brown) water bottle which
should be filled only with distilled water to assist in preventing mineral or bacteria build up
in the handpieces. This water bottle supplies the high speed handpieces, 3 way air water
syringe and ultrasonic scaler coolant outlet .
The CLS Enviro Solution supply and water system allows you to choose between distilled
water or CLS Solution at the flick of a switch, depending on the dental procedure you wish
to perform. The CLS solution contains chlorhexidine which is light sensitive and should be
kept in the amber bottle provided.
The coolant system for your iM3 dental system, has been preset at 25 psi.

Refilling Coolant Bottles

To refill the distilled water or CLS solution, flip the pressure switch on your dental system to
OFF - depressurizing the system. After the system has been depressurized, unscrew the
bottle and refill with either distilled water or CLS Enviro Solution. After filling the coolant
bottle screw it back into the holder and flip the pressure switch to ON, repressurizing the
system. DO NOT OVERTIGHTEN THE BOTTLES.

Please Note: When the day’s dental procedures are complete, flip the pressure ON/OFF

switch to the OFF position, depressurizing the coolant bottles for storage.

Cleaning

Bottles may be sterilized with ethylene oxide or by chemical sterilization.

iM3 Dental Systems

Note: The use of other chlorhexidine solutions may cause crystal deposits in handpieces

and valves. Use of such solutions will void the warranty.

Do not dilute CLS beyond the recommended label instructions, as it may result in crystal

deposits forming and block handpieces and valves. Chlorine in water will cause

chlorhexidine to flocculate—use only distilled water.

Distilled Water

CLS Solution

ON/OFF Pressure
switch

Particle filter

Here’s what Dr Jeanie Hawkins, DVM, Diplomat AVDC had to say about CLS Solution and the
Auto Flush System…..

“Having CLS Solution at my fingertips to flush periodontal pockets is a real plus. iM3® is the only

company to address the problem of cleaning the airlines and high speed handpieces or scalers by
using a moment button to release CLS Solution into the airline.”

Mounting Bracket for
SS instrument tray

8

iM3 Filtration System

Water and CLS Enviro Solution Supply

Inline filters in the supply bottles help prevent particles from entering the system and
blocking handpieces. These filters are located in the distilled water and CLS Enviro bottles.

The inline filters will need to be checked and replaced if they appear dirty.

The use of distilled water is mandatory in the water bottles, as local water may clog the
system and may corrode the brass valves in the system, apart from the risk of a bacterial
build up.

Note: Failure to use distilled water will void
the warranty.

iM3 CLS Flush System

The turbine in most high speed handpieces continues to revolve for a few seconds after use
and acts as a miniature centrifugal pump, sucking back air and water containing mouth
viruses and bacteria into the head of the handpiece. The CLS flushing system can help to
control this by supplying a quantity of CLS Solution into the air line of the high speed hand-
piece head, helping to sanitize the air line and handpiece.

To activate the flush, remove the High Speed Handpiece from its holder and press the CLS
flush button (Page 4 “K”) for one second. This will inject 1-2cc of CLS Solution into the air
line. Press the foot pedal, holding the handpiece away from yourself and the dental system,
as the CLS Solution is forced through the head of the handpiece under pressure. Excess
CLS Solution will return down the exhaust line and be collected in the handpiece exhaust
collection container.

CLS Enviro Solution should remain soaking in the handpiece for 2 minutes, prior to
reactivating the handpiece.

Note: The CLS flush system will never replace autoclaving of handpieces in-
between patients to ensure complete sterilization.

iM3 Dental Systems

VOID

iM3 Filtration System

Water and CLS Enviro Solution Supply

Inline filters in the supply bottles help prevent particles from entering the system and
blocking handpieces. These filters are located in the distilled water and CLS Enviro bottles.

The inline filters will need to be checked and replaced if they appear dirty.

The use of distilled water is mandatory in the water bottles, as local water may clog the
system and can corrode the brass valves in the system, apart from the risk of a bacterial
build up.

Note: Failure to use distilled water will
void the iM3 machine warranty.

iM3 Hygiene head system

The turbine in most high speed handpieces continues to revolve for a few seconds after use
and acts as a miniature centrifugal pump, sucking back air and water containing mouth
viruses and bacteria into the head of the handpiece.
The unique patented design of the iM3 Advantage LED HS handpiece prevents this taking
place.

VOID

iM3 Advantage Turbine for High Speed Hand-

Note: The use of other chlorhexidine solutions may cause crystal deposits

in handpieces and valves. Use of such solutions will void the warranty.

Do not dilute CLS beyond the recommended label instructions, as it may

result in crystal deposits forming and block handpieces and valves. Chlorine

in water will cause chlorhexidine to flocculate—use only distilled water.

9

iM3 Suction System

The iM3 suction system is a high volume air-venturi suction system,
that is designed as an integral part of the dental system.

The unit consists of:

(1) Suction handpiece & suction control lever
(2) Collection container

(3) Clear corrugated smooth bore tubing, autoclavable.
(4) Autoclavable suction tip, 121 degrees C.

Cleaning

It is recommended that cleaning be carried out after use.

All evacuator tips and smooth boor corrugated tubing are autoclavable (121 Deg C.) The
collection container can be dismantled for thorough cleaning and disinfection. The bacterial
filter on the collection container should be replaced when it appears dirty (iM3 code P7957)

iM3 Dental Systems

(1)

(2)

(3)

(4)

10

3 Way Air/Water Syringe

Your choice of air, water, or fine mist spray. Depress the right-hand button for air (a) and
the left-hand button for water (b) and both for a fine mist (a&b).

The 3 way syringe is ideal for flushing away debris during prophys or drying areas during
endodontic procedures.

The selector switch, page 4 (d), allows you to choose either distilled water or CLS Enviro
Solution.

Tip Removal

The tip of the 3 way syringe may be removed for cleaning and autoclaving.

Simply depress the outer ring housing (c) and remove the tip. (See diagram below).

iM3 Dental Systems

Ultrasonic Scaler Coolant Outlet

The ultrasonic coolant outlet is located at the back of the elite control top. (see page 4)

This outlet provides coolant under pressure for an ultrasonic scaler. You can choose
between water or CLS Enviro Solution by setting the selector switch, page 4 (D).

(a)

(b)

(c)

(a) Air
(b) Water
(c) Outer Ring Housing

11

iM3 Dental Systems

Operation Recommendations

Air pressure The dental unit air pressure

should be adjusted to be 40
psi See page 16

Lubrication To assure optimal
performance and life the

handpiece should be

lubricated daily with MD-30 oil
lubricant. Instructions

for lubrication are found on

page 20.

Air supply Moist or dirty air from the
compressor can cause

damage. Check the regulator
filter regularly. If dirt or
moisture is present, replace
the regulator filter and bleed
the system, to remove water
or oil.

Installation Instructions

1. Preset the air pressure to 40 psi
(see page 16)

1. Connect the low speed handpiece to
the grey handpiece line

2. Fit the 4:1 Advantage straight nose
cone. Attach the Blue R&R oscillat­ing prophy head

3. Depress the foot control fully to oper­ate the low speed handpiece

Note: Polishing should be carried out at 5,000 rpm or less. This can be

accomplished by running the motor at full revs (20,000 Rpm) and use a 4:1

reduction head, to achieve 5,000 revs, maintaining torque.

iM3 Advantage Low Speed Handpiece L6200

The low speed handpiece features include a light weight balanced profile and
smooth swivel action. Its vane type power system is quiet and vibration free. The
motor accommodates both doriot or ISO heads and its powerful torque is suitable
for all low speed procedures. The Low speed Motor operates at 20,000 RPM at a
delivery pressure of 40 psi.

12

iM3 Dental Systems

iM3 Low Speed Handpiece Attachments

(1) 4:1 Advantage Straight Nose Cone Attachment L6250

The reducing head is designed for polishing (prophy). The speed of the polishing
cup should be maintained at less than 5,000 r.p.m. The reducing attachment
therefore allows the motor speed and torque to be maintained while reducing the
polishing speed. iM3 disposable oscillating prophy angles are fitted to the SNC.
They won’t trap muzzle hair, or generate excessive heat.
(iM3 R&R prophy cup Code L7465)

(2) 1:1 Straight Nose Cone Attachment Blue Band

For (HP burs) and the use with the iM3 rodent kit.
This includes a soft tissue protector with diamond
bur and diamond disc.

(3) Diamond Saw Attachment

This saw blade may be single or double sided
and operates in the 1:1 attachment blue band
straight nose cone on the low speed handpiece.
It should always be used with a guard.

(4) Prophy Paste

iM3 recommends the use of iM3 R&R individual tub
prophy paste. The paste contains no fluoride or flavor oils.
It is a medium grit suitable for use with the R&R prophy cups.

13

iM3 Dental Systems

Advantage Low Speed Motor and 4:1 straight Nose Cone

See operating instructions supplied with iM3 low speed handpiece

Fitting R&R Prophy Cups (L7465)

Place the R&R prophy angle over the
chuck housing on the 4:1 SNC mak­ing sure the slot in the R&R lines up
with the small screw in the side of the
chuck housing.

See picture to right.

14

High Speed Handpiece - LED Advantage HS HP L5200s

The High Speed Handpiece is designed to operate at a pressure of 40 psi at the handpiece
and at speeds of up to 400,000 rpm. A very light touch is necessary as handpieces
operates with very low torque and high speed. Pressure on the handpiece of 30gms
(1ounce) or more, will cause the bur to stall.

Note: All handpieces should be lubricated prior to use with iM3 MD-30

Bur Replacement - iPush Tool (iM3 ordering code L7050)

Follow the instruction below to fit and use the tool on the handpiece.

iM3 Dental Systems

1. Place the iPush onto the LED Advantage
handpiece.

2. Depress the lever with your thumb and in­sert the bur all the way until it stops.

3. Remove the iPush before using the Hand­piece.

4. To change the Bur repeat step 2. and re­move the Bur.

To increase the life of the Handpiece,
Oil between each use and use a brand
new Bur between each patient. See
Handpiece manual.

Dental Burs should be discarded between patients. A brand new bur

should be used for each procedure.

15

iM3 Dental System Bur Kits

There are three Bur Kits in the iM3 range, the F.G. Dog (Friction Grip), F.G. Cats, and H.P.
(Handpiece Burs). Each kit contains 10 burs of various sizes and applications. Each bur
has been selected by a specialist Veterinary Dentist. Each iM3 Bur Kit comes complete
with a suggested application guide. Each bur carries individual re-order codes and can be
ordered in packs of five. The blue holder is autoclavable and prevents the burs falling out.

Autoclavable Bur Kits

iM3 Dental Systems

Feline FG Bur kit
(Order code) D7530

Canine FG Bur kit
(Order code) D7510

HP Bur kit
(Order code) D7540

44.5mm Long

The iM3 Rabbit/Rodent Soft tissue kit comes complete with Long diamond bur and soft
tissue protector and diamond disc with safety shield. Complete Kit (optional)
Code: AUS D2245 & US D9245

The soft tissue kit should be used on an iM3 1:1 straight nose cone - Blue

iM3 Dental System Bur Kits

There are three Bur Kits in the iM3 range, the F.G. Dog (Friction Grip), F.G. Cats, and H.P.
(Handpiece Burs). Each kit contains 10 burs of various sizes and applications. Each bur
has been selected by a specialist Veterinary Dentist. Each iM3 Bur Kit comes complete
with a suggested application guide. Each bur carries individual re-order codes and can be
ordered in packs of five. The blue holder is autoclavable and prevents the burs falling out.

Autoclavable Bur Kits

iM3 Dental Systems

Feline FG Bur kit
(Order code) D7530

Canine FG Bur kit
(Order code) D7510

HP Bur kit
(Order code) D7540

44.5mm Long

The iM3 Rabbit/Rodent Soft tissue kit comes complete with Long diamond bur and soft
tissue protector and diamond disc with safety shield. Complete Kit (optional)
Code: AUS D2245 & US D9245

The soft tissue kit should be used on an iM3 1:1 straight nose cone - Blue

16

iM3 Dental System Bur Kits

There are four bur kits in the iM3 range, the FG (Friction Grip), FG Cats, RA (Right Angle) and
HP (Handpiece Burs). Each kit contains 10 burs of various sizes and applications andcomes
complete with a suggested application guide. Each bur has been selected by a specialist vet-
erinary dentist and carries individual re-order codes and can be ordered in packs of six. iM3
also produces a soft tissue kit ideal for rabbits.

iM3 Handpiece Pressure Adjustment

Handpiece Pressure Adjustment

The high and low speed handpieces should be set to a specific pressure. The handpiece pressure
adjustment is located underneath each handpiece holder. It is a silver knurled knob.

Turn the unit on and remove the handpiece to be adjusted. Depress the foot pedal and turn the
knurled knob located under the handpiece holders. Adjust until the desired pressure is displayed on
the handpiece pressure gauge by turning the knob clockwise or anti-clockwise.

PRESSURE IS READ
ON THE HANDPIECE PRESSURE GAUGE

Low Speed
Handpiece 35-40 psi*

High Speed LED
Handpiece 40 psi*

 Please check with the handpiece manufacturer regarding specific operational pressures.

NOTE: Check the pressure on the Compressor Regulator is set at 80psi.

iM3 Dental Systems

High speed
handpiece holder

Low speed
handpiece holder

High speed pressure
adjuster underneath
unit

Low speed pressure
adjuster underneath
unit

17

iM3 Dental Systems

Lubrication of HS & LS Handpieces L5200 & L6200

Refer to separate handpiece manual.

All handpieces should be lubricated regularly. We recommend the use of MD-30

handpiece oil before use and after 30 minutes of running time.

The foot pedal should be depressed for 30 seconds after oiling to ensure

the lubricant will reach the turbines and working portions of the handpiece.

The lubricant is placed in the smaller of the 2 large holes.

“Air entry hole” at the base of the handpiece.

NOTE:

DON’T FORGET TO DEPRESS
THE FOOT CONTROL AFTER
OILING TO ENSURE LUBRICANT
REACHES THE TURBINES.

Maintenance instructions are printed on

the back of the dental machine

18

iM3 Dental Systems

Sterilization

Refer to handpiece operating manual.

HIGH SPEED HANDPIECE

Handpieces should be thoroughly cleaned to remove any foreign particles, eg; blood, saliva
etc. Make sure that the turbine cartridge and head cavity are clean before autoclaving. If
autoclaved with bloody particles in the turbine housing, autoclaving will cause particles to
be scorched and damage to the turbine may result.
The exterior of the handpiece may be cleaned with any good surgical disinfectant. Be sure
to rinse and dry thoroughly. Lubricate handpiece turbine with MD-30 Lubricant.
Refer to handpiece operating manual.

LOW SPEED HANDPIECE

Prepare handpiece and attachments for sterilization by carefully cleaning the exterior
surface. Thoroughly scrub, rinse and clean away any residual solution and particles.
Remove moisture with a towel or use air from the 3 way air water syringe.

1. Prior to sterilization, lubricate the handpiece using MD-30 Lubricant.

HANDPIECES: Apply oil through the handpiece air inlet tube. (see page 17)
ATTACHMENT: Remove attachment from handpiece and oil through both end openings.

Note: After lubricating items, assemble and operate for a few seconds to expel excess
lubricant.

2. Seal items in sterilization tubing bags. Make sure to remove bur from handpiece prior to sealing.

3. Place handpiece or attachments in sterilization trays of dry heat sterilizer or steam autoclave. Do
not exceed temperatures of 275F or 135C. Sterilize according to manufacturers instructions.

4. After sterilization cycle is completed, allow handpieces and attachments to cool down then
lubricate handpiece and attachments thoroughly. Make sure to use a different container after
sterilization cycle, to prevent recontaminating.

Note: Lubricate handpieces using MD-30 Lubricant after cooling down, do not allow hand­piece to sit in sealing bag overnight or for a long period. Immediately operate handpiece as
described in the following step.

5. After lubricating items, insert bur into handpieces and operate for a few seconds to

remove excess lubricant.

Do not autoclave the high speed handpiece with a bur in the chuck.

19

Handpiece Maintenance

All Handpieces have a working life which can be extended by maintaining the
correct operating pressures and speeds as well as adequate lubrication.

The working life of most Handpieces turbines is 12-24 months, however, this will
depend upon the degree of care taken and the amount of use.

Preventative maintenance will ensure a working Handpiece at all times.

iM3 Dental Systems

Handpiece Daily Weekly Monthly Yearly

iM3 Low
Speed
Handpiece

Oil in smaller of

2 big holes.

Depress the
foot pedal for
10 seconds to
ensure the oil
reaches the
Turbine
(page 17)

Oil AM or PM
before or after
use.

2-3 drops

Use iM3 MD-30
Lubricant.

Replace turbine

and ‘o’ rings

and sealing
gasket. If worn

iM3 High
Speed
Handpiece as

per the instruc­tions for the
Low speed
above.
Page 17.

Oil AM or PM
before or after
use.
2-3 drops

Oil with MD-30
Lubricant.

Replace turbine

and ‘o’ rings

and sealing
gasket. If worn

Prophy Head
R&R Oscillat­ing

Dispose of prophy
head between pa­tients to prevent
cross contamina­tion

20

iM3 Dental Systems

Silent Hurricane Compressor

Oil Free

The compressor is perhaps the most crucial part of any dental system as it supplies the
valuable air needed to run handpieces and pressurize the water and cooling system.

The regulator/pressure gauge should be set to read 80 psi. The tank pressure gauge
should read 110 p.s.i./7.5 BAR. See page 27

Operating the Silent Hurricane Oil Free Compressor

1. Connect the unit to the appropriate voltage.

2. Check that the air tank on/off valve is closed. See page 24.

3. Switch unit on at the mains (power outlet).

4. Turn unit on at switch situated on top of the pressure switch. See page 24.

6. Motor should now run and will stop running when 110 p.s.i./7.5 BAR. has been reached.

7. Connect the grey air line from dental unit to the compressor and turn air tank valve to
the ON position. See page 28

Identifying Air Leaks

To ensure the Silent Hurricane Compressor Motor is not subjected to higher than normal
operating temperatures, each iM3 Dental unit should be checked for air leaks at regular
intervals, the easiest way to check for air leaks is to pump the compressor tank up to 110
p.s.i./7.5 BAR. and turn the motor off. Make sure the air line to the dental head is
connected and the tank valve left in the open position with the pressure switch for the water
bottles also turned on.

Once the tank has been pumped to 110 p.s.i./7.5 BAR., check the pressure in the tank 10
minutes later. If the pressure has dropped more than 10% during that time then the unit is
leaking air which should be identified and remedied to ensure the compressor motor does
not overheat due to excessive running caused by the air leak.

Model: Silent Huricane Oil Free compressor
Voltage: 220-240 50Hz
900W
Maximum operating Pressure 110psi (770KPa)

Manufactured By: iM3 Pty Ltd, Sydney Australia.

iM3 Dental Systems

21

iM3 Dental Systems

iM3 Silent Hurricane Oil Free Compressor

Circuit breaker located on the side of Black electrical box.
Push to Reset

Compressor ON/
OFF pressure
switch

Outlet pressure regu-

Air to dental machine
ON/OFF tap is on
when in line with outlet
Pictured in Off/closed
position

Air tank pressure
gauge

Regulator pressure
gauge

Compressor air tank

Non return valve

Air inlet filter

Oil Free Compressor
motor under cover

Tank drain see
P.23

Regulator drain bowl

Maintenance Instructions

22

iM3 Dental Systems

Silent Hurricane Compressor

Adjusting Regulator Air Pressure

With the Dental Unit pressurised and air lines turned ON, the black knob on top of the
regulator is pulled up from the locked to the free position to adjust air pressure (see picture
page 25). Depress the black knob after setting to lock pressure adjustment.

The regulator gauge registers working or air line pressure which may be increased by
turning clockwise and lowered by turning anti clockwise.

The pressure air line gauge will register the working pressure, which should be
80 psi. The large guage to the left indicates the pressure in the white air tank. The pressure
in the tank will read 0psi when empty to 110psi when full.

Warning

Unit starts automatically. Isolate power supply and relieve air
pressure by opening tank ON/OFF valve prior to commencing
non electrical service tasks.

"This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their safety."

Danger

High voltage used on this equipment.
Isolate from mains before removing any covers, which should
only be carried out by a qualified electrician .
Ensure power outlet is adequately rated for this unit.

23

iM3 Dental Systems

Feature Daily Weekly Monthly Yearly

Silent
Hurricane
Compressor

Turn power off.

Drain moisture from main
compressor tank by
opening the valve on the
top of the white tank
marked with a yellow
sticker—Drain.
Catch the fluid from the
white drain tube into a con­tainer. Keep the drain open
until all air is removed from
tank. See image below

Change air inlet

filter on compres­sor motor.

Regulator ­Auto Drain
Filter

Automatic,
when tank
drained of
moisture

Replace regulator

filter.

Regulator ­Air Pressure

Check that
correct air
pressure is
being delivered.

See Adjusting Regulator Air Pressure on Page 22.

Contact iM3 for your yearly compressor service kit.

Silent Hurricane Oil Free Compressor Maintenance

Air ON / OFF (valve pictured
in ON or open position)

Compressor tank drain, located on­top of white air tank—open slowly
Place container under white tube to
collect water.

Compressor air regulator adjustment knob

Air inlet quick discon­nect line, supplying air
to dental machine

24

Handpiece Trouble Shooting

High Speed Handpiece

iM3 Dental Systems

PROBLEM CAUSE SOLUTION

No Water Flow in
Handpiece

1. Compressor not ON.

2. Water Flow Control not ON (P4­E).

3. Water/CLS Bottle Empty.

4. Check for a ‘kink’ in the water line.

5. Check if 3 way syringe has Water.

6. Use of tap water, blocking water
valves.

7. Low regulator pressure.

1. Turn compressor ON and check
that ON/ OFF tap is in the ON
position.

2. Turn water control to ON.

3. Fill water/CLS Bottle(s).

4. Check lines and pressure.

5. If yes, lack of water must be in the
valves or the handpiece. The 3 way
syringe is the quickest way to check
for water.

6. Valves will need replacing.

7. Check regulator is set at 70-80 PSI.

Mineral
Accumulation

1. Use of tap water - mineral or
chemical action blockage will
usually take 3-4 years to occur.

2. Verdigrease (Green Slime) build
up in brass water valves due to
chemical reaction with tap water.

1. Pass a fine wire through the water
intake hole. Pass another fine wire
through the hole in the handpiece
head. Pass the wire as far as

possible each way. ‘Blow out’ the

loosened mineral deposits.

2. Replace valves.

Use of Chlorhexidine 1. Most brands of Chlorhex will de-

posit out of solution and block
valves, etc. CLS is designed to
be used in its diluted strength
without depositing.

NOTE: Do not dilute CLS beyond

its label recommendations or it
could result in deposits.

2. Chlorine in tap water will cause a
flocculation and block filters and
valves

1. Contact your local iM3 Official
Service Center.

2. Contact your local iM3 Official
Service Center. Use only distilled
water

Cartridge Toggle

Toggle switches become floppy

All iM3 dental units use a unique cartridge system for the toggle switches. The toggles are used to
pressurize the water/CLS bottles and select the low or high speed handpiece. When the o-rings be­come worn you simply push the cartridge in and turn a 1/4 turn anti clockwise. The cartridge can then
be removed from the valve casing. To install a new toggle, locate the desired position, push and rotate
a 1/4 turn clockwise. New toggles can be ordered from iM3 and installed by the user. Toggles can be
installed in the 12, 3, 6 and 9 o'clock positions. If the toggle is in the wrong position simply remove and
reposition. View this procedure on the iM3 website http://www.compad.com.au/cms/im3vet/pages/
iM_elite_film/222

25

Handpiece Trouble Shooting

Low Speed Handpiece

PROBLEM CAUSE SOLUTION

Handpiece

won’t run

1. No or low air pressure.

2. Air line improperly sealed.

3. Inferior oil; too much or excess
more commonly too little oil or
water in the turbine.

4. Broken drive head.

Note new handpieces require a

“Run in time” this can be up to 20

hours of use

1. Check the air line to be sure
the air is turned on and the
line is unobstructed.

2. Reconnect air line to
handpiece making sure the
gasket is fully contracted.

3. See lubrication instructions

on page 17.

4. Contact your local iM3
official Service Centre.

If the motor stops spinning
place a fine screw driver down
the nose and rotate shaft.

Low Speed Handpiece - 4:1 Straight Nose Cone

PROBLEM CAUSE SOLUTION

Cant fit R&R pro­phy angle

1. Plastic drive shaft broken off
internally in Chuck housing.

2. Improper lubrication.

Only fit plastic iM3 R&R prophy
angles Code L7465.

1. Contact your local official
iM3 Service Centre.

2. See lubrication instruc­tions, on page 17.

iM3 Inc iM3 Pty Ltd
12414 NE 95th Street 21 Chaplin Drive
Vancouver WA 98682 USA Lane Cove NSW 2066 Australia
Tel [phone] Fax [phone] Tel [phone] Fax [phone]

www.im3vet.com
