ILVE S.p.a.
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
UP_90FVG2
Tav.-1-
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
ILVE S.p.a.
UP_90FVG2
14
14
1
2
3
14
14
3
4
5
6
7
8 9 10
11
4
12
2
13
15
17 18
6
7
16
%{TitoloEsploso}
Tav.-1-
dis. cod. descrizione description
1 A/504/86/86 VETRO INTERNO PORTA 900 TR VETRO INNER DOOR GLASS
2 S/120/06/08 FERMAVETRO PO 80/90 TR VET INOX USA GLASS STOP
3 A/602/02 VITE ZIGR FERMAV/FERMAGR LAT FORNO KNURLED SCREW FOR HOLDING GLASS / SIDE GRILLS FO.
4 A/445/23 PROFILO GUIDA TRIPLO VETRO PORTA PROFILE
5 S/022/28/14 CONTROPORTA FO 600/800 LAT DX NERO RIGHT INSIDE DOOR FOR 60/80 OVEN
6 A/028/45 CERNIERA POR FO 90 3V (FARINGOSI) 3 GLASSES 90CM OVEN DOOR HINGE
7 A/065/00 DISTANZIALE OT DIS 347 MANIGLIA PORTA BRASS SPACER FOR HANDLE
8 G/505/19/08 VETR O PO 900L 3V I=540 INOX 900L DOOR GLASS I=540 / ST ST
9 G/505/10/08 VETR O+PO 80/90 3V I=540 OBLO'INOX OVEN DOOR GLASS I=540 / ST ST
10 G/505/01/ 08 VETR O PO 900T 3V FASCE INOX 900T DOOR GLASS / ST ST
11 A/116/33/08 MANIGLIONE D.25 I=540 L=566 INOX HANDLE DIAM=25 I=540/ST ST
12 A/504/86/85 VETRO INTERM PORTA 900 T R VETRO DOOR GLASS
13 S/022/29/14 CONTROPORTA FO 600/800 LAT SX NERO LEFT INSIDE DOOR FOR 60/80 OVEN
14 A/402/13 MOLLA (C LIP FISSAGGIO) VETRO INT ERM EDIO SPRING
15 UG/779/08 PORTA COMPL 3V UPL90 INOX TRIPLE GLASS UPL90 DOOR / ST ST
16 UG/712/08 PORTA COMPL 3V UPW90 OBLO' INOX TRIPLE GLASS 90 C M DOOR / ST ST
17 UG/778/08 PORTA COMPL 3V UPF90 INOX TRIPLE GLASS 90 C M DOOR / ST ST
18 G/081/08 FRONTALE COMPL CASS P90 PLU S INOX P90 PLUS DRAWER FRONT / ST ST
ILVE S.p.a.
UP_90FVG2
Tav.-2-
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
1
2
5
6
7
8
3
ILVE S.p.a.
4
10
UP_90FVG2
5
8
8
9
13
14
15 *
16
17
18
19
20
27 *
28
23 *
24
25
26
20
29
30
31
32
28
32
33
11
11
Da n° serie: / From serial no. :
12
15 * 09100494
23 * 09100494
27 * 09100494
16
17
18
34
19
35
36
37
28
34
21
22
40
39
38
%{TitoloEsploso}
Tav.-2-
dis. cod. descrizione description
1 KBR001 KIT BRUC TRIPLA CORONA 2 FORI COMPLETE TR R ING BURNER (2 HOLES)
2 KBR002 KIT BRUC PESCERA 2 FORI COMPLETE FISH BURNER (2 HOLES)
3 KBR003 KIT BRUC RAP PIANO/CU C PROF 2 FORI COMPLETE RAPID BURNER (2 HOLES)
4 KBR004 KIT BRUC SEM RAP PIA/CUC PRO 2 FORI COMPLETE SMALL RAPID BURN (2 HOLES)
5 S/232/45 SQUADRETTA F ERM A C UCINA BRACKET
6 S/002/29 ALZATINA CUCINA USA P-PD90 INOX SPLASH BACK
7 S/008/33/14 CAMINETTO FRY TOP PROFESS SMALT FRY TOP CHIMNEY
8 A/092/78/10 GRIGLIA PROFESS 60 F ORO 80 285X280 VETR PROFESSIONAL GRILL HOB/COOK. 60 CM (1 HOLE 80 MM)
9 A/092/80/10 GRIGLIA PROFESS 60 F ORO 120 285X280VETR PROFESSIONAL GR ILL HOB/COOK. 60 CM (1 HOLE 120 MM)
10 A/414/06 PERNO LUNGO INN PIA(INC/COMB)+FRY T LONG COOKTOP PIN
11 A/414/04 PERNO CORTO INN PIA (APP)+FRY TOP SHORT COOKTOP PIN
12 A/419/01 PIASTRA F RY TOP PROF ESSIONAL FRY TOP PLATE
13 A/048/07/10 C OPRISPART TC AUX RAF MAT 3F TRIPLE RING BUR NER SMALL C OVER
14 A/478/17 SPARTIFIAMMA TC AUSILIARIO +INDEX TR RING SMALL FLAME DIVIDER (INDEX)
15 A/048/09/10 C OPRISPART TC GR 1V/DUAL RAF MAT 3F TRIPLE RING FLAME DIVIDER COVER
16 A/048/02/10 C OPRISPART GRANDE (S2) RAF M AT 3F LARGE FLAME DIFFUSER C OVER
17 A/478/12/90 SPARTIFIAMMA GRANDE NEW LARGE FLAME DIFFUSER
18 A/488/11/91 T AZZ INA P C GRANDE (2 FORI) HOB COOKER LARGE CUP+IGN+S.V. HOLES
19 A/490/17 TERMOCOPPIA FLEX 70C M M8X1 THERMOCOUPLE 70
20 A/018/06 CANDELA ACC. (CAVO=MM800 H=MM28) IGNITION PLUG MM 800
21 S/238/85/08 TELAIO PIANO CUC U SA P-PD90BVF INOX FRAME FOR P90 PD90 USA / ST.ST.
22 A/049/14/08 C ORR IMANO TECH-UL D25 I625 L820 INO HAND RAIL
23 A/478/19 SPARTIFIAMMA TC GRANDE 1 V/ DUAL DUAL TRIPLE RING BIG FLAME DIVIDER
24 A/048/00/10 C OPRISPART TC GHISA GRANDE VET R TRIPLE RING FLAME DIVIDER COVER
25 A/478/07 SPARTIFIAMMA TC GRANDE NEW TRIPLE RING BIG FLAME DIVIDER
26 A/488/23 TAZZ INA T C (2 FORI) TRIPLER RING CUP+IGN+S.V. HOLES
27 A/490/19 TERMOCOPPIA TC 45CM M 8X1 BIFIL THERMOCOUPLE 45
28 A/490/03 TERMOCOPPIA FLEX 45C M M8X1 THERMOCOUPLE 45
29 A/048/04/10 C OPRISPART PESCERA RAF M AT 3F FISH BURNER FLAME DIFFUSER COVER
30 A/478/08 SPARTIFIAMMA PESCERA FISH BURNER BRASS FLAME DIFFUSER
31 A/488/13 TAZZ INA PESCERA (2 FORI) FISH BURNER CUP+IGN+S.V. HOLES
32 A/602/42 VITE PESCER A 8X26XM6 OTTONE RETAINING SCREW FOR FISH BURNER
33 A/018/04 CANDELA ACC. (CAVO=MM600 H=MM28) IGNITION PLUG MM 600
34 A/018/02 CANDELA ACC. (CAVO=MM400 H=MM28) IGNITION PLUG MM 400
35 A/048/06/10 C OPRISPART PICCOLO (S1) RAF MAT 3F SMALL F LAME DIFFUSER C OVER
36 A/478/12/92 SPARTIFIAMMA PICCOLO NEW SMALL FLAME DIFFUSER
37 A/488/11/93 T AZZ INA P C PICCOLA (2 F ORI) HOB COOKER SMALL C UP+IGN+S.V. HOLES
38 S/216/13/08 RACCOGLIG P60-P665 1F +TC INOX DRIP CATCHER 1 RING + DOUBLE RING P60-P665-PD90B
39 S/216/16/14 RACCOGLIG FRY TOP SMALT NERO DRIP CATCHER FOR PROFESS FRY TOP
40 S/216/12/08 RACCOGLIG P60-P665 2F INOX DRIP CATCHER 2 RINGS P60 P665 PD90B
ILVE S.p.a.
UP_90FVG2
Tav.-3-
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
ILVE S.p.a.
UP_90FVG2
LPG APPLIANCES
DRAW VALVE BY PASS SCREW
29 A/466/57 A/600/77 SR
26 A/466/43 A/600/78 R-SR
28 A/466/44 A/600/79 P
27 A/466/45 A/600/80 TC
39 A/492/10/86 A/600/81 VG
9
43
40
10
11
12
1
13
41 42
44
45
1
2
3
3
5
3
3
2
4
8
3
7
6
15
39
14
A
30
42
28
29
26
31
16 17
21
22
23
24
25
18
32
19 20
34
35
26
27
36
31
33
A
33
33
38
36
36
36
37
36
NOMEX INSULATING CARD FOR IGNITION TRANSFORMER 6 BURNERS
CONTROL BOARD ANCHORING STRIP FOR 90CM. PROFESSIONAL COOKER

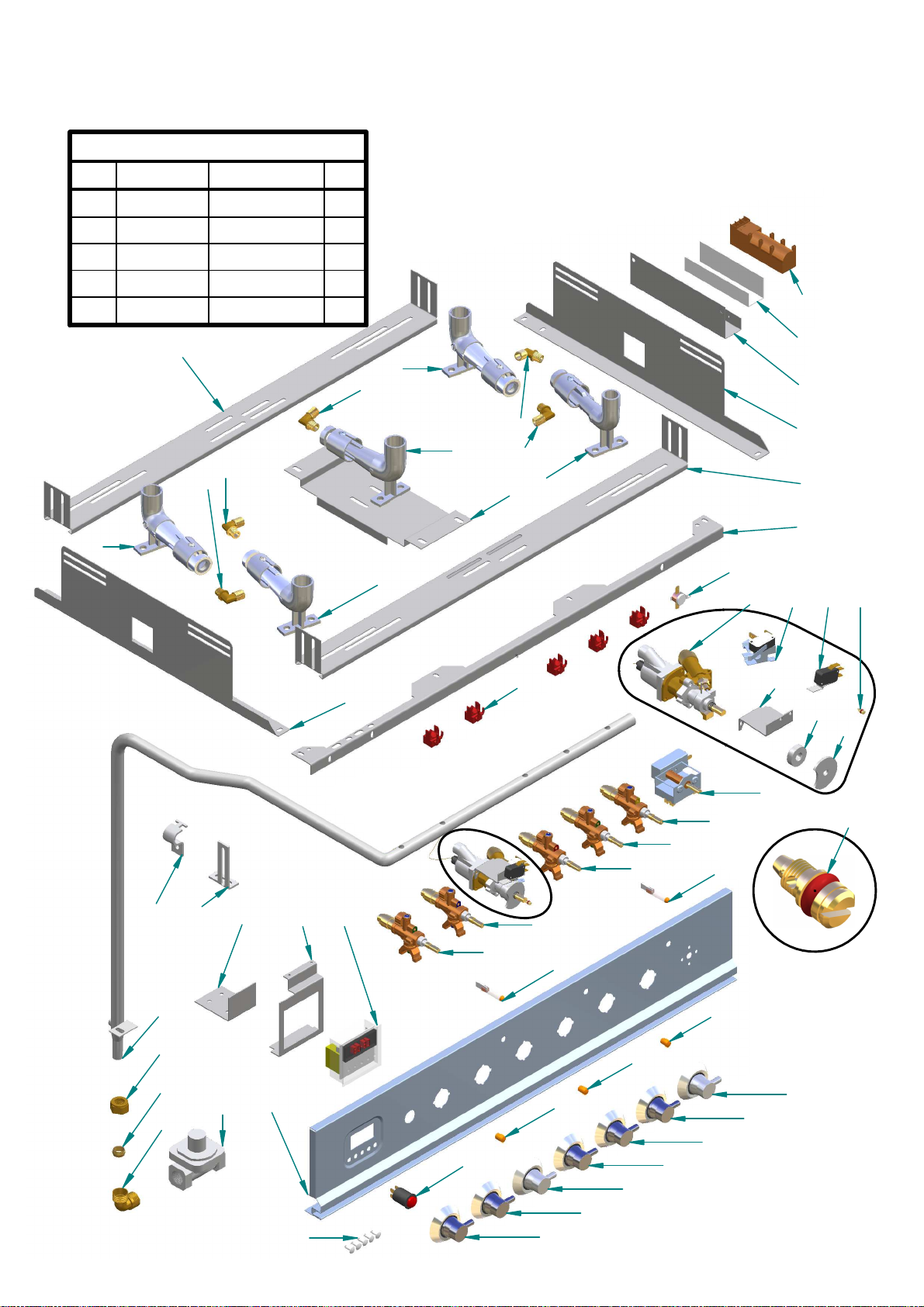

%{TitoloEsploso}
Tav.-3-
dis. cod. descrizione descript ion
1 S/149/06 LISTELLO PORTABR P90-P90B-P906 BURNERS HOLDER FOR P90-P90B-P90_6
2 A/014/12/90 BRUCIATORE PIPA GRANDE (H=94) BIG BURNER (H=94)
3 A/434/04 PORTAINIETT A GOMITO GRILL/FUOC HI INJECTOR HOLDER GRILL/COOKTOP
4 A/014/12/92 BRUCIATORE PIPA GRANDE (H=80) TC PROFESSIONAL BIG BURNER (H=80MM)
5 A/014/12/93 BRUCIATORE PIPA GRANDE (H=86) PESCERA PROFESSIONAL BIG BURNER (H=86MM)
6 S/149/42 LISTELLO PORTABR FRY TOP STRIP
7 A/014/12/91 BRUCIATORE PIPA PICCOLO (H=94) SMALL BURNER (H=94)
8 S/128/91 LATERALE PORTABR CU C PROFESS DX RIGHT SIDE BURNER HOLDER
9 A/494/27 TRASFORMATORE ACC EL 6 FUOCHI UL 6 WAYS IGN TRANSFORMER
10 A/024/12 CARTONCINO ISOL N OMEX TR ASF 6FUOCHI
11 S/236/77 SUPPORTO TRASF ACC CU C PROFESSIONAL EL. IGN. TRANSFORMER HOLDER FOR PROFESSIONAL COOKER
12 S/128/90 LATERALE PORTABR CU C PROFESS SX LEFT SIDE BURNER HOLDER
13 S/148/03 LISTELLO FERMACRU CUC P90
14 A/401/14 MICROINT ACC RU B SABAF CUC IGNITION SWITCH
15 A/492/37 TERMOREG SIC N A 50°C UL SAFETY THERMOSTAT UL
16 S/004/02 BRIGLIA RAMPA FORNO ELZN OVEN R AMP CLAMP
17 S/232/63 SQUADRETTA FERMAR CU/FO 30/10 Z N CHMU FF CH SMALL STOP R AMP CLAMP FOR OVENS AND COOKERS
18 S/232/33 SQUADRETTA BLOCC PR/CON CUC MUF RIB BRACKET
19 S/236/63 SUPPORTO PROGR EL145 (5 TASTI) CUC PROGRAMMER HOLDER (EL145) FOR COOKER
20 A/446/42 PROGR EL145 5T BIPO UL 50/60HZ 230V ELETTRON IC PROGRAMMER EL145
21 A/454/41 RAMPA CUCINA 5 F ORI + 1 (P90/PD90) PRESA PRESSIONE RAMP FOR P90/PD90 (5+1 HOLES) WITH VALVE
22 A/062/20 DADO 1/2 D.14 R ACC ORDO PORTAGOMMA A/ 415/11 935002022 NU T HOSETAIL S.436/4
23 A/004/04 BICONO 14MM R ACC ORDO PORTAGOMMA S135 944000016 HOSE NUT
24 A/452/04 RACC C URVO PORTAG (SIRAL) 1/2" PO-04 D.14 OT 9360000070 HOSETAIL COUPLING (SIRAL)
25 A/437/00 STABILIZZATORE PR ESSIONE CSA PRESSURE GAS REGULATOR
26 A/466/43 RUB ALLOG MICRO CUC VALV (40)R-SR VALVE + S.V.
27 A/466/45 RUB ALLOG MICRO CUC VALV (64)TC VALVE + S.V.
28 A/466/44 RUB ALLOG MICRO CUC VALV (52)P VALVE + S.V.
29 A/466/57 RUB ALLOG MICRO CUC VALV (32) SR VALVE + S.V.
30 A/492/01 TERM/C OMM FORNO GAS-GRILL ELETTR L.IV48221708 THERM/SWITCH EL GRILL ON GAS OVEN
31 A/106/26 LAMPADA SPIA D.10 FAST 230 UL PILOT LIGHT
32 S/086/77/08 CRU SCOTTO CUC UP90 (5T) INOX CONTROL BOARD UP90 UL / ST ST
33 A/080/11 GEMMA SPIA D.10 AR ANC IO INCASTRO ORANGE WARNING LIGHT FOR SWITCH
34 A/491/03 TASTO PROGR EL145/EL2000 METAL T1/ 2T=10 G=14,5 PROGRAMMER BUTTON / ST ST COLOUR
35 A/102/09 INTERRUT TORE (PULS) MOTOV RADIAL UL MOTOR FAN SWITCH
36 G/340/11/ 08 MAN OPOLA M AJ-T GAS CU C INOX GAS KNOB FOR M AJ-T COOKER / ST ST
37 G/371/11/ 08 MAN OPOLA M AJ-T T ERM GAS °F 1 VIA IN GAS THERM KNOB MAJ COOKER / ST ST
38 G/362/11/ 08 MAN OPOLA M AJ-T T ERM/COMM INOX THERM/C OMM KNOB MAJ COOKER / ST ST
39 A/492/10/86 T ERM GAS+MICRO 1 VIA CUC 90 (BP 62) 1 WAY GAS THERMOSTAT
40 A/401/15 MICROINT ACC TERM GAS USA IGNITION SWITCH
41 A/401/10 MICROINT SIC GRILL EL FORNO GAS 15A M ICRO SWITCH
42 A/600/81 VITE BY PASS 0,72 (FOR NO 90) 0,72 BY PASS SCR EW FOR GAS VALVE
43 S/232/48 SQUADRETTA PORTA INTERBLOCCO + ACCENSIONE MICROSWITCH HOLDER
44 A/065/02 DISTANZ IALE PER CAMMA DIS 296 CAM SPACER (DWG. 296)
45 A/017/10 CAMM A M ICRO VENT TANG FORNO GAS DIS 251 CAM FOR GAS OVEN COOLING FAN MICROS
ILVE S.p.a.
UP_90FVG2
Tav.-4-
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
ILVE S.p.a.
UP_90FVG2
2
1 7
8
3
4 5
11
10
13
8
12
6
14
15
9
15
14
19
20
21
22
23
24
25
14
16
17
18
%{TitoloEsploso}
Tav.-4-
dis. cod. descrizione description
1 A/498/12 TUBO FLEX PROTEZIONE CAVI (3/4) U L CONDUIT
2 S/212/64 PROLUN GA COPRISCH P-PD90 GAS USA UP-UPD90 UPPER BACK EXTENSION
3 A/452/06 RACCORDO TUBO FLEX 90° 3/4" UL/ CSA CONNECT OR
4 A/404/05 MORSETTIERA FV273/7 7 POLI+TERRA UL TERMINAL BOARD FV273/7
5 A/406/07 MOTOV TANG L=180 120V CLASSE H UL COOLING FAN
6 S/128/41/08 LATERALE CUC PROFESS DX INOX SIDE PANEL DX / ST ST
7 S/210/12/08 PROFILO CUC P90 DX INOX PROFILE FOR P90 DX / ST.ST.
8 S/212/00 PROLUN GA LAT POST CUC APP/COM B 90 SIDE BACK EXTENSION FOR 90CM. COOKER
9 S/128/42/08 LATERALE CUC PROFESS SX INOX SIDE PANEL SX / ST ST
10 S/036/83 COPRISCH CUC USA APP 80/90 G-E-M BACK COVER UPRIGHT COOKER 80/90 UL
11 S/172/46 PARACALORE CUC 80/90 GAS MUF RIB HEAT SHIELD FOR 80/90 GAS
12 S/148/45 LISTELLO FERMACUC P-PD90 POST INF STRIP
13 S/024/50 CONV CU C 90 COMP/ PROF M UFF RIB AIR CONVEYER FOR 90CM COOKER UL
14 A/422/13 PIEDINO REGISTRABILE H 100-160 ADJUSTABLE FOOT H 100-160
15 S/234/12 STAFFA PER PIEDINI PD90/P120/P150 DX-SX FEET STIRRUP FOR P90-P120-P150
16 S/210/14/08 PROFILO CUC P90 SX INOX PROFILE FOR P90 SX / ST.ST.
17 S/149/72 LISTELLO PORTAG CASS QUADRA SX LEFT STRIP
18 A/096/11 GUIDA INF/SUP SX CASS PC96 L=500 DROWER GUIDE
19 S/012/20/10 CASSETT O C UC P80/90 MAT P80/90 DRAWER
20 S/149/97 LISTELLO FERMACUC P80/90 PL ANT INF STR IP
21 A/096/10 GUIDA INF/SUP DX C ASS PC96 L=500 DROWER GUIDE
22 S/149/71 LISTELLO PORTAG CASS QUADRA DX RIGHT STRIP
23 S/150/04/08 MANIGLIONE PO SCA/CASS P90 INOX HANDLE FOR FOOD WARMER (P90) / ST.ST.
24 S/196/13/08 PORTA SCALDAV/CASS T 90 INOX FOOD WARMER DOOR FOR T90 / ST ST
25 S/022/20 CONT ROPORTA SCALDAV/CASS P90 MAT FOOD WARMER INSIDE DOOR FOR P90
ILVE S.p.a.
UP_90FVG2
Tav.-5-
UPL90FVG2 - UPW90FVG2 - UPF90FVG2 10/03/2010
1
2
3
240 V
4
120 V
*
ILVE S.p.a.
5 6
87
9
UP_90FVG2
10
11
120 V
12
*
13
240 V
14
15
16
17
18
19
10
10
14
24
25
26
29
29
25
30
30
10
20
27
28
A
20
23
22
21
38
42
39
44
40
4343
45
46
46
45
9
31
32
33
34
35
36
37 40 41
35
DETTAGLIO A
Da n° serie: / From serial no. :
4 * 09440585
12 * 09440585
RACCORDO OT T 3 VIE OT 3/8 + DADI PREDISP INNESTO TUBO E BICONO 10MM

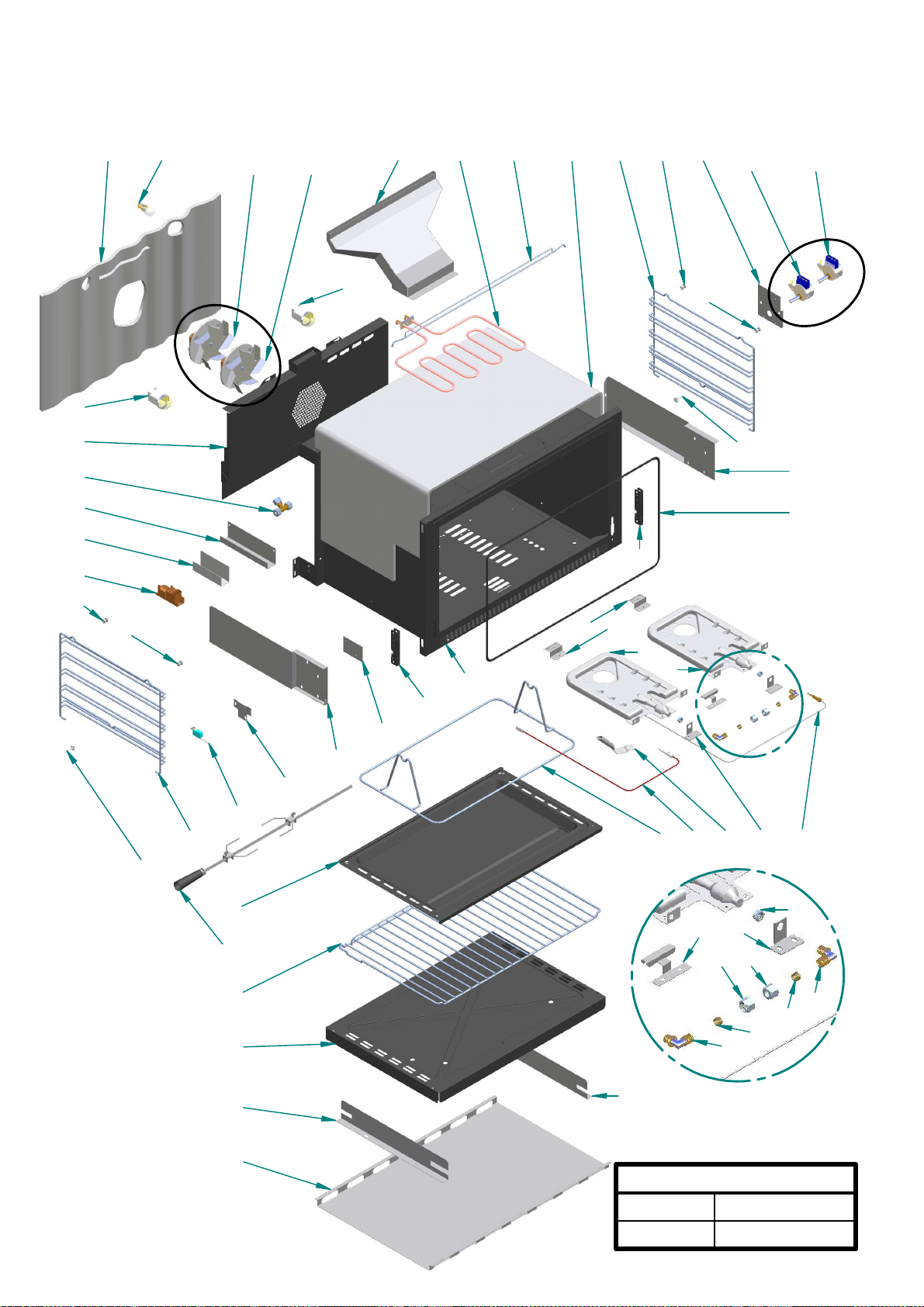

%{TitoloEsploso}
Tav.-5-
dis. cod. descrizione description
1 A/108/26 LANA DI VETRO SCHIENA FORNO 90 MULTAGU 80/20 FIBERGLASS OVEN BACK 90 M ULT IFUN CTION
2 A/106/00 LAMPADA FORNO 110V OVEN LIGHT 110V
3 G/406/00 MOTOVENTILATORE COMPL 240V 60HZ U L COMPLETE FAN 230V
4 G/406/23 MOTOVENTILATORE COMPL 120V 60HZ U L COMPLETE FAN 120V
5 S/008/35 CAMINETTO CU CINA USA PROF ESS 90 PROF ESSIONAL C OOKER CHIMNEY
6 A/458/54 RESIST 2200W 230V GRILL 900G-GA N IP VDE UL GRILL RESISTANCE 2200W 230V (900G-GA)
7 A/438/02 SUPPORTO RESIST SUP 900 RESISTANCE SUPPORT 900
8 A/108/12 LANA DI VETRO MANTELLO 900 1 ALL+AGU 60/17 FIBERGLASS MANTLE 900
9 A/092/43 GRIGLIA LAT FORN O MUF F CHIUSA 5 COR OVEN SIDE GRILL
10 A/482/12 SUPPORTO GRIGLIA LAT. (FORNO) GRILL SIDE SUPPORT (OVEN)
11 S/236/98 SUPPORTO M OTORIDUTTORE SPIT GERED M OTOR HOLDER SUPPORT
12 A/406/03/02 MOTORID GIRARR (UL) 120V 60HZ SPIT GEARED MOTOR 110V
13 A/406/03/01 MOTORID GIRARR (CE/UL) 230 50/60 SPIT GEARED MOTOR
14 A/436/02 PORTAL+LAMPADA 110V OVEN LAMP HOLDER
15 S/038/09 COPRIVENTOLA 800/900 USA VG2 NERO FAN COVER 90
16 A/452/10
17 S/236/77 SUPPORTO TRASF ACC CU C PROFESSIONAL EL. IGN. TRANSFORMER HOLDER FOR PROFESSIONAL COOKER
18 A/024/06 CARTONCINO ISOL NOMEX TR ASF 4FUOCHI NOMEX INSULATING CARD IGNITION TRANSFORMER
19 A/494/29 TRASFORMATORE ACC EL 2 FUOCHI UL 2 WAYS IGN TRANSFORMER
20 A/602/03 VITE ZIGR FERMAGR LAT MUFF CHIUSA KNURLED SCREW SIDE GRILLS STOPPING
21 A/401/04 MICROINT SICUREZZA PORTA F ORNO SAFETY MICROSWITCH GAS OVEN DOOR
22 S/232/27 SQUADRETTA PORTA MICRO SIC PORTA FO CLAM P
23 S/108/03 FERM A LANA DI VETRO SX 2002 APP MIC FIBER GLASS STOP
24 S/190/06 PIASTRINA FERMA SQUADRETTA SUPPORTOMICRO SICUREZZA FORNI GA
25 A/468/04 RULLINO+PORTARULL CERN TN (FARING) RULLER
26 S/162/36/14 MUFFOLA 80/90 VG2 U SA SM NERO MUFFLE
27 S/108/08 FERM A LANA DI VETRO DX 2002 FIBER GLASS STOP
28 A/094/70 GUARN MUFF MATR 09154/A 900 CHIUSA 900 OVEN GASKET
29 A/482/28 SUPP BRUC FORNO VG H=17,5 2359481 OVEN BURNER HOLDER
30 A/014/13 BRUCIATORE FORNO VG/600 BOMBAT O OVEN BURNER
31 S/146/04 LECCARDA 80/90 NERO ENAMELLED DRIPPING PAN 80/90
32 A/480/02 SPIEDO FOR NO 8/900 TRASV L=565MM TRANSVERSE SPIT 800/900
33 A/092/39 GRIGLIA FORNO 90X60 RINFORZATA USA OVEN GRID
34 S/230/16 SOTTOFORN O 80/90 COMPL VG2 USA N ERO OVEN BOTTOM 80/90 E/ M
35 S/091/17 DEFLETTORE FONDO MUFF 80/90 VG2 USA DEFLECT OR
36 S/228/08 SOTTOFONDO 900 VG USA GAS OVEN BOTT OM 900 UL
37 A/482/10 SUPP GIRAR DIS 167 F ORN O/C UCINA 90 SPIT SUPPOR T 90X60
38 A/018/22 CANDELA BRUC FORNO CAVO=MM1750 GAS OVEN PLUG m/m 1400
39 A/498/10 ACCENDINO LAT BRU C FORNO BURNER IGNITION PIPE
40 S/236/14 SUPPORTO PORTAINIETTORE FORNI VG INJ ECTOR HOLDER SUPPORT
41 A/490/16 TERMOCOPPIA 180 CM F O VENT GAS T HERMOC OUPLE
42 S/239/02 TUBO D'ONDA DOPPIO BRUC VG2 USA BURNERS CONNECTOR
43 A/062/28 DADO BICONO 10 M M NUT 10 m m
44 A/062/32 DADO DIS 247 FISSAGGIO BRUC FORNO NUT DWG. 247 FIX OVEN BURNER
45 A/434/02 PORTAINIETT A GOMITO BRU C FORNO INJECTOR HOLDER OVEN BURNER
46 A/004/00 BICONO FORNI 10 MM OVEN NUT 10 mm
ILVE S.p.a.
GAS TUBES CONNECTION
UP_90FVG2
Loading...
