ILVE S.p.a.
UPW120FDMP 04/01/2017
UPW120FDMP
Tav.-1-
ILVE S.p.a.
UPW120FDMP 04/01/2017
1
5
13
13
3
8
12
11
7
10
6
10
10
7
4
9
10
3
8
9
2
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 UG738$$.pwd UG/738/$$ PORTA COMPL 3V UPW120 OBLO’ TRIPLE GLASS 90 CM DOOR 1
2 G50525$$.pwd G/505/25/$$ VETRO+PO 80/90 3V I=718 OBLO’ OVEN DOOR GLASS I=718 1
3 347.par A/065/00 DISTANZIALE OT H=5,5 MANIGLIA POR BRASS SPACER FOR HANDLE 2
4 A11636$$.par A/116/36/08 MANIGLIONE D.25 I=718 L=766 INOX HANDLE D.25 I=718 L=766 INOX 1
5 L3072.par S/022/28/14 CONTROPORTA FO 600/800 LAT DX NERO RIGHT INSIDE DOOR FOR 600/800OVEN 1
6 L3071.par S/022/29/14 CONTROPORTA FO 600/800 LAT SX NERO LEFT INSIDE DOOR FOR 600/800OVEN 1
7 694.par A/445/23 PROFILO GUIDA TRIPLO VETRO PORTA TRIPLE GLASS DOOR GUIDE PROFILE 2
8 L2915.psm S/120/06/08 FERMAVETRO PO 80/90 TR VET INOX USA GLASS STOP 2
9 A02845.pwd A/028/45 CERNIERA POR FO 90 3V (FARINGOSI) 90 OVEN DOOR HINGES 2
10 762.par A/402/13 MOLLA (CLIP FISSAGGIO) VETRO INTERM SPRING 4
11 693.par A/504/86/85 VETRO INTERM PORTA 900 TR VETRO DOOR GLASS 1
12 692.par A/504/86/86 VETRO INTERNO PORTA 900 TR VETRO INNER DOOR GLASS 1
13 077.par A/602/02 VITE ZIGR FERMAV/FERMAGR LAT FORNO KNURLED SCREW FOR HOLDING GLASS 2
ILVE S.p.a.
Tav.-2UPW120FDMP 04/01/2017
1
4
13
13
12
10
11
8
9
5
7
8
9
6
3
9
9
7
12
2
6
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 UG739$$.pwd UG/739/$$ PORTA COMPL 3V 30 UPDW90 OBLO’ TRIPLE GLASS 90 CM DOOR 1
2 G50518$$.pwd G/505/18/$$ VETRO+PO PD90 3V 30 OBLO’ OVEN DOOR GLASS 1
3 A11634$$.par A/116/34/08 MANIGLIONE D.25 I=260 L=310 INOX HANDLE D.25 I=718 L=766 INOX 1
4 L3073.par S/022/30/14 CONTROPORTA FO 30/40 LAT DX NERO RIGHT INSIDE DOOR FOR 600/800OVEN 1
5 L3074.par S/022/31/14 CONTROPORTA FO 30/40 LAT SX NERO LEFT INSIDE DOOR FOR 600/800OVEN 1
6 A02846.pwd A/028/46 CERNIERA POR FO SCV+30L/FASCE 3V 90 OVEN DOOR HINGES 2
7 347.par A/065/00 DISTANZIALE OT H=5,5 MANIGLIA POR BRASS SPACER FOR HANDLE 2
8 694.par A/445/23 PROFILO GUIDA TRIPLO VETRO PORTA TRIPLE GLASS DOOR GUIDE PROFILE 2
9 762.par A/402/13 MOLLA (CLIP FISSAGGIO) VETRO INTERM SPRING 4
10 749.par A/504/85/82 VETRO INTERNO PORTA 30 TR VETRO INNER DOOR GLASS 1
11 750.par A/504/85/81 VETRO INTERM PORTA 30 TR VETRO DOOR GLASS 1
12 L2916.psm S/120/07/08 FERMAVETRO PO 30 TR VET INOX USA GLASS STOP 2
13 077.par A/602/02 VITE ZIGR FERMAV/FERMAGR LAT FORNO KNURLED SCREW FOR HOLDING GLASS 2
ILVE S.p.a.
Tav.-3-
UPW120FDMP 04/01/2017
3
2
1
4
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L1927.psm S/022/22 CONTROPORTA SCALDAV/CASS P120 MAT WARMER FOOD INSIDE DOOR 1
2 L1648.psm S/196/15/$$ PORTA SCALDAV/CASS T120 FOOD WARMER INSIDE DOOR 1
3 L1943.psm S/150/06/$$ MANIGLIONE PO SCA/CASS P120 WARMER FOOD DOOR HANDLE 1
4 G084$$.pwd G/084/$$ FRONTALE COMPL CASS P120 PLUS P120 PLUS DRAWER FRONT 1

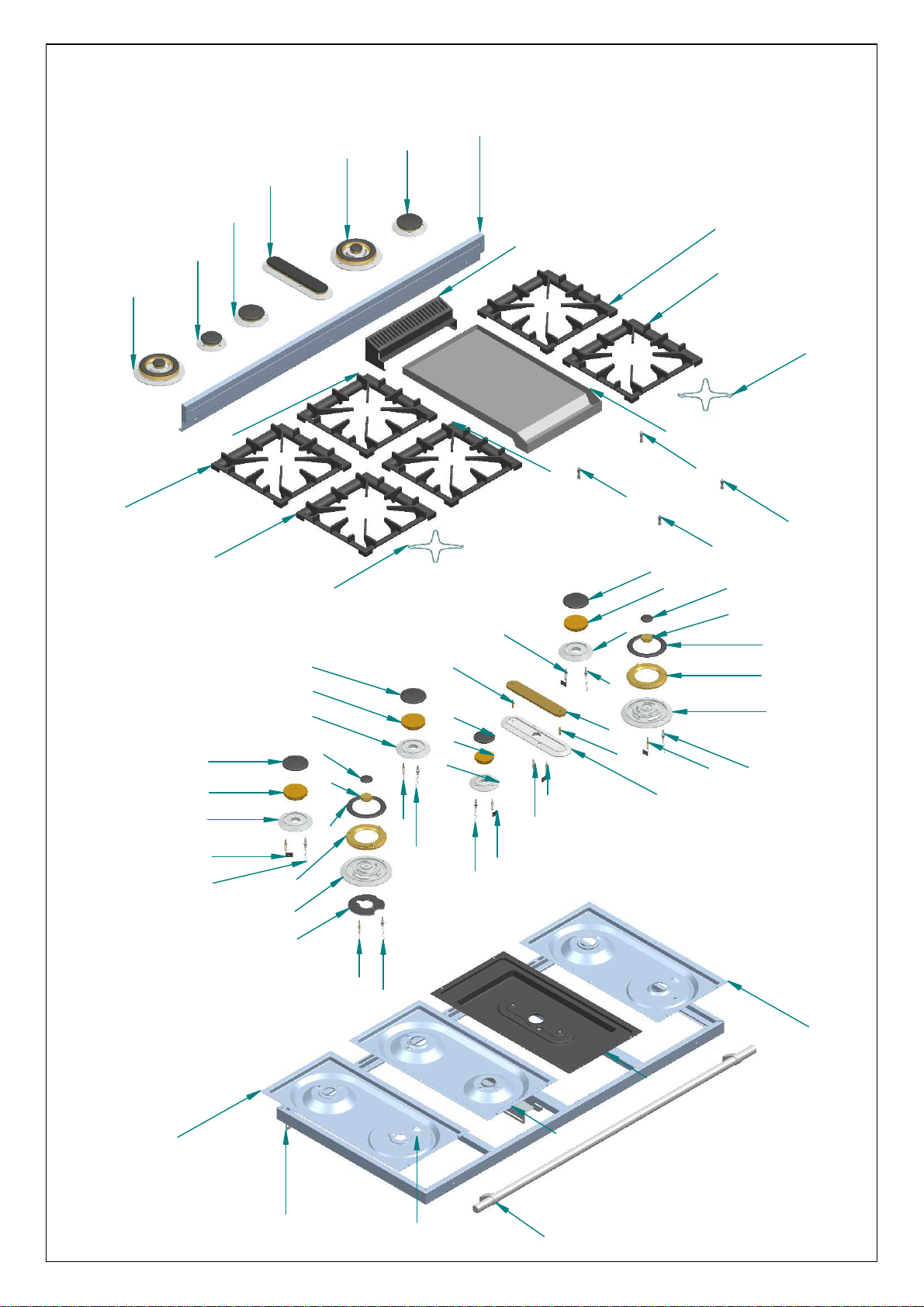

Tav.-4-
ILVE S.p.a.
36
10
8
2
39
38
24
3
17
26
38
21
20
23
22
19
11
40
33
3
39
7
6
14
9
13
12
13
11
5
11
35
36
34
UPW120FDMP 04/01/2017
25
41
15
16
29
3
3
17
26
7
6
5
7
6
5
14
11
21
20
23
22
15
14
11
27
28
30
31
11
18
37
4
1
32
42
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L3670USA.par 1
2 L3183.pwd S/002/27 ALZATINA CUCINA USA P120 SPLAS BACK FOR P12 1
3 366.par A/092/78/10 GRIGLIA PROFESS 60 FORO 80 285X280 PROFESSIONAL GRILL HOB/COOK 4
4 L3212.par S/216/12/08 RACCOGLIG P60-P665 2F INOX DRIP CATCHER 1
5 A4881191.par A/488/11/91 TAZZINA P C GRANDE (2 FORI) HOB COOKER LARGE 3
6 326.par A/478/12/90 SPARTIFIAMMA GRANDE LARGE FLAME DIFFUSER 3
7 721.par A/048/02/10 COPRISPART GRANDE (S2) RAF MAT 3F LARGE FLAME DIFFUSER COVER 3
8 A4881193.par A/488/11/93 TAZZINA P C PICCOLA (2 FORI) HOB COOKER SMALL 1
9 325.par A/478/12/92 SPARTIFIAMMA PICCOLO SMALL FLAME DIFFUSER 1
10 722.par A/048/06/10 COPRISPART PICCOLO (S1) RAF MAT 3F SMALL FLAME DIFFUSER COVER 1
11 A01804.par A/018/04 CANDELA ACC.(CAVO=MM600 H=MM28) IGNITION PLUG M600 6
12 A01802.par A/018/02 CANDELA ACC.(CAVO=MM400 H=MM28) IGNITION PLUG MM400 1
13 A49003.par A/490/03 TERMOCOPPIA BIFIL 45CM M8X1 THERMOCOUPLE 45 2
14 A49017.par A/490/17 TERMOCOPPIA BIFIL 70CM M8X1 THERMOCOUPLE 70 3
15 KBR003.pwd KBR003 KIT BRUC RAP PIANO/CUC PROF 2 FORI COMPLETE RAP BURNER (2 HOLES) 2
16 KBR004.pwd KBR004 KIT BRUC SEM RAP PIA/CUC PRO 2 FORI COMPLETE SMALL RAP BURNER (2 HOLES) 1
17 365.par A/092/80/10 GRIGLIA PROFESS 60 FORO 120 285X280 PROFESSIONAL GRILL HOB/COOK. 60 CM 2
18 L3211.par S/216/13/08 RACCOGLIG P60-P665 1F+TC INOX DRIP CATCHER 1 RING + DOUBLE RING P 1
19 A48823.pwd A/488/23 TAZZINA TC (2 FORI) TRIPLER RING CUP+IGN+S.V. HOLES 1
20 923.par A/478/17 SPARTIFIAMMA TC AUSILIARIO +INDEX TR RING SMALL FLAME DIVIDER (INDEX) 2
21 723.par A/048/07/10 COPRISPART TC AUX RAF MAT 3F FLAME DIFFUSER COVER 2
22 1018.par A/478/21 SPARTIFIAMMA TC GRANDE 1 V/DUAL +P NEW TRIPLE RING BIG FLAME DIVIDER 2
23 1019.par A/048/09/10 COPRISPART TC GR 1V/DUAL RAF MAT 3F FLAME DIFFUSER COVER 2
24 A49019.par A/490/19 TERMOCOPPIA BIFIL TC 45CM M8X1 THERMOCOUPLE 45 1
25 KBR014.pwd KBR014 KIT BRUC TRIPLA COR SPART C/PIOLI COMPLETE TR RING BURNER 1
26 A09252.par A/092/52 RIDUZIONE FUOCHI FILO CROMATO ADAPTATION CHROME WIRE HOLES 2
27 L3283.par S/216/30/08 RACCOGLIG P60D-HP665 1F+TC INOX DRIP CATCHER 1 RING + DOUBLE RING P 1
28 A48824.pwd A/488/24 TAZZINA TC DUAL TRIPLER RING CUP 1
29 KBR013.pwd KBR013 KIT BRUC TRIPLA CORONA DUAL COMPLETE TR RING BURNER (2 HOLES) 1
30 L3894.par S/091/28 DISCO PROTEZIONE TC CUC DUAL/XLP90 PROTECTION DISK 1
31 A49018.par A/490/18 TERMOCOPPIA BIFIL DUAL 95CM M8X1 THERMOCOUPLE 95 1
32 331.par A/602/15 VITE AL COPRIFORO TERMOCOPPIA SCREW 1
33 629.par A/419/01 PIASTRA FRY TOP PROFESSIONAL PROFESSIONAL FRY TOP PLATE 1
34 A48813.par A/488/13 TAZZINA PESCERA (2 FORI) FISH BURNER CUP+IGN+S.V. HOLES 1
35 327.par A/478/08 SPARTIFIAMMA PESCERA FISH BURNER BRASS FLAME DIFFUSER 1
36 304.par A/602/42 VITE PESCERA 8X26XM6 OTTONE FISH BURNER SCREW 2
37 L1074.psm S/216/16/14 RACCOGLIG FRY TOP SMALT NERO DRIP CATCHER FOR PROFESS FRY TOP 1
38 A41404.par A/414/04 PERNO CORTO INN PIA (APP)+FRY TOP SHORT COOKTOP PIN 2
39 A41406.par A/414/06 PERNO LUNGO INN PIA(INC/COMB)+FRY T LONG COOKTOP PIN 2
40 L3128.psm S/008/33/14 CAMINETTO FRY TOP PROFESS SMALT FRY TOP CHIMNEY 1
41 KBR002.pwd KBR002 KIT BRUC PESCERA 2 FORI COMPLETE FISH BURNER (2 HOLES) 1
42 930_1120.asm A/049/17/$$ CORRIMANO TECH-UL D25 I975 L1120 FRONT HANDRAIL 1
ILVE S.p.a.

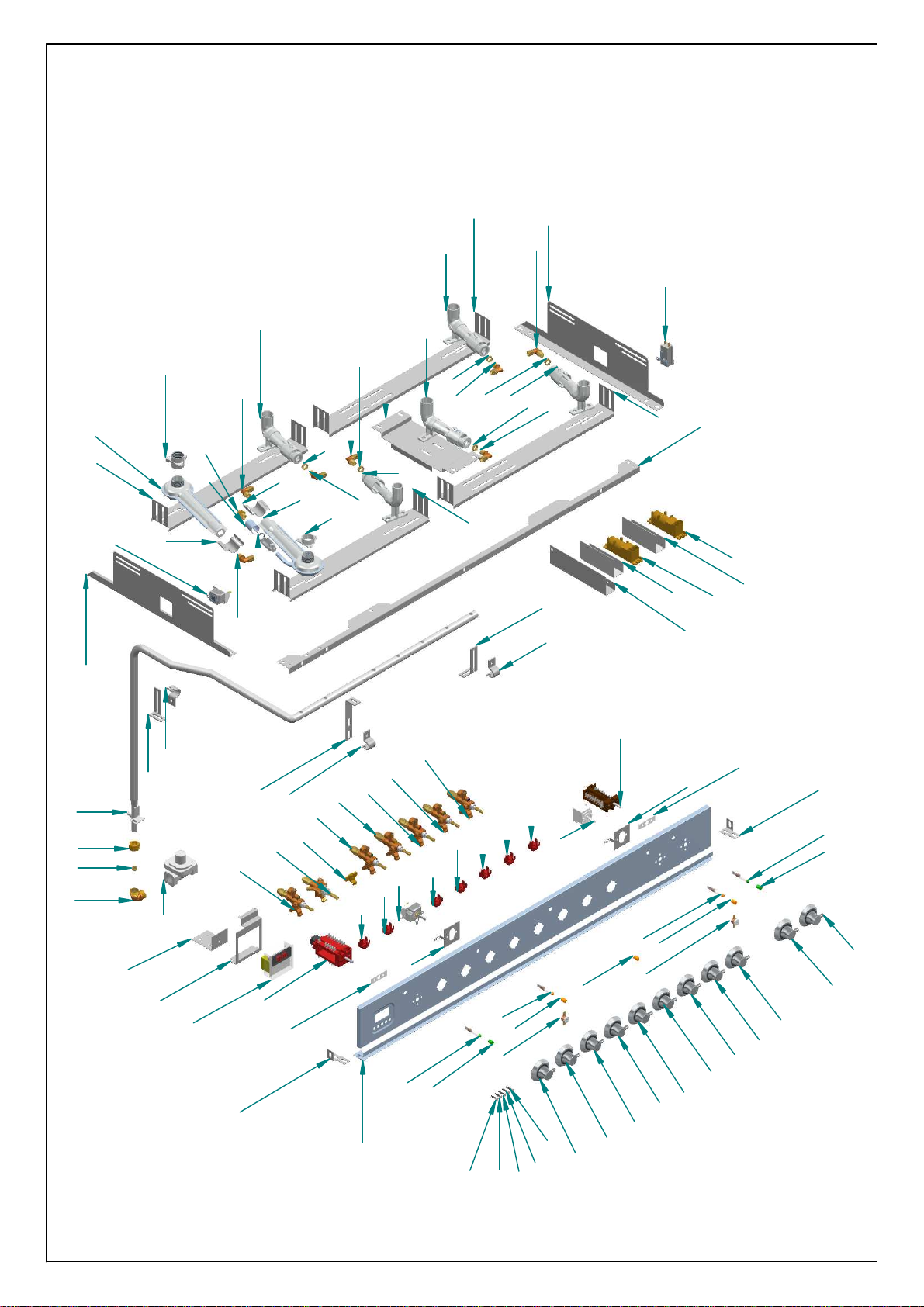

Tav.-5-
UPW120FDMP 04/01/2017
62
42
15
61
64
60
59
63
55
50
58
61
56
54
57
55
54
55
44
51
53
54
50
55
43
54
42
52
55
54
45
32
55
33
14
43
48
47
2
49
48
49
22
28
27
29
46
20
32
19
33
36
18
23
12
24
23
41
6
39
25
35
33
30
13
4
26
23
34
31
17
31
31
6
5
11
9
1
31
31
21
10
31
31
16
10
8
8
8
7
21
38
21
21
21
7
40
39
5
3
11
9
37
41
39
39
39
39
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L3168.pwd S/086/73/$$ CRUSCOTTO CUC UP120F (5T) CONTROL BOARD UP120F (5T) 1
2 L0111.psm S/148/13 LISTELLO FERMA CRUSCOTTO P120 CONTROL BOARD STRIP P120 1
3 L2667DX.par S/232/61 SQUADRETTA F CRU DX CUC 60/80/PD CH RIGHT BRACKET 60/80/PD CH 1
4 L2667.psm S/232/62 SQUADRETTA F CRU SX CUC 60/80/PD CH LEFT BRACKET 60/80/PD CH 1
5 L1048.par S/231/02 SPESSORE COMM E TERM THICKNESS E TERM 2
6 L1759.par S/237/06 SUPPORTO TERMOREG 50°C CUC GAS+FOR SAFETY THERMOSTAT HOLDER 2
7 A49237_.par A/492/37 TERMOREG SIC NA 50°C UL SAFETY THERMOSTAT 2
8 A08011.par A/080/11 GEMMA SPIA D.10 ARANCIO INCASTRO ORANGE WARNING LIGHT FOR SWITCH 3
9 A08012.par A/080/12 GEMMA SPIA D.10 VERDE INCASTRO GREEN WARNING LIGHT FOR SWITCH 2
10 A10626.par A/106/26 LAMPADA SPIA D.10 FAST 230 UL PILOT LIGHT 2
11 A10627.par A/106/27 LAMPADA SPIA D.10 FLUOR 230 UL FLUORESCENT PILOT LIGHT 2
12 A03404.par A/034/04 COMMUT FORNO ELETTRICO ELECTRIC OVEN SWITCH 1
13 A03411.par A/034/11 COMMUT FORNO MULTIF+MICRO LUCI PUSH MULTIF OVEN SWITCH+MICRO SWITCH 1
14 A49234.par A/492/34 TERMOSTATO SIC FO EL STAT UL ELECTRIC OVEN THERMOSTAT 1
15 A49235.par A/492/35 TERMOSTATO SIC FO EL MULT UL ELECTRIC OVEN THERMOSTAT 1
16 A49204.par A/492/04 TERMOSTATO FORNO ELETTRICO ELECTRIC OVEN THERMOSTAT 1
17 A49206.par A/492/06 TERMOSTATO FORNO MULTIFUNZIONE MULTIF OVEN THERMOSTAT 1
18 A44642.par A/446/42 PROGR EL145 5T BIPO UL 50/60HZ 230V ELETTRONIC PROGRAMMER EL145 1
19 L0366.psm S/236/63 SUPPORTO PROGR EL145 (5 TASTI) CUC PROGRAMMER HOLDER (EL145) FOR COOKER 1
20 L2650.psm S/232/33 SQUADRETTA BLOCC PR/CON CUC MUF RIB STOP BRACKET 1
21 A491$$$$.par A/491/$$ TASTO PROGR EL145/EL2000 PROGRAMMER BUTTON EL145/EL2000 5
22 938.par A/454/88 RAMPA CUCINA P1207+1 PRESA PRESS RAMP 1
23 A46643.par A/466/43 RUB ALLOG MICRO CUC VALV (40)R-SR VALVE + S.V 3
24 A46645.par A/466/45 RUB ALLOG MICRO CUC VALV (64)TC VALVE + S.V 1
25 A46644.par A/466/44 RUB ALLOG MICRO CUC VALV (52)P VALVE + S.V 1
26 A46657.par A/466/57 RUB ALLOG MICRO CUC VALV (32) SR VALVE + S.V 1
27 A00400.par A/004/00 BICONO FORNI 10 MM HOSE NUT 1
28 A06220.par A/062/20 DADO 1/2 D.14 RACCORDO PORTAGOMMA NUT HOSETAIL S.436/4 1
29 A45204.par A/452/04 RACC CURVO PORTAG (SIRAL) 1/2” PO- HOSETAIL COUPLING (SIRAL) 1
30 A46661.par A/466/61 RUB ALLOG MICRO CUC VALV DUAL TC VALVE + S.V. 1
31 A40114.par A/401/14 MICROINT ACC RUB SABAF CUC IGNITION SWITCH 7
32 L2597.psm S/232/63 SQUADRETTA FERMAR CU/FO 30/10 ZN CH BRACKET CU/FO 30/10 2
Num Nome le Cod Descrizione Inglese Qtà
33 L1465.psm S/004/02 BRIGLIA RAMPA FORNO ELZN COOKER RAMP BRIDLE 3
34 A42016.par A/420/16 PIASTRINA OTTONE COPRI FORO RAMPA BRASS PLATE COVER RAMP HOLE 1
35 L1464.psm S/232/05 SQUADRETTA FERMAR CUCINE (LUNG)ELZN BRACKET 1
36 A43700.par A/437/00 STABILIZZATORE PRESSIONE CSA PRESSURE GAS REGULATOR 1
37 G30110$$.pwd G/301/10/$$ MANOPOLA MAJ COMM FORNO “E” ELECTR OVEN SWITCH MAJ KNOB “E” 1
38 G30310$$.pwd G/303/10/$$ MANOPOLA MAJ COMM FORNO “M” ELECTR OVEN SWITCH MAJ KNOB “M” 1
40 G34010$$.pwd G/340/10/$$ MANOPOLA MAJ GAS CUCINA GAS KNOB FOR MAJ COOKER 6
41 G35310$$.pwd G/353/10/$$ MANOPOLA MAJ GAS CUC DUAL DUAL GAS KNOB FOR MAJ COOKER 1
39 G36710$$.pwd G/367/10/$$ MANOPOLA MAJ TERM “E/M” °F ELECTRIC THERM KNOB MAJ 2
42 L0473.psm S/149/07 LISTELLO PORTABRUCIATORI P60 BURNERS HOLDER FOR P60 2
43 L0835.psm S/149/48 LISTELLO PORTABR CUC 120-150FRY TOP BURNERS HOLDER 120 FRY TOP 2
44 L0799.psm S/149/42 LISTELLO PORTABR FRY TOP BURNERS HOLDER FRY TOP 1
45 L0432.psm S/128/91 LATERALE PORTABR CUC PROFESS DX RIGHT SIDE BURNER HOLDER 1
46 L0432SX.par S/128/90 LATERALE PORTABR CUC PROFESS SX LEFT SIDE BURNER HOLDER 1
47 L0063.psm S/236/77 SUPPORTO TRASF ACC CUC PROFESSIONAL EL. IGN. TRANSFORMER HOLDER FOR PRO 1
48 A02406.par A/024/06 CARTONCINO ISOL NOMEX TRASF 4FUOCHI NOMEX INSULATING CARD FOR IGNITION 2
49 A49412.par A/494/12 TRASFORMATORE ACC EL 4 FUOCHI (BF) ELECTRIC IGNITION TRANSFORMER 2
50 A0141290.pwd A/014/12/90 BRUCIATORE PIPA GRANDE (H=94) BIG BURNER 94 2
51 A0141291.pwd A/014/12/91 BRUCIATORE PIPA PICCOLO (H=94) SMALL BURNER 94 1
52 A0141292.pwd A/014/12/92 BRUCIATORE PIPA GRANDE (H=80) TC PR BIG BURNER 80 TC PR 1
53 A0141293.pwd A/014/12/93 BRUCIATORE PIPA GRANDE (H=86) PESCE FISH BIG BURNER 86 1
54 816.par A/062/22 DADO FERMA GOMITO CUC M12X1 NUT HOSETAIL 5
55 A43404.par A/434/04 PORTAINIETT A GOMITO GRILL/FUOCHI INJECTOR HOLDER GRILL/COOKTOP 6
56 A01422.par A/014/22 BRUCIATORE SOGLIOLA TC DUAL COMPL DUAL TC BURNER 1
57 706.par A/082/30 GHIERA AL 28X12 (GRANDE) AL RING 28X12 (LARGE) 1
58 927.par A/014/23 BRUCIATORE (VENTURI) AUX DUAL AUX DUAL BURNER (VENTURI) 1
59 928.par A/066/10 FARFALLA REG BRUCIAT AUX DUAL REGULATION BURNER VALVE 1
60 926.par A/434/06 PORTAINIETT BRUC AUX DUAL AUX DUAL INJECTOR HOLDER 1
61 L1462.psm S/096/00 FARFALLA REG ARIA BRUC SOGLIOLA REGULATION BURNER VALVE 2
62 700.par A/014/21 BRUCIATORE SOGLIOLA GRANDE ALLUMINA LARGE BURNER ALL 1
63 A43404.par A/434/04 PORTAINIETT A GOMITO GRILL/FUOCHI INJECTOR HOLDER GRILL/COOKTOP 1
64 895.par A/082/33 GHIERA AL 28X29 R PIANO XL PROFESS AL RING 28X29 1
Tav.-6-
ILVE S.p.a.
UPW120FDMP 04/01/2017
8
12
10
30
9
13
11
20
4
5
17
14
3
20
21
20
23
29
25
18
31
6
7
28
28
27
32
22
24
26
16
28
28
27
15
19
32
2
1
2

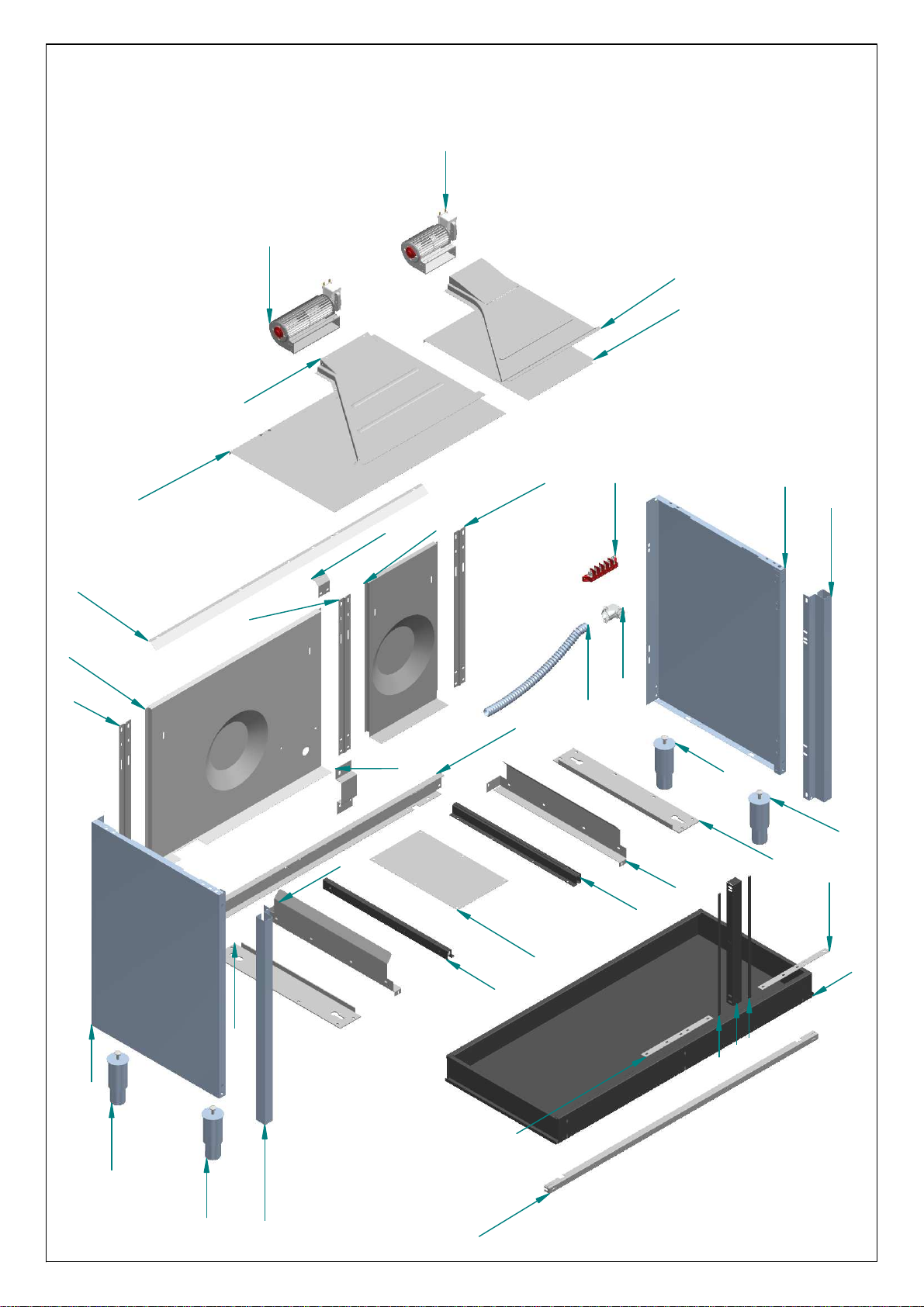

ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L2834.psm S/151/25 LISTELLO DIV FO P120-MD100 MU RI SM OVEN STRIP 1
2 710.par A/094/13 GUARNIZIONE COPRI FUGA DOPPIO FORNO SEAL 2
3 L3190.psm S/036/00/30 COPRISCH CUC APP 80/90 MULT USA BACK COVER 1
4 L3187.psm S/036/84 COPRISCH CUC USA PD90/P120 30CM BACK COVER 1
5 A40423.par A/404/23
6 A45206.pwd A/452/06 RACCORDO TUBO FLEX 90° 3/4” UL/CSA CONNECTOR 1
7 A49812.par A/498/12 TUBO FLEX PROTEZIONE CAVI (3/4) UL CONDUIT 1
8 A40607.pwd A/406/07 MOTOV TANG L=180 120V CLASSE H UL COOLING FAN 1
9 A40615.pwd A/406/15 MOTOV TANG L=120 120V CLASSE H UL COOLING FAN 1
10 L2818.psm S/172/47 PARACALORE CUC 80/90 MULT MUF RIB HEAT SHIELD FOR 80/90 ELECTRIC 1
11 L2828.psm S/172/42 PARACALORE CUC 30CM P120 MUF RIB 30 CM HEAT SHIELD FOR P120 1
12 L0002PR.par S/024/50 CONV CUC 90 COMP/PROF MUFF RIB AIR CONVEYER 1
13 L0001PR.par S/024/55 CONVOGLIATORE ARIA CUCINA 60 MUFFOLA CH. AIR CONVEYER 1
14 L0264.psm S/024/55 PROFILO CUC P120 DX RIGHT PROFILE FOR P120 1
15 L0264SX.par S/210/65/$$ PROFILO CUC P120 SX LEFT PROFILE FOR P120 1
16 L0019.psm S/128/42/$$ LATERALE CUC PROFESS SX LEFT SIDE PANEL 1
17 L0019DX.par S/128/41/$$ LATERALE CUC PROFESS DX RIGHT SIDE PANEL 1
18 L0131.psm S/148/25 LISTELLO FERMACUC P-PD120 POST INF STRIP 1
19 L1929.psm S/149/94 LISTELLO FERMACUC P120 PL ANT INF STRIP 1
20 L0298.psm S/212/07 PROLUNGA LAT POST P120-P76 SIDE BACK EXTENTION FOR P120-P76 3
21 L1600.psm S/212/27 PROLUNGA COPRISCHIENA P-PD120B BACK EXTENTION FOR P120 1
22 L1169DX.par S/149/71 LISTELLO PORTAG CASS QUADRA DX RIGHT STRIP 1
23 L1169.psm S/149/72 LISTELLO PORTAG CASS QUADRA SX LEFT STRIP 1
24 A09610.pwd A/096/10 GUIDA INF/SUP DX CASS PC96 L=500 RIGHT DROWER GUIDE 1
25 A09611.pwd A/096/11 GUIDA INF/SUP SX CASS PC96 L=500 LEFT DROWER GUIDE 1
26 L1953.pwd S/012/22/10 GUIDA INF/SUP SX CASS PC96 L=500 LEFT DROWER GUIDE 1
27 L0136.psm S/234/12 STAFFA PER PIEDINI PD90/P120/P150 D FEET STIRRUP FOR PD90-P120-P150 D 2
28 606.pwd A/422/13 PIEDINO REGISTRABILE H 100-160 ADJUSTABLE FOOT H100-160 4
29 L0409.Psm S/225/01 SOSTEGNO POST INF CENTR P120 BACKING P120 1
30 L1367.psm S/234/13 STAFFA PROL COPRISC P120 BRACKET 1
31 L3178.psm S/029/00 COPRI LANA DI VET CENTR CUC 120/150 GLASS WOOL COVER 120/150 1
32 L0128.par S/148/97 LISTELLO ANCOR INF MUFFOLE PD90 STRIP 2
MORSETTIERA 5POLI+TERRA UL
FV273/6-FV122/B
TERMINAL BOARD 1
ILVE S.p.a.
Tav.-7UPW120FDMP 04/01/2017
11
12
23
11
3
8
5
9
15
16
17
1
8
26
25
2
18
22
14
13
26
8
8
5
9
28
19
7
6
6
10
24
21
20
4
27
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L2679.pwd S/162/17/14 MUFFOLA 80/90 MULTIF CH NERO MULTIFUNCTION MUFFLE 1
2 418.psm A/108/12 LANA DI VETRO MANTELLO 900 FIBERGLASS MANTLE 900 1
3 168.par A/108/26 LANA DI VETRO SCHIENA FORNO 90 MULT FIBERGLASS OVEN BACK 90 MULTIFUNCTI 1
4 760.par A/108/04 LANA DI VETRO FONDO 800/900/948 BOTTOM 800/900/948 RESISTANCE 1
5 848.par A/092/43 GRIGLIA LAT FORNO MUFF CHIUSA 5 COR OVEN SIDE GRILL 2
6 348.par A/092/39 GRIGLIA FORNO 90X60 RINFORZATA USA OVEN GRILL 80/90X60 2
7 167.par A/482/10 SUPP GIRAR DIS 167 FORNO/CUCINA 90 SPIT SUPPORT 1
8 A48212.par A/482/12 SUPPORTO GRIGLIA LAT. (FORNO) GRILL SIDE SUPPORT (OVEN) 4
9 851.par A/602/03 VITE ZIGR FERMAGR LAT MUFF CHIUSA KNURLED SCREW SIDE GRILLS STOPPING 2
10 L1263.psm S/146/04 LECCARDA 80/90 NERO ENAMELLED DRIPPING PAN 80/90 BOTTOM 1
11 A43602.par A/436/02 PORTAL+LAMPADA 110V LAMP HOLDER + LAMP 2
12 A10600.par A/106/00 LAMPADA FORNO 110V OVEN LAMP 1
13 A09470.par A/094/70 GUARN MUFF MATR 09154/A 900 CHIUSA 900 OVEN GASKET 1
14 A4060302.par A/406/03/02 MOTORID GIRARR (UL) 120V 60HZ SPIT GEARED MOTOR 60 HZ 1
15 G40623.pwd G/406/23 MOTOVENTILATORE COMPL 120V 60HZ UL COMPLETE FAN 1
16 914.pwd A/602/05 VITE FISS MOTORE RADIALE RADIAL MOTOR FIXING SCREW 1
17 A09420.par A/094/20 GUARN MOTOV RAD CARTONE TERMORES GASKET 1
18 L0338.psm S/236/98 SUPPORTO MOTORIDUTTORE GEARMOTOR SUPPORT 1
19 L4579.pwd S/038/01 COPRIVENTOLA 800/900 SMALTATO GLAZED FAN COVER 800/900 1
20 L4029.pwd S/206/11 PORTARES INF 80/90 MUFF CH HOLDER 1
21 A45872.par A/458/72 RESIST 1500W 230V SUOLA 900 RESISTANCE W1500 V230 FIBERGLASS 1
22 A45834.par A/458/34 RESIST 2400W 230V CIRCOLARE CIRCULAR RESISTANCE W2400 V230 HEAT 1
23 A45838.par A/458/38 RESIST 3100W 230V CIE+GRILL 900 TOP/GRILL RESISTANCE W900/2200 V230 1
24 L2065.psm S/118/27 FERMARES INF FO 70/80/90 MUFF CH ELEMENT STOP 1
25 091.par A/438/02 SUPPORTO RESIST SUP 900 RESISTANCE SUPPORT 900 1
26 A46804.par A/468/04 RULLINO+PORTARULL CERN TN (FARING) RULLER 2
27 L2068B.psm S/228/03 SOTTOFONDO FORNO 80/90 MUFF CH ELECTRIC OVEN BOTTOM 1
28 A48002.pwd A/480/02 SPIEDO FORNO 8/900 TRASV L=565MM TRANSVERSE SPIT 800/900 1
ILVE S.p.a.
Tav.-8UPW120FDMP 04/01/2017
16
2
13
23
10
1
14
15
2
2
18
5
22
9
20
18
2
5
4
7
3
8
12
4
6
11
17
21
19
ILVE S.p.a.
UPW120FDMP 04/01/2017
Num Nome le Cod Descrizione Inglese Qtà
1 L2603.pwd S/162/31/14 MUFFOLA 30 ELETTR STAT CH NERO SMALL OVEN MUFFLE 1
2 A48212.par A/482/12 SUPPORTO GRIGLIA LAT. (FORNO) GRILL SIDE SUPPORT (OVEN) 4
3 742.par A/482/31 SUPP GIRAR MINIFORNO (5 CORSIE) SPIT SUPPORT FOR D900/PD90 SMALL OV 1
4 851.par A/602/03 VITE ZIGR FERMAGR LAT MUFF CHIUSA KNURLED SCREW SIDE GRILLS STOPPING 2
5 848.par A/092/43 GRIGLIA LAT FORNO MUFF CHIUSA 5 COR OVEN SIDE GRILL 2
6 L1262.psm S/146/16 LECCARDA MINIFORNO D900 E PD90 NERO DRIPPING PAN FOR SMALL OVEN D900/PD 1
7 A48000.pwd A/480/00 SPIEDO FORNO 30/40/EX 60 L=415mm OVEN SPIT 600 1
8 306.par A/092/33 GRIGLIA FORNO 30 SMALL OVEN GRILL (D900/PD9640) 1
9 308.par A/438/04 SUPPORTO RESIST SUP MINIF D900/PD90 RESISTANCE SUPPORT FOR SMALL OVEN D 1
10 A45878.par A/458/78 RESIST 2300W 230V CIEL+GR MINIF GRILL + TOP RESISTANCE 2300W 230V F 1
11 A45876.par A/458/76 RESIST 800W 230V SUOLA MINIFORN BOTTOM RESISTANCE 800W 230V FOR D90 1
12 L2585.psm S/118/30 FERMARES INF FO 30 MUFF CH HEAT ELEMENT STOP 1
13 A43602.par A/436/02 PORTAL+LAMPADA 110V LAMP HOLDER + LAMP 1
14 L0338.psm S/236/98 SUPPORTO MOTORIDUTTORE GEARMOTOR SUPPORT 1
15 A4060302.par A/406/03/02 MOTORID GIRARR (UL) 120V 60HZ SPIT GEARED MOTOR 120V 60HZ 1
16 A10600.par A/106/00 LAMPADA FORNO 110V LAMP 1
17 L4025.pwd S/206/21 PORTARES INF FO 30 MUFF CH HOLDER 1
18 A46804.par A/468/04 RULLINO+PORTARULL CERN TN (FARING) RULLER 2
19 L2589B.psm S/228/06 SOTTOFONDO MUFFOLA DA 30 CHIUSA ELECTRIC OVEN BOTTOM 1
20 A09472.par A/094/72 GUARN MUFF MATR 09154/A 30 CHIUSA 900 OVEN GASKET 1
21 441.par A/108/05 LANA DI VETRO FONDO MINIFORNO BOTTOM RESISTANCE 1
22 442.psm A/108/07 LANA DI VETRO MANTELLO MINIFORNO FIBERGLASS MANTLE 1
23 443.psm A/108/15 LANA DI VETRO SCHIENA MINIFORNO FIBERGLASS OVEN BACK 1
Loading...
