ILVE S.p.a.
UPDL100FMP UPDW100FMP 10/02/2010
UPD_100FMP
Tav.-1-
UPDL100FMP UPDW100FMP 10/02/2010
ILVE S.p.a.
UPD_100FMP
3
1
4
4
14
2
6
4
3
5
4
13
5
8
9
7
6
9
8
10
12
11
21
4
3
3
15
4
6
4
4
16
6
15
22
17
17
18
19
9
20
9
23
24
60-PDW 60-PDL 40-PDW 40-PDL
25
26
%{TitoloEsploso}
Tav.-1-
dis. cod. descrizione description
1 A/504/84/85 VETRO INTERNO PORTA 600 TR VETRO INNER 60CM DOOR GLASS
2 A/504/84/95 VETRO INTERM DBE PORTA 600 TR VETRO MIDDLE 60CM DOOR GLASS
3 A/602/02 VITE ZIGR FERMAV/FERMAGR LAT FORNO KNURLED SCREW FOR HOLDING GLASS / SIDE GRILLS FO.
4 A/402/13 MOLLA (CLIP FISSAGGIO) VETRO INT ERM EDIO SPRING
5 S/120/10/08 FERMAVETRO PO 60 TR VET INOX USA GLASS STOP
6 A/445/23 PROFILO GUIDA TRIPLO VET RO PORT A PROFILE
7 S/022/30/14 CONTROPORTA FO 30/40 LAT DX NERO RIGHT INSIDE DOOR FOR 30/40 OVEN
8 A/028/41 CERNIERA POR FO 90 2V+60 3V (FARINGOSI) 2 GL 90CM/3 GL 60CM OVEN DOOR HINGE
9 A/065/00 DISTANZIALE OT DIS 347 MANIGLIA PORTA BRASS SPACER FOR HANDLE
10 G/505/15/ 08 VETR O+PO D900/PD90 3V 60 OBLO' INOX 60 CM OVEN DOOR FOR QD100W ST ST
11 G/505/21/ 08 VETR O PO D900L/PD90L 3V 60 INOX DOOR GLASS D900L/PD90L / ST ST
12 A/116/28/08 MANIGLIONE D.25 I=480 L=530 INOX ST.ST. HANDLE
13 S/022/29/14 CONTROPORTA FO 600/800 LAT SX N ERO LEFT INSIDE DOOR FOR 60/80 OVEN
14 A/504/84/87 VETRO INTERNO PORTA 40 TR VETRO INNER DOOR GLASS
15 S/120/11/08 FERMAVETRO PO 40 TR VET INOX USA GLASS STOP
16 S/022/30/14 CONTROPORTA FO 30/40 LAT DX NERO RIGHT INSIDE DOOR FOR 30/40 OVEN
17 A/028/47 CERNIERA POR F O 40/30N/W/MAJ 3V 40 CM OVEN DOOR HINGE
18 G/505/16/ 08 VETR O+PO PD100 3V 40 OBLO' INOX 40CM QD100W OVEN DOOR GLASS / ST ST
19 G/505/22/ 08 VETR O PO PD100L 3V 40 INOX 40CM PD100L OVEN DOOR GLASS/ST ST
20 A/116/29/08 MANIGLIONE D.25 I=360 L=410 INOX HANDLE D.25 L.410 ST ST
21 A/504/84/86 VETRO INTERM PORTA 40 TR VETRO MIDDLE DOOR GLASS
22 S/022/31/14 CONTROPORTA FO 30/40 LAT SX NERO LEFT INSIDE DOOR FOR 30/40 OVEN
23 UG/719/08 PORTA COMPL 3V 60 PDW90 USA INOX TRIPLE GLASS 60 C M DOOR / ST ST
24 UG/773/08 PORTA COMPL 3V 60 PDL90 USA INOX TRIPLE GL PDL90 UL 60CM DOOR/ST ST
25 UG/720/08 PORTA COMPL 3V 40 PDW100 USA INOX TRIPLE GLASS 40 C M DOOR QD100W /ST ST
26 UG/770/08 PORTA COMPL 3V 40 PDL100 USA INOX TRIPLE GLASS 40 CM DOOR PDL100 /ST ST
ILVE S.p.a.
UPD_100FMP
Tav.-2-
UPDL100FMP UPDW100FMP 10/02/2010
5
1
2
ILVE S.p.a.
6
UPD_100FMP
4
12
7
7
8
14
13
3
4
7
9
11
10
10
18
19
20 *
21
27
22 *
13
32
14
33
15
34
41
15
16
17
25 *
35
23
24
17
30
38
35
28
29
29
39
36
35
16
36
37
40
Da n° serie: / From serial no. :
20 * 09100494
22 * 09100494
25 * 09100494
%{TitoloEsploso}
Tav.-2-
dis. cod. descrizione description
1 KBR001 KIT BRU C TR IPLA CORONA 2 FORI COMPLETE TR RING BURNER (2 HOLES)
2 KBR002 KIT BRU C PESCERA 2 FORI COMPLETE FISH BURNER (2 HOLES)
3 S/002/30 ALZATINA CUCINA USA PD100-MD100 INO SPLASH BACK
4 S/232/45 SQUADRETTA FERMA CU CINA BRACKET
5 KBR003 KIT BRU C RAP PIANO/CUC PROF 2 FORI COMPLETE RAPID BURNER (2 HOLES)
6 KBR004 KIT BRU C SEM RAP PIA/CUC PRO 2 F ORI COMPLETE SMALL RAPID BURN (2 HOLES)
7 A/092/73/10 GRIGLIA MAJ FORO M M80 (330X280) VET M AJESTIC GRILL 80MM HOLE
8 A/092/72/10 GRIGLIA MAJ FORO M M120 (330X280)VET MAJESTIC GRILL 120MM HOLE
9 A/414/06 PERNO LUNGO INN PIA(INC/COMB)+FRY T LONG COOKTOP PIN
10 A/414/04 PERNO CORTO INN PIA (APP)+FRY TOP SHORT C OOKTOP PIN
11 A/419/01 PIASTRA F RY TOP PROFESSIONAL FRY TOP PLATE
12 S/008/33/14 CAMINETTO FRY TOP PROFESS SMALT FRY TOP CHIMNEY
13 A/048/02/10 COPRISPART GRANDE (S2) RAF MAT 3F LARGE FLAME DIFFUSER COVER
14 A/478/12/90 SPARTIFIAMMA GRANDE NEW LARGE FLAME DIFFUSER
15 A/488/11/91 TAZZ INA P C GRANDE (2 FORI) HOB COOKER LARGE CUP+IGN+S.V. HOLES
16 A/490/17 TERMOCOPPIA FLEX 70CM M8X1 THERMOCOUPLE 70
17 A/018/06 CANDELA ACC. (CAVO=MM800 H=MM28) IGNITION PLUG MM 800
18 A/048/07/10 COPRISPART TC AUX RAF MAT 3F TRIPLE RING BURNER SMALL COVER
19 A/478/17 SPARTIFIAMMA TC AUSILIARIO +INDEX TR RING SMALL FLAME DIVIDER (INDEX)
20 A/048/09/10 COPRISPART TC GR 1V/DUAL RAF MAT 3F TRIPLE RING FLAME DIVIDER COVER
21 A/048/00/10 COPRISPART TC GHISA GRANDE VETR TRIPLE RING FLAME DIVIDER COVER
22 A/478/19 SPARTIFIAMMA TC GRANDE 1 V/DUAL DUAL TRIPLE RING BIG FLAME DIVIDER
23 A/478/07 SPARTIFIAMMA TC GRANDE NEW TRIPLE RING BIG FLAME DIVIDER
24 A/488/23 TAZZ INA T C (2 FORI) TRIPLER RING CUP+IGN+S.V. HOLES
25 A/490/19 TERMOCOPPIA TC 45CM M8X1 BIFIL THERMOCOUPLE 45
27 A/478/08 SPARTIFIAMMA PESCERA FISH BURNER BRASS FLAME DIFFUSER
28 A/488/13 TAZZ INA PESCERA (2 FORI) FISH BURNER CUP+IGN+S.V. HOLES
29 A/602/42 VITE PESCERA 8X26XM 6 OTTON E RETAINING SCREW FOR FISH BURNER
30 A/018/04 CANDELA ACC. (CAVO=MM600 H=MM28) IGNITION PLUG MM 600
32 A/048/06/10 COPRISPART PICCOLO (S1) RAF MAT 3F SMALL FLAME DIFFUSER COVER
33 A/478/12/92 SPARTIFIAMMA PICCOLO NEW SMALL FLAME DIFFUSER
34 A/488/11/93 TAZZ INA P C PICCOLA (2 FORI) HOB COOKER SMALL CUP+IGN+S.V. HOLES
35 A/490/03 TERMOCOPPIA FLEX 45CM M8X1 THERMOCOUPLE 45
36 A/018/02 CANDELA ACC. (CAVO=MM400 H=MM28) IGNITION PLUG MM 400
37 A/049/16/08 CORRIMANO TECH-UL D25 I770 L920 INO HAND RAIL
38 S/216/07/08 RACCOGLIG P-PD90P-P965 1F+TC IN OX DRIP CATCHER P-PD90P-P965 1 RING + D. RING
39 S/216/16/14 RACCOGLIG FRY TOP SMALT NERO DRIP CAT CHER FOR PROFESS FRY TOP
40 S/216/06/08 RACCOGLIG P-PD90P-P965 2F INOX DRIP CATCHER FOR P-PD90P-P9652 RINGS
41 S/238/89/08 TELAIO PIANO C UC PD100F INOX U SA FRAM E
ILVE S.p.a.
UPD_100FMP
Tav.-3-
UPDL100FMP UPDW100FMP 10/02/2010
ILVE S.p.a.
UPD_100FMP
4
4
1
2
4
4
4
9
8
2
6
5
3
7
49
14
15
14
10
11
12
13
1
16
17
18
19
20
21
22
23
333834
35
39
40
24
41
36
42
25 *
45
31
30
26
29
28
27
26
37
37
42
42
46
46
47
46
46
36
37
41
46
LPG APPLIANCES
DRAW VALVE BY PASS SCREW
32
44
43
48
47
Da n° serie: / From serial no. :
25 * 09440585
26 A/466/43 A/600/78 R-SR
29 A/466/44 A/600/79 P
27 A/466/45 A/600/80 TC
30 A/466/57 A/600/77 SR
TERMOSTATO SIC FO EL MULT UL RIARMO AUTOMATICO TARATURA FISSA
TERMOSTATO SIC FO EL STAT UL RIARMO AUTOMATICO TARATURA FISSA
NOMEX INSULATING CARD FOR IGNITION TRANSFORMER 6 BURNERS
%{TitoloEsploso}
Tav.-3-
dis. cod. descrizione description
1 S/149/08 LISTELLO PORTABR PD90-PD100-MD100 BURNERS HOLDER PD90
2 A/014/12/90 BRUCIATORE PIPA GRANDE (H=94) BIG BURNER (H=94)
3 S/128/90 LATERALE PORTABR CUC PROFESS SX LEFT SIDE BURNER HOLDER
4 A/434/04 PORTAINIETT A GOMITO GRILL/F UOCHI INJECTOR HOLDER GRILL/COOKTOP
5 A/492/35
6 A/014/12/92 BRUCIATORE PIPA GRANDE (H=80) TC PROFESSIONAL BIG BURNER (H=80MM)
7 A/014/12/93 BRUCIATORE PIPA GRANDE (H=86) PESCERA PROFESSIONAL BIG BURNER (H=86MM)
8 A/014/12/91 BRUCIATORE PIPA PICCOLO (H=94) SMALL BURNER (H=94)
9 A/492/34
10 A/494/27 TRASFORMATORE ACC EL 6 FUOCHI UL 6 WAYS IGN TRANSFORMER
11 A/024/12 CARTONCINO ISOL NOMEX TR ASF 6FUOCHI
12 S/236/77 SUPPORTO TRASF ACC CUC PR OFESSIONAL EL. IGN. TRANSFORMER HOLDER FOR PROFESSIONAL COOKER
13 S/128/91 LATERALE PORTABR CUC PROFESS DX R IGHT SIDE BURNER HOLDER
14 A/492/37 TERMOREG SIC N A 50°C UL SAFETY THERMOSTAT UL
15 A/401/14 MICROINT ACC RUB SABAF CUC IGNITION SWITCH
16 L/148/13 LISTELLO FERMACRU CUC PD100/PDE100 (COMP INF)
17 A/454/43 RAMPA CUC 5 FORI (P90/PD90) PRESA PRESSIONE RAMP
18 A/062/20 DADO 1/2 D.14 R ACC ORDO PORTAGOMMA A/415/11 935002022 NU T HOSETAIL S.436/4
19 A/004/04 BICONO 14MM R ACC ORDO PORTAGOMMA S135 944000016 HOSE NUT
20 A/452/04 RACC CURVO PORTAG (SIRAL) 1/2" PO-04 D.14 OT 9360000070 HOSETAIL COUPLING (SIRAL)
21 A/437/00 STABILIZZATORE PRESSIONE CSA PRESSURE GAS REGULATOR
22 S/232/63 SQUADRETTA FERMAR CU/FO 30/10 ZN CHMUFF CH SMALL STOP RAMP CLAMP FOR OVENS AND COOKERS
23 S/004/02 BRIGLIA RAMPA F ORNO ELZN OVEN RAMP CLAMP
24 A/034/08 COMM UT FORNO MULTIFUNZIONE MULTIFUNCTION OVEN SWITCH
25 A/034/11 COMM UT FORNO MULTIF+MICR O LUCI PUSHPASSO PASSO MULTIF OVEN SWITCH+MICRO SWITCH
26 A/466/43 RUB ALLOG MICRO CUC VALV (40)R-SR VALVE + S.V.
27 A/466/45 RUB ALLOG MICRO CUC VALV (64)TC VALVE + S.V.
28 A/492/06 TERMOSTATO FORNO MULTIFUNZIONE MULTIFUNCTION OVEN THERMOSTAT
29 A/466/44 RUB ALLOG MICRO CUC VALV (52)P VALVE + S.V.
30 A/466/57 RUB ALLOG MICRO CUC VALV (32) SR VALVE + S.V.
31 A/492/04 TERMOSTATO FORNO ELETTRICO ELECTRIC OVEN T HERMOSTAT
32 A/034/04 COMM UT FORNO ELETTRICO ELECT RIC OVEN SWITCH
33 S/232/33 SQUADRETTA BLOCC PR/CON CUC MUF RIB BRACKET
34 S/236/63 SUPPORTO PROGR EL145 (5 T ASTI) C UC PROGRAMMER HOLDER (EL145) FOR C OOKER
35 A/446/42 PROGR EL145 5T BIPO UL 50/60HZ 230V ELETTRON IC PR OGRAMMER EL145
36 A/106/27 LAMPADA SPIA D.10 FLUOR 230 UL FLUORESCENT PILOT LIGHT
37 A/106/26 LAMPADA SPIA D.10 FAST 230 UL PILOT LIGHT
38 S/232/62 SQUADRETTA F CRU SX CUC 60/80/PD CH CLAMP
39 A/491/03 TASTO PROGR EL145/EL2000 M ETAL T1/2T=10 G=14,5 PROGRAMMER BUTTON / ST ST COLOUR
40 A/102/09 INTERRUTTORE (PULS) MOTOV RADIAL UL MOTOR FAN SWITCH
41 A/080/12 GEMMA SPIA D.10 VERDE INCASTRO GREEN WARNING LIGHT FOR SWITCH
42 A/080/11 GEMMA SPIA D.10 AR ANC IO INCAST RO ORANGE WARNING LIGHT FOR SWITCH
43 S/086/76/08 CRU SCOTTO CUC UPD100B-F-V (5T) INOX CONTROL BOARD U PD100BVF / ST ST
44 S/232/61 SQUADRETTA F CRU DX CUC 60/80/PD CH CLAMP
45 G/303/11/ 08 MANOPOLA MAJ-T C OMM "M" INOX MU LT OVEN SWITCH MAJ -T KNOB ST ST
46 G/340/11/ 08 MANOPOLA MAJ-T GAS CU C INOX GAS KNOB FOR MAJ-T COOKER / ST ST
47 G/367/11/ 08 MANOPOLA MAJ-T T ERM "E/M" °F NERO ELECTRIC °F THERM KNOB MAJ-T/ ST ST
48 G/301/11/ 08 MANOPOLA MAJ-T C OMM "E" INOX ELECT OVEN SWITCH MAJ-T KNOB ST ST
49 S/149/42 LISTELLO PORTABR F RY TOP STRIP
ILVE S.p.a.
SAFETY THERMOSTAT
SAFETY THERMOSTAT
UPD_100FMP
Tav.-4-
UPDL100FMP UPDW100FMP 10/02/2010
ILVE S.p.a.
UPD_100FMP
1
2
3
4 5
6
7
8
12
10
13
17
11
9
14
15
15
16
17
18
16
22
20
21
23
15
24
25
19
26
8
27
28

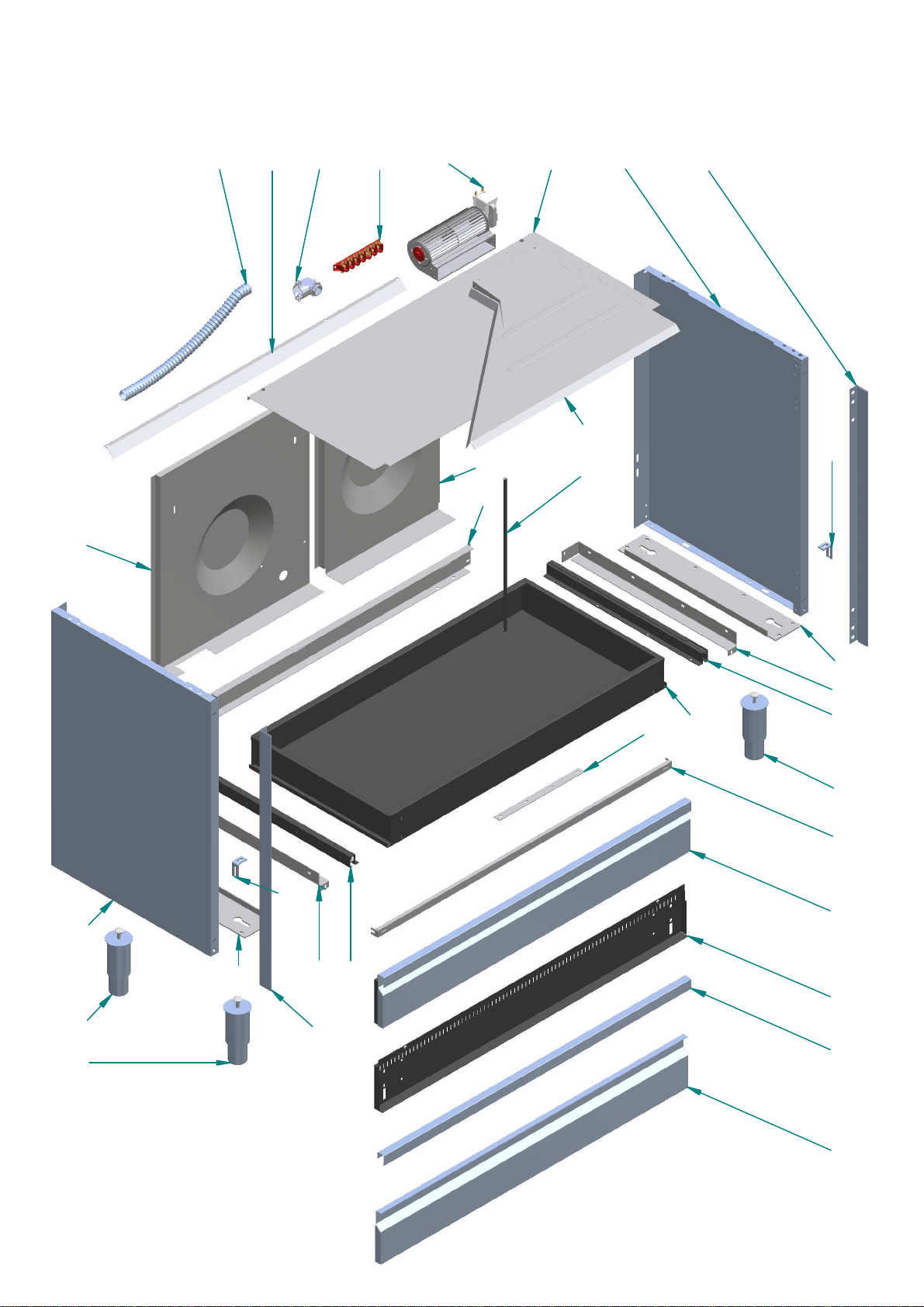

%{TitoloEsploso}
Tav.-4-
dis. cod. descrizione description
1 A/498/12 TUBO FLEX PROTEZIONE CAVI (3/4) UL CONDUIT
2 S/212/22 PROLUNGA COPRISCHIENA PD100-10650 UPPER BACK EXTENSION FOR 100CM C OOK
3 A/452/06 RACCORDO TUBO FLEX 90° 3/4" UL/ CSA CONNECTOR
4 A/404/05 MORSETTIERA FV273/7 7 POLI+TERRA UL TERMINAL BOARD FV273/7
5 A/406/07 MOTOV TANG L=180 120V CLASSE H UL COOLING FAN
6 S/172/06 PARACALORE CUC PD-QD100M MU FF RIB HEAT SHIELD FOR PD100 ELECTRIC
7 S/128/41/08 LATERALE CUC PROFESS DX INOX SIDE PANEL DX / ST ST
8 S/210/56/08 PROFILO CUC P60-PD90 DX-SX INOX PROF ILE DX-SX FOR P60-PD90 / ST.ST .
9 S/036/07 COPRISCH CUC USA APP 60 G-E-M BACK COVER UL
10 S/036/05 COPRISCH CU C USA 40CM PD100 BACK COVER FOR PD1006-B-V-F UL
11 S/149/43 LISTELLO F ERMACUC PD100 POST INF STRIP
12 S/024/34 CONV C UC QD-TD100 MUFF RIB AIR CONVEYER FOR QD100
13 A/094/13 GUARNIZIONE COPRI F UGA DOPPIO FORNO GASKET
14 S/128/42/08 LATERALE CUC PROFESS SX INOX SIDE PANEL SX / ST ST
15 A/422/13 PIEDINO REGISTRABILE H 100-160 ADJUSTABLE FOOT H 100-160
16 S/234/12 STAFFA PER PIEDINI PD90/P120/P150 DX-SX F EET STIRR UP FOR P90-P120-P150
17 S/232/49 SQUADRETTA FERMA-LAT CUC 60/80/PD90 CLAMP
18 S/149/72 LISTELLO PORTAG CASS QUADRA SX LEFT STRIP
19 A/096/11 GUIDA INF/SUP SX CASS PC96 L=500 DROWER GUIDE
20 S/148/97 LISTELLO ANCOR INF MUFFOLE PD90 ANCHORING STRIP
21 S/012/16/10 CASSETT O CUC PD-QD100 MAT QD100 FOOD WARMER DRAWER
22 S/149/71 LISTELLO PORTAG CASS QUADRA DX RIGHT ST RIP
23 A/096/10 GUIDA INF/SUP DX C ASS PC96 L=500 DROWER GUIDE
24 S/149/70 LISTELLO F ERMACUC QD100 ANT /INF STRIP
25 G/083/08 FRONTALE COMPL CASS PD100 PLUS INOX PD100 PLUS DRAWER FRONT / ST ST
26 S/022/25 CONTROPORTA SCALDAV/CASS PD100 MAT FOOD WARMER INSIDE DOOR FOR P100
27 S/150/09/08 MANIGLIONE PO SCA/CASS PD100 INOX WARMER FOOD HANDLE FOR PD100/ST.ST.
28 S/196/16/08 PORTA SCALDAV/CASS TD100 INOX WARMER FOOD DOOR FOR TD100 / ST.ST.
ILVE S.p.a.
UPD_100FMP
Tav.-5-
UPDL100FMP UPDW100FMP 10/02/2010
ILVE S.p.a.
UPD_100FMP
240 v
9
10
7
1
2
*
120 v
7
3
4
5
6
18
7
12
19
7
8
20
12
14
15
16
17
11
18
13
6
21
22
23
Da n° serie: / From serial no. :
2 * 09440585
24

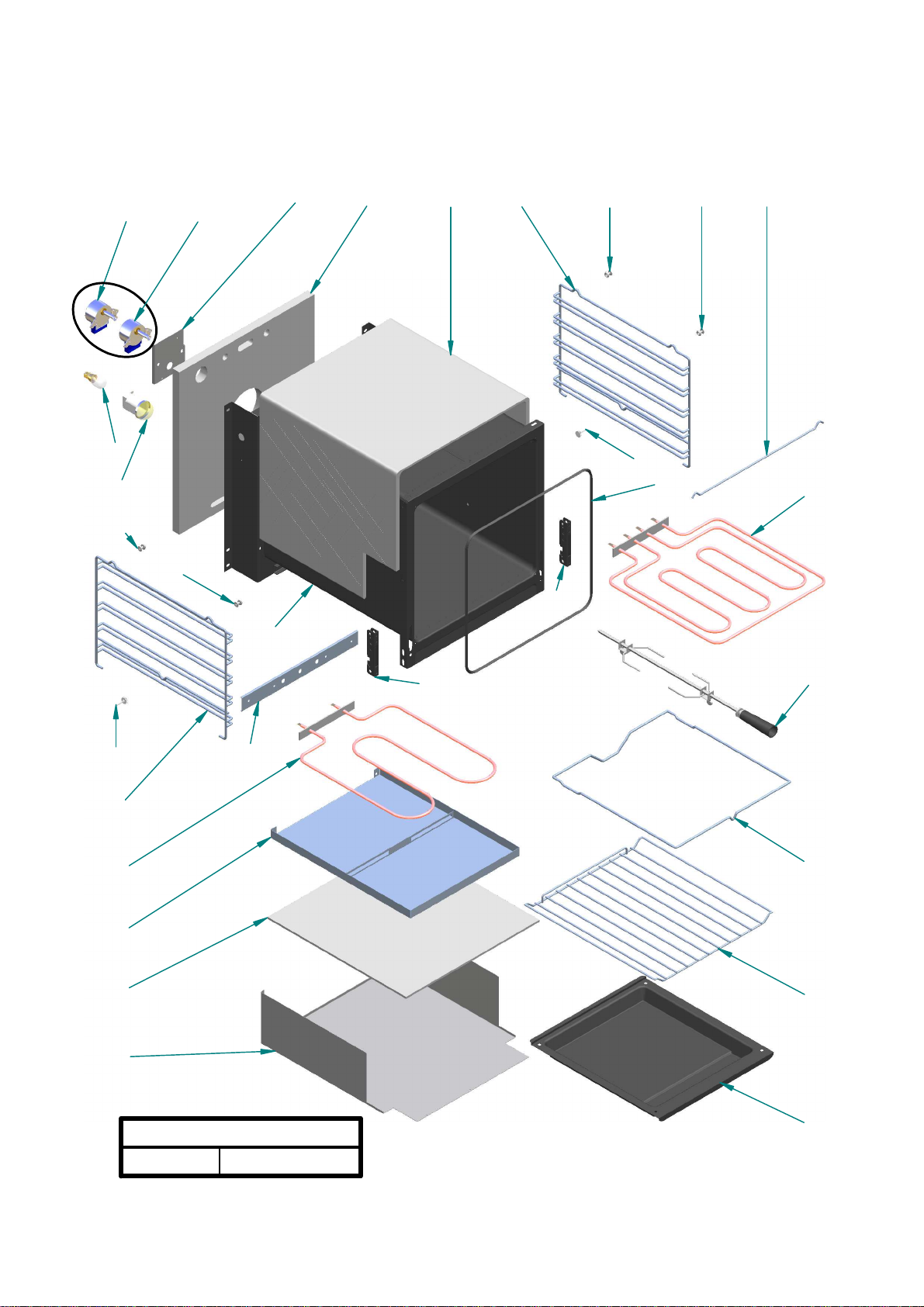

%{TitoloEsploso}
Tav.-5-
dis. cod. descrizione description
1 A/406/03/01 MOTORID GIRARR (CE/UL) 230 50/60 SPIT GEARED MOTOR
2 A/406/03/02 MOTORID GIRARR (UL) 120V 60HZ SPIT GEARED MOTOR 110V
3 S/236/98 SUPPORTO MOTORIDUTTORE SPIT GERED MOTOR HOLDER SUPPORT
4 A/108/58 LANA DI VETRO SCHIENA FORNO 40 AGU 80/20 FIBERGLASS OVEN BACK
5 A/108/59 LANA DI VETRO MANTELLO FORNO 40 1 ALL+AGU 60/17 F IBERGLASS OVEN MANT LE
6 A/092/43 GRIGLIA LAT FORN O MUF F CHIUSA 5 COR OVEN SIDE GRILL
7 A/482/12 SUPPORTO GRIGLIA LAT. (FORNO) GRILL SIDE SUPPORT (OVEN)
8 A/438/05 SUPPORTO RESIST SUP FO 40CM RESISTANCE HOLDER
9 A/106/00 LAMPADA FORNO 110V OVEN LIGHT 110V
10 A/436/02 PORTAL+LAMPADA 110V OVEN LAMP HOLDER
11 S/162/08/14 MUFFOLA 40 ELETTR STAT CH NERO 40CM MUFFLE
12 A/602/03 VITE ZIGR FERMAGR LAT MUFF CHIUSA KNURLED SCREW SIDE GRILLS STOPPING
13 S/118/29 FERMARES INF FO 40 MUFF CH HEAT ELEMENT STOP
14 A/458/88 RESIST 950W 230V SUOLA FO 40CM + NIP VDE UL RESISTANCE 950W
15 S/206/31 PORTARES INF FO 40 MUFF CH BOTT RESIST HOLDER 40CM OVEN PD10O
16 A/108/57 LANA DI VETRO FONDO FORNO 40 590040AGU 80/20 FIBERGLASS OVEN BOTTOM
17 S/228/05 SOTTOFON DO FOR NO 40 M UFF CH ELECT RIC OVEN BOTT OM
18 A/468/04 RULLINO+PORTARULL CERN TN (FARING) RU LLER
19 A/094/71 GUARN MUFF MATR 09154/A 40 CHIUSA 400 OVEN GASKET
20 A/458/89 RESIST 2450W 230V CIE+GRILL FO 40CM + NIP VDE UL RESISTENZA 2450W
21 A/480/00 SPIEDO FOR NO 30/40/EX 60 L=415mm OVEN SPIT 600
22 A/482/29 SUPP GIRAR FORNO 40 (5 CORSIE) SPIT SUPPORT
23 A/092/35 GRIGLIA FORNO 40 40 CM OVEN GRILL
24 S/146/19 LECC ARDA 40 PD100 NER O DRIPPING PAN 40CM OVEN PD100
ILVE S.p.a.
UPD_100FMP
Tav.-6-
UPDL100FMP UPDW100FMP 10/02/2010
ILVE S.p.a.
UPD_100FMP
10
1 2
10
3
240 v
4
120 v
7
*
6
5
8
9
10
19
10
12
20
21
12
13
14
15
16
17
11
9
8
18
22
23
24
Da n° serie: / From serial no. :
4 * 09440585
25

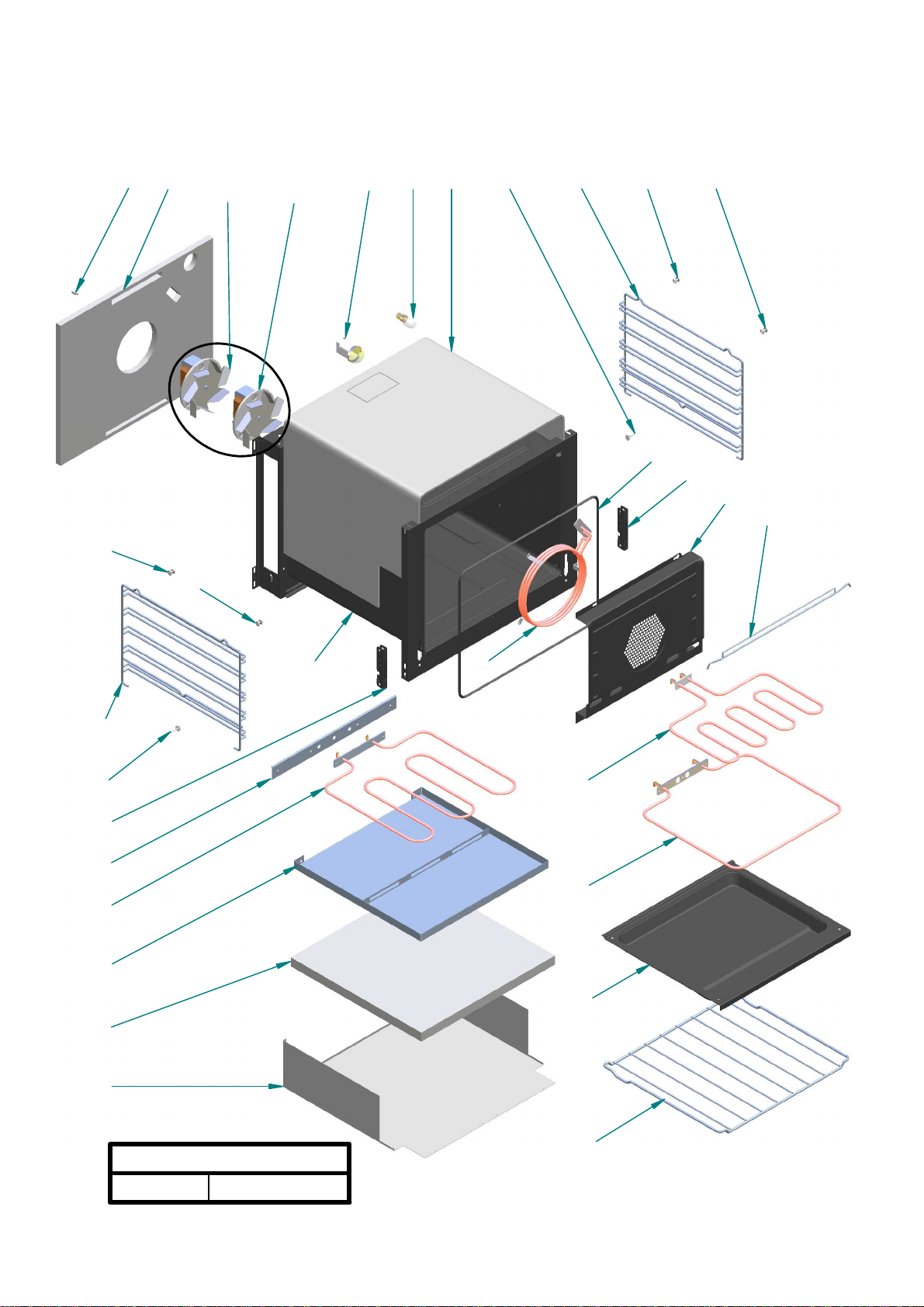

%{TitoloEsploso}
Tav.-6-
dis. cod. descrizione description
1 A/602/05 VITE FISS MOTORE R ADIALE SCREEW
2 A/108/20 LANA DI VETRO SCHIENA FORNO 60 MULTAGU 80/20 FIBERGLASS OVEN BACK 60 MU LTIFUNCTION
3 G/406/00 MOTOVENTILATORE COMPL 240V 60HZ U L COM PLETE FAN 230V
4 G/406/23 MOTOVENTILATORE COMPL 120V 60HZ U L COM PLETE FAN 120V
5 A/436/02 PORTAL+LAMPADA 110V OVEN LAMP HOLDER
6 A/106/00 LAMPADA FORNO 110V OVEN LIGHT 110V
7 A/108/08 LANA DI VETRO MANTELLO 600 1 ALL+AGU 60/17 FIBERGLASS MANTLE 600
8 A/602/03 VITE ZIGR FERMAGR LAT MUFF CHIUSA KNURLED SCREW SIDE GRILLS STOPPING
9 A/092/43 GRIGLIA LAT FORN O MUF F CHIUSA 5 COR OVEN SIDE GRILL
10 A/482/12 SUPPORTO GRIGLIA LAT. (FORNO) GRILL SIDE SUPPORT (OVEN)
11 S/162/07/14 MUFFOLA 60 MULTIF CH NERO 60 CM OVEN MUFFLE
12 A/468/04 RULLINO+PORTARULL CERN TN (FARING) RU LLER
13 S/118/28 FERMARES INF FO 60 MUFF CH HEAT ELEMENT STOP
14 A/458/02 RESIST 1300W 230V SUOLA 600 NIP VDE U L BOTTOM RESISTANCE W1300 V230
15 S/206/01 PORTARES INF FO 60 MUFF CH RESISTANCE HOLDER
16 A/108/02 LANA DI VETRO FONDO 600 AGU 80/20 F IBERGLASS BOTTOM 600
17 S/228/04 SOTTOFON DO FOR NO 60 MUFF CH ELECT RIC OVEN BOTT OM
18 A/458/34 RESIST 2400W 230V CIRCOLARE NIP VDE UL CIRCULAR RESISTANCE W2400 V230
19 A/094/69 GUARN MUFF MATR 09154/A 600 CHIUSA GASKET FOR 600 OVEN
20 S/038/00 COPRIVENTOLA 600 SMALTATO FAN COVER 600 ENAMELLED
21 A/438/00 SUPPORTO RESIST SU P 600 RESISTANCE SUPPORT 600
22 A/458/46 RESIST 1600W 230V GRILL 600 N IP VDE UL GRILL RESISTANCE W1600 V230
23 A/458/18 RESIST 900W 230V C IELO 600 NIP VDE UL TOP RESISTANCE W900 V230
24 S/146/00 LECC ARDA 60 NERO ENAMELLED DRIPPING PAN 60
25 A/092/36 GRIGLIA FORNO 60 60 CM OVEN GRILL
ILVE S.p.a.
UPD_100FMP
Loading...
