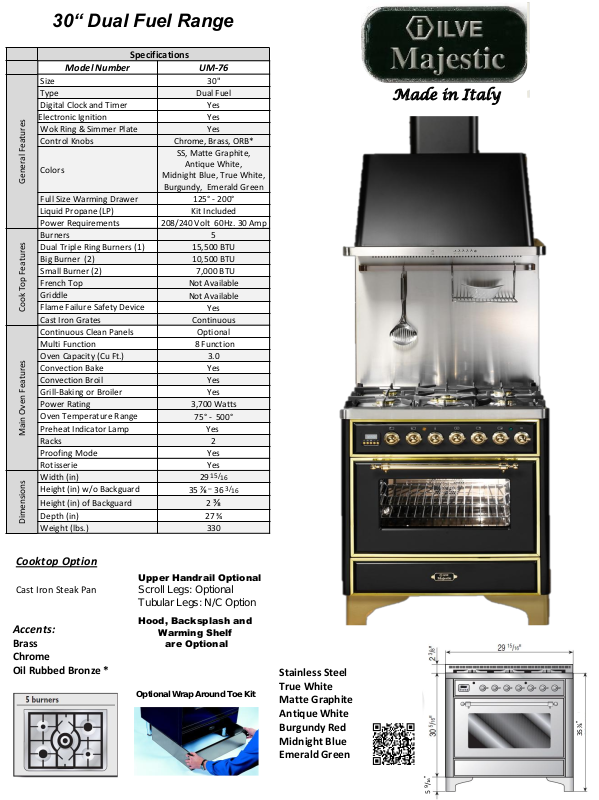

30“ Dual Fuel Range
Specifications
Model Number
UM-76
General Features
Size
30"
Type
Dual Fuel
Digital Clock and Timer
Yes
Electronic Ignition
Yes
Wok Ring & Simmer Plate
Yes
Control Knobs
Chrome, Brass, ORB*
Colors
SS, Matte Graphite,
Antique White,
Midnight Blue, True White,
Burgundy, Emerald Green
Full Size Warming Drawer
125° - 200°
Liquid Propane (LP)
Kit Included
Power Requirements
208/240 Volt 60Hz. 30 Amp
Cook Top Features
Burners
5
Dual Triple Ring Burners (1)
15,500 BTU
Big Burner (2)
10,500 BTU
Small Burner (2)
7,000 BTU
French Top
Not Available
Griddle
Not Available
Flame Failure Safety Device
Yes
Cast Iron Grates
Continuous
Main Oven Features
Continuous Clean Panels
Optional
Multi Function
8 Function
Oven Capacity (Cu Ft.)
3.0
Convection Bake
Yes
Convection Broil
Yes
Grill-Baking or Broiler
Yes
Power Rating
3,700 Watts
Oven Temperature Range
75° - 500°
Preheat Indicator Lamp
Yes
Racks
2
Proofing Mode
Yes
Rotisserie
Yes
Dimensions
Width (in)
29
15/
16
Height (in) w/o Backguard
35
⅞
– 36 3/
16
Height (in) of Backguard
2
⅜
Depth (in)
27 ¾
Weight (lbs.)
330
Made in Italy
Cooktop Option
Cast Iron Steak Pan
Accents:
Brass
Chrome
Oil Rubbed Bronze *
Upper Handrail Optional
Scroll Legs: Optional
Tubular Legs: N/C Option
Hood, Backsplash and
Warming Shelf
are Optional
Optional Wrap Around Toe Kit
Stainless Steel
True White
Matte Graphite
Antique White
Burgundy Red
Midnight Blue
Emerald Green
”
35 ⅞
₁₆”
/
