Iluv i1155 User Manual

Portable Multimedia Tablet Style DVD Player

with 8.4” Active-Matrix TFT LCD Screen

Instruction Manual

Model: i1155

Please read this manual carefully before operating and

save it for future reference.

Have a question? Please visit www.i-Luv.com

Portable DVD Player i1155_V11M11_IM_EN_10052007

www.i-Luv.com - 1 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

USER SAFETY GUIDE

IMPORTANT SAFETY PRECAUTIONS

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated “dangerous voltage” within the unit’s cabinet that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating, maintenance and servicing instruction in the manual accompanying the unit.

WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

CLEANING

Always disconnect unit from power supply before attempting to clean it. Use soft cloth moistened with soapy water, and wipe gently. Do not use solvents or abrasive materials.

LASER SAFETY

This unit uses laser technology. Only a qualified professional should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION – CLASS 1 LASER PRODUCT

Use of controls adjustments and/or performance of procedure other than specified herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. CAUTION: HAZAROUS LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED.

www.i-Luv.com - 2 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

USER SAFETY GUIDE

IMPORTANT SAFETY PRECAUTIONS

INSTRUCTIONS ON ENVIRONMENT PROTECTION

Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling, or other forms of re-utilization of old appliances, you make an important contribution to protect the environment. Please inquire at your local community administration for the authorized disposal location.

IMPORTANT SAFETY WARNINGS

1. Before using the player, please ensure that your local AC voltage is suitable for this unit.

2. To prevent fire or electric shock, do not expose the unit to water, rain, or moisture.

3. Never attempt to open the cabinet. Dangerous high voltages are present in the unit.

4. Always refer servicing to a qualified technician.

IMPORTANT SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS – All the safety and operating instructions should be read before

the appliance is operated.

2. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained in a secure place for future reference.

3. HEED WARNINGS – All warnings on the appliance and in the operating instructions should be observed.

4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.

5. WATER AND MOISTURE – The appliance should not be used near water. For example: near a bathtub, kitchen sink, laundry tub, and/or swimming pool.

6. VENTILATION – The appliance should be situated so that its location and position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings; or, be placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

7. HEAT – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

8. POWER SOURCES – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance itself.

9. POWER CORD PROTECTION – Power supply cords should be routed so that they are not likely to be walked on or obstructed by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point at which they connect to the appliance.

10. CLEANING – The appliance should only be cleaned with a dry cloth.

FCC NOTICE (USA)

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

www.i-Luv.com - 3 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

USER SAFETY GUIDE

IMPORTANT SAFETY INSTRUCTIONS – CONTINUED

11. NONUSE PERIODS – When the appliance is to be left unused for an extended period of time, unplug from outlet.

12. OBJECT and LIQUID ENTRY – Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings.

13. DAMAGE REQUIRING SERVICE – The appliance should be serviced by qualified service professional when:

a. The power supply cord or plug has been damaged. b. Objects have fallen into, or liquid has been spilled into the appliance’s apertures. c. The appliance has been exposed to rain. d. The appliance has been dropped and suffered damage. e. The appliance does not appear to operate normally, or exhibits a change in

performance.

14. SERVICING – The user should not attempt to service the appliance beyond what is described in the user's operating instructions. All other servicing should be referred to qualified service professional.

15. BATTERY USAGE – To prevent battery leakage, which may result in bodily injury, property damage or damage to the unit, follow these instructions:

a. Install all batteries correctly according to the polarity (+ -) as marked on the unit. b. Do not mix old and new batteries, carbon and alkaline, etc. c. Remove batteries from the unit when the device will not be used for an extended

period of time.

16. LEAD AND MERCURY – This product may contain lead and/or mercury. Disposal of these materials may be regulated by your local authorities due to environmental considerations. For more detailed disposal or recycling information, please contact your local authorities or the EIA (Electronic Industries Alliance) – http://www.eiae.org

IC NOTICE (Canada)

Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit off when not in use or move it away from the affected radio/television tuner.

Note: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed in accordance with these instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television operation (which can be determined by turning the equipment off), the user is encouraged to try to correct the interference by one of more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

www.i-Luv.com - 4 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

…

TABLE OF CONTENTS

GETTING STARTED

Compatibility. …..………..…………………………………………………………………

MP3 Information……………………………………………………………………………

General features ……………………………………………………………………………

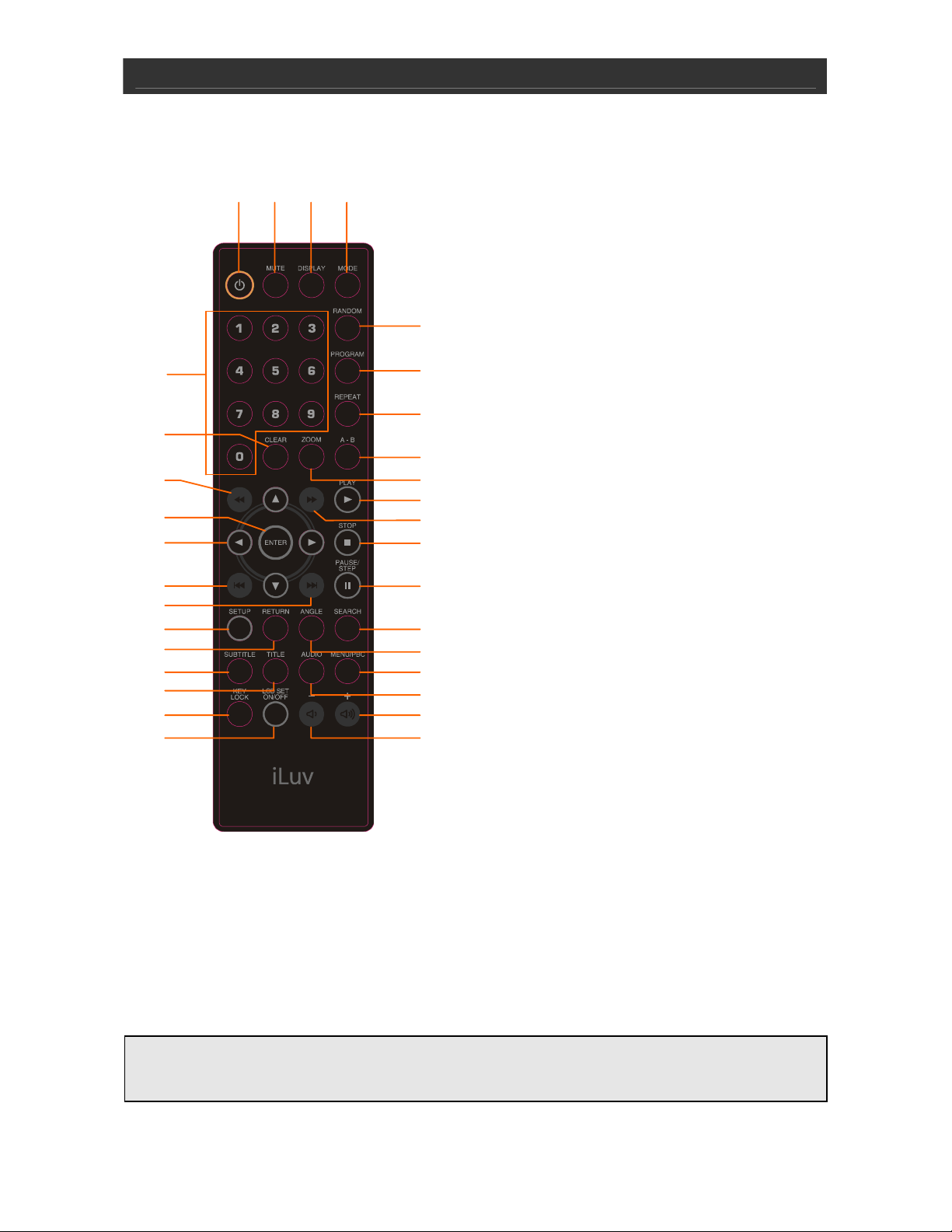

Location of controls on the remote control ………………………………………………

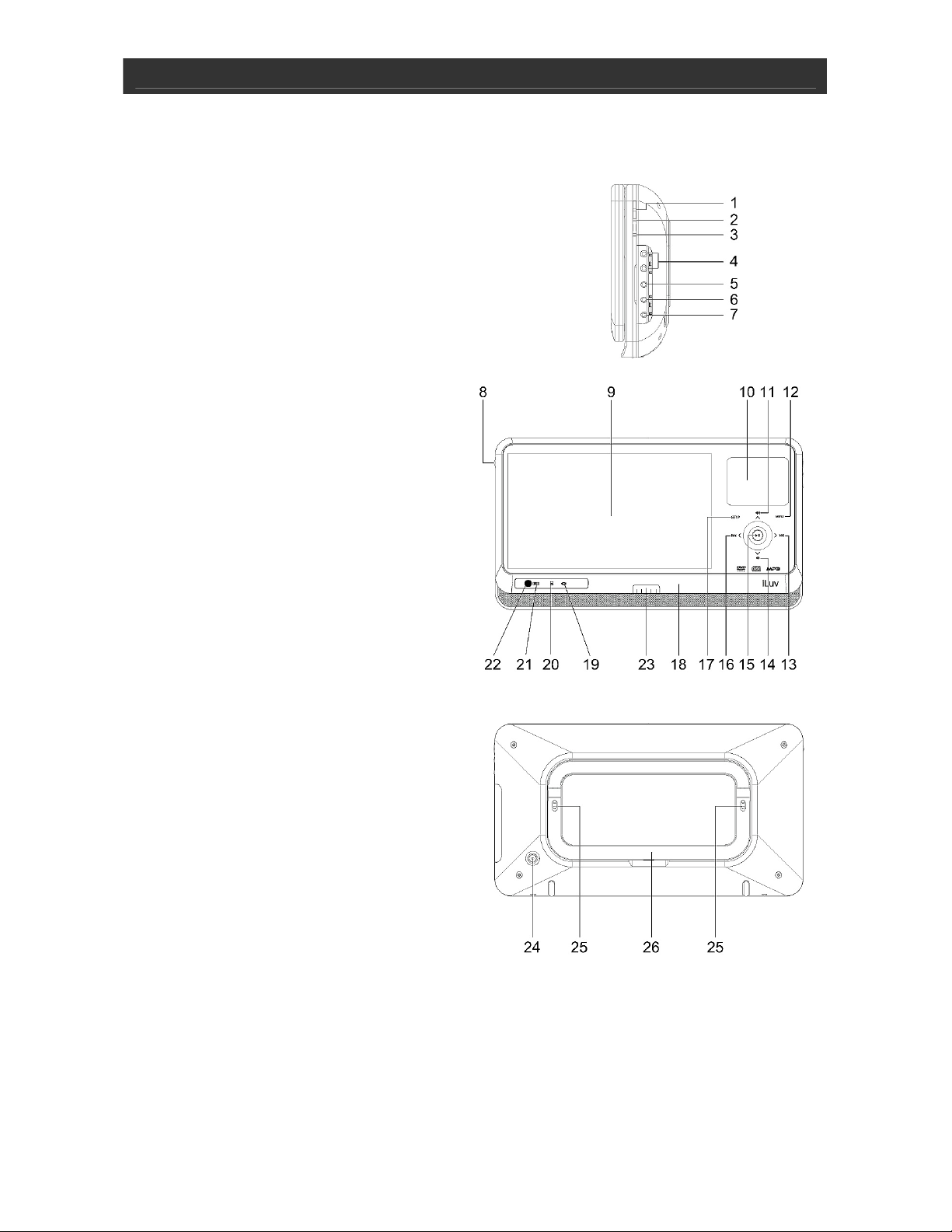

Location of controls on the main unit ……………………………………………………

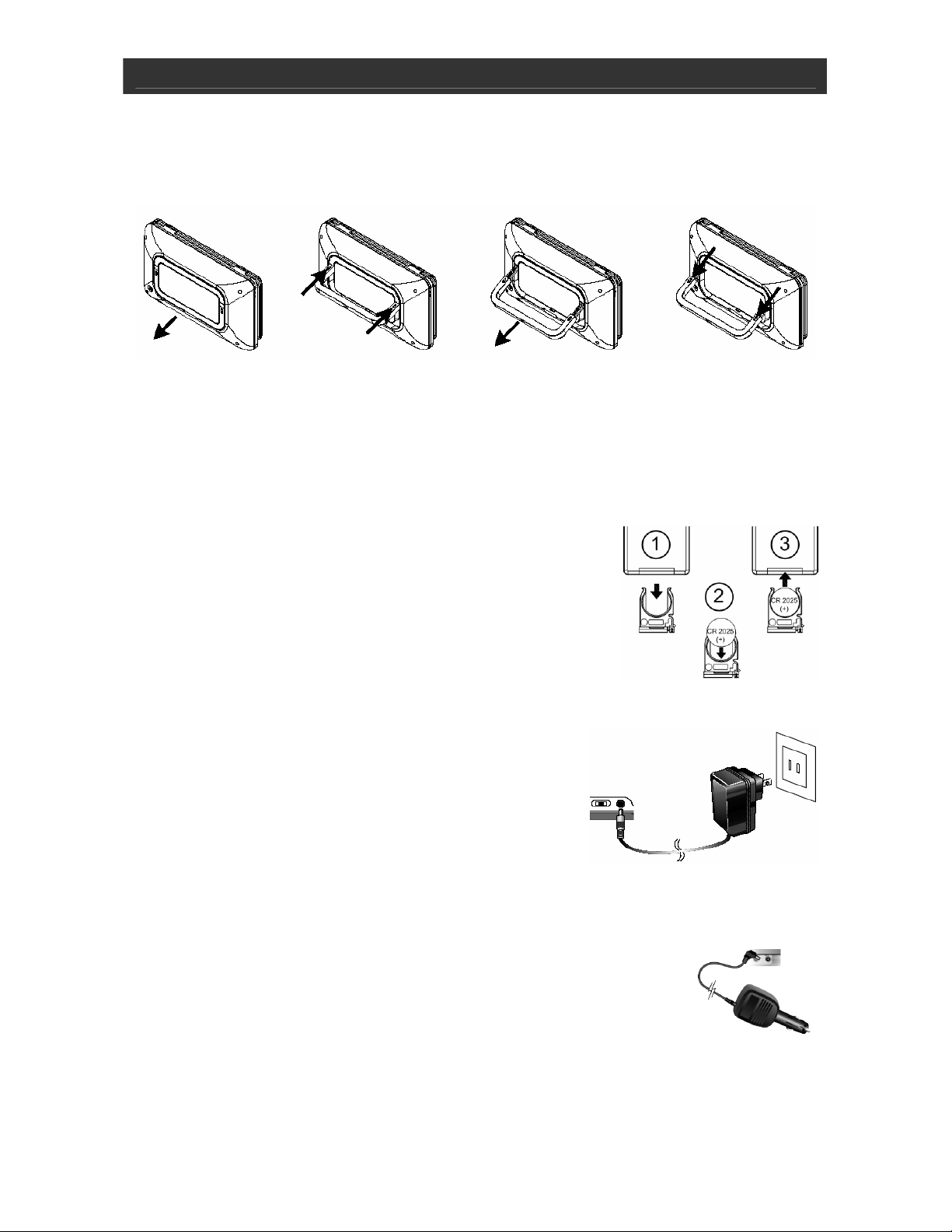

How to make your player stand …………………………………………………………

First time use of remote control ………………………………………………………….. 12

Remote control battery installation ………………………………………………………

Using the AC adapter ………………….…………………………………………………

Using the cigarette lighter (car) adapter …………………………………………………. 12

Charging your DVD player ………………………………………………………………… 13

Low battery indication ……………………………………………………………………… 13

Charging your iPod …………………………………………………………………………

Connecting headphones …………………………………………………………………

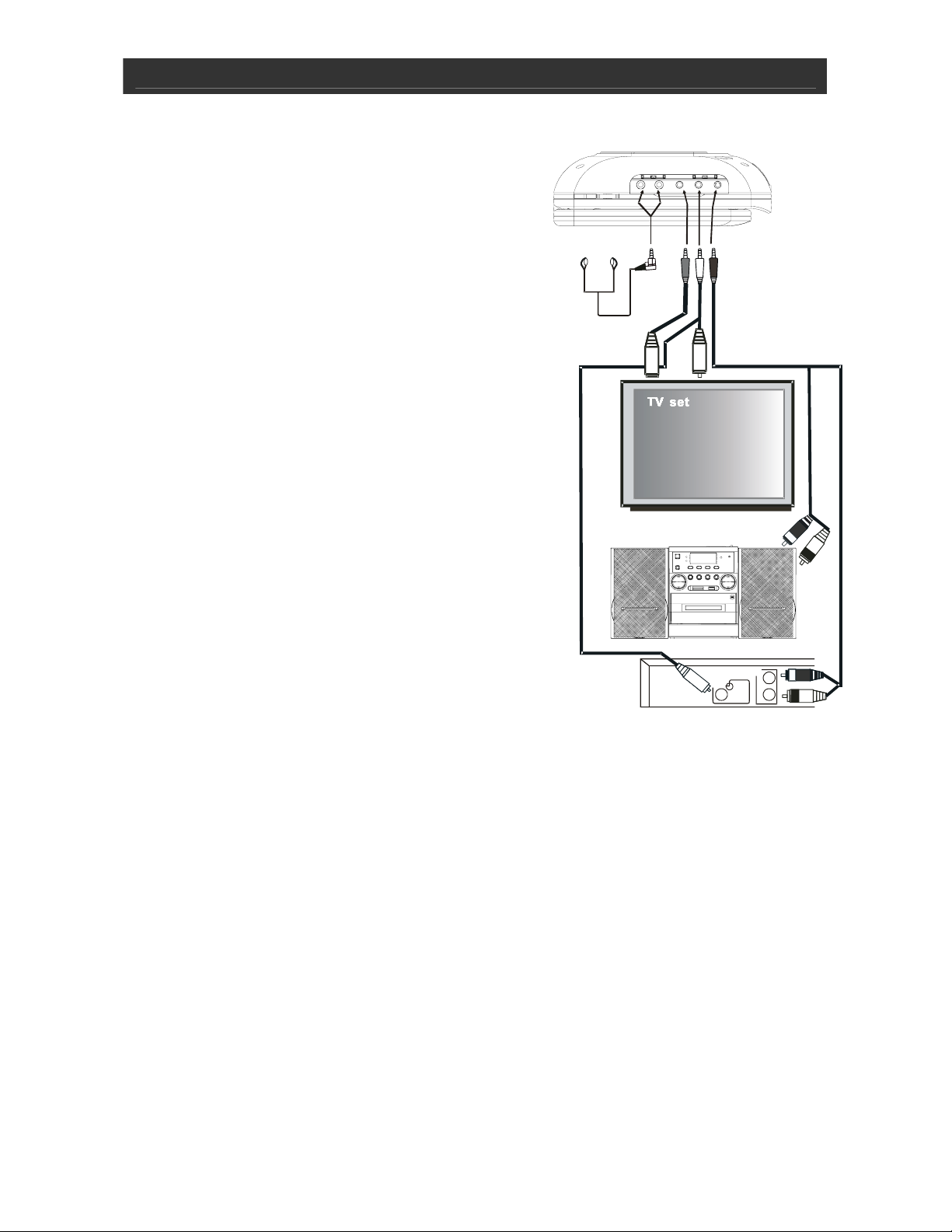

Connecting the DVD player to a TV set by AV cable …………………………………

Connecting the DVD player to a TV set by S-Video cable …………………………….. 14

BASIC OPERATION

Watching your iPod videos on the 8.4” LCD screen ……………………………………

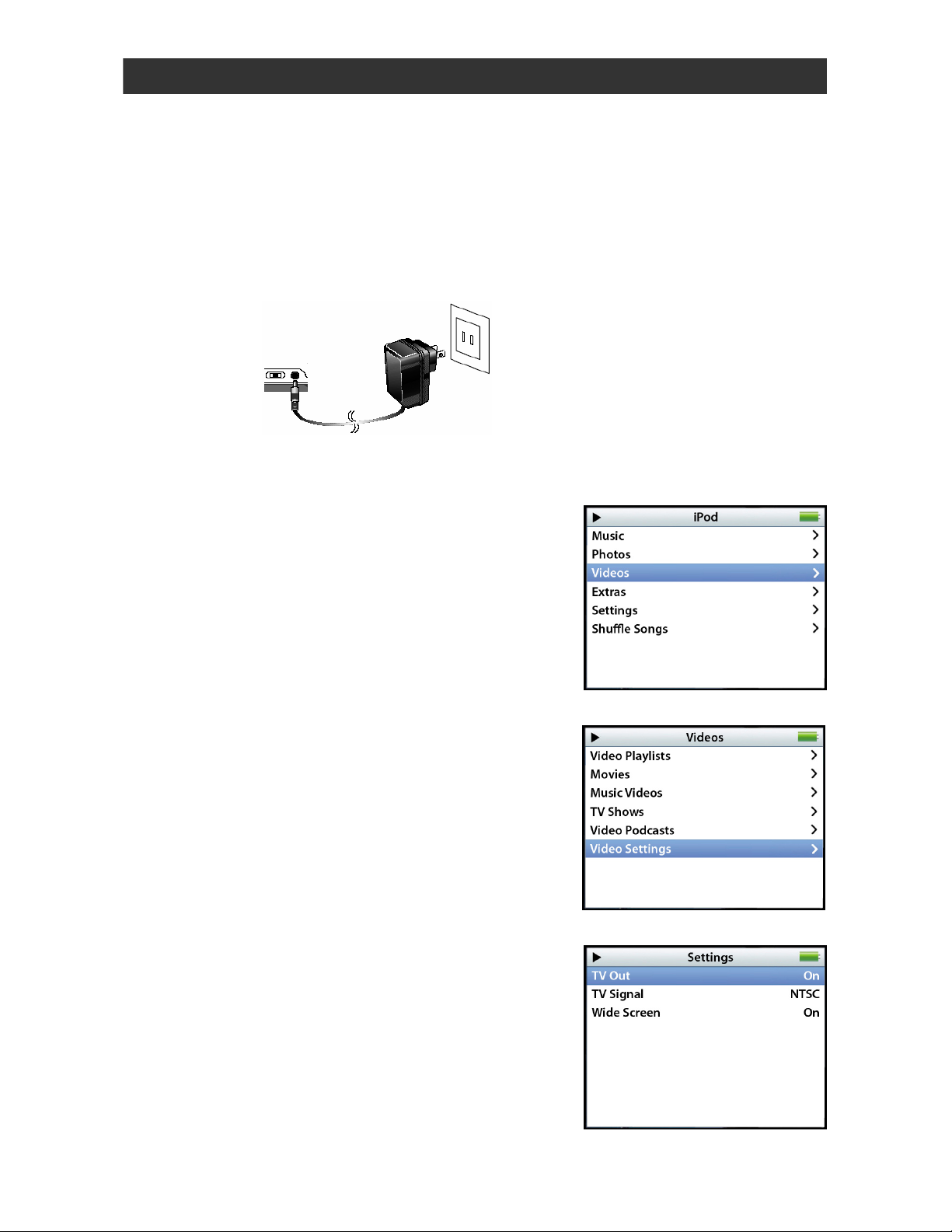

Watching your iPod videos on your TV …………………………………………………

Viewing your iPod photos on the 8.4” LCD screen……………………………………… 17

Viewing your iPod photos on your TV……………………………………………………

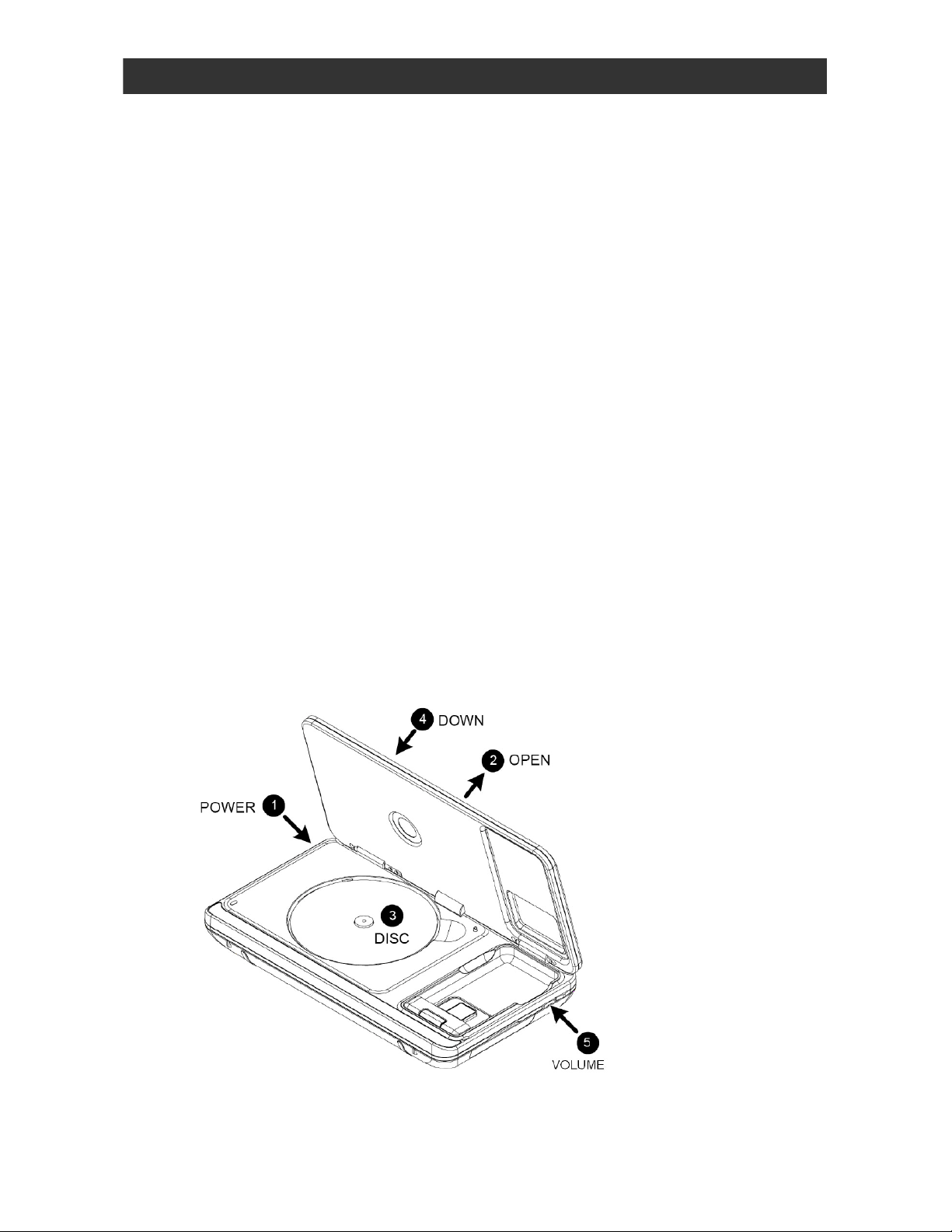

Playing a DVD / VCD / Audio CD / MP3 CD ……………………………………………

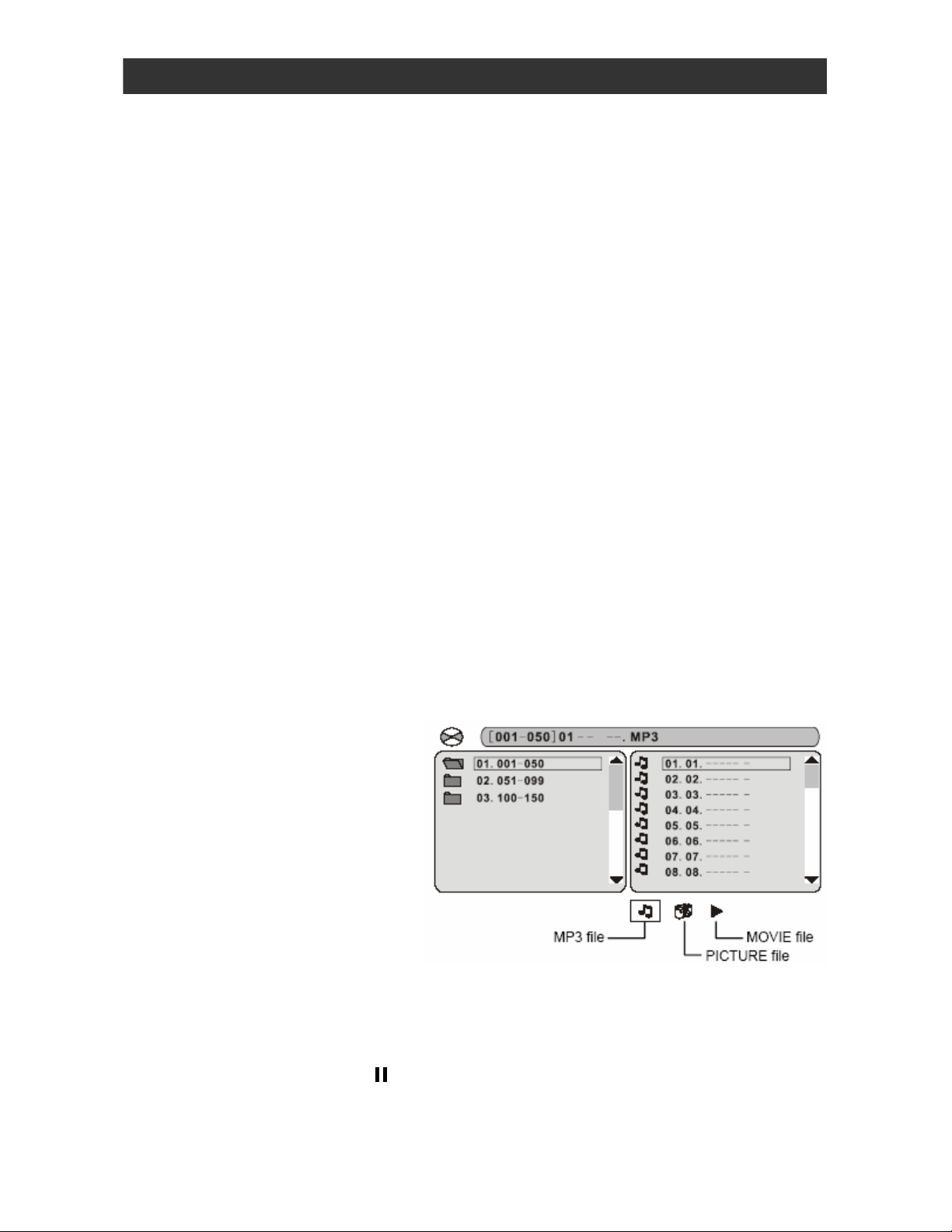

Playing an MP3 CD ………………………………………………………………………… 18

Playing a JPEG CD ………………………………………………………………………… 19

OPERATIONAL FEATURES

Panel key lock ………………………………………………………………………………. 20

Display Feature ……………………………………………………………………………

Invalid icon …………………………………………………………………………………

LCD screen function ……………………………………………………………………….. 20

Title feature…………………………………………………………………………………

DVD menu feature …………………………………………………………………………

Audio feature ………………………………………………………………………………

Subtitle feature ……………………………………………………………………………… 21

Mute function………………………………………………………………………………… 21

www.i-Luv.com - 5 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

…

TABLE OF CONTENTS

OPERATIONAL FEATURES – CONTINUED

Volume function……………………………………………………………………………

Zoom function ………………………………………………………………………………

Random function …………………………………………………………………………… 21

Skip and search functions …………………………………………………………………

Title / chapter search function ……………………………………………………………

Title / time search function ………………………………………………………………… 22

Programmed playback ……………………………………………………………………

Repeat function ……………………………………………………………………………

A-B repeat function …………………………………………………………………………

Multi-

SETUP INSTRUCTIONS

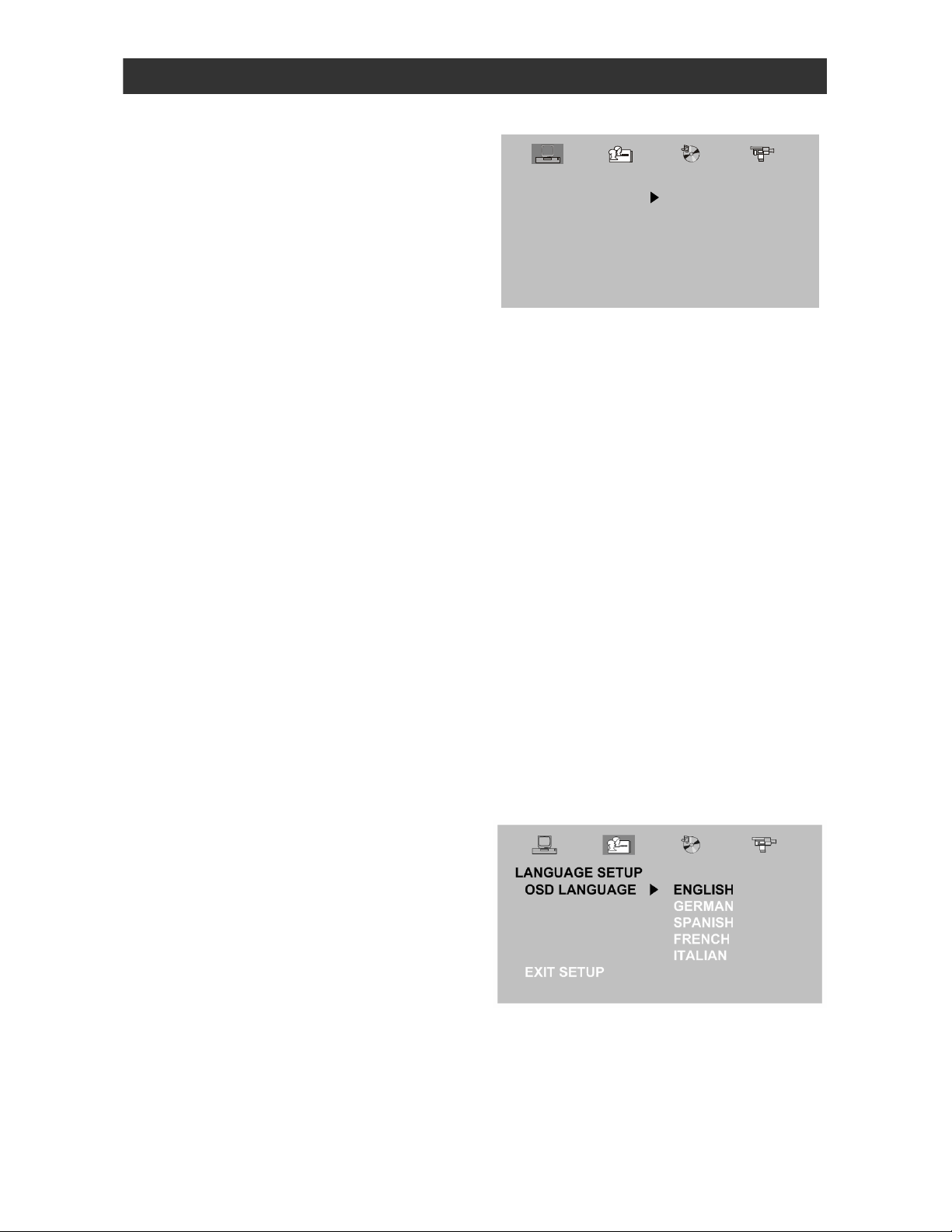

System setup……………. …………………………………………………………………

Language setup…………… ………………………………………………………………

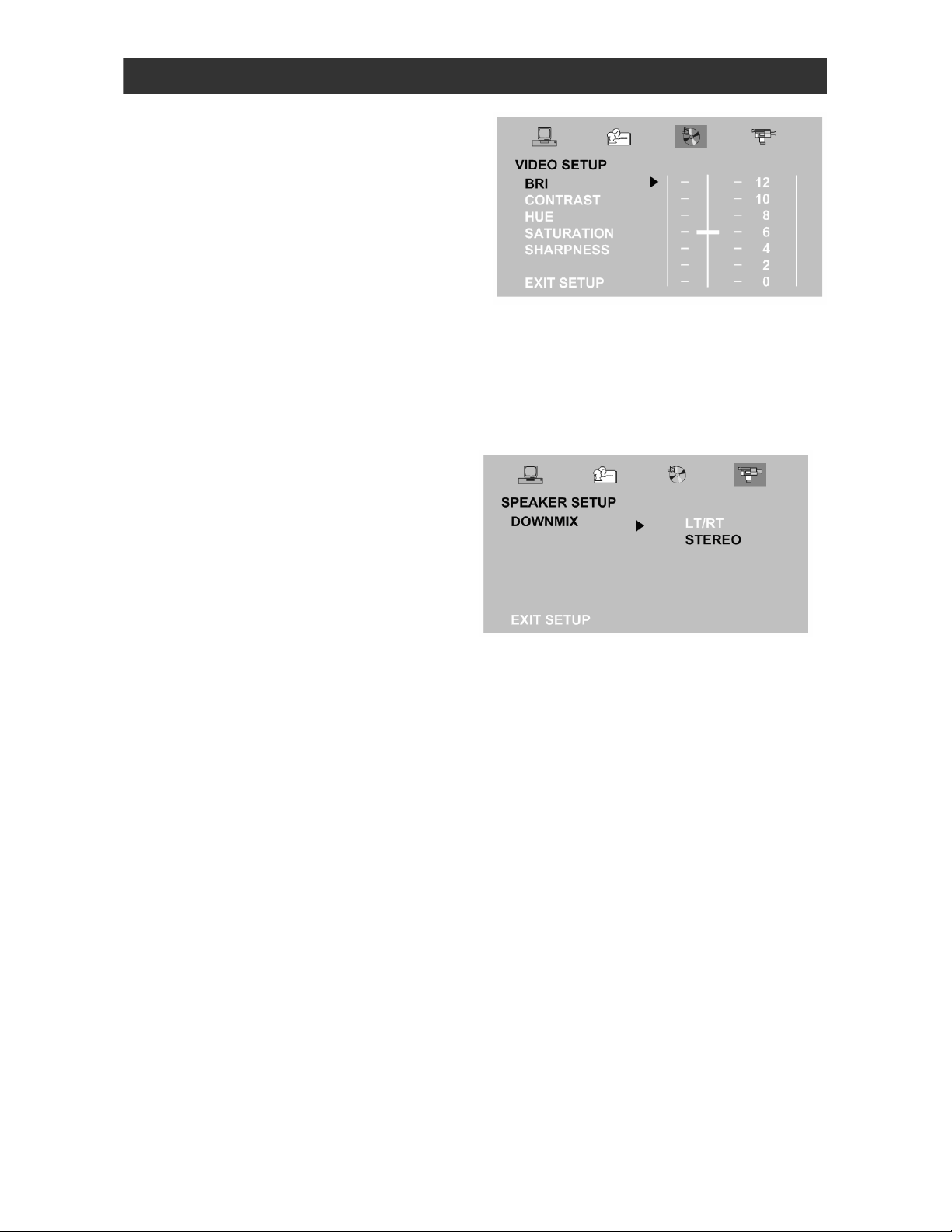

Video setup….………………………………………………………………………………. 25

Speaker setup ………………………………………………………………………………. 25

LCD Setting …………………………………………………………………………………. 25

CARE AND MAINTENANCE GUIDE

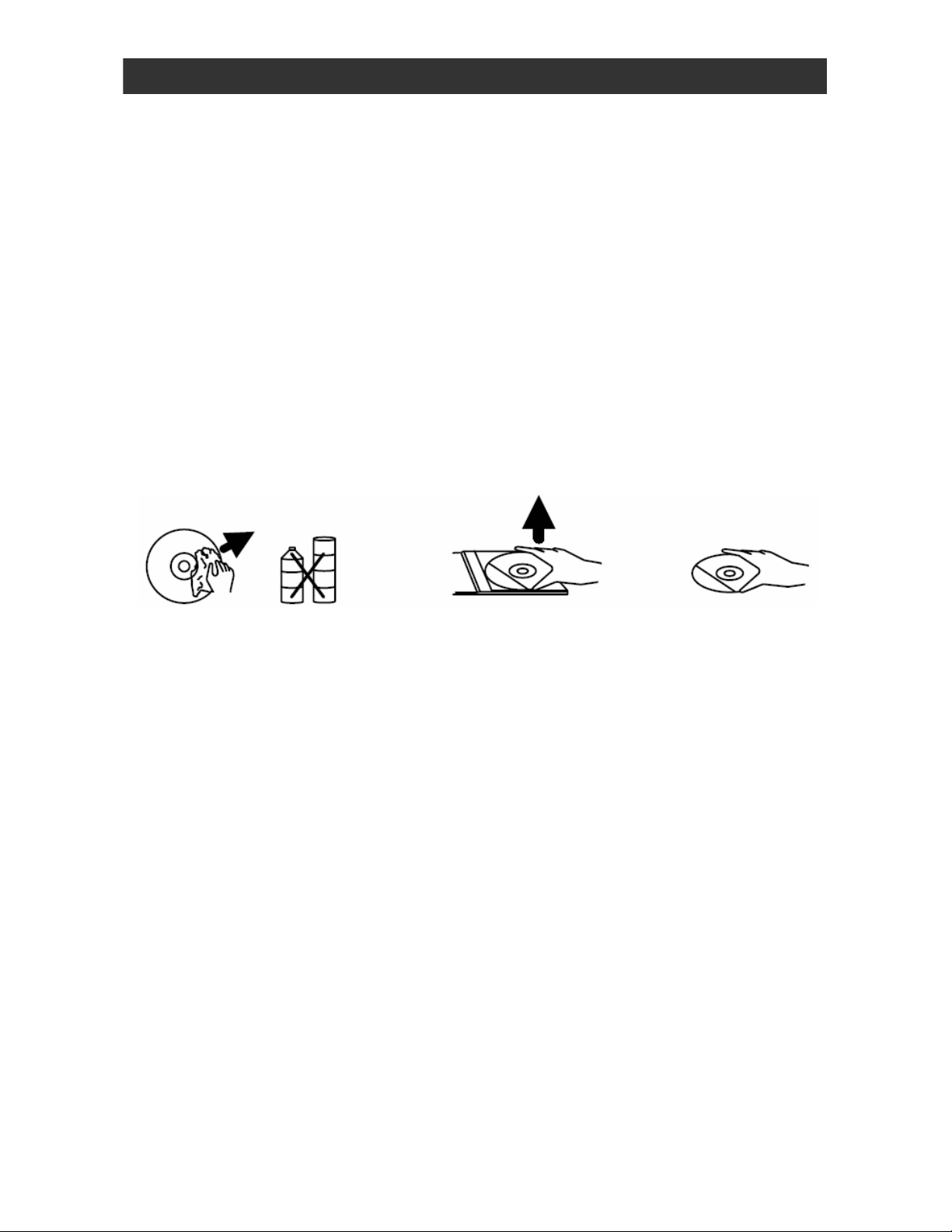

Compact disc care…………………………………………………………………………

Cleaning the unit ………………………………………………………………………….

TROUBLESHOOTING GUIDE

Q & A about the product……………………………………………………………………

SPECIFICATIONS

Technical Information………………………………………………………………………

ngle viewing………………………………… ……………………………………… 23

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by the Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus claims of US Patent Nos. 4,631.603; 4,819.098; 5,315.448 and 6,516.132; licensed for limited viewing uses only.

www.i-Luv.com - 6 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

www.i-Luv.com - 7 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

GETTING STARTED

COMPATIBILITY

1. Disc Size: 12cm / 8cm

AUDIO AND VIDEO

2. Disc Type: DVD a. Single side, single layer b. Single side, double layer c. PAL / NTSC

iPod

DISC ERROR

AUDIO AND VIDEO

AUDIO CD

MP3 CD

DIGITAL MEDIA PLAYER

1. Disc Size: 12cm / 8cm

2. Disc Type: SVCD / VCD

3. Playback time 74 min./ 24 min. max

1. Disc Size: 12cm / 8cm

2. Disc Type: CD

1. Disc Size: 12cm / 8cm

2. Disc Type: CD

3. File Format: MP3 (MPEG 1 Audio Layer 3)

4. Bit Rate: 32Kbps ~ 320Kbps

1. Made for iPod with video, third generation iPod

nano, iPod classic only.

2. iPod is a trademark of Apple Computer, Inc.

This DVD player has built-in error compensation circuits to correct minor defects in a disc. There are limits, however, to the amount of correction available. In some cases, the DVD player may skip some tracks, or parts of tracks, on a disc during disc play. This problem may be caused by defects (such as scratches) on the disc being played which are too large for the error compensation circuits to handle. If you encounter this problem, try a new disc before having this unit serviced. If the DVD player operates normally, the skipping problem is probably due to a defective disc.

Note: Only the above types of discs can be played on this unit. Some CD-R, CD-RW discs cannot be played depending on the condition of the disc.

MP3 (MPEG 1 Audio Layer 3)

MP3, technically referred to as MPEG 1 Audio Layer 3, is a popular digital audio encoding and lossy compression format. This format was developed to reduce the amount of data (or audio information) required to represent audio, yet still reproduce audio in the same manner as the original uncompressed audio for most listeners.

www.i-Luv.com - 8 -

Portable DVD Player i1155_V11M11_IM_EN_10052007

GETTING STARTED

Thank you for purchasing the i1155. Unpack the unit and make sure all the accessories are put

aside so they will not be lost. We recommend that you retain the original carton and packaging

materials for future use, should you transport or ship the unit in the future.

Portable Multimedia Tablet Style DVD Player with 8.4” Active-Matrix TFT LCD Screen

Features for Your iPod

• Play video content of your iPod on the 8.4” widescreen TFT LCD

• Capable of outputting your favorite videos on your iPod to your TV

• Charge your iPod via i1155 using AC adapter or car adapter

• Integrated dock for your iPod with video (30GB, 60GB, 80GB), iPod classic (80GB, 160GB)

• Optional dock for your iPod nano 3

Features for DVD Player

• Play DVD videos on the 8.4” widescreen TFT LCD

• Watch your favorite videos on your TV through S-Video or AV output

• Enhanced user interface with detailed controls

• Convenient OSD (On-Screen Display)

• Multiple subtitle, angle, and audio functions

• Fast motion playback and zoom operation

• Supports 3-way power sources

o AC adapter

o Car adapter

o Built-in Li-Polymer rechargeable battery

• Playable Media: DVD / VCD / Audio CD / MP3 CD

What’s included?

• 8.4” DVD player

• Remote control (battery included)

• AC adapter

• Car adapter

• AV cable (3.5 mm-to-RCA)

• Instruction manual

• Warranty card

* The included power adapters must be connected to the main unit in order to charge your iPod.

Generation. (Sold separately)

www.i-Luv.com - 9 -
