Page 1
Car Adapter for iPod®
Instruction Manual
Please read this manual carefully before
operating and save it for future reference.
Have a question?
Please visit http://www.i-Luv.com
i109
Page 2
Car Adapter for iPod V10M10_IM_EN_09282006
USER SAFETY GUIDE
Important Safety Precautions
INSTRUCTIONS FOR ENVIRONMENTAL
PROTECTION
Do not dispose of this product in the usual
household garbage at the end of its life cycle;
bring it to a collection point for the recycling of
on the product means the instructions for use or the packing will
inform about the methods for disposal. The materials are
recyclable as mentioned in its marking. By recycling, material
recycling, or other forms of re-utilization of old appliances, you
make an important contribution to protect the environment.
Please inquire at your local community administration for the
authorized disposal location.
electrical and electronic appliances. This symbol
Important Safety Warnings
1. To prevent fire or electric shock, do not expose the unit to
water, rain, or moisture.
2. Never attempt to open the unit. Always refer servicing to a
qualified technician.
Note: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
-1 -
www.i-Luv.com
Page 3
Car Adapter for iPod V10M10_IM_EN_09282006
USER SAFETY GUIDE
Important Safety Instructions
1. READ INSTRUCTIONS – All safety and operating
instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS – The safety and operating
instructions should be retained in a secure place for future
reference.
3. HEED WARNINGS – All warnings on the appliance and in
the operating instructions should be observed.
4. FOLLOW INSTRUCTIONS – All operating and use
instructions should be followed.
5. WATER AND MOISTURE – The appliance should not be
used near water. For example: near a bathtub, kitchen sink,
laundry tub, and/or swimming pool.
6. VENTILATION – The appliance should be situated so that its
location and position does not interfere with its proper
ventilation.
7. HEAT – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
8. POWER SOURCES – The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
9. CLEANING – The appliance should only be cleaned with a
dry cloth.
10. OBJECT AND LIQUID ENTRY – Care should be taken so
that objects do not fall and liquids are not spilled into the
device’s openings.
-2 -
www.i-Luv.com
Page 4
Car Adapter for iPod V10M10_IM_EN_09282006
USER SAFETY GUIDE
Important Safety Instructions-Continued
11. DAMAGE REQUIRING SERVICE – The appliance should be
serviced by a qualified service professional when:
a. Objects have fallen into, or liquid has been spilled into
the appliances apertures.
b. The appliance has been exposed to rain.
c. The appliance has been dropped and suffered
damage.
d. The appliance does not appear to operate normally, or
12. SERVICING – The user should not attempt to service the
13. LEAD AND MERCURY – This product may contain lead
exhibits a change in performance.
appliance beyond what is described in the operating
instructions. All other servicing should be referred to a
qualified service professional.
and/or mercury. Disposal of these materials may be regulated
by your local authorities due to environmental considerations.
For detailed disposal or recycling information, contact your
local agencies or the EIA (Electronic Industries Alliance) –
http://www.eiae.org.
FCC Notice (USA)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
-3 -
www.i-Luv.com
Page 5
Car Adapter for iPod V10M10_IM_EN_09282006
GETTING STARTED
Thank you for purchasing the i109. Unpack the unit making sure
all accessories are put aside so they will not get lost
Power Your iPod with the iLuv Stylish Car
Adapter
• The iLuv car adapter powers your iPod with its USB power
output.
• The blue light on its black body gives it a stylish look at night.
• The integrated regulator circuit protects your iPod against
sudden voltage surges.
• Simple and easy to use.
Description
• Input: Cigarette lighter jack – 12-24Vdc*
• Output: Standard USB voltage/current
output – 5.0~5.6Vdc; current – 1.5A max.
• USB Connector: Used for supplying USB
standard voltage and current, not for data
transfer or data communication.
In the Box
• Car adapter
• Instruction manual
*There are some variations with the output of the cigarette lighter
jack which depend on the make, model and manufacture date of
your car. This voltage range may be covered by 9V – 24V.
Note: The i109 delivers power to
an attached device only through the
USB connector.
-4 -
www.i-Luv.com
Page 6
Car Adapter for iPod V10M10_IM_EN_09282006
OPERATIONAL INSTRUCTIONS
Connecting the i109

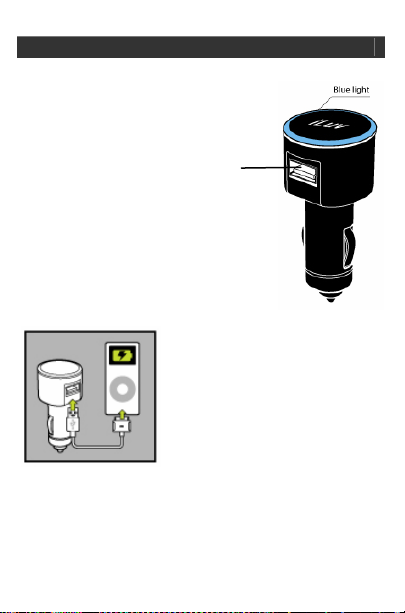

The i109 features a stylish blue light along
the top rim. This light lets the user know
when the car adapter is connected and
charging.
The USB power output jack is located on
the side of the car adapter and shown in the
image to the right.
*The removable coil plug in the cigarette lighter (typically marked
by an illustration of a cigarette and smoke), must be removed in
order to insert the i109.
USB power output
Simply insert USB connector to the
i109 and to the jack on the bottom of
your iPod, insert the i109 into the
cigarette lighter in your car.*
The blue light will begin to glow and
your iPod is now being powered
through the i109.
-5 -
www.i-Luv.com
Page 7
Car Adapter for iPod V10M10_IM_EN_09282006
OPERATIONAL INSTRUCTIONS
Additional Features

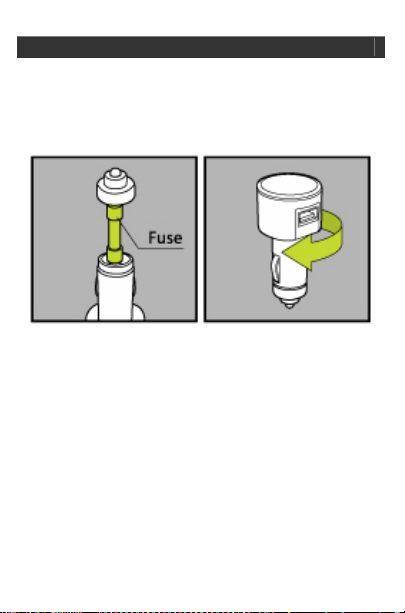

The i109 also features a removable, replaceable fuse to extend
the life of the adapter; and a 90 degree rotating head to adjust for
the best connection to the USB power output.
Maintenance
When not in use, keep this device in a safe place where it will not
be bent or crushed.
Specifications
• Input: DC 12V – 24V
• Output: DC 5V – 5.6V, 1.5A (max.)
• Ripple Voltage: ≤ 0.15Vpp @ 12V
• Fuse: 2A (Max)
-6 -
www.i-Luv.com
Page 8
TEL: 516-626-7188
FAX: 516-626-7105
websi te: www.i-L uv.com
iLuv is a trademark of jWIN Electronics Corp. iPod is a trademark of Apple
Computer, Inc. All logos and brands are property of their respective owners.
iPod is not included in this package. Features and specifications are subject
to change without prior notification.
© 2006 jWIN Electronics Corp. All rights reserved. No portion of this printed
material or product enclosed herewith including design, shape and graphics,
may be reproduced or transmitted in any form without the expressed written
consent of jWIN Electronics Corp. by any means, electronic or mechanical,
including photocopying, recording or use of an information storage and
retrieval system. Any unauthorized distribution or reproduction of this printed
material or product, or any portion thereof, will be prosecuted to the fullest
possible extent of the law.
Printed in China.
