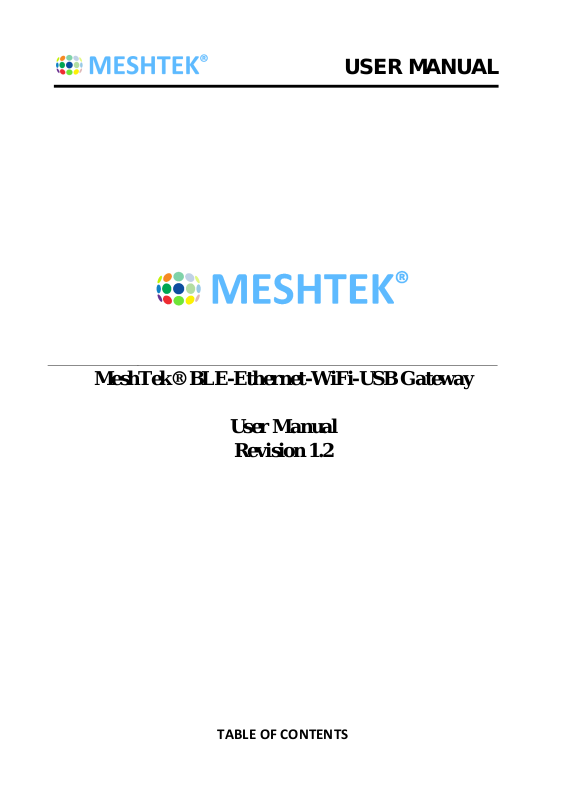

USER MANUAL

MeshTek® BLE-Ethernet-WiFi-USB Gateway

User Manual

Revision 1.2

TABLE OF CONTENTS

USER MANUAL

CHAPTER 1 OVERVIEW .....................................................................................................................................4

1.1 DEFINITIONS .............................................................................................................................................4

1.2 MESHTEK GATEWAY...................................................................................................................................5

CHAPTER 2 FEATURES ......................................................................................................................................6

2.1 GENERAL ..................................................................................................................................................6

2.2 WI-FI ......................................................................................................................................................6

2.3 BLE .........................................................................................................................................................6

CHAPTER 3 ELECTRONIC PARAMETERS ............................................................................................................7

CHAPTER 4 MESHTEK GATEWAY ARCHITECTURE ............................................................................................9

4.1 BLOCK DIAGRAM .......................................................................................................................................9

CHAPTER 5 GETTING STARTED ...................................................................................................................... 10

5.1 SYSTEM REQUIREMENT ............................................................................................................................ 10

5.2 SETUP ................................................................................................................................................... 10

5.3 ADDING A GATEWAY ............................................................................................................................... 10

5.4 DELETING A GATEWAY ............................................................................................................................. 16

5.5 ADDING AND EDITING A NETWORK ............................................................................................................ 17

CHAPTER 6 REVISION HISTORY ..................................................................................................................... 19

TO OUR VALUED CUSTOMERS

USER MANUAL

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your iLumi Solutions, Inc. products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

Please note: Images used in the manual are for reference purposes only and may be different than actual product. If you have any questions or comments regarding this publication, please contact the Marketing Communications

Department via Email at support@ilumisolutions.com. We welcome your feedback.

Errata An errata sheet, describing minor operational differences from the data sheet and recommended workarounds,

may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of the document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Contact MeshTek team

• Contact your local MeshTek sales representative

When contacting a sales office, please specify which device, revision of MeshTek Gateway, user manual and data sheet (include literature number) you are using.

This document serves as the User Manual and Development Guide for the MeshTek Gateway. The document includes specifics on the software architecture and how to use the Gateway.

USER MANUAL

Chapter 1 Overview

The MeshTek Gateway is a Bluetooth Low Energy (“BLE”) to Wi-Fi IoT gateway. It allows users to control and monitor various MeshTek devices from a mobile app or cloud. The MeshTek Gateway supports both Ethernet and Wi-Fi for connectivity to the local network and the internet.

MeshTek Gateway is required for installations / setup consisting of more than 20 MeshTek devices (end nodes) due to limitation of Bluetooth present on iOS / Android phones.

1.1 Definitions

This section defines some terminologies used with MeshTek technology:

• MeshTek Gateway: An OpenWrt unit supporting both BLE and Wi-Fi. Referred to as “Gateway” throughout the

document

• Mesh node: A BLE peripheral that has mesh connection capability The Bluetooth present on the MeshTek Gateway is the master which initiates a mesh network so that each mesh node can communicate not only with its neighbors but also other mesh nodes beyond its radio range. Mesh mode can be enabled and disabled programmatically. When mesh mode is enabled, mesh nodes can send data to each other through BLE connections.

USER MANUAL

1.2 MeshTek Gateway

• Representation of end user interface and connectors available on MeshTek Gateway is shown

Connectors / Buttons

Description

USB

Micro-USB, power input (5.0VDC, 1.2A)

RJ-45

10/100Mbps Ethernet

Tactile Switch 1 (Reset)

Button to reset wireless module

Tactile Switch 2

TBD

Top LEDs present on the MeshTek Gateway indicates following status:

LEDs

Status

Blue LED blinking, 1 sec ON/OFF continuously

Ethernet is plugged in and Internet is working

Blue LED blinking, 0.5 sec ON/OFF continuously

Ethernet is not plugged in and Internet is not working

Red LED blinking, 1 sec ON/OFF continuously

Socket connection is successfully established between Mobile App and Gateway is successfully

Red LED blinking, 0.5 sec ON/OFF continuously

Socket connection not established

Tactile

Switch 1

(Reset)

USB

RJ-45

Tactile

Switch 2

Blue

LED

Red LED

USER MANUAL

Chapter 2 Features

2.1 General

• 5VDC, 1.2A input via micro USB

• 10/100 Ethernet

• Firmware upgrade Over-the-air (“OTA”)

• Multiple data transportation protocols

o TCP/UDP (local network) o Remote Server / Cloud: SQS with SSL and TLS certification (when Gateway is connected to Internet)

• Operating temperature: -10°C to 50°C

2.2 Wi-Fi-Ethernet

• Wi-Fi module is based on the QCA4531 MIPS 24Kc processor operating at up to 650MHz clock rate

• Wi-Fi Standards: 802.11a/b/g, 802.11n

• MIMO Configuration: 2x2 (2-stream)

• Max output power: +20 dBm

• 32 MB Flash and 64 MB DDR2 RAM

• 1 x USB 2.0 host (Same port at micro USB)

• 1 x Ethernet

2.3 BLE

• MeshTek-H52 Bluetooth 5.0 ready module based on Nordic’s nRF52832 (ARM® Cortex™-M4 CPU 64MHz 32-

bit processor)

• Max output power: +18.9 dBm

• Proven BLE Mesh Technology with over 30,000 MeshTek networks installed in the world

• The only BLE solution with the Auto Firmware OTA Update in a meshed network

• The only self-healing BLE mesh for high data transfer and reliable communication

• Built-in high range antenna with up to 200-meter range with reliable and secure meshing

• Can control up to 150 MeshTek devices / MeshTek enabled nodes

USER MANUAL

Chapter 3 Electronic Parameters

Recommended Operating Condition

Power Supply (VCC)

5VDC

Operating Temperature

-10°C to 50°C

Absolute Maximum Rating

Power Supply (VCC)

5.5VDC

Storage Temperature

-20°C to 80°C

Wi-Fi RF Performance

Wireless

IEEE 802.11b/g/n

Data Speed

• Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps,

11Mbps

• Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps,

18Mbps, 24Mbps, 36Mbps, 48Mbps,54Mbps

• Data speed (IEEE 802.11n): up to 150Mbps

Frequency Band

• 2412MHz~2462MHz (802.11b/802.11g/802.11n(H20))

• 2422MHz~2452MHz (802.11n(H40)

Channel Numbers

• 11 for 802.11b/802.11g/802.11(H20)

• 7 for 802.11n(H40)

Channel Separation

5MHz

Modulation Technology

• IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)

• IEEE 802.11g/802.11n: Orthogonal Frequency Division

Multiplexing(OFDM)

Transmit Power

+20dBm

Antenna

Ceramic Antenna

Antenna Gain

3dBi

Range

Up to 100 meters (open space)

Security

WPA / WPA2

Note

802.11b/g/n all support 2×2 MIMO

USER MANUAL

BLE RF Performance

Radio Operating Frequencies

2360MHz~2500MHz

Radio On-Air Data Rate

1Mbps

Transmit Power

+18.9dBm (RF output configured to +18.9dBm using external PA present on the module)

Receiver Sensitivity @ BLE Mode

96 dBm (Ideal transmitter) Antenna

Onboard PCB Antenna

Antenna Gain

0dBi

Range

Up to 200 meters (open space)

General Information

Color

White

Size

90mm x 90mm x 28mm

Weight

TBD

Accessory

• 1 x 5VDC USB Adapter

• 1 x Micro USB Cable (1m)

• 1 x Ethernet Cable (1m)

USER MANUAL

Chapter 4 MeshTek Gateway Architecture

4.1 Block Diagram

The below block diagram gives an overview of a MeshTek Gateway architecture:

USER MANUAL

Chapter 5 Getting Started

5.1 System Requirement

Following parts should be available with User for setting up the MeshTek Gateway

• WiFi Router with Ethernet port. Port forwarding on port no. 6060 should be enabled.

• MeshTek Gateway with accessory kit

• iOS device (iOS 10.0 and above)

Note: Internet connection should be available in case user wants to remotely control the MeshTek devices.

5.2 Setup

• Connect one end of the Ethernet cable to the Gateway and other end to the WiFi Router

• Enable WiFi and Bluetooth on the iOS device and connect iOS device WiFi to the WiFi Router network

• Download MeshTek app on iOS device and create an account

• Power-on the Gateway

5.3 Adding a Gateway

• User will see the Networks screen. Every Gateway needs to be added as a separate Network. Refer to Section

5.5 on how to Edit and Add a new Network

• Click on the default network “Main” to go to the Dashboard of the Network. Once in Dashboard, the app would

automatically search for the Gateway.

USER MANUAL

• If User has clicked on the close button then scroll to the right to “More” section and click on “Search for New

Gateway”

• After the Gateway is detected, follow the instructions available on screen. Click on “Next” and provide name

to the Gateway. Click on “Add” button present at the bottom of the screen to move onto the next setup.

USER MANUAL

APP would check for Local connection and Gateway Internet.

Local (socket) connection needs to be established between the Gateway and the iOS device as the configuration i.e., User credentials and End node details needs to be synced between the two. (Note: Local connection would be successful when both the Gateway and iOS device are present on the same local network.)

USER MANUAL

Internet connection on the Gateway would allow User to control the End nodes via APP remotely (via cloud).

• Gateway is ready for User. Go to the Dashboard screen to see the added Gateway. Click on “Gateway” to check

the added Gateway parameters and status of the connection.

Green dot indicates that the Gateway is online and local connections is successful.

USER MANUAL

It would turn to Grey when the local connections gets disconnected; it would happen when the Ethernet cable is removed or when the iOS isn’t connected to the same network.

• As mentioned above, the APP would try to establish local connection and check for the internet before

finishing Gateway pairing process. In case both the Gateway and iOS device are not on same local network then the APP would prompt User to “Please plug Ethernet cable and try again”. User can decide to click on “Skip” button to finish the paring process.

USER MANUAL

After Ethernet cable is plugged in or both the devices are on the same network then go back to the “Networks” page and the click on the Network in which Gateway was added. Once done, the configuration would be synced as shown below and now the User would be able to control End nodes via Gateway

USER MANUAL

5.4 Deleting a Gateway

• Click on the “Gateway” present on the Dashboard and click on the “Delete Group” button present on the

bottom of the screen.

• Once deleted, the Gateway is removed from User’s Account and it becomes available for pairing again.

USER MANUAL

5.5 Adding and Editing a Network

For larger installations (End nodes > 20) more than one Gateway would be required. User needs to create a new Network for each Gateway.

• Click on “Add Network” button present on the bottom right of the Networks page. Give the logical name and

description to the Network and click on “Save”.

USER MANUAL

• Click on “Edit” button present on the bottom left of the Networks page. Edit icon would appear against each

of the Network, by clicking on the icon you can Rename, Change Photo or Delete the Network as shown in below images.

USER MANUAL

Chapter 6 Revision History

Revision

Date

Status / Comments

1.0

Jan 2019

Initial Release

1.2

March 2019

Updated Getting Started section
