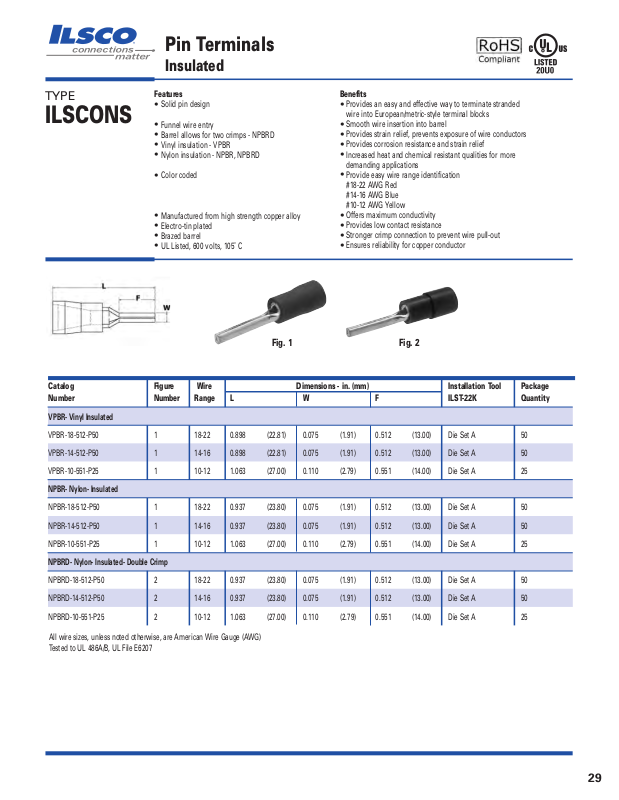

Ilsco Pin Terminals Catalog Page
29
Pin Terminals
Insulated
TYPE
ILSCONS
Features
•
Solid pin design
•
Funnel wire entry
•
Barrel allows for two crimps - NPBRD
•
Vinyl insulation - VPBR
•
Nylon insulation - NPBR, NPBRD
•
Color coded
•
Manufactured from high strength copper alloy
•
Electro-tin plated
•
Brazed barrel
•
UL Listed, 600 volts, 105˚ C
Benefits
•
Provides an easy and effective way to terminate stranded
wire into European/metric-style terminal blocks
•
Smooth wire insertion into barrel
•
Provides strain relief, prevents exposure of wire conductors
•
Provides corrosion resistance and strain relief
•
Increased heat and chemical resistant qualities for more
demanding applications
•
Provide easy wire range identification
#18-22 AWG Red
#14-16 AWG Blue
#10-12 AWG Yellow
•
Offers maximum conductivity
•
Provides low contact resistance
•
Stronger crimp connection to prevent wire pull-out
•
Ensures reliability for copper conductor
Catalog Figure Wire Dimensions - in. (mm) Installation Tool Package
Number Number Range L W F ILST-22K Quantity
VPBR- Vinyl Insulated
VPBR-18-512-P50 1 18-22 0.898 (22.81) 0.075 (1.91) 0.512 (13.00) Die Set A 50
VPBR-14-512-P50 1 14-16 0.898 (22.81) 0.075 (1.91) 0.512 (13.00) Die Set A 50
VPBR-10-551-P25 1 10-12 1.063 (27.00) 0.110 (2.79) 0.551 (14.00) Die Set A 25
NPBR- Nylon- Insulated
NPBR-18-512-P50 1 18-22 0.937 (23.80) 0.075 (1.91) 0.512 (13.00) Die Set A 50
NPBR-14-512-P50 1 14-16 0.937 (23.80) 0.075 (1.91) 0.512 (13.00) Die Set A 50
NPBR-10-551-P25 1 10-12 1.063 (27.00) 0.110 (2.79) 0.551 (14.00) Die Set A 25
NPBRD- Nylon- Insulated- Double Crimp
NPBRD-18-512-P50 2 18-22 0.937 (23.80) 0.075 (1.91) 0.512 (13.00) Die Set A 50
NPBRD-14-512-P50 2 14-16 0.937 (23.80) 0.075 (1.91) 0.512 (13.00) Die Set A 50
NPBRD-10-551-P25 2 10-12 1.063 (27.00) 0.110 (2.79) 0.551 (14.00) Die Set A 25
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Tested to UL 486A/B, UL File E6207
