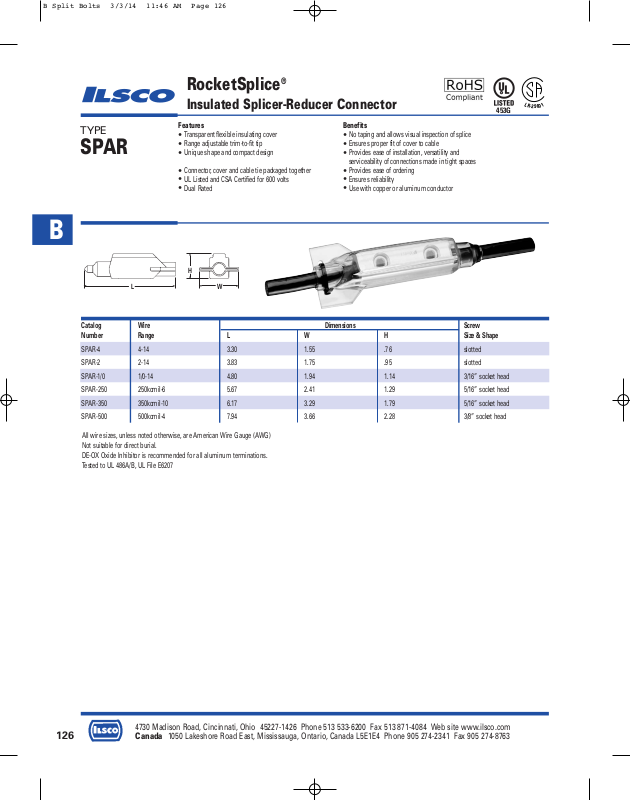

Ilsco Insulated Splicer-Reducer Connector Catalog Page
RocketSplice
453G
®
Insulated Splicer-Reducer Connector
L
1
R
0
-
2
6
9
B
TYPE
SPAR
L
Catalog Wire Dimensions Screw
Number Range L W H Size & Shape
SPAR-4 4-14 3.30 1.55 .76 slotted
SPAR-2 2-14 3.83 1.75 .95 slotted
SPAR-1/0 1/0-14 4.80 1.94 1.14 3/16” socket head
SPAR-250 250kcmil-6 5.67 2.41 1.29 5/16” socket head
SPAR-350 350kcmil-10 6.17 3.29 1.79 5/16” socket head
SPAR-500 500kcmil-4 7.94 3.66 2.28 3/8” socket head
Features
Transparent flexible insulating cover
•
Range adjustable trim-to-fit tip
•
Unique shape and compact design
•
Connector, cover and cable tie packaged together
•
UL Listed and CSA Certified for 600 volts
•
Dual Rated
•
H
W
Benefits
No taping and allows visual inspection of splice
•
Ensures proper fit of cover to cable
•
Provides ease of installation, versatility and
•
serviceability of connections made in tight spaces
Provides ease of ordering
•
Ensures reliability
•
Use with copper or aluminum conductor
•
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Not suitable for direct burial.
DE-OX Oxide Inhibitor is recommended for all aluminum terminations.
Tested to UL 486A/B, UL File E6207
126
