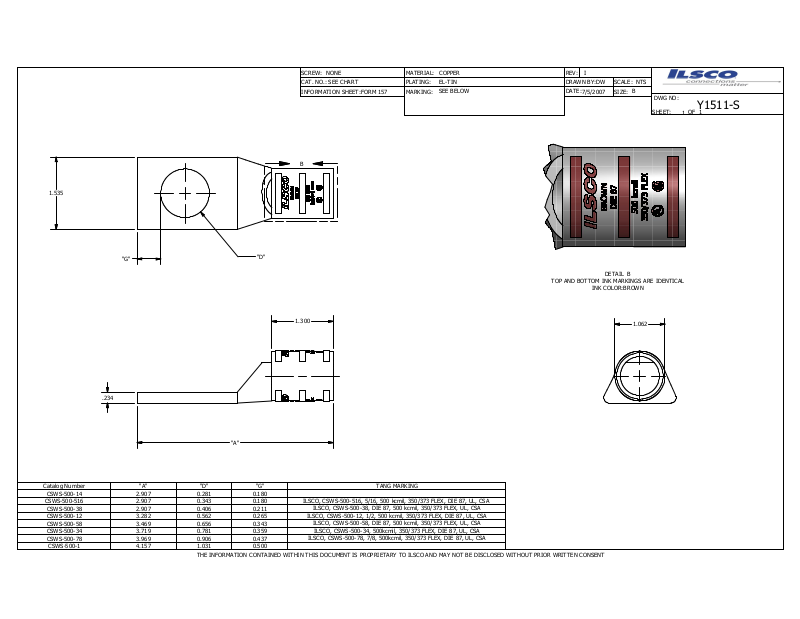

Ilsco CSWS-500-516 Data sheet
1.535
SCREW: NONE
CAT. NO.:
SEE CHART
INFORMATION SHEET:
B
FORM 157
MATERIAL:
PLATING:
MARKING:
REV:
DATE:
I
7/5/2007
COPPER
EL-TIN DRAWN BY:
SEE BELOW
DW
SCALE: NTS
B
SIZE:
DWG NO:
SHEET: OF
1
Y1511-S
1
"A"
"D"
1.300
ILSCO, CSWS-500-516, 5/16, 500 kcmil, 350/373 FLEX, DIE 87, UL, CSA
ILSCO, CSWS-500-38, DIE 87, 500 kcmil, 350/373 FLE X, UL, CSA
ILSCO, CSWS-500-12, 1/2, 500 kcmi l, 350/373 FLEX, DIE 87, UL, CSA
ILSCO, CSWS-500-58, DIE 87, 500 kcmil, 350/373 FLE X, UL, CSA
ILSCO, CSWS-500-34, 500kcmil, 350/ 373 FLEX, DIE 87, UL, CSA
ILSCO, CSWS-500-78, 7/8, 500kcm il, 350/373 FLEX, DIE 87, UL, CSA
"G"
.234
Catalog Number
CSWS-500-14 2.907 0.281 0.180
CSWS-500-516 2.907 0.343 0.180
CSWS-500-38 2.907 0.406 0.211
CSWS-500-12 3.282 0.562 0.265
CSWS-500-58 3.469 0.656 0.343
CSWS-500-34 3.719 0.781 0.359
CSWS-500-78 3.969 0.906 0.437
CSWS-500-1 4.157 1.031 0.500
"A" "D" "G" TANG MARKING
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILS CO AND MAY NOT BE DISCLOSED WITHOUT PRIOR WRITTEN CONSENT
TOP AND BOTTOM INK MARKINGS A RE IDENTICAL
DETAIL B
INK COLOR:BROWN
1.062
