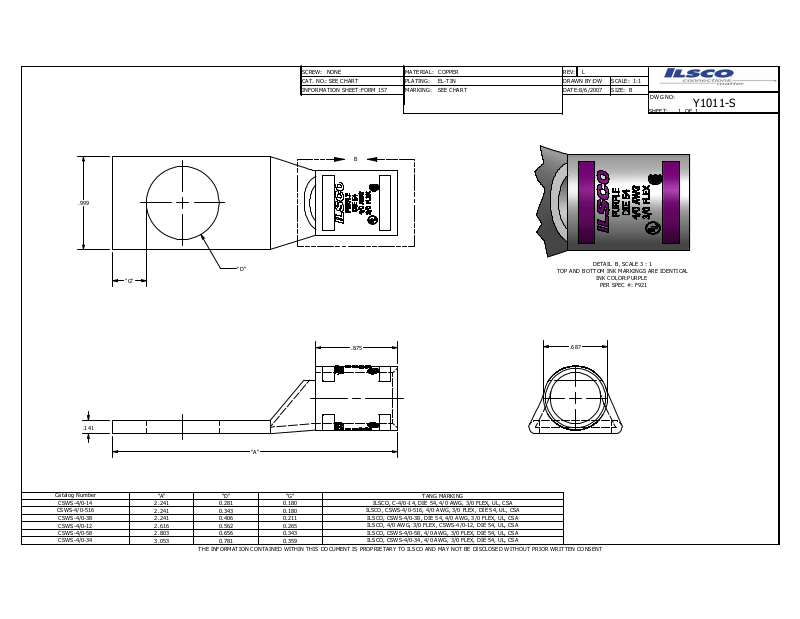

Ilsco CSWS-4/0-58 Data sheet

.999

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

FORM 1 57

B

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

L

8/6/2007

DW

SCALE: 1:1

SIZE: B

DWG N O:

SHEET: OF

1

Y1011-S

1

.141

Catalog Number

CSWS -4/0-14

CSWS-4 /0-516

CSWS -4/0-38
CSWS -4/0-12
CSWS -4/0-58
CSWS -4/0-34

"G"

"A" "D"

2.241 0.281 0.180

2.241 0.343 0.180

2.241

2.616 0.562 0.265

2.803 0.656 0.343

3.053 0.781 0.359

0.406 0.211

THE INF ORMATIO N CONTA INED WIT HIN THI S DOCU MENT IS PR OPRIET ARY TO IL SCO AND MAY NO T BE DISCL OSED W ITHOUT PRIOR WR ITTEN CONSENT

"D"

TOP AND BOTTOM INK MA RKINGS AR E IDENT ICAL

.875

"A"

"G" TANG MA RKING

ILSCO, C-4/0-14, DIE 54, 4/0 AWG, 3/0 FLEX, UL, CSA

ILSCO, C SWS-4/0- 516, 4/0 A WG, 3/0 FLEX, DI E 54, UL, CS A

ILSCO, CSWS-4/0 -38, DIE 54, 4/0 AW G, 3/0 FLEX, UL, CSA
ILSCO, 4/0 AWG, 3/0 FLEX, CSWS-4 /0-12, DIE 54, UL, CSA
ILSCO, CSWS-4/0 -58, 4/0 A WG, 3/0 FLEX, DIE 54, UL, CSA
ILSCO, CSWS-4/0 -34, 4/0 A WG, 3/0 FLEX, DIE 54, UL, CSA

DETAIL B, SCAL E 3 : 1

INK COL OR:PURP LE

PER SPE C #: F92 1

.687
