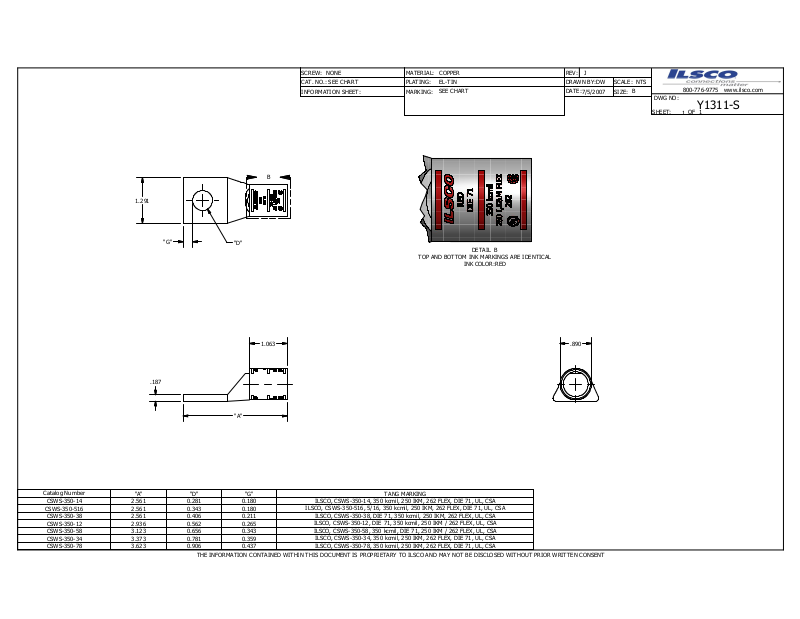

Ilsco CSWS-350-14 Data sheet

1.291

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

B

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

J

DW

7/5/2007

SCALE: NTS

B

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

Y1311-S

1

"G"

.187

Catalog Number

CSWS-350-14 2.561 0.281 0.180

CSWS-350-516 2.561 0.343 0.180

CSWS-350-38 2.561 0.406 0.211
CSWS-350-12 2.936 0.562 0.265
CSWS-350-58 3.123 0.656 0.343
CSWS-350-34 3.373 0.781 0.359
CSWS-350-78 3.623 0.906 0.437

"A" "D" "G"

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

"D"

"A"

1.063

TOP AND BOTTOM INK MARKING S ARE IDENTICAL

ILSCO, CSWS-350-14, 350 kcmi l, 250 IKM, 262 FLEX, DIE 71, UL, CSA

ILSCO, CSWS-350-516, 5/16, 350 kcmil, 250 IKM, 262 FLEX, DIE 71, UL, CSA

ILSCO, CSWS-350-38, DIE 71, 350 kcmi l, 250 IKM, 262 FLEX, UL, CSA
ILSCO, CSWS-350-12, DIE 71, 350 kcmil, 250 IKM / 262 FLEX, UL, CSA
ILSCO, CSWS-350-58, 350 kcmil, DIE 71, 250 IKM / 262 FLEX, UL, CSA

ILSCO, CSWS-350-34, 350 kcmi l, 250 IKM, 262 FLEX, DIE 71, UL, CSA

ILSCO, CSWS-350-78, 350 kcmi l, 250 IKM, 262 FLEX, DIE 71, UL, CSA

TANG MARKING

DETAIL B

INK COLOR:RED

.890
