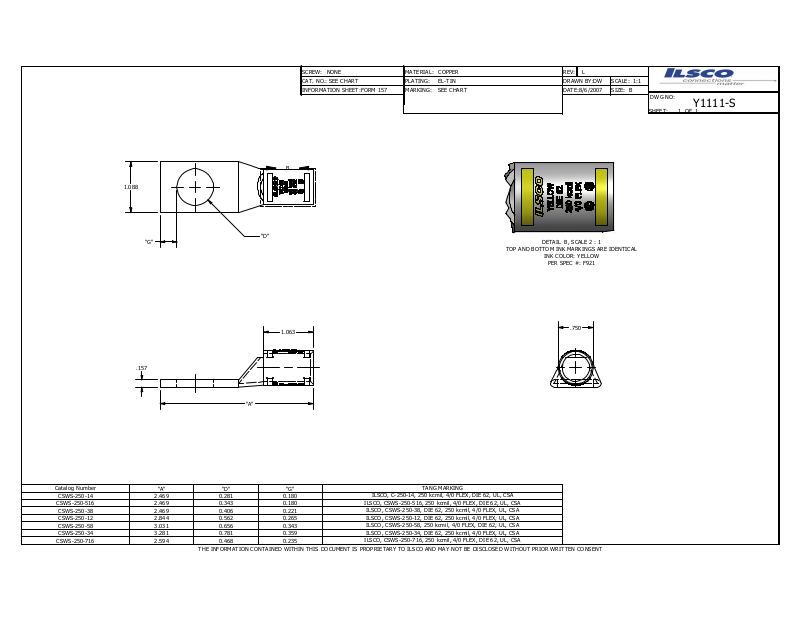

Ilsco CSWS-250-58 Data sheet

1.088

SCREW: NONE

CAT. NO .:

INFORM ATION SHEET :

B

SEE CH ART

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

L

8/6/2007

DW

SCALE: 1:1

SIZE: B

DWG N O:

SHEET: OF

1

Y1111-S

1

"G"

.157

Catalog N umber

CSWS-2 50-14 2.469 0.281 0.180

CSWS-2 50-516 2.469 0.343 0.180

CSWS-2 50-38 2.469 0.406 0.221
CSWS-2 50-12 2.844 0.562 0.265
CSWS-2 50-58 3.031 0.656 0.343
CSWS-2 50-34 3.281 0.781 0.359

CSWS-2 50-716 2.594 0.468 0.235

"A" "D" "G"

THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED WI THOUT PR IOR WR ITTEN CONSEN T

"D"

1.063

"A"

TOP AN D BOTT OM INK MARKIN GS ARE IDENTICA L

ILSCO, C-250-14, 250 kcm il, 4/0 FLEX, DI E 62, UL , CSA

ILSCO, C SWS-250 -516, 250 kcmil , 4/0 FLEX , DIE 62 , UL, CS A

ILSCO, CSWS-2 50-38, DI E 62, 250 kcmil, 4/0 FLEX , UL, C SA
ILSCO, CSWS-2 50-12, DI E 62, 250 kcmil, 4/0 FLEX , UL, C SA
ILSCO, CSWS-2 50-58, 25 0 kcmi l, 4/0 FLE X, DIE 6 2, UL, C SA
ILSCO, CSWS-2 50-34, DI E 62, 250 kcmil, 4/0 FLEX , UL, C SA

ILSCO, C SWS-250 -716, 250 kcmil , 4/0 FLEX , DIE 62 , UL, CS A

TANG MA RKING

DETAIL B, SCALE 2 : 1

INK COL OR: YELL OW

PER SPEC #: F9 21

.750
