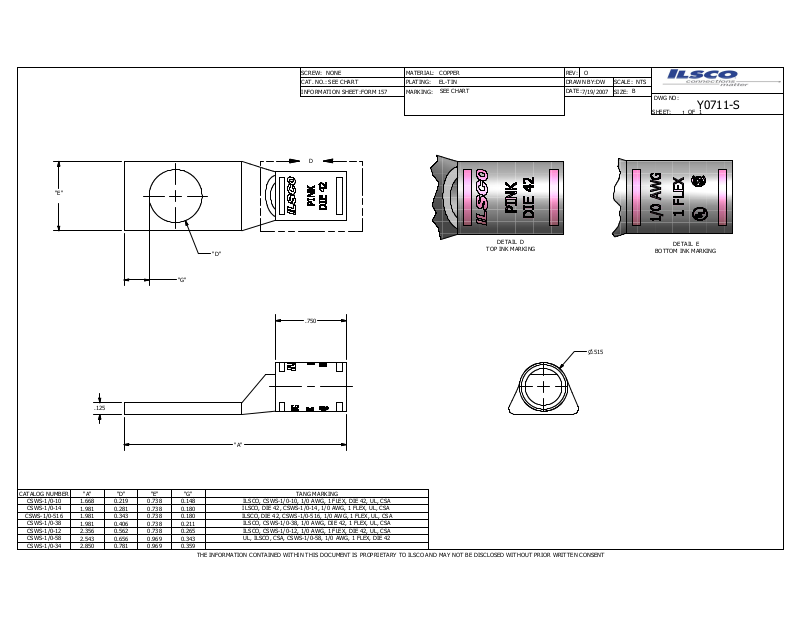

Ilsco CSWS-1/0-58 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

D

"E"

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

O

DW

7/19/2007

SCALE: NTS

B

SIZE:

DWG NO:

SHEET: OF

1

Y0711-S

1

CATALOG NUMBER

CSWS-1/0-10
CSWS-1/0-14

CSWS-1/0-516

CSWS-1/0-38
CSWS-1/0-12
CSWS-1/0-58
CSWS-1/0-34

"D"

"G"

.750

.125

"A"

"A" "D" "E" "G"

1.668 0.219 0.738 0.148

1.981 0.281 0.738 0.180

1.981 0.343 0.738 0.180

1.981 0.406 0.738 0.211

2.356 0.562 0.738 0.265

2.543 0.656 0.969 0.343

2.850 0.781 0.969 0.359
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

ILSCO, CSWS-1/0-10, 1/0 AWG, 1 FLEX, DIE 42, UL, CSA

ILSCO, DIE 42, CSWS-1/0-14, 1/0 AWG, 1 FLEX, UL, CSA

ILSCO, DIE 42, CSWS-1/0-516, 1/0 AWG, 1 FLEX, UL, CSA

ILSCO, CSWS-1/0-38, 1/0 AWG, DIE 42, 1 FLEX, UL, CSA
ILSCO, CSWS-1/0-12, 1/0 AWG, 1 FLEX, DIE 42, UL, CSA
UL, ILSCO, CSA, CSWS-1/0-58, 1/0 AWG, 1 FLEX, DIE 42

TANG MARKING

DETAIL D

TOP INK MARKING

n

.515

DETAIL E

BOTTOM INK MARKING
