Ilsco CSWN-750-12 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

E

DW

5/12/2008

SCALE: NTS

B

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

YN1911-S

1

F

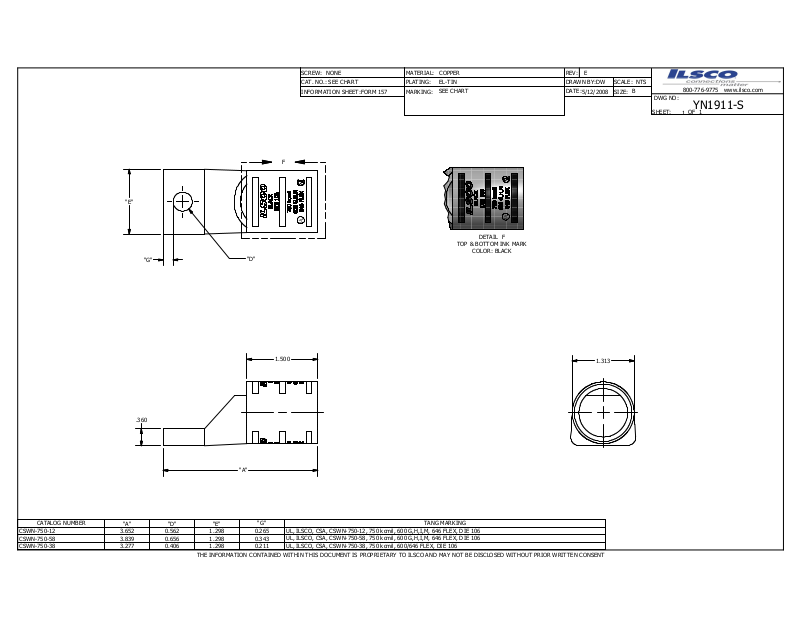

"E"

L

U

DETAIL F

"G"

"D"

L

U

TOP & BOTTOM INK MARK

COLOR: BLACK

.360

"A"

CATALOG NUMBER
CSWN-750-12 3.652 0.562 1.298 0.265
CSWN-750-58 3.839 0.656 1.298 0.343
CSWN-750-38 3.277 0.406 1.298 0.211

"A" "D" "E"

"G" TANG MARKING

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

1.500

UL, ILSCO, CSA, CSWN-750-12, 750 k cmil, 600 G,H,I,M, 646 FLEX, DIE 106
UL, ILSCO, CSA, CSWN-750-58, 750 k cmil, 600 G,H,I,M, 646 FLEX, DIE 106
UL, ILSCO, CSA, CSWN-750-38, 750 k cmil, 600/646 FLEX, DIE 106

1.313
