Ilsco CSWN-300-10 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

"E"

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

5/12/2008

SCALE: 2:1

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

YN1211-S

"G"

.220

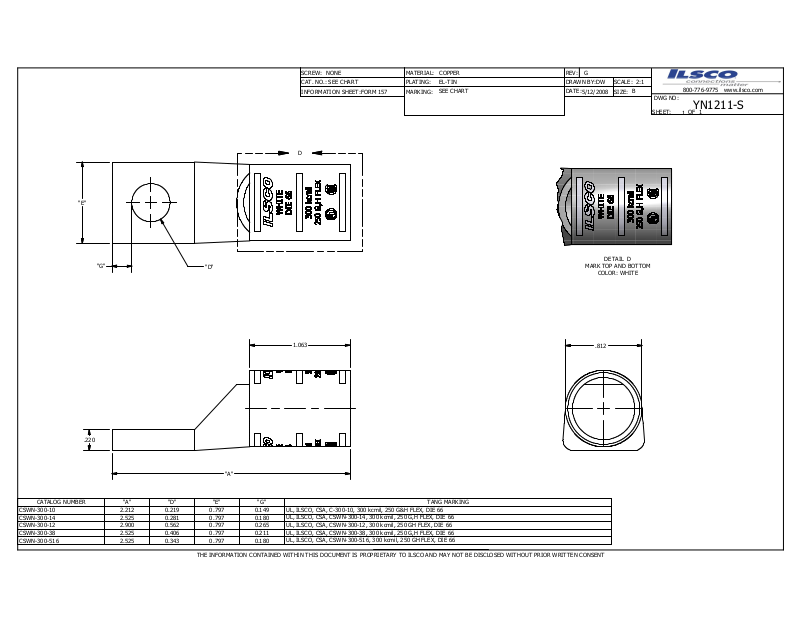

CATALOG NUMBER "A" "D" "E" "G" TANG MARKING CSWN-300-10 2.212 0.219 0.797 0.149 CSWN-300-14 2.525 0.281 0.797 0.180 CSWN-300-12 2.900 0.562 0.797 0.265 CSWN-300-38 2.525 0.406 0.797 0.211 CSWN-300-516 2.525 0.343 0.797 0.180

"D"

1.063

"A"

UL, ILSCO, CSA, C-300-10, 300 kcmil, 250 G&H FLEX, DIE 66 UL, ILSCO, CSA, CSWN-300-14, 300 k cmil, 250 G,H FLEX, DIE 66 UL, ILSCO, CSA, CSWN-300-12, 300 k cmil, 250 GH FLEX, DIE 66 UL, ILSCO, CSA, CSWN-300-38, 300 k cmil, 250 G,H FLEX, DIE 66 UL, ILSCO, CSA, CSWN-300-516, 300 k cmil, 250 GH FLEX, DIE 66

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

DETAIL D

MARK TOP AND BOTTOM

COLOR: WHITE

.812
