Ilsco CSWN-250-14-34 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

"E"

"G"

"C"

"D"

(2 PLACES)

FORM 157

D

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

G

2/17/2009

DW

SCALE: NTS

B

SIZE:

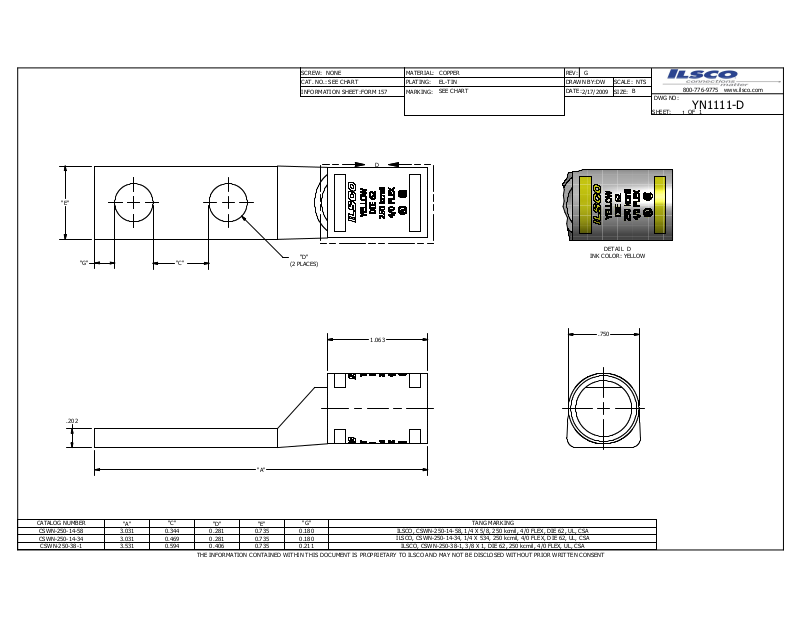

DETAIL D

INK COLOR: YELLOW

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

YN1111-D

1

.202

"A"

CATALOG NUMBER

CSWN-250-14-58 3.031 0.344 0.281 0.735 0.180
CSWN-250-14-34 3.031 0.469 0.281 0.735 0.180

CSWN-250-38-1 3.531 0.594 0.406 0.735 0.211

"A"

"C"

"D" "E"

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

1.063

"G" TANG MARKING

ILSCO, CSWN-250-14-58, 1/4 X 5/8, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
ILSCO, CSWN-250-14-34, 1/4 X 534, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA

ILSCO, CSWN-250-38-1, 3/8 X 1, DIE 62, 250 kcmil, 4/0 FLEX, UL, CSA

.750
