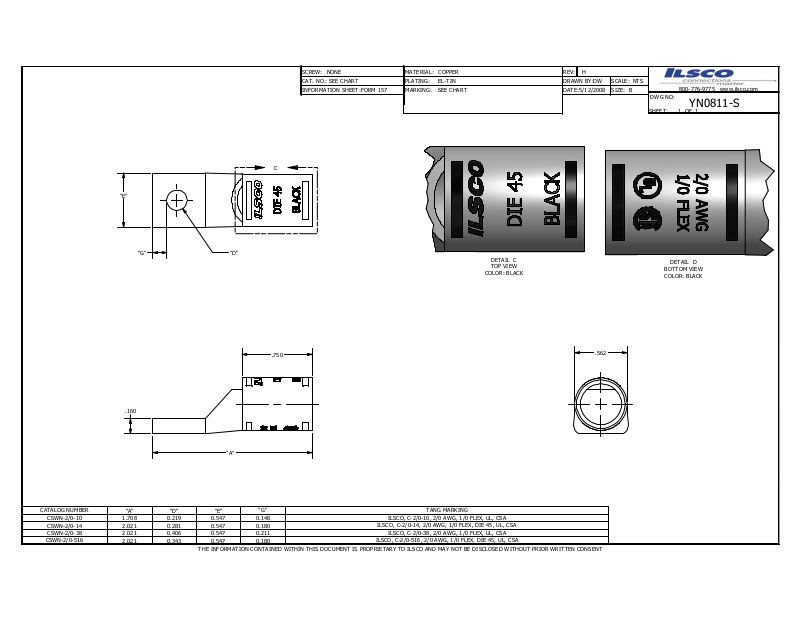

Ilsco CSWN-2/0-10 Data sheet

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET :

C

"E"

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

H

5/12/200 8

DW

SCALE: NTS

SIZE: B

800-77 6-9775 w ww.ilsc o.com

DWG N O:

SHEET: OF

YN0811-S

1

1

CATALOG NUMBER

CSWN- 2/0-10
CSWN- 2/0-14
CSWN- 2/0-38

CSWN-2/0 -516

"G" "D"

.160

"A"

"A" "D" "E"

1.708 0.219 0.547 0.148

2.021 0.281 0.547 0.180

2.021 0.406 0.547 0.211

2.021 0.343 0.547 0.180
THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED W ITHOUT PR IOR WR ITTEN CONSEN T

"G" TANG M ARKING

.750

DETAIL C
TOP VIE W

COLOR : BLACK

ILSCO , C-2/0-1 0, 2/0 AW G, 1/0 FLEX, UL , CSA

ILSCO, C-2/0-1 4, 2/0 AW G, 1/0 F LEX, D IE 45, UL, CSA

ILSCO , C-2/0-3 8, 2/0 AW G, 1/0 FLEX, UL , CSA

ILSCO, C -2/0-516 , 2/0 AW G, 1/0 FLEX, DI E 45, UL , CSA

.562

DETAIL D
BOTTO M VIEW
COLOR : BLACK
