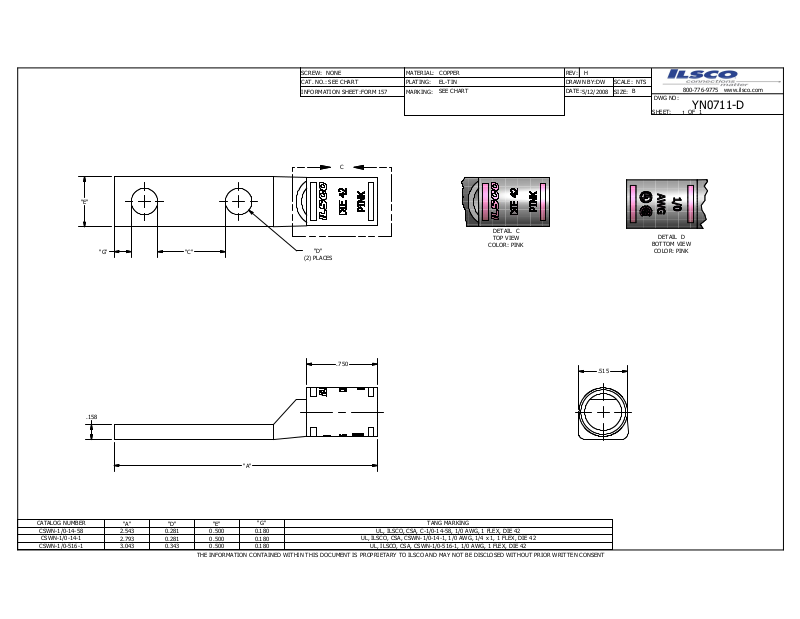

Ilsco CSWN-1/0-14-1 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

"E"

FORM 157

C

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

H

DW

5/12/2008

SCALE: NTS

B

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

YN0711-D

1

CATALOG NUMBER

CSWN-1/0-14-58

CSWN-1/0-14-1

CSWN-1/0-516-1

.158

"G"

"A" "D" "E"

2.543 0.281 0.500 0.180

2.793 0.281 0.500 0.180

3.043 0.343 0.500 0.180

"C"

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

"D"

(2) PLACES

.750

"A"

"G" TANG MARKING

UL, ILSCO, CSA, C-1/0-14-58, 1/0 AWG, 1 FLEX , DIE 42

UL, ILSCO, CSA, CSWN-1/0-14-1, 1/0 AWG, 1/4 x 1, 1 FLEX, DIE 42

UL, ILSCO, CSA, CSWN-1/0-516-1, 1/0 AWG , 1 FLEX, DIE 42

DETAIL C
TOP VIEW

COLOR: PINK

.515

DETAIL D

BOTTOM VIEW

COLOR: PINK
