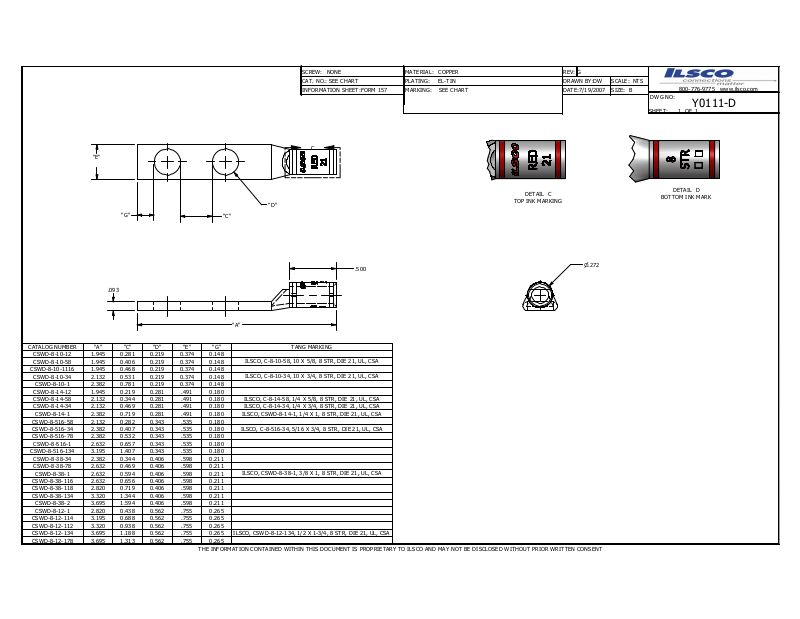

Ilsco CSWD-8-12-134 Data sheet

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET :

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

7/19/200 7

SCALE: NTS

SIZE: B

800-77 6-9775 w ww.ilsc o.com

DWG N O:

SHEET: OF

Y0111-D

"E"

"G"

.093

CATALOG NUMBE R

CSWD-8 -10-12 1.945 0.281 0.219 0.374 0.148 CSWD-8 -10-58 1.945 0.406 0.219 0.374 0.148

CSWD-8 -10-111 6 1.945 0.468 0.219 0.374 0.148

CSWD-8 -10-34 2.132 0.531 0.219 0.374 0.148

CSWD-8-1 0-1 2.382 0.781 0.219 0.374 0.148 CSWD-8 -14-12 1.945 0.219 0.281 .491 0.180 CSWD-8 -14-58 2.132 0.344 0.281 .491 0.180 CSWD-8 -14-34 2.132 0.469 0.281 .491 0.180

CSWD-8-1 4-1 2.382 0.719 0.281 .4 91 0 .180

CSWD-8-5 16-58 2.132 0.282 0.343 .535 0.180 CSWD-8-5 16-34 2.382 0.407 0.343 .535 0.180 CSWD-8-5 16-78 2.382 0.532 0.343 .535 0.180

CSWD-8 -516-1 2.632 0.657 0.343 .535 0.180

CSWD-8 -516-13 4 3.195 1.407 0.343 .535 0.180

CSWD-8 -38-34 2.382 0.344 0.406 .598 0.211 CSWD-8 -38-78 2.632 0.469 0.406 .598 0.211

CSWD-8-3 8-1 2.632 0.594 0.406 .5 98 0 .211

CSWD-8-3 8-116 2.632 0.656 0.406 .598 0.211 CSWD-8-3 8-118 2.820 0.719 0.406 .598 0.211 CSWD-8-3 8-134 3.320 1.344 0.406 .598 0.211

CSWD-8-3 8-2 3.695 1.594 0.406 .5 98 0 .211

CSWD-8-1 2-1 2.820 0.438 0.562 .7 55 0 .265

CSWD-8-1 2-114 3.195 0.688 0.562 .755 0.265 CSWD-8-1 2-112 3.320 0.938 0.562 .755 0.265 CSWD-8-1 2-134 3.695 1.188 0.562 .755 0.265 CSWD-8-1 2-178 3.695 1.313 0.562 .755 0.265

"C"

"A"

"D" "E"

"C"

"A"

"G" TANG MARKIN G

ILSCO, CSWD-8 -12-134 , 1/2 X 1- 3/4, 8 ST R, DIE 21, UL, CSA

THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED W ITHOUT PR IOR WR ITTEN CONSEN T

"D"

ILSCO , C-8-10 -58, 10 X 5/8, 8 STR, DIE 21, UL, CSA

ILSCO , C-8-10 -34, 10 X 3/4, 8 STR, DIE 21, UL, CSA

ILSCO, C-8-14-5 8, 1/4 X 5/8, 8 ST R, DIE 21, UL, CS A ILSCO, C-8-14-3 4, 1/4 X 3/4, 8 ST R, DIE 21, UL, CS A

ILSCO, CSWD-8- 14-1, 1/4 X 1, 8 STR, DI E 21, UL, CSA

ILSCO, C-8-516- 34, 5/16 X 3/4, 8 STR, D IE 21, U L, CSA

ILSCO, CSWD-8- 38-1, 3/8 X 1, 8 STR, DI E 21, UL, CSA

DETAIL D

BOTTOM INK M ARK

.500

DETAIL C

TOP INK MARKING

n .272
