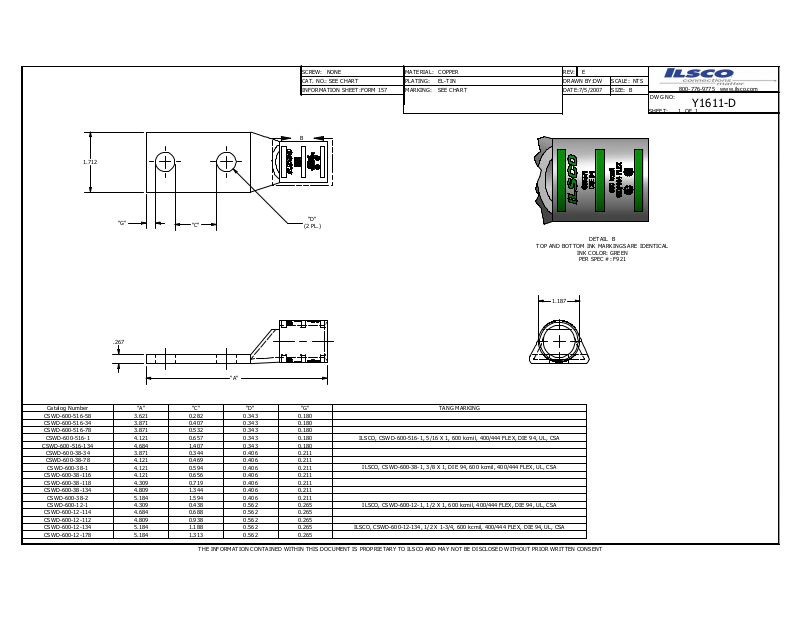

Ilsco CSWD-600-516-1 Data sheet

1.712

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

B

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

E

7/5/2007

DW

SCALE: NTS

SIZE: B

800-77 6-9775 w ww.ilsco .com

DWG N O:

SHEET: OF

1

Y1611-D

1

"G"

.267

Catalog Number
CSWD-6 00-516-5 8 3.621 0.282 0.343 0.180
CSWD-6 00-516-3 4 3.871 0.407 0.343 0.180
CSWD-6 00-516-7 8 3.871 0.532 0.343 0.180

CSWD-600 -516-1 4.121 0.657 0.343 0.180

CSWD-600 -516-1 34 4.684 1.407 0.343 0.180

CSWD-600 -38-34 3.871 0.344 0.406 0.211
CSWD-600 -38-78 4.121 0.469 0.406 0.211

CSWD-6 00-38-1 4.121 0.594 0.406 0.211
CSWD-6 00-38-11 6 4.121 0.656 0.406 0.211
CSWD-6 00-38-11 8 4.309 0.719 0.406 0.211
CSWD-6 00-38-13 4 4.809 1.344 0.406 0.211

CSWD-6 00-38-2 5.184 1.594 0.406 0.211

CSWD-6 00-12-1 4.309 0.438 0.562 0.265
CSWD-6 00-12-11 4 4.684 0.688 0.562 0.265
CSWD-6 00-12-11 2 4.809 0.938 0.562 0.265
CSWD-6 00-12-13 4 5.184 1.188 0.562 0.265
CSWD-6 00-12-17 8 5.184 1.313 0.562 0.265

"A" "C" "D" "G" TANG MA RKING

"C"

"A"

THE INF ORMATI ON CONT AINED W ITHIN T HIS DO CUMENT IS PROPR IETARY TO ILSCO AND M AY NOT B E DISCLO SED W ITHOUT P RIOR WR ITTEN CONSENT

"D"

(2 PL.)

ILSCO, CSWD-6 00-516-1 , 5/16 X 1 , 600 kcm il, 400 /444 FLE X, DIE 94 , UL, CSA

ILSCO, CSWD-6 00-38-1, 3/8 X 1, DIE 94, 60 0 kcm il, 400/444 FLEX, U L, CSA

ILSCO, CSWD-6 00-12-1, 1/2 X 1, 600 kcmi l, 400/4 44 FLEX, D IE 94, U L, CSA

ILSCO, C SWD-600 -12-134, 1/2 X 1-3 /4, 600 k cmil, 400/ 444 FLEX , DIE 94, UL, C SA

TOP AN D BOTTO M INK MARKING S ARE ID ENTICA L

1.187

DETAIL B

INK COL OR: GREE N

PER SPE C #: F9 21
