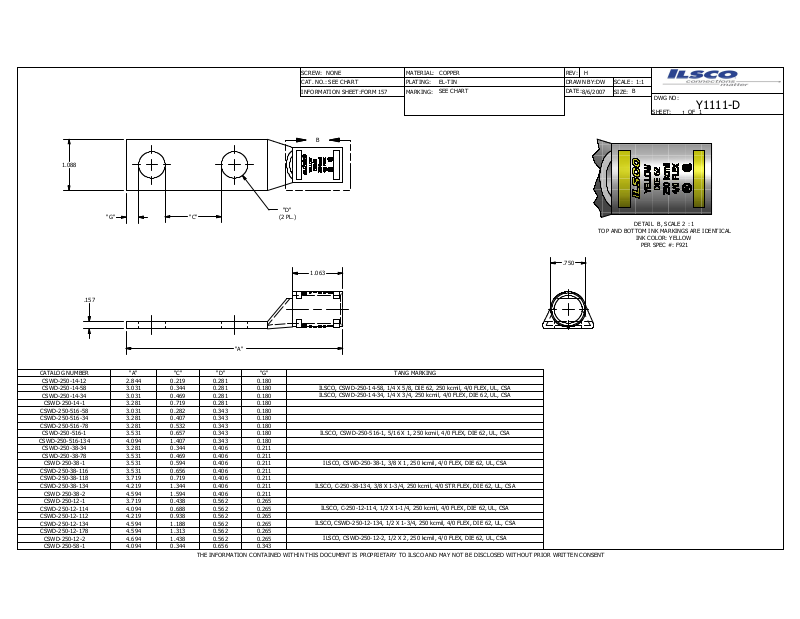

Ilsco CSWD-250-58-1 Data sheet
1.088
SCREW: NONE
CAT. NO.:
SEE CHART
INFORMATION SHEET:
B
FORM 157
MATERIAL:
PLATING:
MARKING:
REV:
DATE:
H
8/6/2007
COPPER
EL-TIN DRAWN BY:
SEE CHART
DW
SCALE:
SIZE:
1:1
B
DWG NO:
SHEET: OF
1
Y1111-D
1
"G"
.157
CATALOG NUMBER "A" "C" "D" "G" TANG MARKING
CSWD-250-14-12 2.844 0.219 0.281 0.180
CSWD-250-14-58 3.031 0.344 0.281 0.180
CSWD-250-14-34 3.031 0.469 0.281 0.180
CSWD-250-14-1 3.281 0.719 0.281 0.180
CSWD-250-516-58 3.031 0.282 0.343 0.180
CSWD-250-516-34 3.281 0.407 0.343 0.180
CSWD-250-516-78 3.281 0.532 0.343 0.180
CSWD-250-516-1 3.531 0.657 0.343 0.180
CSWD-250-516-134 4. 094 1.407 0.343 0.180
CSWD-250-38-34 3.281 0.344 0.406 0.211
CSWD-250-38-78 3.531 0.469 0.406 0.211
CSWD-250-38-1 3.531 0.594 0.406 0.211
CSWD-250-38-116 3.531 0.656 0.406 0.211
CSWD-250-38-118 3.719 0.719 0.406 0.211
CSWD-250-38-134 4.219 1.344 0.406 0.211
CSWD-250-38-2 4.594 1.594 0.406 0.211
CSWD-250-12-1 3.719 0.438 0.562 0.265
CSWD-250-12-114 4.094 0.688 0.562 0.265
CSWD-250-12-112 4.219 0.938 0.562 0.265
CSWD-250-12-134 4.594 1.188 0.562 0.265
CSWD-250-12-178 4.594 1.313 0.562 0.265
CSWD-250-12-2 4.694 1.438 0.562 0.265
CSWD-250-58-1 4.094 0.344 0.656 0.343
"C"
"A"
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT
"D"
(2 PL.)
1.063
ILSCO, CSWD-250-14-58, 1/4 X 5/8, DIE 62, 250 kcmil, 4/0 FLEX, UL, CSA
ILSCO, CSWD-250-14-34, 1/4 X 3/4, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
ILSCO, CSWD-250-516-1, 5/16 X 1, 250 kcmil , 4/0 FLEX, DIE 62, UL, CSA
ILSCO, CSWD-250-38-1, 3/8 X 1, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
ILSCO, C-250-38-134, 3/8 X 1-3/4, 250 kcmil, 4/0 STR FLEX, DIE 62, UL, CSA
ILSCO, C-250-12-114, 1/2 X 1-1/4, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
ILSCO, CSWD-250-12-134, 1/2 X 1-3/4, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
ILSCO, CSWD-250-12-2, 1/2 X 2, 250 kcmil, 4/0 FLEX, DIE 62, UL, CSA
.750
TOP AND BOTTOM INK MARKINGS ARE IDENTICAL
DETAIL B, SCALE 2 : 1
INK COLOR: YELLOW
PER SPEC #: F921
