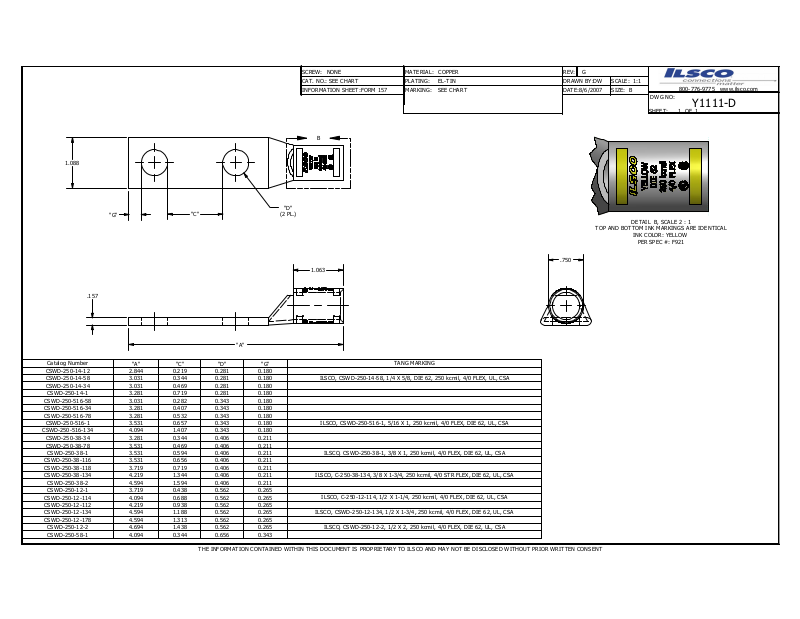

Ilsco CSWD-250-14-58 Data sheet

1.088

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

8/6/2007

SCALE: 1:1

SIZE: B

800-77 6-9775 w ww.ilsco .com

DWG N O:

SHEET: OF

Y1111-D

"G"

.157

Catalog Number CSWD-250 -14-12 2.844 0.219 0.281 0.180 CSWD-250 -14-58 3.031 0.344 0.281 0.180 CSWD-250 -14-34 3.031 0.469 0.281 0.180

CSWD-2 50-14-1 3.281 0.719 0.281 0.180

CSWD-2 50-516-5 8 3.031 0.282 0.343 0.180 CSWD-2 50-516-3 4 3.281 0.407 0.343 0.180 CSWD-2 50-516-7 8 3.281 0.532 0.343 0.180

CSWD-250 -516-1 3.531 0.657 0.343 0.180

CSWD-250 -516-1 34 4.0 94 1.407 0.343 0.180

CSWD-250 -38-34 3.281 0.344 0.406 0.211 CSWD-250 -38-78 3.531 0.469 0.406 0.211

CSWD-2 50-38-1 3.531 0.594 0.406 0.211

CSWD-2 50-38-11 6 3.531 0.656 0.406 0.211 CSWD-2 50-38-11 8 3.719 0.719 0.406 0.211 CSWD-2 50-38-13 4 4.219 1.344 0.406 0.211

CSWD-2 50-38-2 4.594 1.594 0.406 0.211

CSWD-2 50-12-1 3.719 0.438 0.562 0.265

CSWD-2 50-12-11 4 4.094 0.688 0.562 0.265 CSWD-2 50-12-11 2 4.219 0.938 0.562 0.265 CSWD-2 50-12-13 4 4.594 1.188 0.562 0.265 CSWD-2 50-12-17 8 4.594 1.313 0.562 0.265

CSWD-2 50-12-2 4.694 1.438 0.562 0.265

CSWD-2 50-58-1 4.094 0.344 0.656 0.343

"A" "C" "D" "G"

"C"

"A"

THE INF ORMATI ON CONT AINED W ITHIN T HIS DO CUMENT IS PROPR IETARY TO ILSCO AND M AY NOT B E DISCLO SED W ITHOUT P RIOR WR ITTEN CONSENT

"D"

(2 PL.)

1.063

TANG MA RKING

ILSCO, C SWD-250 -14-58, 1/4 X 5/8 , DIE 62, 250 kcm il, 4/0 FLE X, UL, CSA

ILSCO, CSWD-2 50-516-1 , 5/16 X 1 , 250 kcm il, 4/0 FLEX, DIE 62, UL, CSA

ILSCO, CSWD-2 50-38-1, 3/8 X 1, 250 kcmi l, 4/0 FLE X, DIE 6 2, UL, CS A

ILSCO, C-250-38- 134, 3/ 8 X 1-3/4 , 250 kcm il, 4/0 ST R FLEX , DIE 62, UL, CSA

ILSCO, C-250-12- 114, 1/2 X 1-1/4 , 250 kcmi l, 4/0 FL EX, DIE 62 , UL, CSA

ILSCO , CSWD-2 50-12-13 4, 1/2 X 1 -3/4, 2 50 kcmil, 4 /0 FLEX, DIE 62 , UL, CSA

ILSCO, CSWD-2 50-12-2, 1/2 X 2, 250 kcmi l, 4/0 FLE X, DIE 6 2, UL, CS A

.750

TOP AND BOTTOM INK MA RKINGS ARE ID ENTICAL

DETAIL B, SCAL E 2 : 1

INK CO LOR: YEL LOW

PER SPEC #: F921
