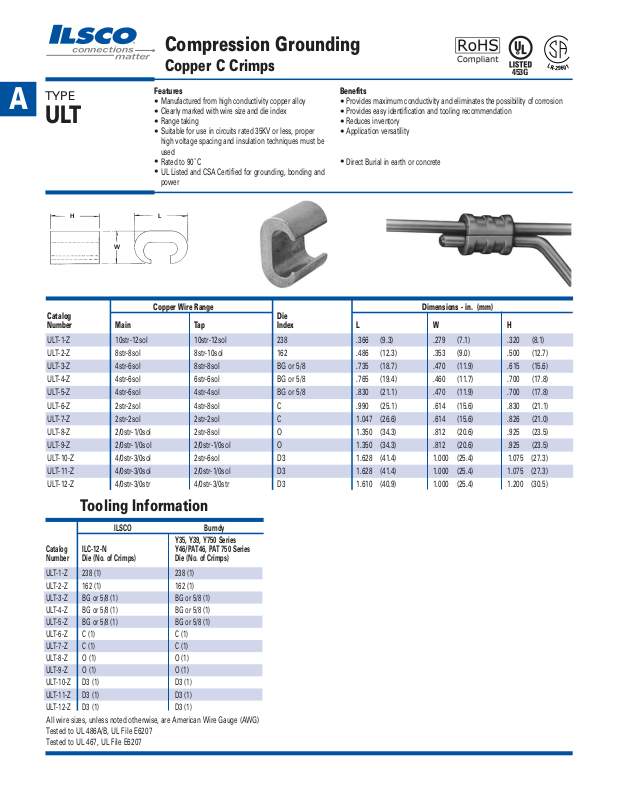

Ilsco Compression Grounding Catalog Page
Compression Grounding
Copper C Crimps
453G
L
1
R
0
-
2
6
9
A
TYPE
ULT
H
W
Catalog Die
Number Main Tap Index L W H
ULT-1-Z 10str-12sol 10str-12sol 238 .366 (9.3) .279 (7.1) .320 (8.1)
ULT-2-Z 8str-8sol 8str-10sol 162 .486 (12.3) .353 (9.0) .500 (12.7)
ULT-3-Z 4str-6sol 8str-8sol BG or 5/8 .735 (18.7) .470 (11.9) .615 (15.6)
ULT-4-Z 4str-6sol 6str-6sol BG or 5/8 .765 (19.4) .460 (11.7) .700 (17.8)
ULT-5-Z 4str-6sol 4str-4sol BG or 5/8 .830 (21.1) .470 (11.9) .700 (17.8)
ULT-6-Z 2str-2sol 4str-8sol C .990 (25.1) .614 (15.6) .830 (21.1)
ULT-7-Z 2str-2sol 2str-2sol C 1.047 (26.6) .614 (15.6) .826 (21.0)
ULT-8-Z 2/0str-1/0sol 2str-8sol O 1.350 (34.3) .812 (20.6) .925 (23.5)
ULT-9-Z 2/0str-1/0sol 2/0str-1/0sol O 1.350 (34.3) .812 (20.6) .925 (23.5)
ULT-10-Z 4/0str-3/0sol 2str-6sol D3 1.628 (41.4) 1.000 (25.4) 1.075 (27.3)
ULT-11-Z 4/0str-3/0sol 2/0str-1/0sol D3 1.628 (41.4) 1.000 (25.4) 1.075 (27.3)
ULT-12-Z 4/0str-3/0str 4/0str-3/0str D3 1.610 (40.9) 1.000 (25.4) 1.200 (30.5)
Features
Manufactured from high conductivity copper alloy
•
Clearly marked with wire size and die index
•
Range taking
•
Suitable for use in circuits rated 35KV or less, proper
•
high voltage spacing and insulation techniques must be
used
Rated to 90˚ C
•
UL Listed and CSA Certified for grounding, bonding and
•
power
L
Copper Wire Range Dimensions - in. (mm)
Benefits
Provides maximum conductivity and eliminates the possibility of corrosion
•
Provides easy identification and tooling recommendation
•
Reduces inventory
•
Application versatility
•
Direct Burial in earth or concrete
•
Tooling Information
ILSCO Burndy
Catalog ILC-12-N Y46/PAT46, PAT 750 Series
Number Die (No. of Crimps) Die (No. of Crimps)
ULT-1-Z 238 (1) 238 (1)
ULT-2-Z 162 (1) 162 (1)
ULT-3-Z BG or 5/8 (1) BG or 5/8 (1)
ULT-4-Z BG or 5/8 (1) BG or 5/8 (1)
ULT-5-Z BG or 5/8 (1) BG or 5/8 (1)
ULT-6-Z C (1) C (1)
ULT-7-Z C (1) C (1)
ULT-8-Z O (1) O (1)
ULT-9-Z O (1) O (1)
ULT-10-Z D3 (1) D3 (1)
ULT-11-Z D3 (1) D3 (1)
ULT-12-Z D3 (1) D3 (1)
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Tested to UL 486A/B, UL File E6207
Tested to UL 467, UL File E6207
Y35, Y39, Y750 Series
