Ilsco CLWS-350-14 Data sheet

1.291

SCREW: NONE

CAT. NO.:

INFORMATION SHEET:

B

SEE CHART

FORM 157

MATERIAL:

PLATING:

MARKING:

REV:

DATE:

E

7/5/2007

COPPER

EL-TIN DRAWN BY:

SEE CHART

DW

SCALE: NTS

B

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

Y1313-S

1

"G"

.187

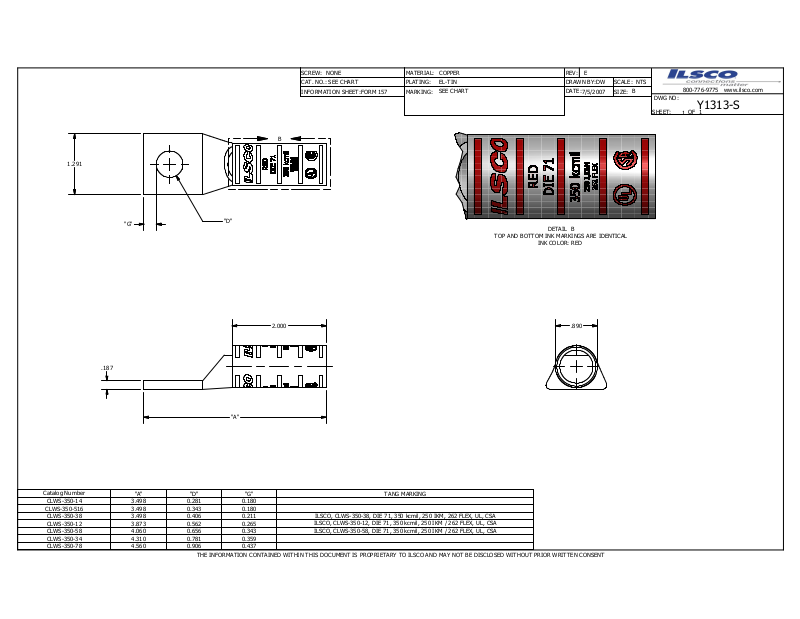

Catalog Number

CLWS-350-14 3.498 0.281 0.180

CLWS-350-516 3.498 0.343 0.180

CLWS-350-38 3.498 0.406 0.211
CLWS-350-12 3.873 0.562 0.265
CLWS-350-58 4.060 0.656 0.343
CLWS-350-34 4.310 0.781 0.359
CLWS-350-78 4.560 0.906 0.437

"A" "D" "G"

"D"

2.000

"A"

TANG MARKING

ILSCO, CLWS-350-38, DIE 71, 350 kcmil , 250 IKM, 262 FLEX, UL, CSA
ILSCO, CLWS-350-12, DIE 71, 350 kcm il, 250 IKM / 262 FLEX, UL, CSA
ILSCO, CLWS-350-58, DIE 71, 350 kcm il, 250 IKM / 262 FLEX, UL, CSA

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILS CO AND MAY NOT BE DISCLOSED WITHOU T PRIOR WRITTEN CONSENT

TOP AND BOTTOM INK MARKINGS ARE IDENTICAL

DETAIL B

INK COLOR: RED

.890
