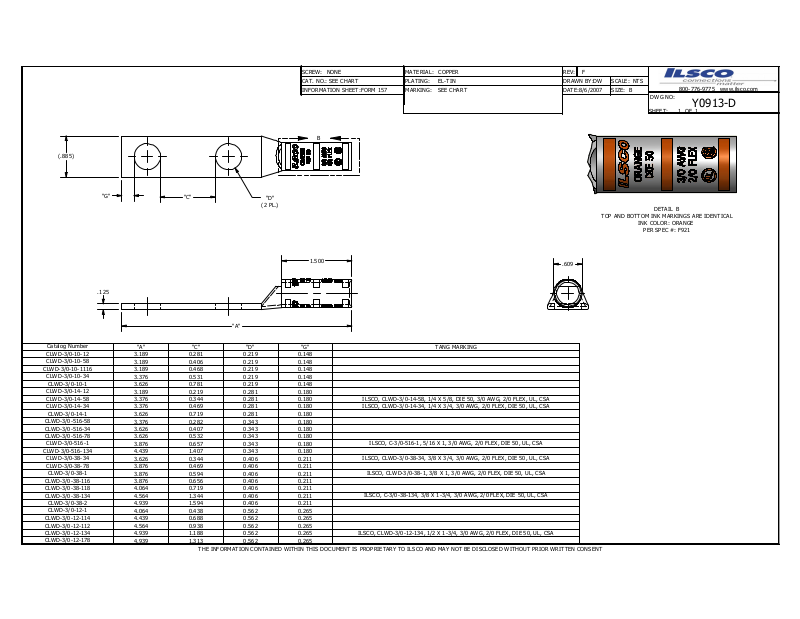

Ilsco CLWD-3/0-38-134 Data sheet

(.885)

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

8/6/2007

SCALE: NTS

SIZE: B

800-77 6-9775 w ww.ilsco.c om

DWG N O:

SHEET: OF

Y0913-D

Catalog Number CLWD- 3/0-10-12 CLWD- 3/0-10-58

CLWD- 3/0-10-11 16

CLWD- 3/0-10-34

CLWD-3/0 -10-1 CLWD- 3/0-14-12 CLWD- 3/0-14-58 CLWD- 3/0-14-34

CLWD-3/0 -14-1

CLWD-3/0 -516-58 CLWD-3/0 -516-34 CLWD-3/0 -516-78

CLWD- 3/0-516-1

CLWD- 3/0-516-1 34

CLWD- 3/0-38-34 CLWD- 3/0-38-78

CLWD-3/0 -38-1

CLWD-3/0 -38-116 CLWD-3/0 -38-118 CLWD-3/0 -38-134

CLWD-3/0 -38-2

CLWD-3/0 -12-1

CLWD-3/0 -12-114 CLWD-3/0 -12-112 CLWD-3/0 -12-134 CLWD-3/0 -12-178

.125

"G"

"C"

"A"

3.189 0.281 0.219 0.148

3.189 0.406 0.219 0.148

3.189 0.468 0.219 0.148

3.376 0.531 0.219 0.148

3.626 0.781 0.219 0.148

3.189 0.219 0.281 0.180

3.376 0.344 0.281 0.180

3.376 0.469 0.281 0.180

3.626 0.719 0.281 0.180

3.376 0.282 0.343 0.180

3.626 0.407 0.343 0.180

3.626 0.532 0.343 0.180

3.876 0.657 0.343 0.180

4.439 1.407 0.343 0.180

3.626 0.344 0.406 0.211

3.876 0.469 0.406 0.211

3.876 0.594 0.406 0.211

3.876 0.656 0.406 0.211

4.064 0.719 0.406 0.211

4.564 1.344 0.406 0.211

4.939 1.594 0.406 0.211

4.064 0.438 0.562 0.265

4.439 0.688 0.562 0.265

4.564 0.938 0.562 0.265

4.939 1.188 0.562 0.265

4.939 1.313 0.562 0.265

"C"

THE INF ORMATIO N CONTA INED WIT HIN THI S DOCU MENT IS PR OPRIET ARY TO I LSCO AN D MAY NO T BE DISC LOSED W ITHOUT PRIOR WR ITTEN CONSENT

"D"

(2 PL.)

1.500

"G" TANG MARKING

ILSCO, CLWD-3/0- 14-58, 1 /4 X 5/8, D IE 50, 3 /0 AWG, 2/ 0 FLEX, UL, CSA ILSCO, CLWD-3/0- 14-34, 1 /4 X 3/4, 3 /0 AWG, 2/0 FLEX , DIE 50, UL, CSA

ILSCO, C-3/0-516- 1, 5/16 X 1, 3/0 A WG, 2/0 F LEX, DIE 50, UL, CSA

ILSCO, CLWD-3/0- 38-34, 3 /8 X 3/4, 3 /0 AWG, 2/0 FLEX , DIE 50, UL, CSA

ILSCO, CLWD-3/0- 38-1, 3/8 X 1, 3 /0 AWG, 2/0 FLEX, D IE 50, U L, CSA

ILSCO, C-3/0-38 -134, 3/8 X 1-3/4, 3/0 AWG, 2 /0 FLEX, DIE 50, U L, CSA

ILSCO, C LWD-3/0-1 2-134, 1/ 2 X 1-3/4 , 3/0 AW G, 2/0 FL EX, DIE 50, UL, CS A

.609

TOP AND BOTTOM INK MA RKINGS A RE IDENT ICAL

DETAIL B

INK CO LOR: OR ANGE

PER SPEC #: F921
