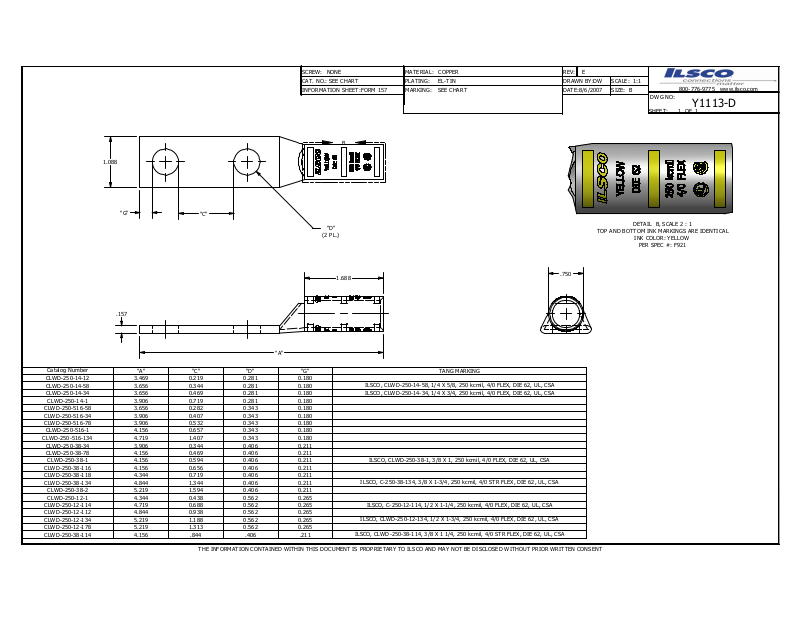

Ilsco CLWD-250-14-58 Data sheet

1.088

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET :

B

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE CH ART

REV:

DATE:

E

8/6/2007

DW

SCALE: 1:1

SIZE: B

800-77 6-9775 w ww.ilsc o.com

DWG N O:

SHEET: OF

1

Y1113-D

1

"G"

.157

Catalog Number
CLWD- 250-14-1 2 3.469 0.219 0.281 0.180
CLWD- 250-14-5 8 3.656 0.344 0.281 0.180
CLWD- 250-14-3 4 3.656 0.469 0.281 0.180

CLWD-25 0-14-1 3.906 0.719 0.281 0.180

CLWD-25 0-516-58 3.656 0.282 0.343 0.180
CLWD-25 0-516-34 3.906 0.407 0.343 0.180
CLWD-25 0-516-78 3.906 0.532 0.343 0.180

CLWD- 250-516- 1 4.156 0.657 0.343 0.180

CLWD- 250-516- 134 4.719 1.407 0.343 0.180

CLWD- 250-38-3 4 3.906 0.344 0.406 0.211
CLWD- 250-38-7 8 4.156 0.469 0.406 0.211

CLWD-25 0-38-1 4.156 0.594 0.406 0.211

CLWD-25 0-38-116 4.156 0.656 0.406 0.211
CLWD-25 0-38-118 4.344 0.719 0.406 0.211
CLWD-25 0-38-134 4.844 1.344 0.406 0.211

CLWD-25 0-38-2 5.219 1.594 0.406 0.211

CLWD-25 0-12-1 4.344 0.438 0.562 0.265

CLWD-25 0-12-114 4.719 0.688 0.562 0.265
CLWD-25 0-12-112 4.844 0.938 0.562 0.265
CLWD-25 0-12-134 5.219 1.188 0.562 0.265
CLWD-25 0-12-178 5.219 1.313 0.562 0.265
CLWD-25 0-38-114 4.156 .844 .406 .2 11

"A"

"C"

"D"

(2 PL.)

1.688

"A"

"C"

THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED W ITHOUT PR IOR WR ITTEN CONSEN T

"D"

"G" TANG MA RKING

ILSCO, C LWD-25 0-14-58, 1 /4 X 5/8 , 250 kc mil, 4/ 0 FLEX, D IE 62, U L, CSA
ILSCO, C LWD-25 0-14-34, 1 /4 X 3/4 , 250 kc mil, 4/ 0 FLEX, D IE 62, U L, CSA

ILSCO, CLWD-25 0-38-1, 3/8 X 1 , 250 kcmi l, 4/0 F LEX, DIE 62, UL, CSA

ILSCO, C-250-38- 134, 3 /8 X 1-3/ 4, 250 k cmil, 4/0 STR F LEX, DIE 62, UL, CSA

ILSCO, C-250-12- 114, 1/2 X 1-1/ 4, 250 k cmil, 4/0 FLEX, D IE 62, U L, CSA

ILSCO, CLWD-25 0-12-134 , 1/2 X 1-3/4, 250 kcmi l, 4/0 F LEX, DIE 62, UL, CSA

ILSCO, CLWD-25 0-38-114 , 3/8 X 1 1/4, 2 50 kcmil , 4/0 STR FLEX, D IE 62, UL, CSA

.750

TOP AN D BOTT OM INK MARKIN GS ARE IDENTICA L

DETAIL B, SCALE 2 : 1

INK COL OR: YELL OW

PER SPEC #: F9 21
