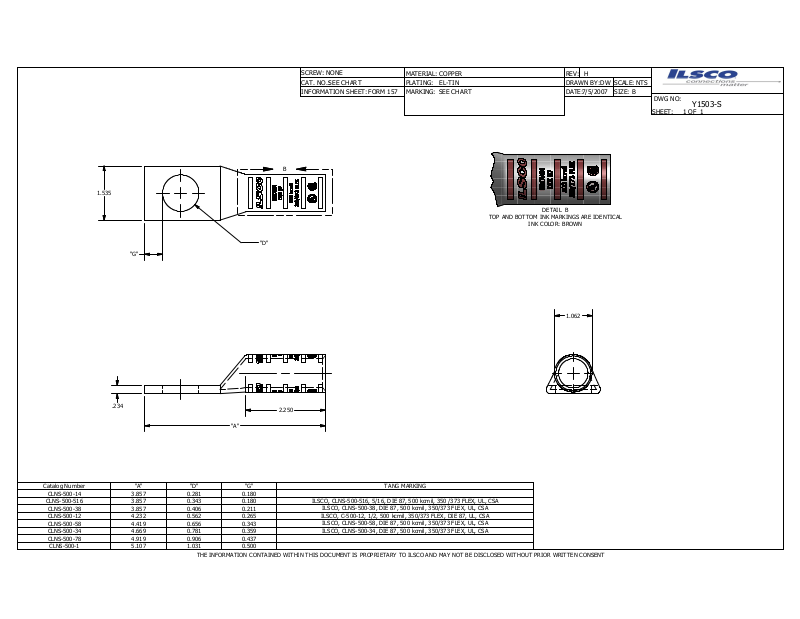

Ilsco CLNS-500-34 Data sheet

1.535

"G"

"D"

SCREW: NONE
CAT. NO.:
INFORMATION SHEET:

B

SEE CHART

FORM 157

MATERIAL:
PLATING:
MARKING:

COPPER

REV:

H

EL-TIN DRAWN BY:

DATE:

7/5/2007SEE CHART

TOP AND BOTTOM INK MARKIN GS ARE IDENTICAL

DETAIL B

INK COLOR: BROWN

1.062

DW

SCALE: NTS
SIZE: B

DWG NO:

SHEET: OF

1

Y1503-S

1

.234

"A"

Catalog Number

CLNS-500-14 3.857 0.281 0.180

CLNS-500-516 3.857 0.343 0.180

CLNS-500-38 3.857 0.406 0.211
CLNS-500-12 4.232 0.562 0.265
CLNS-500-58 4.419 0.656 0.343
CLNS-500-34 4.669 0.781 0.359
CLNS-500-78 4.919 0.906 0.437

CLNS-500-1 5.107 1.031 0.500

"A" "D" "G" TANG MARKING

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILS CO AND MAY NOT BE DISCLOSED WITHOU T PRIOR WRITTEN CONSENT

2.250

ILSCO, CLNS-500-516, 5/16, DIE 87, 500 kcmil, 350 /373 FLEX, UL, CSA

ILSCO, CLNS-500-38, DIE 87, 500 kcmil, 350/373 FLEX, UL, CSA

ILSCO, C-500-12, 1/2, 500 kcmil, 350/373 FLEX, DIE 87, UL, CSA

ILSCO, CLNS-500-58, DIE 87, 500 kcmil, 350/373 FLEX, UL, CSA
ILSCO, CLNS-500-34, DIE 87, 500 kcmil, 350/373 FLEX, UL, CSA
