Ilsco CLNS-4/0-34 Data sheet

.999

SCREW: NONE

CAT. NO.:

INFORMATION SHEET:

B

SEE CHART

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE BELOW

REV:

DATE:

H

8/6/2007

DW

SCALE:

SIZE:

1:1

B

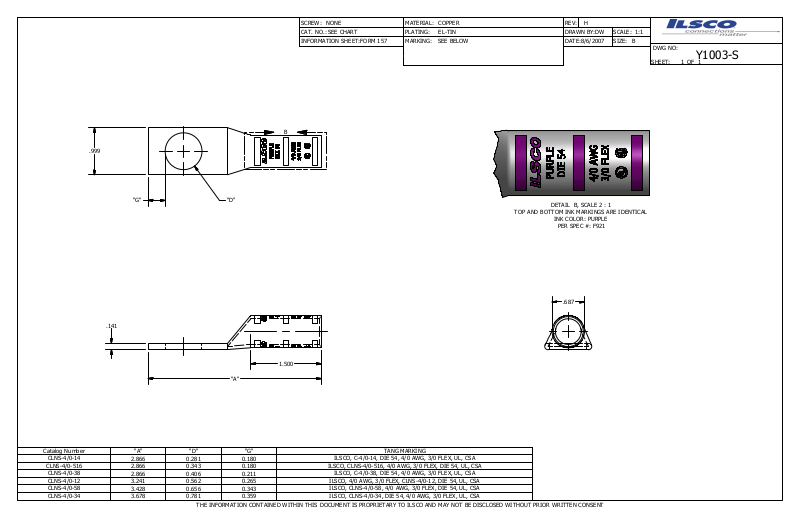

DWG NO:

Y1003-S

SHEET: OF

1

1

.141

"G"

"D"

DETAIL B, SCALE 2 : 1

TOP AND BOTTOM INK MARKINGS ARE IDENTICAL

INK COLOR: PURPLE

PER SPEC #: F921

.687

1.500

"A"

Catalog Number

CLNS-4/0-14

CLNS-4/0-516

CLNS-4/0-38
CLNS-4/0-12
CLNS-4/0-58
CLNS-4/0-34

"A" "D"

2.866 0.281 0.180

2.866 0.343 0.180

2.866 0.406 0.211

3.241 0.562 0.265

3.428 0.656 0.343

3.678 0.781 0.359
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIOR WRITTEN CONSENT

"G" TANG MARKING

ILSCO, C-4/0-14, DIE 54, 4/0 AWG, 3/0 FLEX, UL, CSA

ILSCO, CLNS-4/0-516, 4/0 AWG, 3/0 FLEX, DIE 54, UL, CSA

ILSCO, C-4/0-38, DIE 54, 4/0 AWG, 3/0 FLEX, UL, CSA
ILSCO, 4/0 AWG, 3/0 FLEX, CLNS-4/0-12, DIE 54, UL, CSA
ILSCO, CLNS-4/0-58, 4/0 AWG, 3/0 FLEX, DIE 54, UL, CSA
ILSCO, CLNS-4/0-34, DIE 54, 4/0 AWG, 3/0 FLEX, UL, CSA
