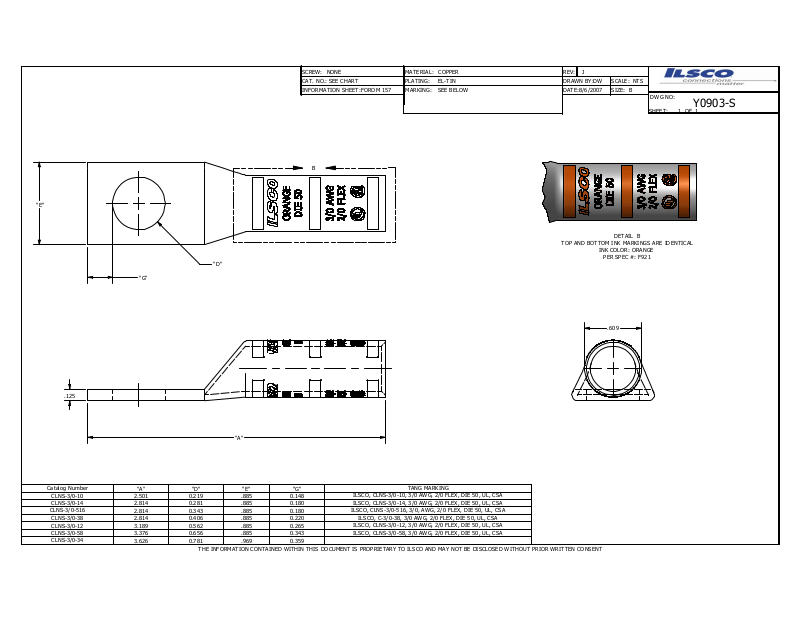

Ilsco CLNS-3/0-58 Data sheet

"E"

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

B

FOROM 157

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE BEL OW

REV:

DATE:

J

8/6/2007

DW

SCALE: NTS

SIZE: B

DWG N O:

SHEET: OF

1

Y0903-S

1

.125

Catalog Number

CLNS-3/ 0-10
CLNS-3/ 0-14

CLNS-3/ 0-516

CLNS-3/ 0-38
CLNS-3/ 0-12
CLNS-3/ 0-58
CLNS-3/ 0-34

"D"

"G"

"A"

"A" "D" "E" "G"

2.501 0.219 .885 0.148

2.814 0.281 .885 0.180

2.814 0.343 .885 0.180

2.814 0.406 .885 0.220

3.189 0.562 .885 0.265

3.376 0.656 .885 0.343

3.626 0.781 .969 0.359
THE INF ORMATIO N CONTA INED WIT HIN THI S DOCU MENT IS PR OPRIET ARY TO IL SCO AND MAY NO T BE DISCL OSED W ITHOUT PRIOR WR ITTEN CONSENT

ILSCO , CLNS-3/0 -10, 3/0 AWG, 2/0 FLEX, DI E 50, UL, CSA
ILSCO , CLNS-3/0 -14, 3/0 AWG, 2/0 FLEX, DI E 50, UL, CSA

ILSCO, CLNS-3/0 -516, 3/0, AWG, 2/0 FLEX, D IE 50, U L, CSA

ILSCO, C-3/0-38, 3/0 AWG, 2/0 FLEX, DIE 50, U L, CSA
ILSCO , CLNS-3/0 -12, 3/0 AWG, 2/0 FLEX, DI E 50, UL, CSA
ILSCO , CLNS-3/0 -58, 3/0 AWG, 2/0 FLEX, DI E 50, UL, CSA

TANG MA RKING

TOP AND BOTTOM INK MA RKINGS A RE IDENT ICAL

DETAIL B

INK CO LOR: ORA NGE

PER SP EC #: F92 1

.609
