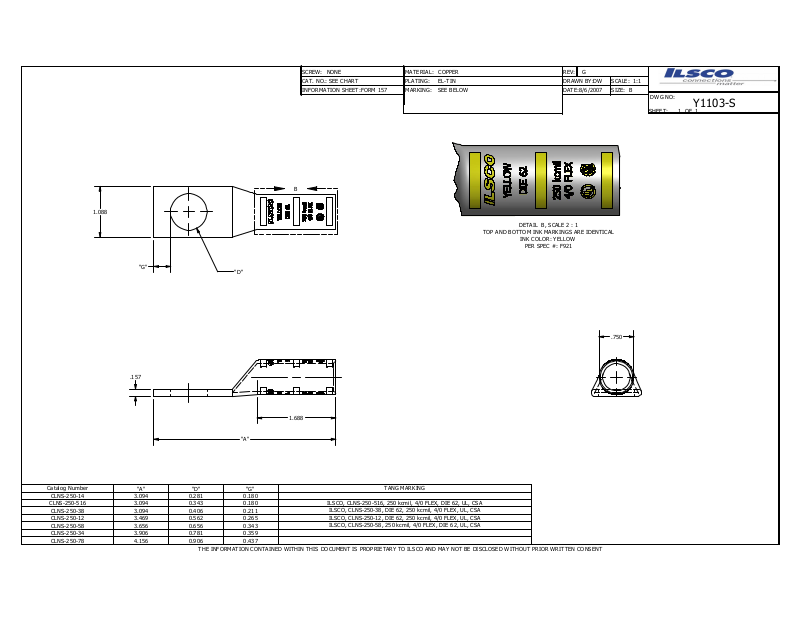

Ilsco CLNS-250-58 Data sheet

1.088

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET :

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE BEL OW

TOP AN D BOTT OM INK MARKIN GS ARE IDENTICA L

DETAIL B, SCALE 2 : 1

INK COL OR: YE LLOW

PER SPE C #: F9 21

REV:

DATE:

8/6/2007

SCALE: 1:1

SIZE: B

DWG N O:

SHEET: OF

Y1103-S

"G"

.157

Catalog Number

CLNS-25 0-14 3.094 0.281 0.180

CLNS-25 0-516 3.094 0.343 0.180

CLNS-25 0-38 3.094 0.406 0.211 CLNS-25 0-12 3.469 0.562 0.265 CLNS-25 0-58 3.656 0.656 0.343 CLNS-25 0-34 3.906 0.781 0.359 CLNS-25 0-78 4.156 0.906 0.437

"A" "D" "G"

THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED WI THOUT PR IOR WR ITTEN CONSEN T

"D"

1.688

"A"

TANG M ARKING

ILSCO, CLNS-25 0-516, 2 50 kcmi l, 4/0 FLE X, DIE 62, UL, CSA

ILSCO, CLNS-250- 38, DI E 62, 250 kcmil, 4/0 FLEX , UL, CSA ILSCO, CLNS-250- 12, DI E 62, 250 kcmil, 4/0 FLEX , UL, CSA ILSCO, CLNS-250- 58, 25 0 kcmil, 4/ 0 FLEX, DIE 62 , UL, CSA

.750
