SCREW: NONE
CAT. NO.:
SEE CHART
INFORMATION SHEET:
D
"E"
"D"
"G"
FORM 157
MATERIAL:
PLATING:
MARKING:
COPPER
EL-TIN DRAWN BY:
NONE
REV:
K
DW
SCALE: NTS
SIZE:
n
.562
DATE:
7/19/2007

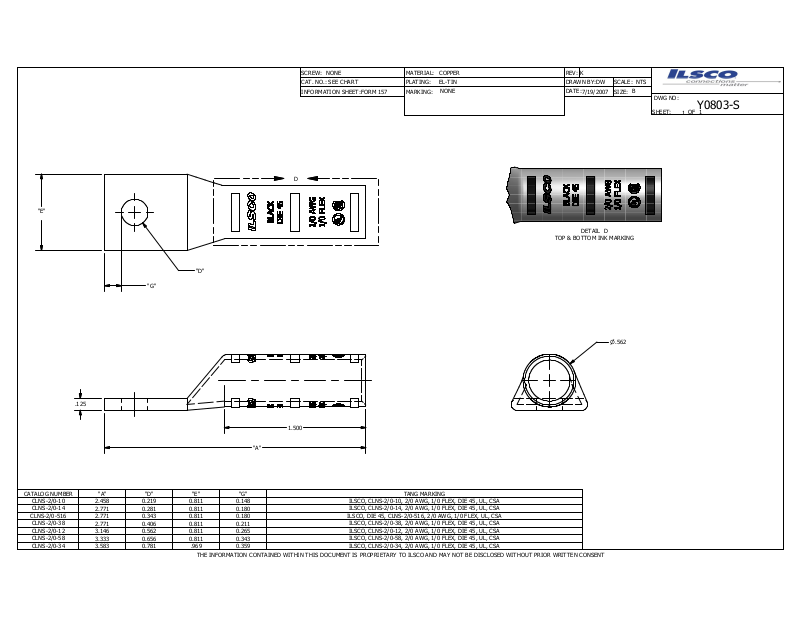

DETAIL D
TOP & BOTTOM INK MARKING
B
DWG NO:
SHEET: OF
1
Y0803-S
1
CATALOG NUMBER
CLNS-2/0-10
CLNS-2/0-14
CLNS-2/0-516
CLNS-2/0-38
CLNS-2/0-12
CLNS-2/0-58
CLNS-2/0-34
.125
"A" "D" "E" "G"
2.458 0.219 0.811 0.148
2.771 0.281 0.811 0.180
2.771 0.343 0.811 0.180
2.771 0.406 0.811 0.211
3.146 0.562 0.811 0.265
3.333 0.656 0.811 0.343
3.583 0.781 .969 0.359
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT
"A"
1.500
ILSCO, CLNS-2/0-10, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
ILSCO, CLNS-2/0-14, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
ILSCO, DIE 45, CLNS-2/0-516, 2/0 AWG, 1/0 FLEX, UL, CSA
ILSCO, CLNS-2/0-38, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
ILSCO, CLNS-2/0-12, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
ILSCO, CLNS-2/0-58, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
ILSCO, CLNS-2/0-34, 2/0 AWG, 1/0 FLEX, DIE 45, UL, CSA
TANG MARKING
