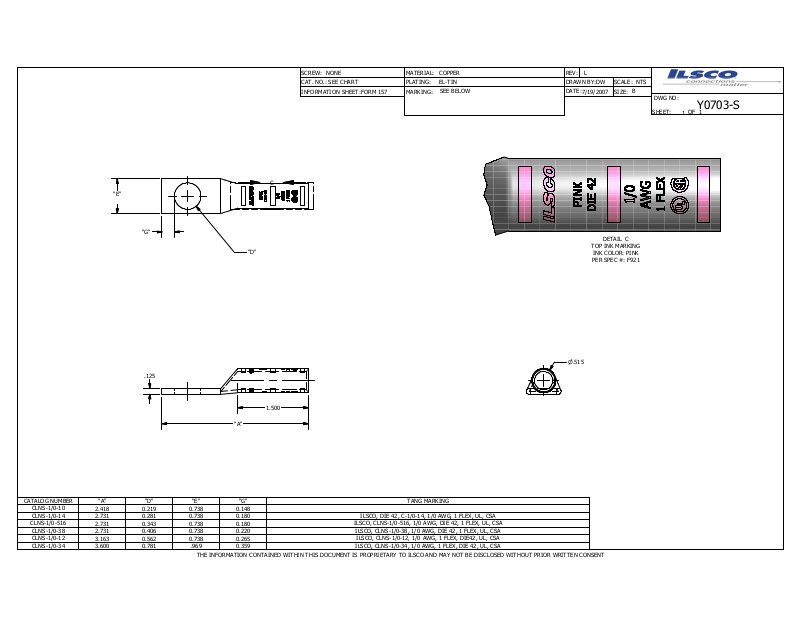

Ilsco CLNS-1/0-34 Data sheet

"E"

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

C

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE BELOW

REV:

DATE:

L

DW

7/19/2007

SCALE: NTS

B

SIZE:

DWG NO:

SHEET: OF

1

Y0703-S

1

"G"

"D"

.125

1.500

"A"

CATALOG NUMBER "A" "D" "E" "G" TANG MARKING

CLNS-1/0-10
CLNS-1/0-14

CLNS-1/0-516

CLNS-1/0-38
CLNS-1/0-12
CLNS-1/0-34

2.418 0.219 0.738 0.148

2.731 0.281 0.738 0.180

2.731 0.343 0.738 0.180

2.731 0.406 0.738 0.220

3.163 0.562 0.738 0.265

3.600 0.781 .969 0.359
THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

ILSCO, DIE 42, C-1/0-14, 1/0 AWG, 1 FLE X, UL, CSA

ILSCO, CLNS-1/0-516, 1/0 AWG, DIE 42, 1 FLEX , UL, CSA

ILSCO, CLNS-1/0-38, 1/0 AWG, DIE 42, 1 FLEX, UL, CSA

ILSCO, CLNS-1/0-12, 1/0 AWG, 1 FLEX, DIE42, UL, CSA

ILSCO, CLNS-1/0-34, 1/0 AWG, 1 FLEX, DIE 42, UL, CSA

n

.515

DETAIL C

TOP INK MARKING

INK COLOR: PINK

PER SPEC #: F921
