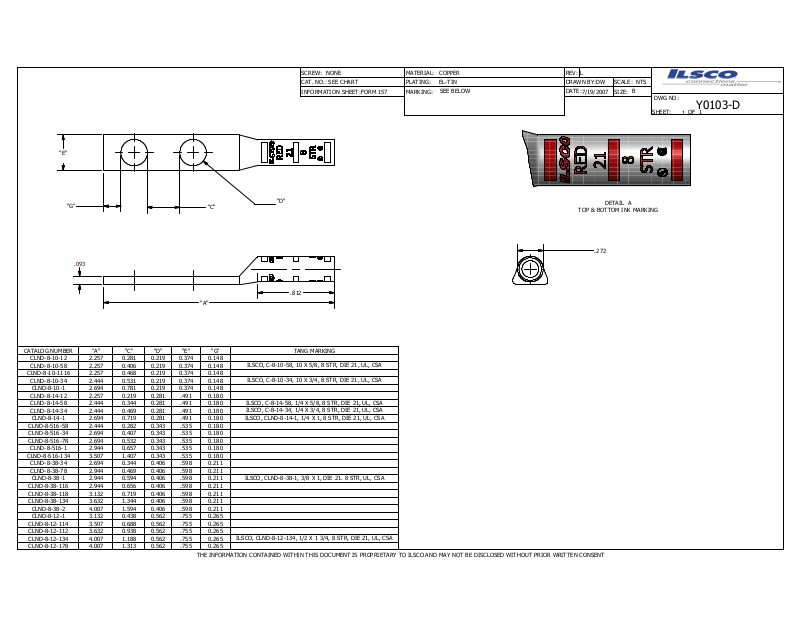

Ilsco CLND-8-12-134 Data sheet

SCREW: NONE

CAT. NO.:

SEE CHART

INFORMATION SHEET:

"E"

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE BELOW

REV:

DATE:

7/19/2007

SCALE: NTS

SIZE:

DWG NO:

SHEET: OF

Y0103-D

"G"

.093

CATALOG NUMBER "A" "C" "D" "E" "G" TANG MARKING

CLND-8-10-12 2. 257 0.281 0.219 0.374 0.148 CLND-8-10-58 2. 257 0.406 0.219 0.374 0.148

CLND-8-10-1116 2.257 0.468 0.219 0.374 0.148

CLND-8-10-34 2. 444 0.531 0.219 0.374 0.148

CLND-8-10-1 2.694 0.781 0.219 0.374 0.148 CLND-8-14-12 2. 257 0.219 0.281 .491 0.180 CLND-8-14-58 2. 444 0.344 0.281 .491 0.180 CLND-8-14-34 2. 444 0.469 0.281 .491 0.180

CLND-8-14-1 2.694 0.719 0.281 .4 91 0.180

CLND-8-516-58 2.444 0.282 0.343 .535 0.180 CLND-8-516-34 2.694 0.407 0.343 .535 0.180 CLND-8-516-78 2.694 0.532 0.343 .535 0.180

CLND-8-516-1 2. 944 0.657 0.343 .535 0.180

CLND-8-516-134 3.507 1.407 0.343 .5 35 0.180

CLND-8-38-34 2. 694 0.344 0.406 .598 0.211 CLND-8-38-78 2. 944 0.469 0.406 .598 0.211

CLND-8-38-1 2.944 0.594 0.406 .5 98 0.211

CLND-8-38-116 2.944 0.656 0.406 .598 0.211 CLND-8-38-118 3.132 0.719 0.406 .598 0.211 CLND-8-38-134 3.632 1.344 0.406 .598 0.211

CLND-8-38-2 4.007 1.594 0.406 .5 98 0.211

CLND-8-12-1 3.132 0.438 0.562

CLND-8-12-114 3.507 0.688 0.562 .755 0.265 CLND-8-12-112 3.632 0.938 0.562 CLND-8-12-134 4.007 1.188 0.562 .755 0.265 CLND-8-12-178 4.007 1.313 0.562 .755 0.265

"C"

"A"

ILSCO, C-8-14-58, 1/4 X 5/8, 8 STR, DIE 21, UL, CSA ILSCO, C-8-14-34, 1/4 X 3/4, 8 STR, DIE 21, UL, CSA

ILSCO, CLND-8-14-1, 1/4 X 1, 8 STR, DIE 21, UL, CSA

ILSCO, CLND-8-38-1, 3/8 X 1, DIE 21. 8 STR, UL, CSA

.755

0.265

.755

0.265 ILSCO, CLND-8-12-134, 1/2 X 1 3 /4, 8 STR, DIE 21, UL, CSA

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIO R WRITTEN CONSENT

"D"

.812

ILSCO, C-8-10-58, 10 X 5/8, 8 STR, DIE 21, UL, CSA

ILSCO, C-8-10-34, 10 X 3/4, 8 STR, DIE 21, UL, CSA

DETAIL A

TOP & BOTTOM INK MARKING

.272
