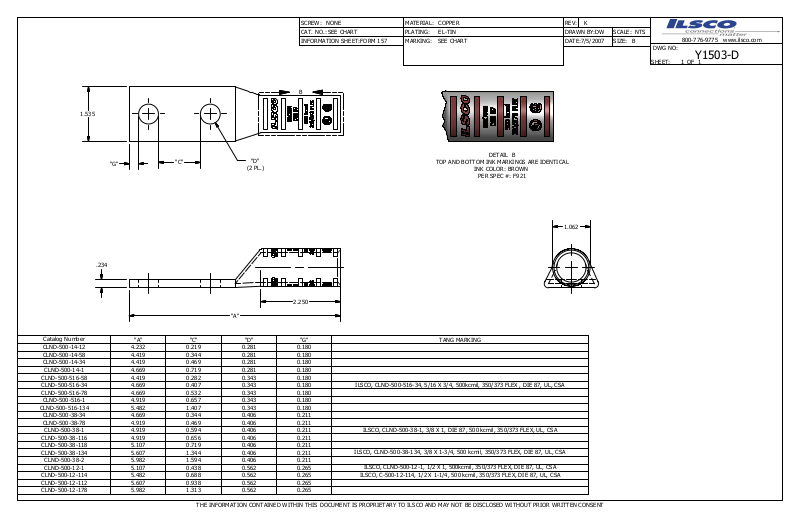

Ilsco CLND-500-38-134 Data sheet

1.535

SCREW: NONE

CAT. NO.:

INFORMATION SHEET:

B

SEE CHART

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE CHART

REV:

DATE:

K

7/5/2007

DW

SCALE: NTS

B

SIZE:

800-776-9775 www.ilsco.com

DWG NO:

SHEET: OF

1

Y1503-D

1

"G"

.234

Catalog Number
CLND-500-14-12 4.232 0.219 0.281 0.180
CLND-500-14-58 4.419 0.344 0.281 0.180
CLND-500-14-34 4.419 0.469 0.281 0.180

CLND-500-14-1 4.669 0.719 0.281 0.180
CLND-500-516-58 4.419 0.282 0.343 0.180
CLND-500-516-34 4.669 0.407 0.343 0.180
CLND-500-516-78 4.669 0.532 0.343 0.180

CLND-500-516-1 4.919 0.657 0.343 0.180

CLND-500-516-134 5.482 1.407 0.343 0.180

CLND-500-38-34 4.669 0.344 0.406 0.211
CLND-500-38-78 4.919 0.469 0.406 0.211

CLND-500-38-1 4.919 0.594 0.406 0.211
CLND-500-38-116 4.919 0.656 0.406 0.211
CLND-500-38-118 5.107 0.719 0.406 0.211
CLND-500-38-134 5.607 1.344 0.406 0.211

CLND-500-38-2 5.982 1.594 0.406 0.211

CLND-500-12-1 5.107 0.438 0.562 0.265
CLND-500-12-114 5.482 0.688 0.562 0.265
CLND-500-12-112 5.607 0.938 0.562 0.265
CLND-500-12-178 5.982 1.313 0.562 0.265

"A"

"C"

"A"

"C"

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIOR WRITTEN CONSENT

"D"

(2 PL.)

"D"

2.250

"G" TANG MARKING

ILSCO, CLND-500-516-34, 5/16 X 3/4, 500kcmil, 350/373 FLEX , DIE 87, UL, CSA

ILSCO, CLND-500-38-1, 3/8 X 1, DIE 87, 500 kcmil, 350/373 FLEX, UL, CSA

ILSCO, CLND-500-38-134, 3/8 X 1-3/4, 500 kcmil, 350/373 FLEX, DIE 87, UL, CSA

ILSCO, CLND-500-12-1, 1/2 X 1, 500kcmil, 350/373 FLEX, DIE 87, UL, CSA

ILSCO, C-500-12-114, 1/2 X 1-1/4, 500 kcmil, 350/373 FLEX, DIE 87, UL, CSA

TOP AND BOTTOM INK MARKINGS ARE IDENTICAL

DETAIL B

INK COLOR: BROWN

PER SPEC #: F921

1.062
